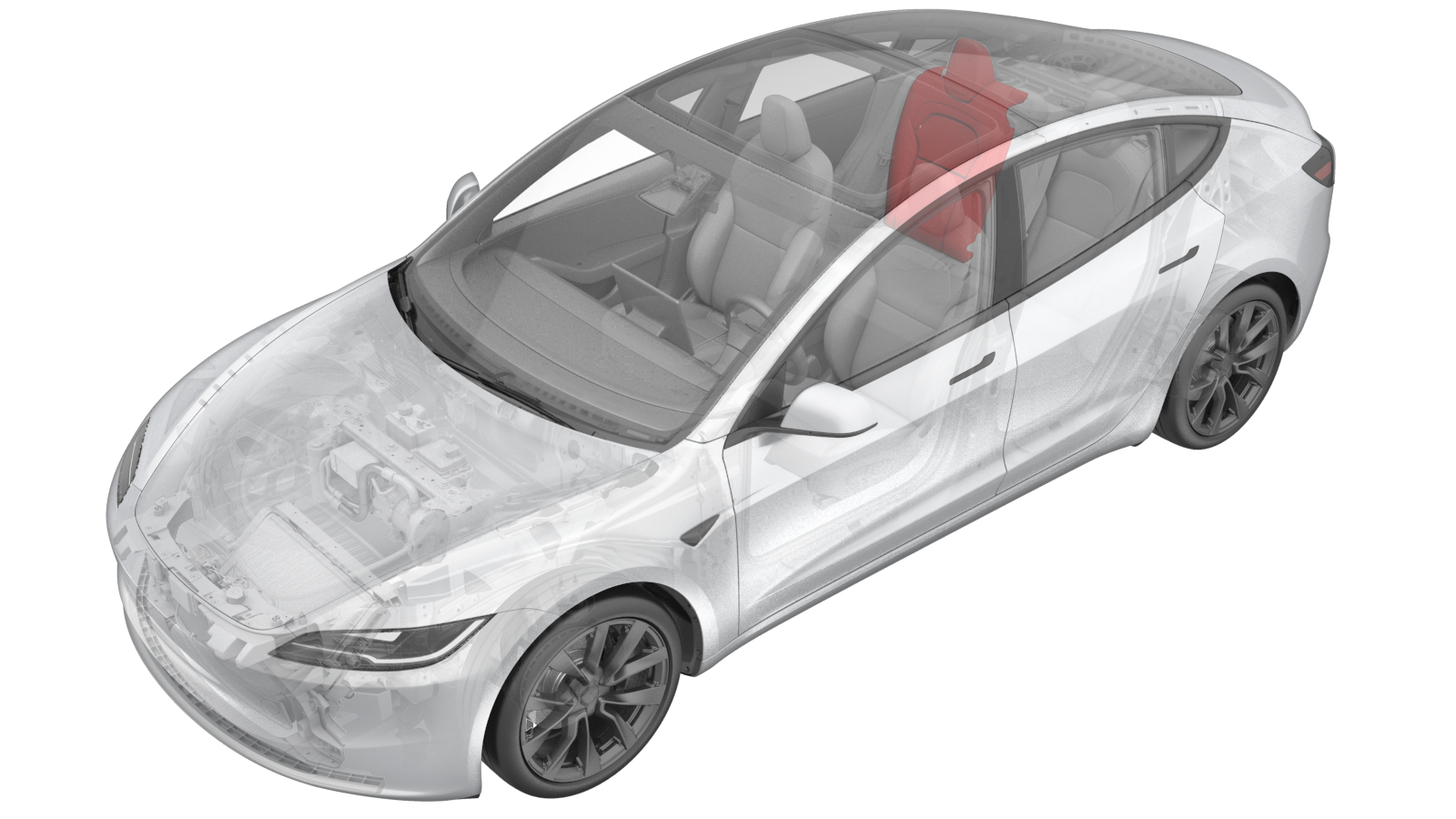

Foam - Seat Back - 2nd Row - RH (Remove and Replace)

Correction code 1308010052 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Handle - Seat Back - 2nd Row - RH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) hat attach the RH 2nd row seat back handle to the seat back frame
2 Nm (1.5 lbs-ft)
  • Torx T25 socket
  • Cordless Ratchet/Impact Driver
  • Ratchet/torque wrench
 Reuse

Remove

  1. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  2. Remove the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  3. Remove the RH 2nd row seat back. See Seatback - 2nd Row - RH (Remove and Replace).
  4. Remove the RH 2nd row seat back hinge bracket. See Bracket - Hinge - Seat Back - 2nd Row (Remove and Replace).
  5. Remove the RH 2nd row escutcheon. See Escutcheon - Seat Belt - Center (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    There are 2 clips in the RH 2nd row escutcheon.
  6. Remove the RH 2nd row seat back latch release bezel. See Bezel - Handle - Seat Back - 2nd Row - RH (Remove and Replace).
  7. Remove the RH 2nd row seat back cover. See Trim - Seat Back - 2nd Row - RH (Remove and Replace).
  8. Remove the bolts (x2) that attach the RH 2nd row seat back handle to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • Cordless Ratchet/Impact Driver
    • Ratchet/torque wrench

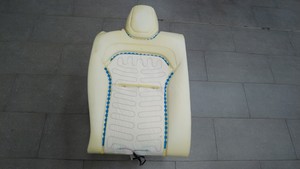

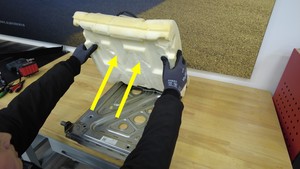

  9. Remove the RH 2nd row seat back foam from the seat back frame.

Install

  1. Install the RH 2nd row seat back foam to the seat back frame.
  2. Install the bolts (x2) that attach the RH 2nd row seat back handle to the seat back frame.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • Cordless Ratchet/Impact Driver
    • Ratchet/torque wrench
  3. Install the RH 2nd row seat back cover. See Trim - Seat Back - 2nd Row - RH (Remove and Replace).
  4. Install the RH 2nd row seat back latch release bezel. See Bezel - Handle - Seat Back - 2nd Row - RH (Remove and Replace).
  5. Install the RH 2nd row escutcheon. See Escutcheon - Seat Belt - Center (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    There are 2 clips in the RH 2nd row escutcheon.
  6. Install the RH 2nd row seat back hinge bracket. See Bracket - Hinge - Seat Back - 2nd Row (Remove and Replace).
  7. Install the RH 2nd row seat back. See Seatback - 2nd Row - RH (Remove and Replace).
  8. Install the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  9. Install the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
