Liftgate Trim - Lower (Model 3 Standard) (Remove and Replace)

Correction code 15110300102 15110300101 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-08: Released new procedure.

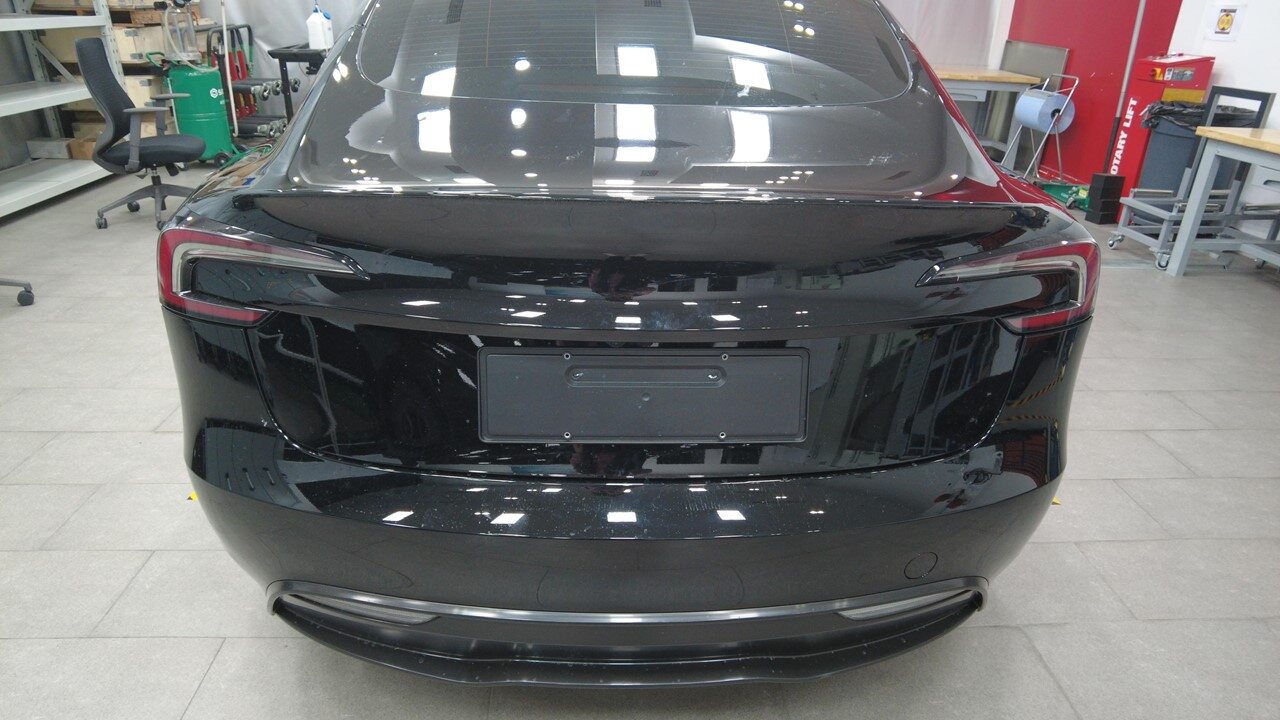

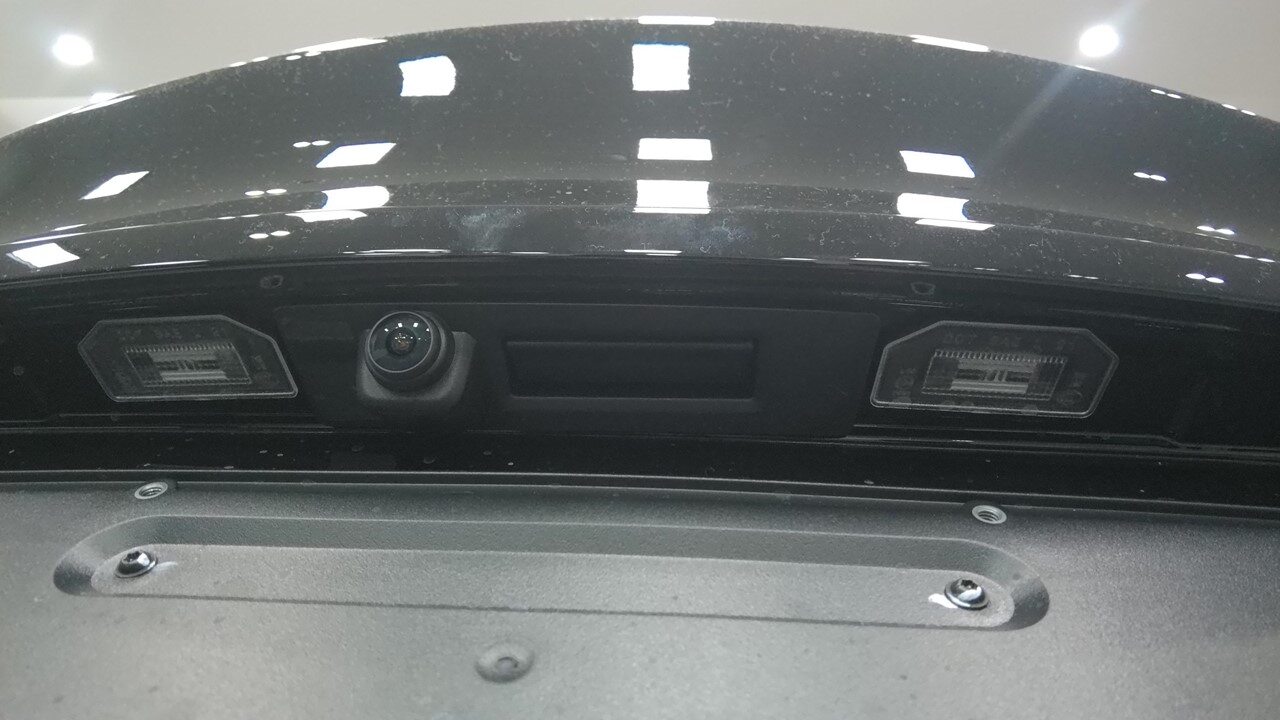

  1. Open trunk from exterior switch

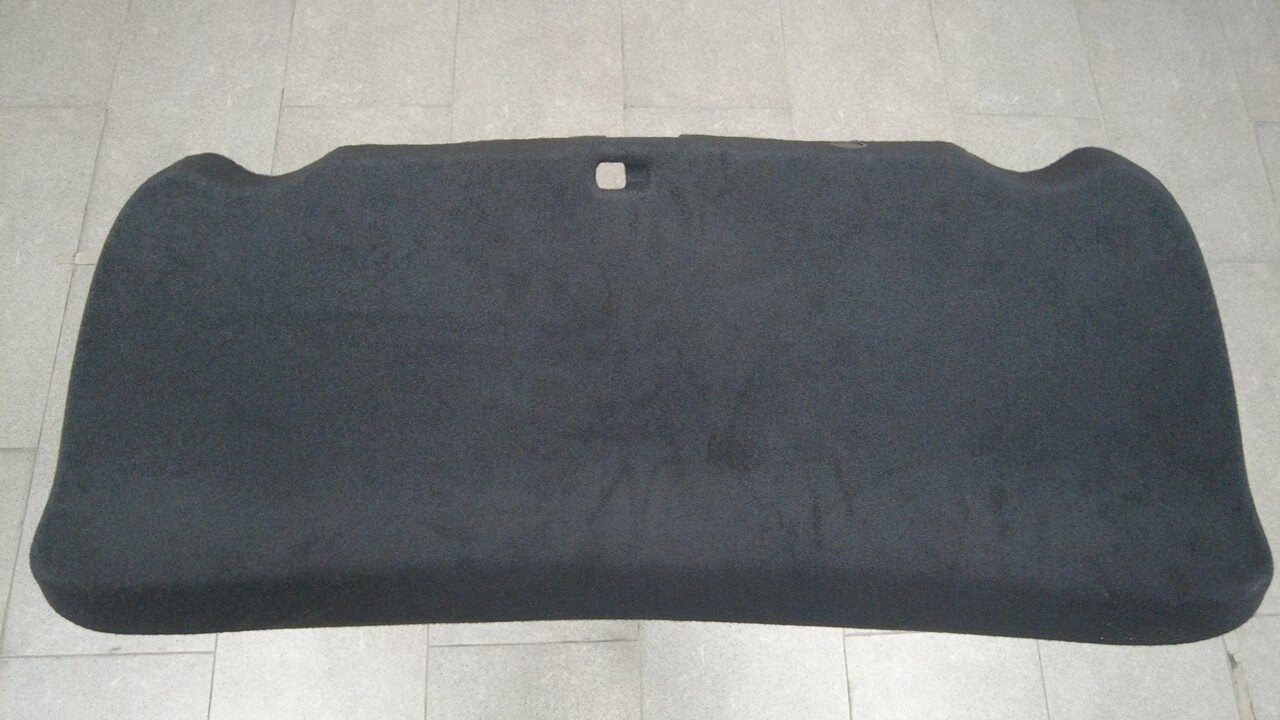

  2. Remove liftgate trim assembly
    Informational PurposesAn informational icon, calling your attention
    Note

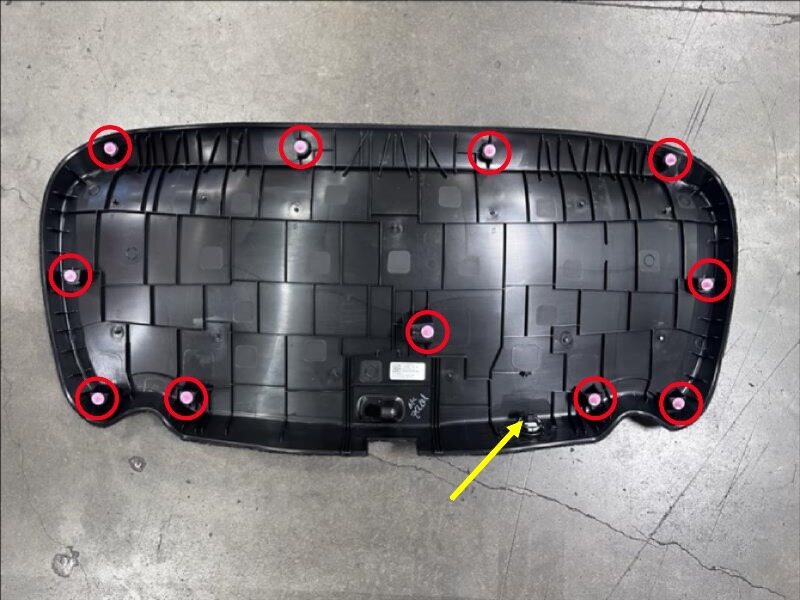

    11x clips, 1x connector, Release RH upper corner clip then work your way around trim, Remove any broken clips from trunk assembly, Support trim while disconnecting to avoid damage
  3. Install liftgate trim assembly
    Informational PurposesAn informational icon, calling your attention
    Note

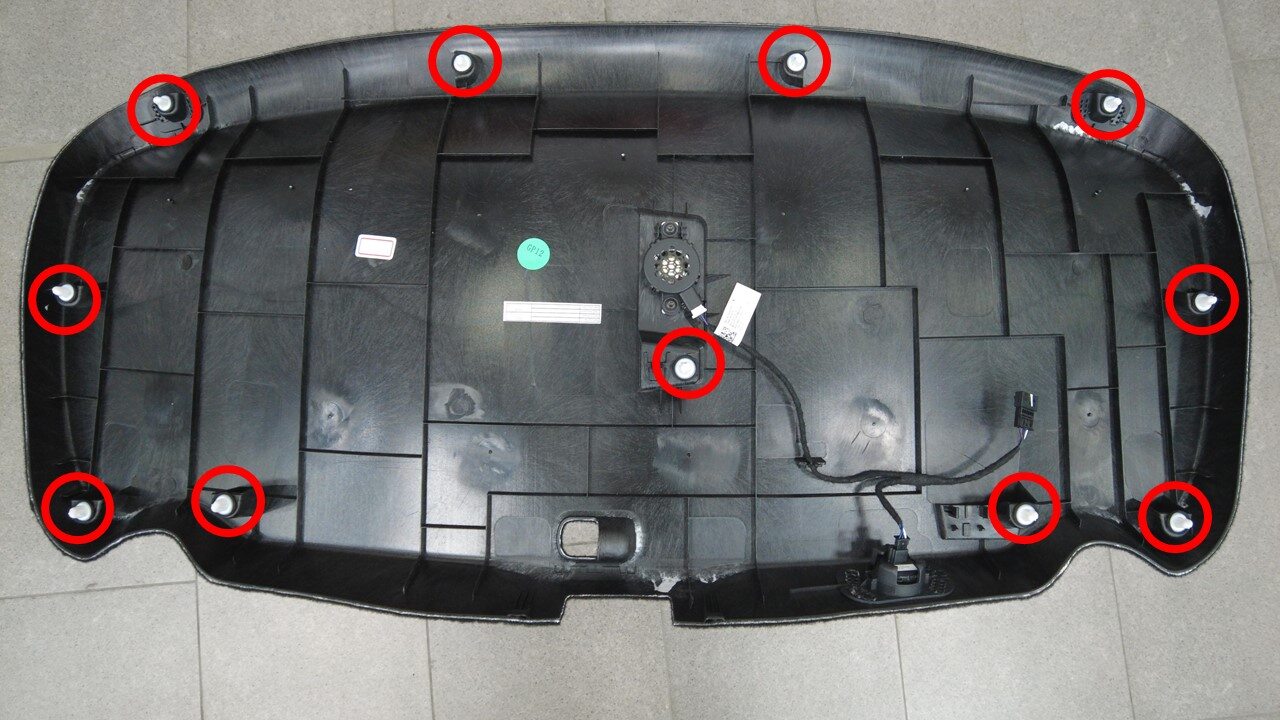

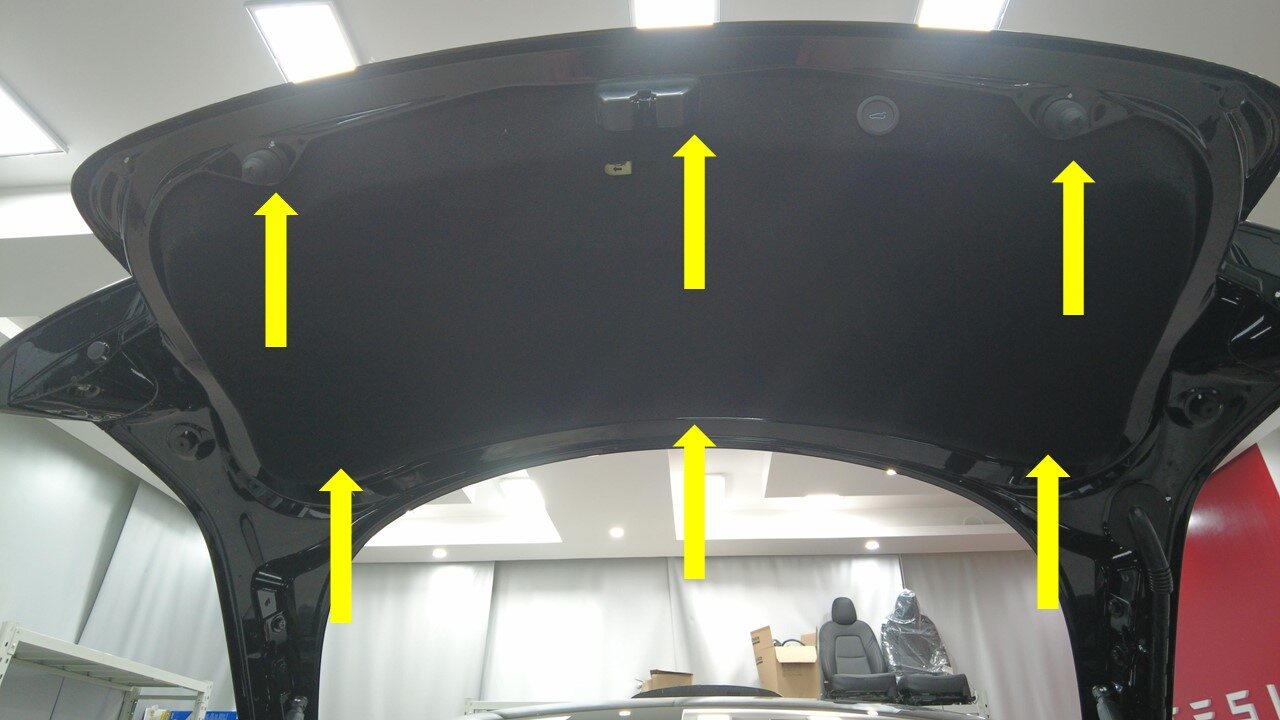

    1x connector, 11x clips, After connection is made, Align center tab then press on clips to secure them, Make sure bottom corner clips are fully seated

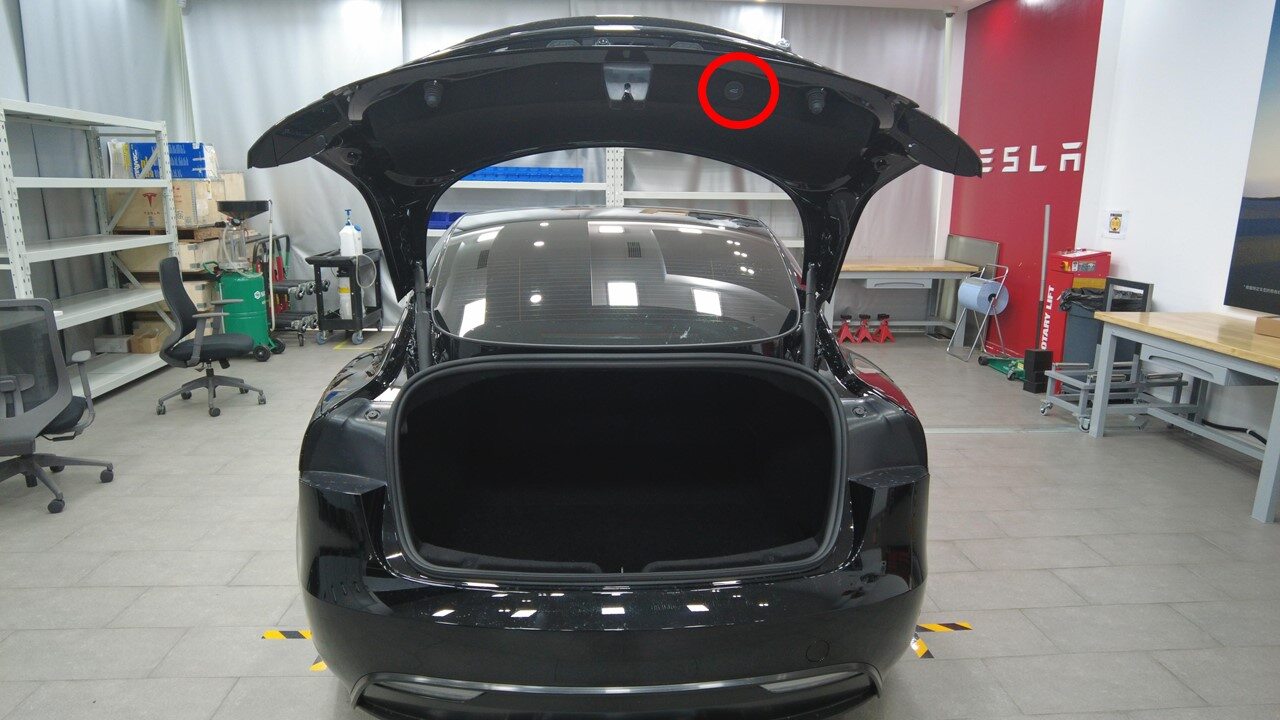

  4. Close trunk via interior switch
