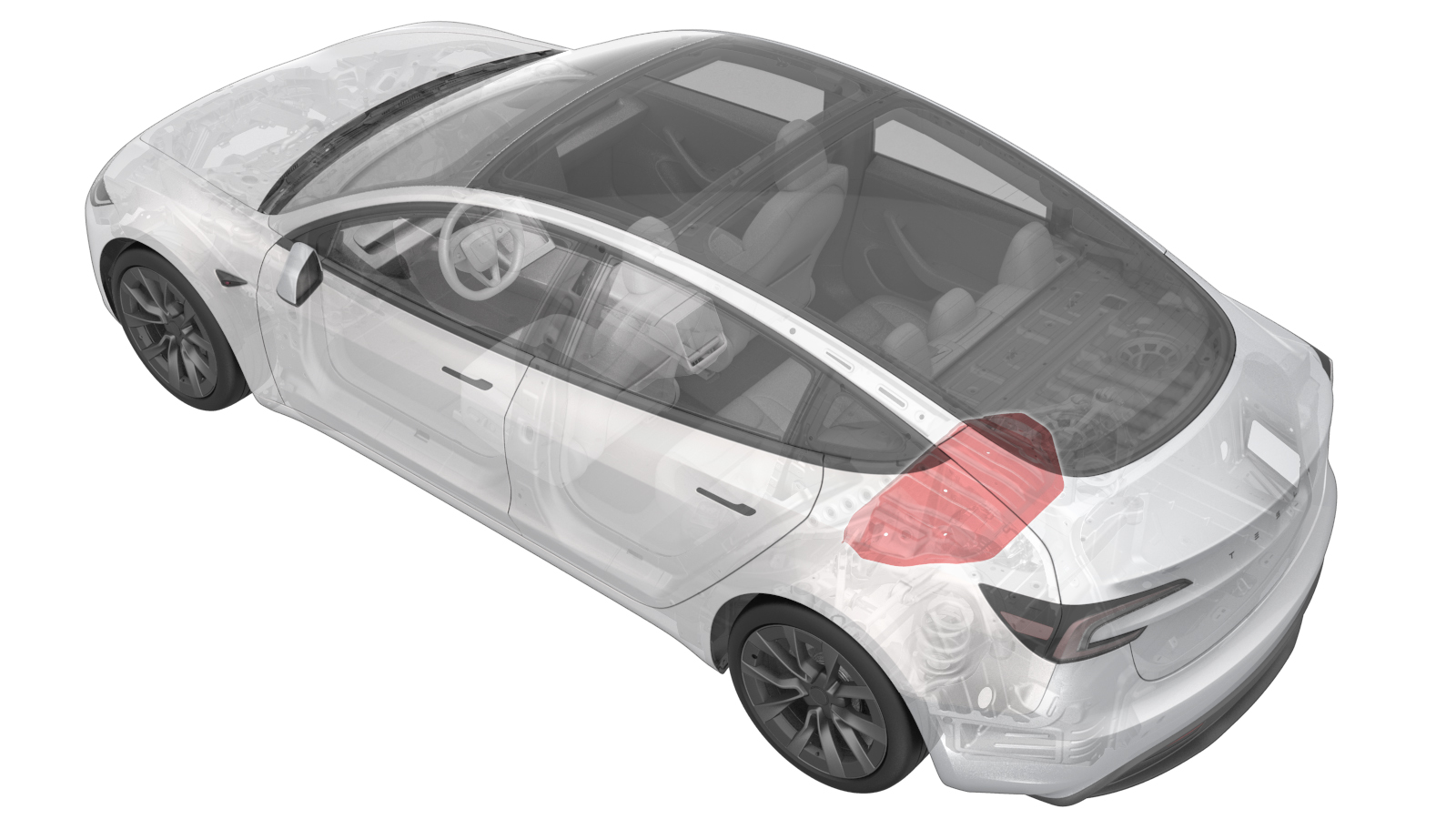

Noise Absorber - Motor Bay - Rear (Remove and Replace)

Correction code 1201010022 FRT 2.16 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Open all doors and lower all windows.
  3. Partially lower the rear subframe assembly. See Subframe Assembly - Rear (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    No need to remove the attached parts on the subframe.

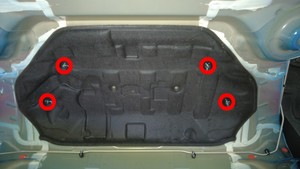

  4. Release the clips (x4) that attach the rear motor bay noise absorber to the vehicle, and then remove the rear motor bay noise absorber.

Install

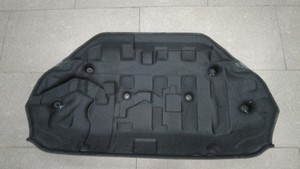

  1. Position the rear motor bay noise absorber to the vehicle, and then install the clips (x4) that attach the rear motor bay noise absorber to the vehicle.
  2. Re-install the rear subframe assembly. See Subframe Assembly - Rear (Remove and Replace).
  3. Raise all windows and close all doors.
