2023-10-17

Cap - Coolant Reservoir (Remove and Replace)

Correction code 1840010152 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).

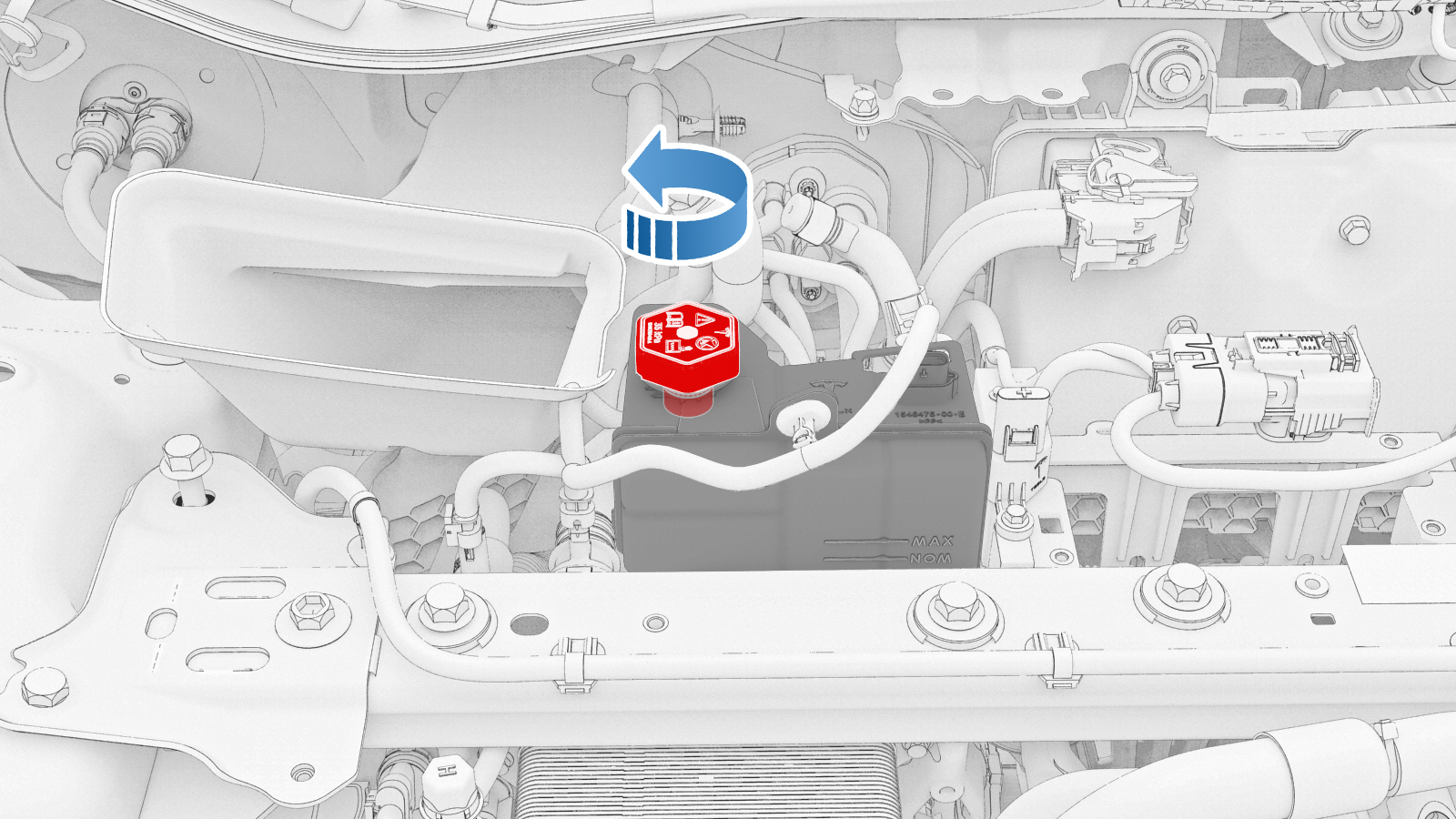

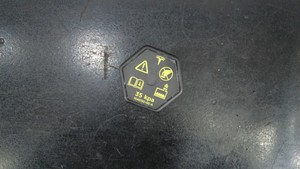

  2. Remove the coolant bottle cap from the coolant bottle assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Wear appropriate personal protective equipment (PPE) when performing this operation.
