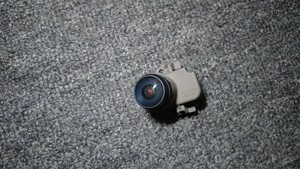

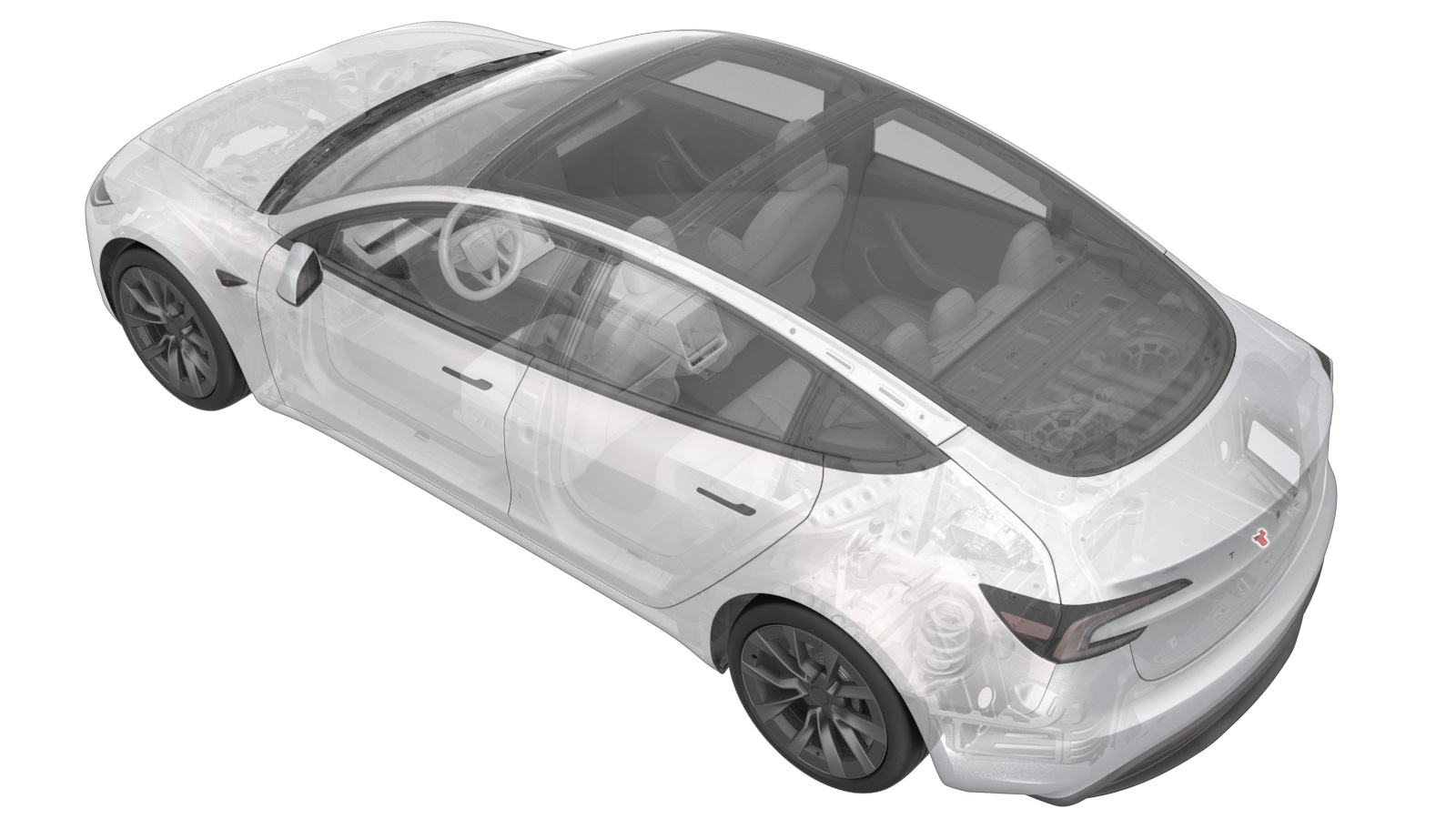

Camera - Rear Facing (Remove and Replace)

Correction code 1722050112 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-04-23: Updated camera update routine.
  • 2026-03-02: Updated calibration steps to use ServiceUI.
  • 2025-12-29: Added steps to remove the trunk latch cover.

Torque Specifications

Table 1. Torque Specifications: Camera - Rear Facing (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x2) that attach the rear facing camera to the handle and camera assembly
0.7 Nm (6 lbs-in)
  • SET, RATCHETING SCREWDRIVER, 55PC - PH1 Phillips Screwdriver
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Place the vehicle in Service Mode by using the touchscreen. See Service Mode.
  2. Remove the trunk latch cover. See Cover - Latch - Trunk (Remove and Replace).
  3. Remove the trunk exterior release handle and rear camera assembly. See Handle - Exterior Release - Trunk (Remove and Replace).

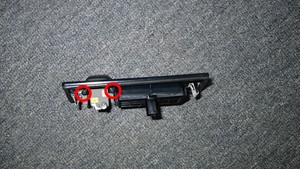

  4. Remove the screws (x2) that attach the rear facing camera to the handle and camera assembly, and then remove the camera.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SET, RATCHETING SCREWDRIVER, 55PC - PH1 Phillips Screwdriver
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

  1. Install the screws (x2) that attach the rear facing camera to the handle and camera assembly.
    0.7 Nm (6 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SET, RATCHETING SCREWDRIVER, 55PC - PH1 Phillips Screwdriver
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the trunk exterior release handle and rear camera assembly. See Handle - Exterior Release - Trunk (Remove and Replace).
  3. Install the trunk latch cover. See Cover - Latch - Trunk (Remove and Replace).
  4. Unlock the vehicle gateway. See Gateway Unlock.
  5. Run PROC_DAS_X_CLEAR-CALIBRATIONvia Service Mode:
    • Driver Assist ➜ Cameras ➜ Clear Camera Calibration
    • Driver Assist ➜ Driverless ➜ Clear Calibration
    via Toolbox:(link)
  6. Run PROC_DAS_X_UPDATE-CAMERAvia Service Mode:Driver Assist ➜ Cameras ➜ Update Cameravia Toolbox:(link)
    Informational PurposesAn informational icon, calling your attention
    Note
    This routine will be available in software version 2026.8.6 and later. Until then, run the following routines to update the camera:
    1. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox (Connect and Disconnect).
    2. In Toolbox, click the Actions tab, type "DAS" into the search field, click PROC_DAS_X_ENTER-CALIBRATION-MODEvia Toolbox:(link), click Run, and allow the routine to complete.
    3. Type "Side Repeater" into the search field, click PING-HTTP_DAS_L_REPEATER-CAMERA-SCRIPTvia Toolbox:(link), change the timeout to 100, click Run, and allow the routine to complete.
    4. Type "DAS" into the search field, click PROC_DAS_X_EXIT-CALIBRATION-MODEvia Service Mode Plus:Driver Assist ➜ Cameras ➜ Exit Factory Calibration Modevia Toolbox:(link), click Run, and allow the routine to complete.
    5. Disconnect the laptop from the vehicle.
  7. Press and hold the Exit Service Mode button on the UI to exit Service Mode Plus.
  8. Verify that the rear facing camera works properly.
  9. Raise the LH front window and close the LH front door.
