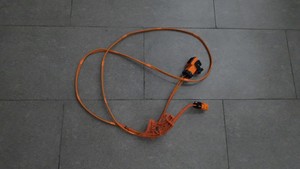

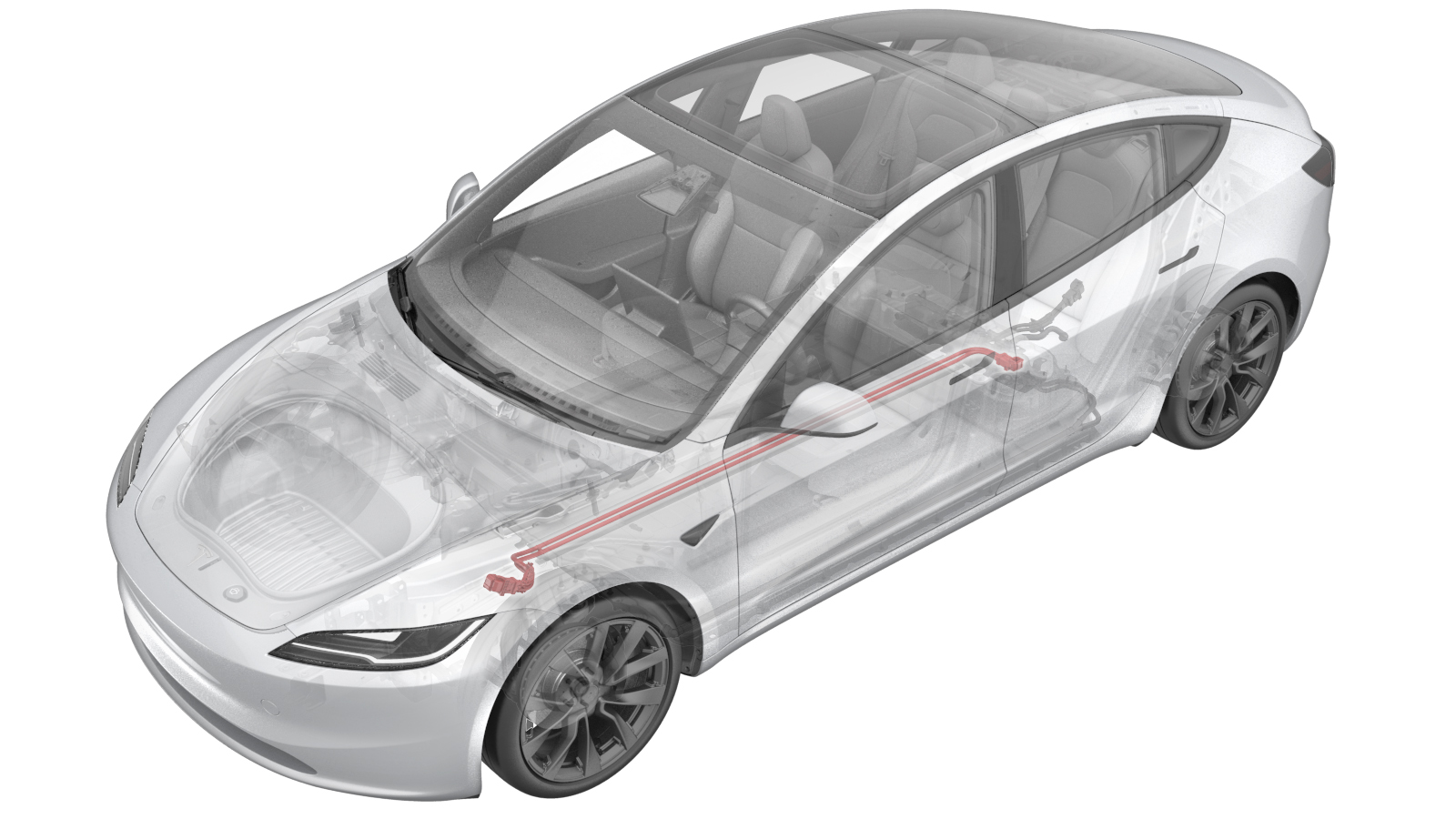

HV Harness - Ancillary Bay (Remove and Replace)
Correction code
4450010022
FRT
1.08
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Equipment:
- 1140311-00-A Lever Lock, HV Connector, Model 3
Remove
-
Refer to the procedure to
remove the HV battery center rail ski for dual-motor vehicles. See Ski Cover - HV Battery - Center (Remove and Replace).
Install
- Refer to the procedure to install the HV battery center rail ski for dual-motor vehicles. See Ski Cover - HV Battery - Center (Remove and Replace).
