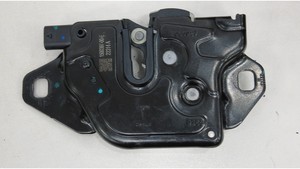

Hood Latch (Remove and Replace)

Correction code 1133040202 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-03-18: Updated the removal method.
  • 2026-01-27: Update procedure to perform the frunk latch metric reset routine.

Torque Specifications

Table 1. Torque Specifications: Hood Latch (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the hood latch actuator to the front end carrier
8 Nm (5.9 lbs-ft)
  • 10 mm socket
 Reuse

Remove

Informational PurposesAn informational icon, calling your attention
Note
If the hood latch does not open electronically, use the manual front trunk release tool to open the hood.
  • 1130534-00-ATOOL, FRUNK RELEASE, MANUAL, MODEL 3
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
When using the manual front trunk release tool in Mobile Service, raise the vehicle using mini ramps and verify stability of the vehicle.
  1. Remove the access panel. See Cover - Hood Latch (Remove and Replace).

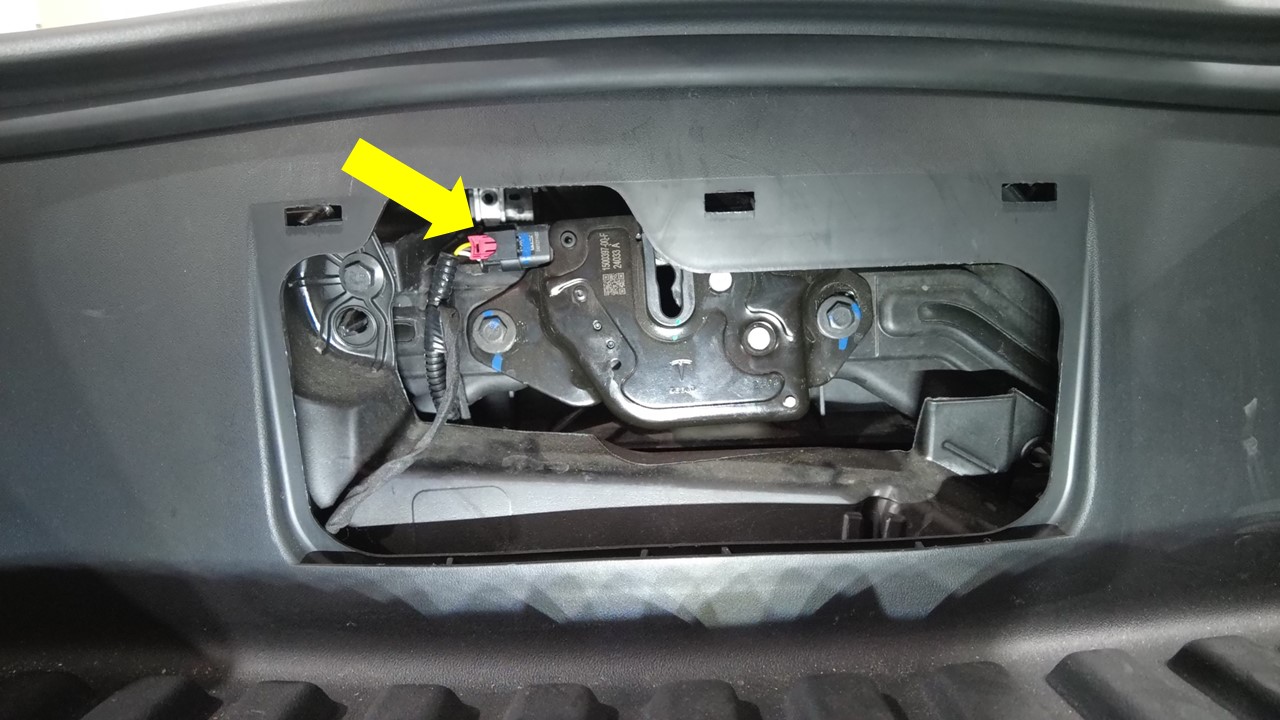

  2. Disconnect the electrical connector from the hood latch actuator.
    Informational PurposesAn informational icon, calling your attention
    Note
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling the main body of the connector to fully disconnect it.

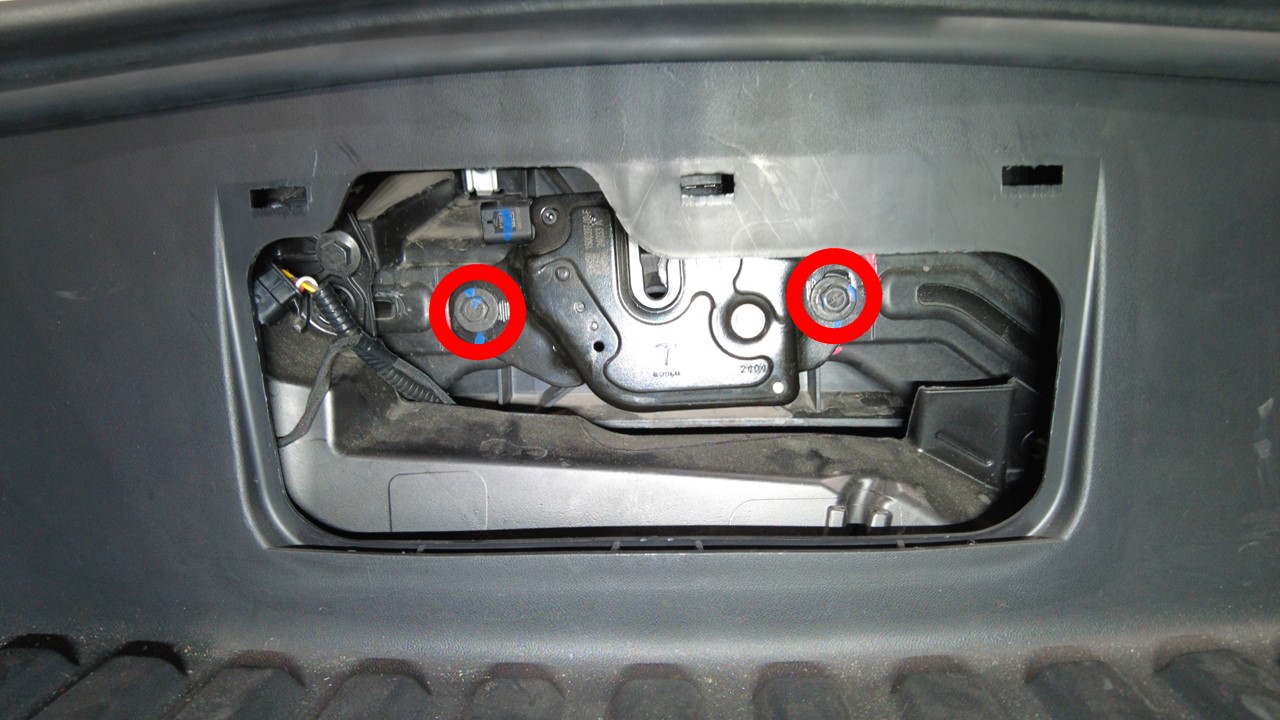

  3. Remove the bolts (x2) that attach the hood latch actuator to the front end carrier.
    Informational PurposesAn informational icon, calling your attention
    Note
    Mark the latch actuator location on the front end carrier.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

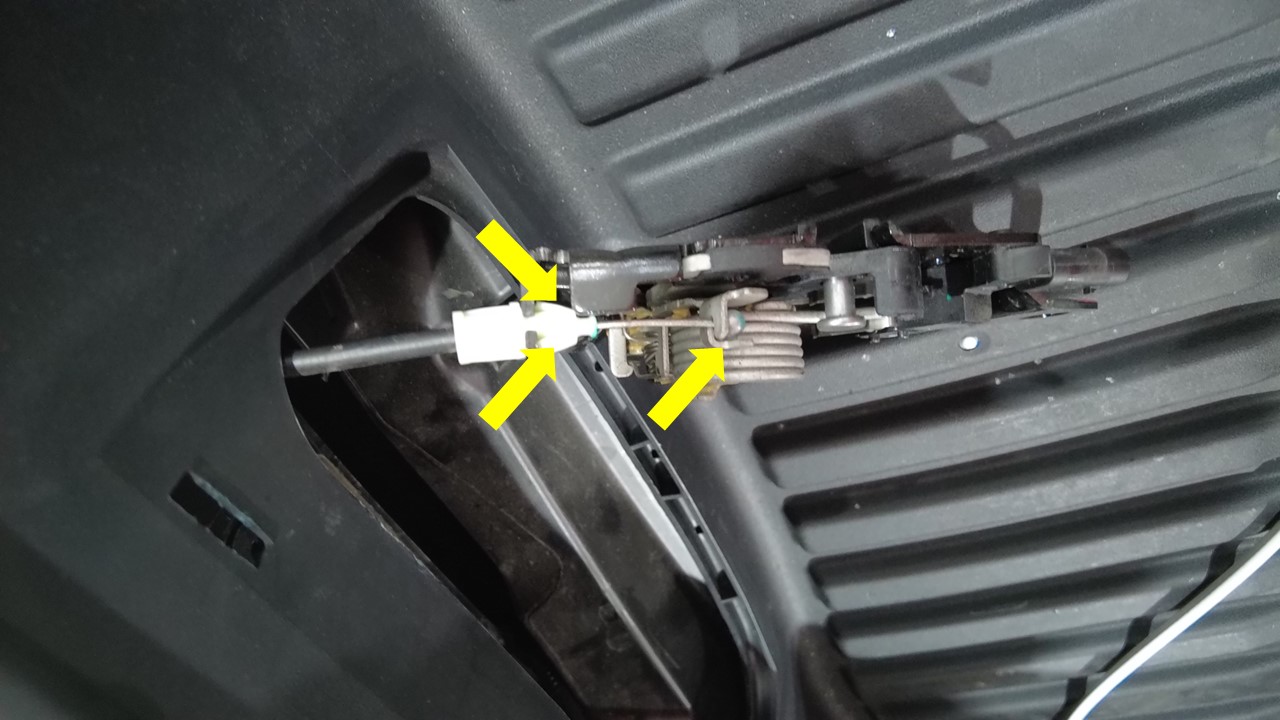

  4. Release the hood latch actuator cable from the hood latch, and then remove the actuator from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the clip before removing the actuator cable from the latch arm.

Install

  1. Install the hood latch actuator cable to the hood latch.
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure the cable end to the latch arm, and then attach the clip.
  2. Install the bolts (x2) that attach the hood latch actuator to the front end carrier, but do not fully torque the bolts, and adjust the latch actuator position based on marks.
  3. Connect the electrical connector to the hood latch actuator.
  4. Close the hood and verify alignment is within specification. If necessary, open the hood and repeat step 1 and step 1 until alignment is satisfactory.
  5. Fully tighen the bolts.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  6. Install the access panel. See Cover - Hood Latch (Remove and Replace).
  7. Unlock the vehicle gateway. See Gateway Unlock.
  8. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): PROC_VCFRONT_X_RESET-FRUNK-OPEN-FAIL-METRICvia Service Mode Plus:Closures ➜ Frunk ➜ Frunk Latch Metric Resetvia Toolbox:(link)
  9. Exit Service Mode. See Service Mode.
  10. Raise the LH front window and close the LH front door.
