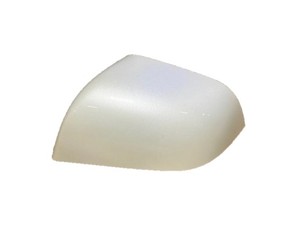

Skull Cap - Door Mirror - LH (Remove and Replace)

Correction code 1209010012 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

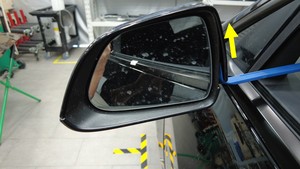

  1. Use a plastic trim tool to release the front inboard edge of the door mirror skull cap.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

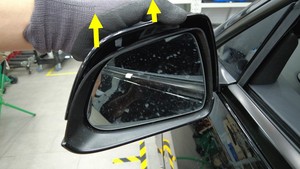

  2. Lift the door mirror skull cap upwards to release the remaining tabs that attach it to the door mirror assembly.
  3. Remove the door mirror skull cap from the door mirror assembly.

Install

  1. Position the door mirror skull cap over the door mirror assembly, and align the skull cap tabs to the door mirror assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

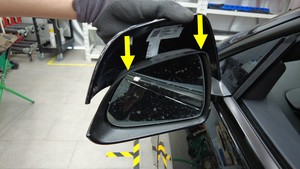

  2. Push down on the top of the door mirror skull cap to fasten the tabs that attach it to the door mirror assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press at the inside and outside edges of the skull cap, until an audible click is heard.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the gaps between the inner perimeter of the skull cap and door mirror assembly are within specification.
