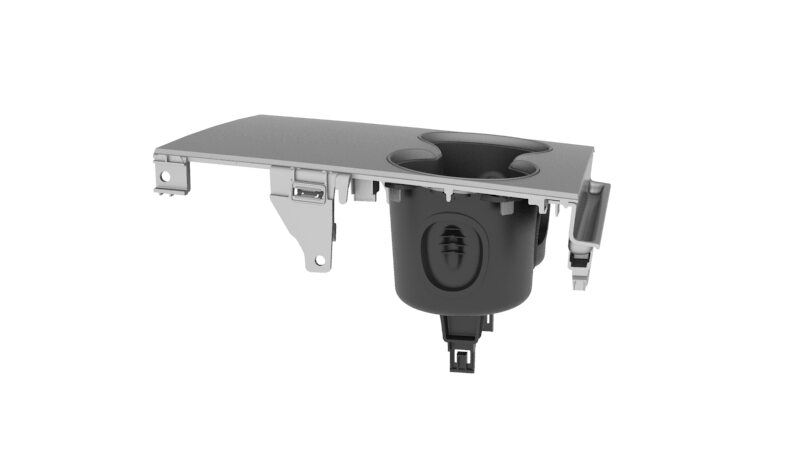

Cup Holder Panel Assembly - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190401602 15190401601 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.
  1. Remove the LH and RH hockey sticks from the center console. See Hockey Stick - Center Console - LH (Model 3 Standard) (Remove and Replace).

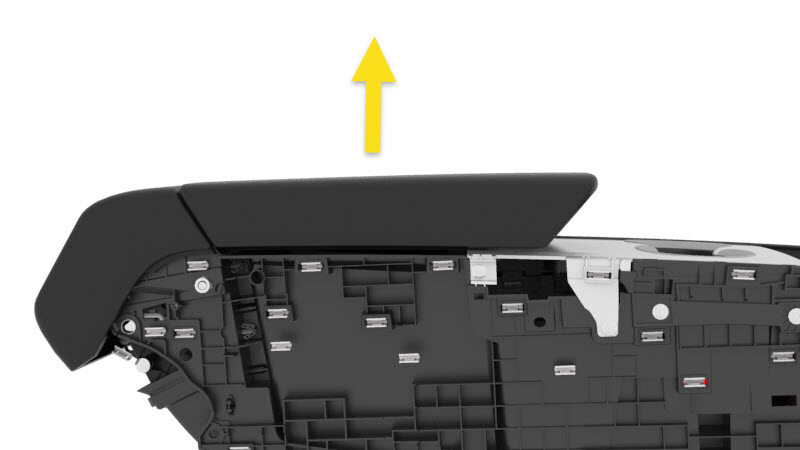

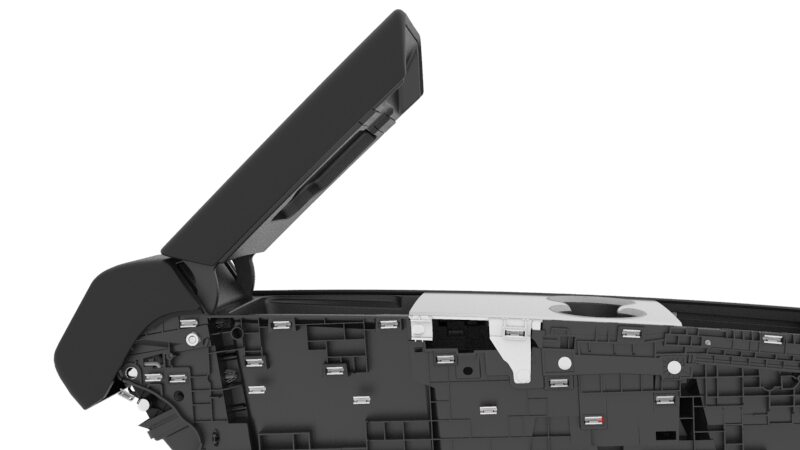

  2. Lift center console arm rest

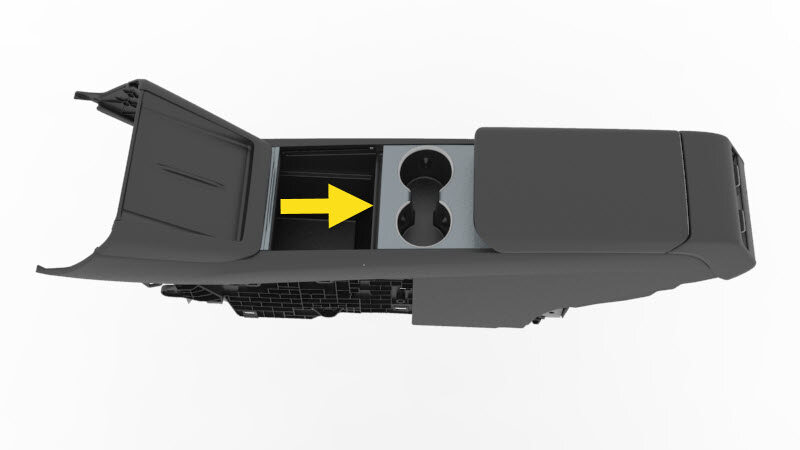

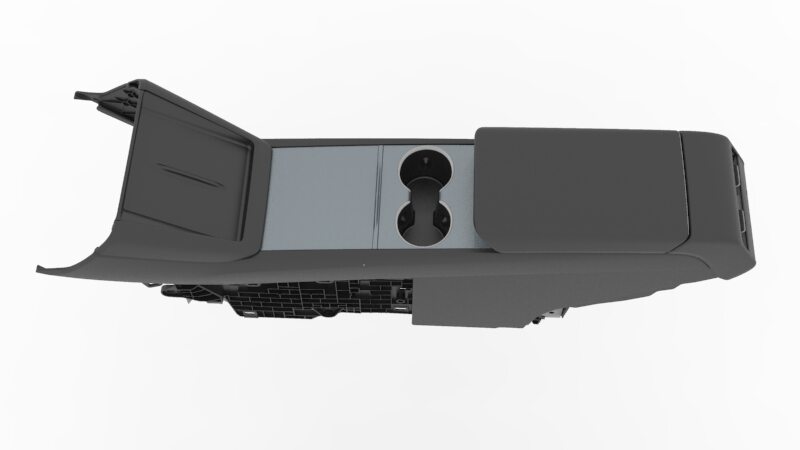

  3. Open sliding door
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully open sliding door

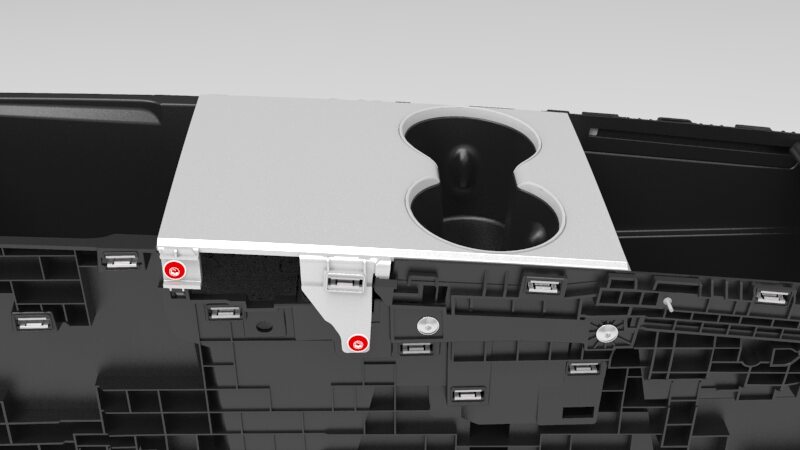

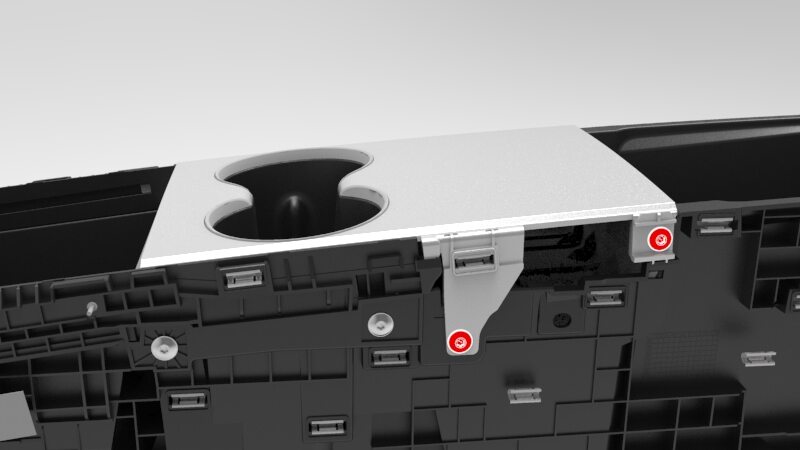

  4. Remove the screws securing both sides of cup holder panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, T20, 1 Nm

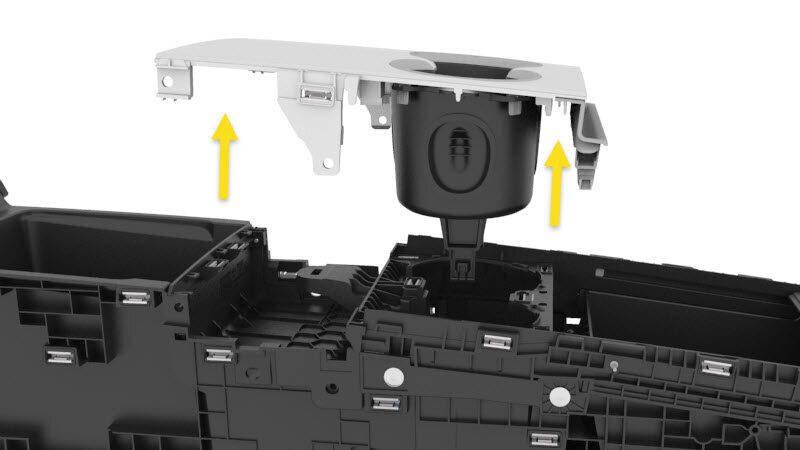

  5. Separate cup holder panel from sliding door assembly
    Informational PurposesAn informational icon, calling your attention
    Note

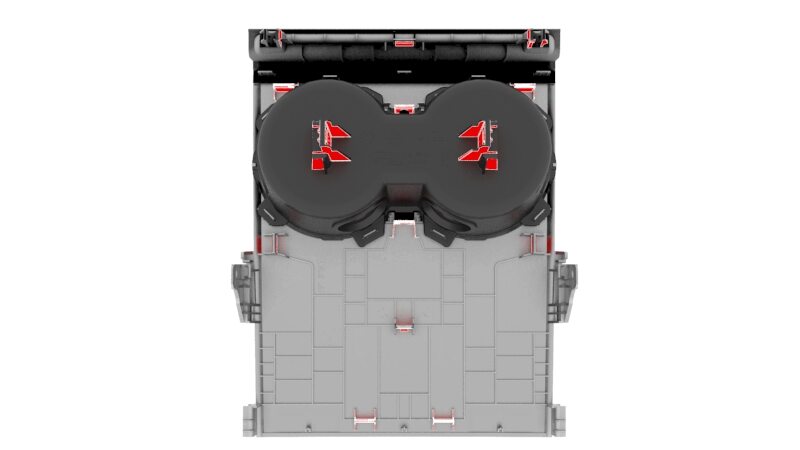

    13x tabs
  6. Install cup holder panel assembly into sliding door assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    13x tabs
  7. Install screws securing both sides of cup holder panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    12x screws, T20, 1 Nm

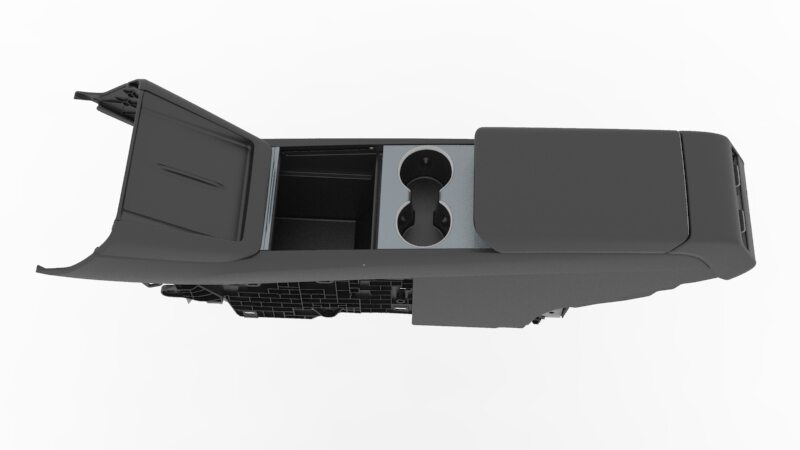

  8. Close center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully close sliding door panel

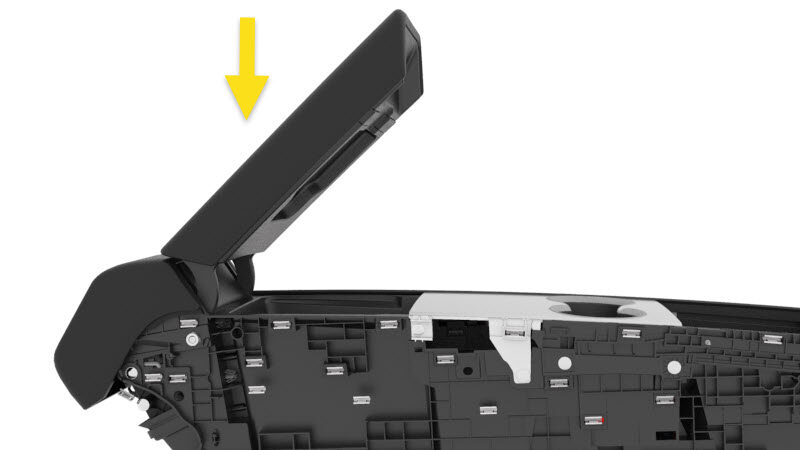

  9. Close center console arm rest
  10. Install the LH and RH hockey sticks onto the center console. See Hockey Stick - Center Console - LH (Model 3 Standard) (Remove and Replace).
