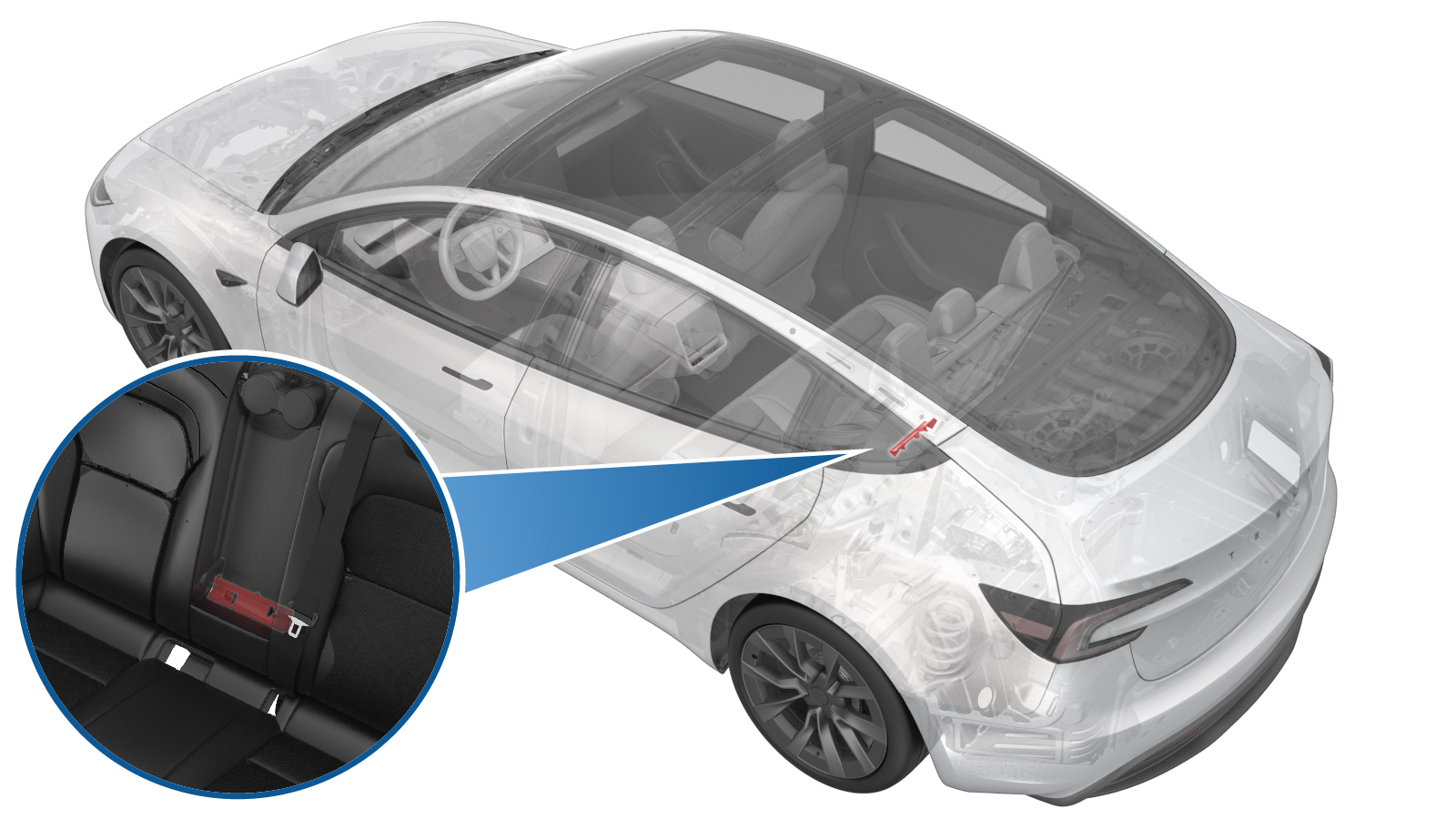

Trim - Lower Closeout - Armrest - 2nd Row (Remove and Replace)
Correction code
1305011312
FRT
0.42
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).
-

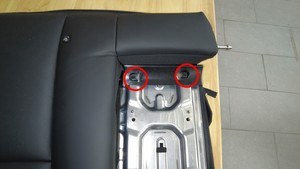

Release the clips (x2) that
attach the lower closeout to the LH 2nd row seat back, and then remove the
closeout.
Install
-

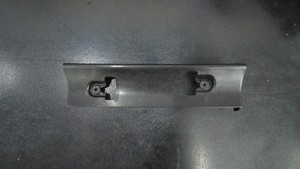

Secure the clips (x2) and install the lower closeout to the LH 2nd row seat
back.
- Install the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).
