Pivot Sleeve - Seat Back - 2nd Row - Center (Remove and Replace)
Correction code
1305012212
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the 2nd row LH seat back assembly. See Seatback - 2nd Row - LH (Remove and Replace).
-

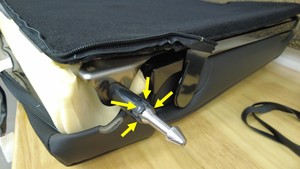

Release the tabs (x4) that attach the
pivot sleeve to the seat back assembly pivot pin, and then remove the sleeve from the
pin.
Install
-

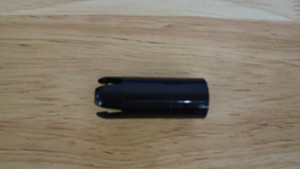

Install the pivot sleeve onto the seat
back assembly pivot pin and slide it inward until the tabs (x4) are fully seated.
- Install the 2nd row LH seat back assembly. See Seatback - 2nd Row - LH (Remove and Replace).
