Isolator - Rear Spring - Lower - LH (Remove and Replace)
Correction code
3115020022
FRT
0.72
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the LH rear wheel. See Wheel Assembly (Remove and Install).
- Remove the rear aero shield panel. See Panel - Aero Shield - Rear (Remove and Replace).
- Remove the LH rear suspension cover. See Cover - Rear Suspension - LH (Remove and Replace).
- Remove the LH rear suspension spring. See Coil Spring - Rear - LH (Dual Motor) (Remove and Replace).
-

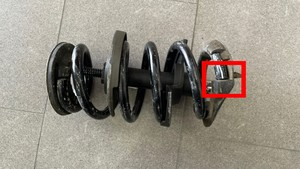

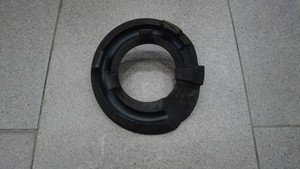

Remove the LH rear
suspension spring lower isolator.
Install
-
Install the LH rear
suspension spring lower isolator to the spring.

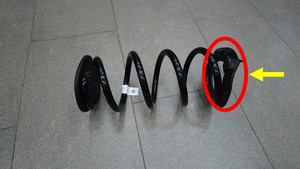

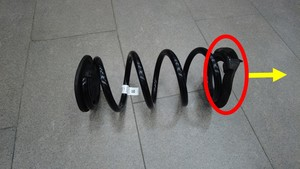

NoteAlign the stop of the spring lower isolator to the end of the spring, as illustrated.
- Install the LH rear suspension spring. See Coil Spring - Rear - LH (Dual Motor) (Remove and Replace).
- Install the LH rear suspension cover. See Cover - Rear Suspension - LH (Remove and Replace).
- Install the rear aero shield panel. See Panel - Aero Shield - Rear (Remove and Replace).
- Install the LH rear wheel. See Wheel Assembly (Remove and Install).
