Correction code 3901010062 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

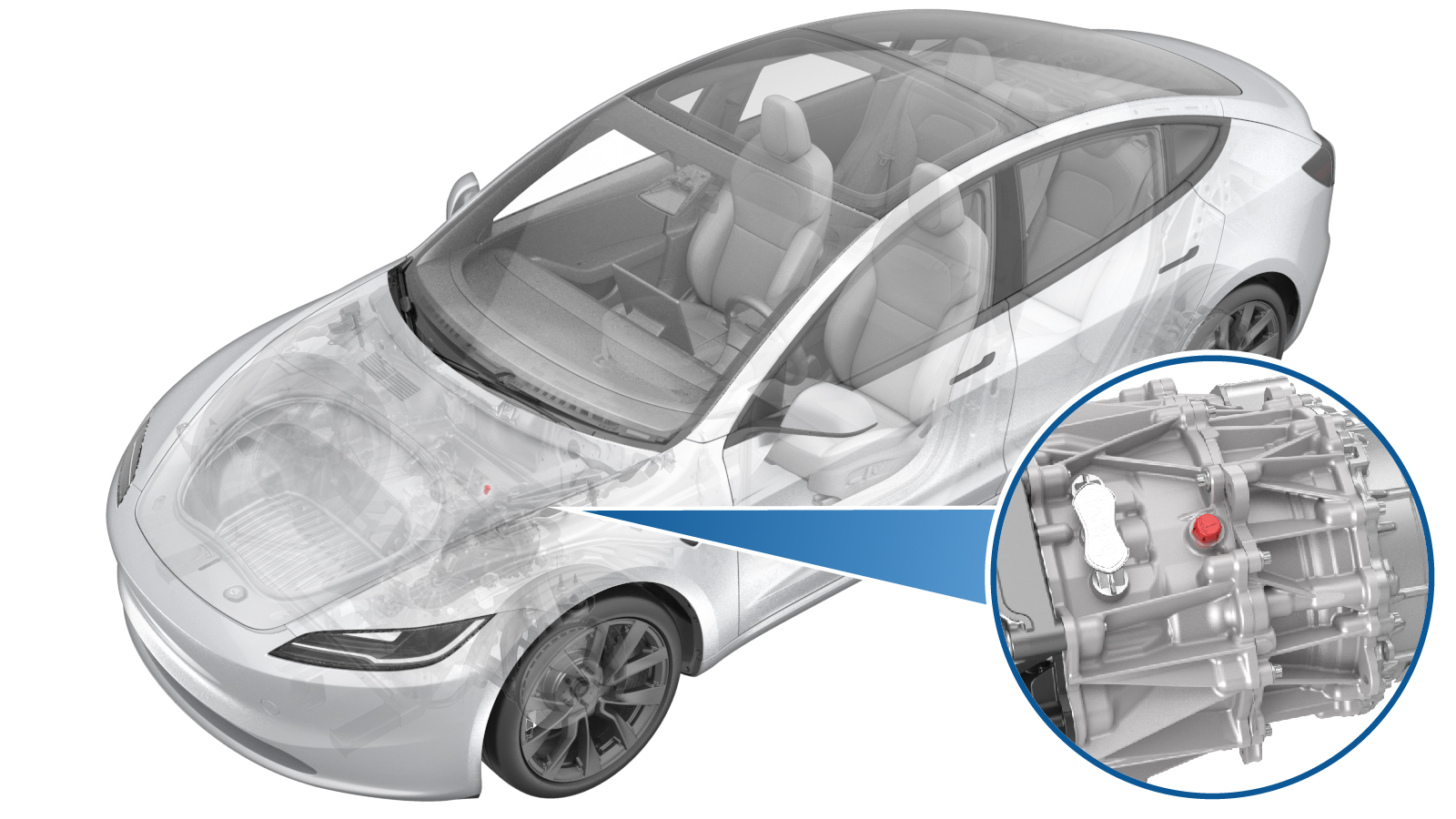

Table 1. Torque Specifications: Breather Assembly - Front Drive Unit (3DU) (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

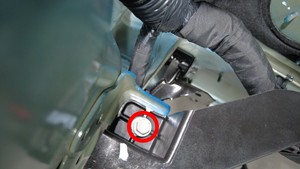

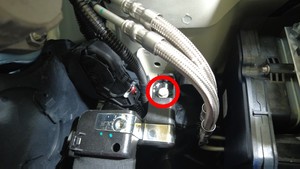

Bolts that attach the front harness bracket to the vehicle	9 Nm (6.6 lbs-ft)	Ratchet/torque wrench 10 mm socket 2 in extension	Reuse

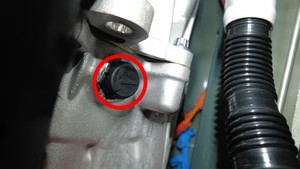

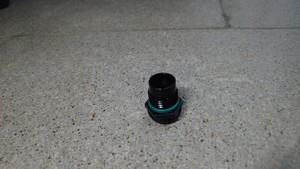

Front drive unit breather	5 Nm (3.7 lbs-ft)	Ratchet/torque wrench ¼ in to 3/8 in adapter 1/2 in to 3/8 in adapter 22 mm socket 3 in extension	Replace
