Actuator - Lower Mode - HVAC (Remove and Install)

Correction code 1810050101 FRT 2.58 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-11-02: Simplified procedure.
  • 2026-07-02: Released new procedure.

Torque Specifications

Table 1. Torque Specifications: Actuator - Lower Mode - HVAC (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes

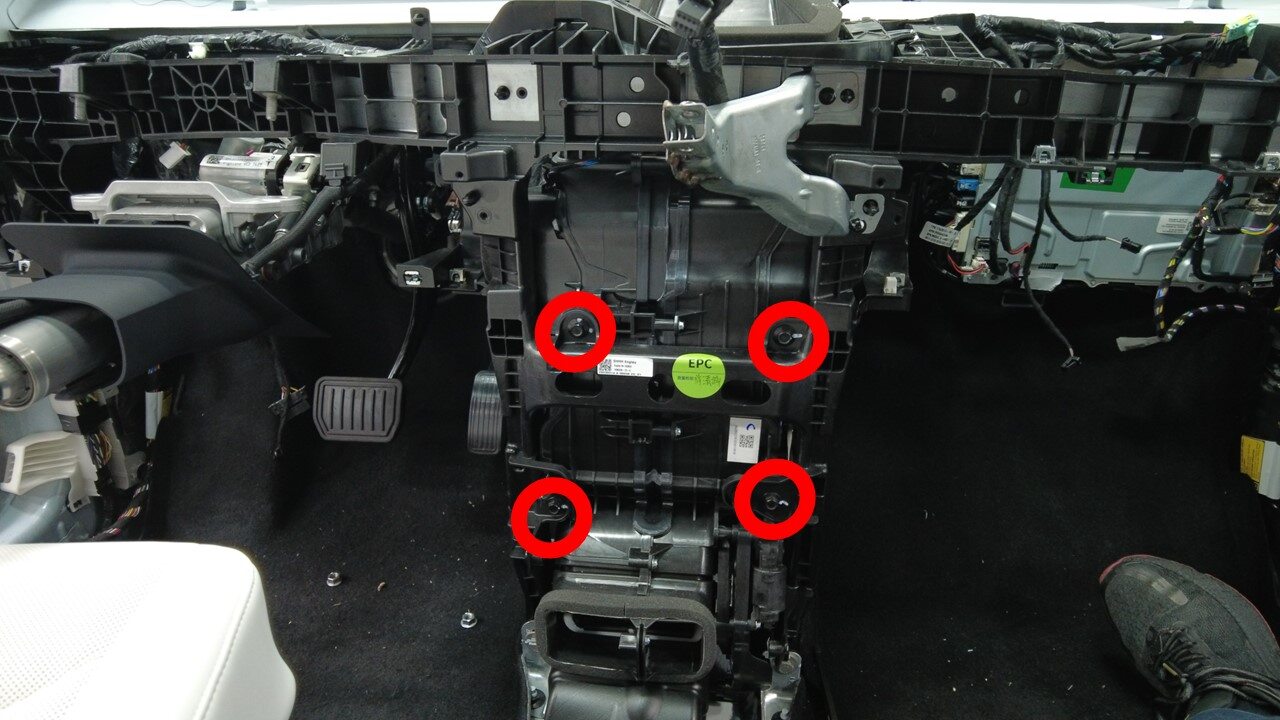

Bolts (x4) that attach the cross car beam to the HVAC assembly
5.5 Nm (4.1 lbs-ft)
  • 10 mm deep socket
Reuse

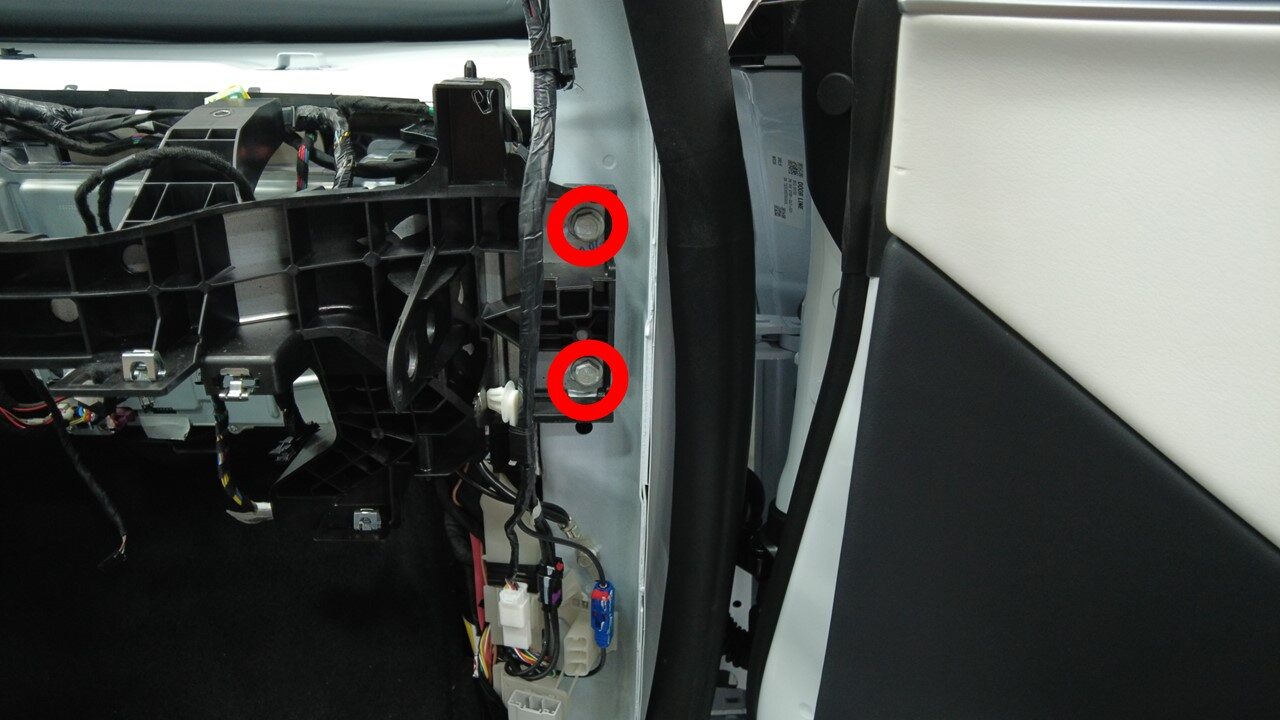

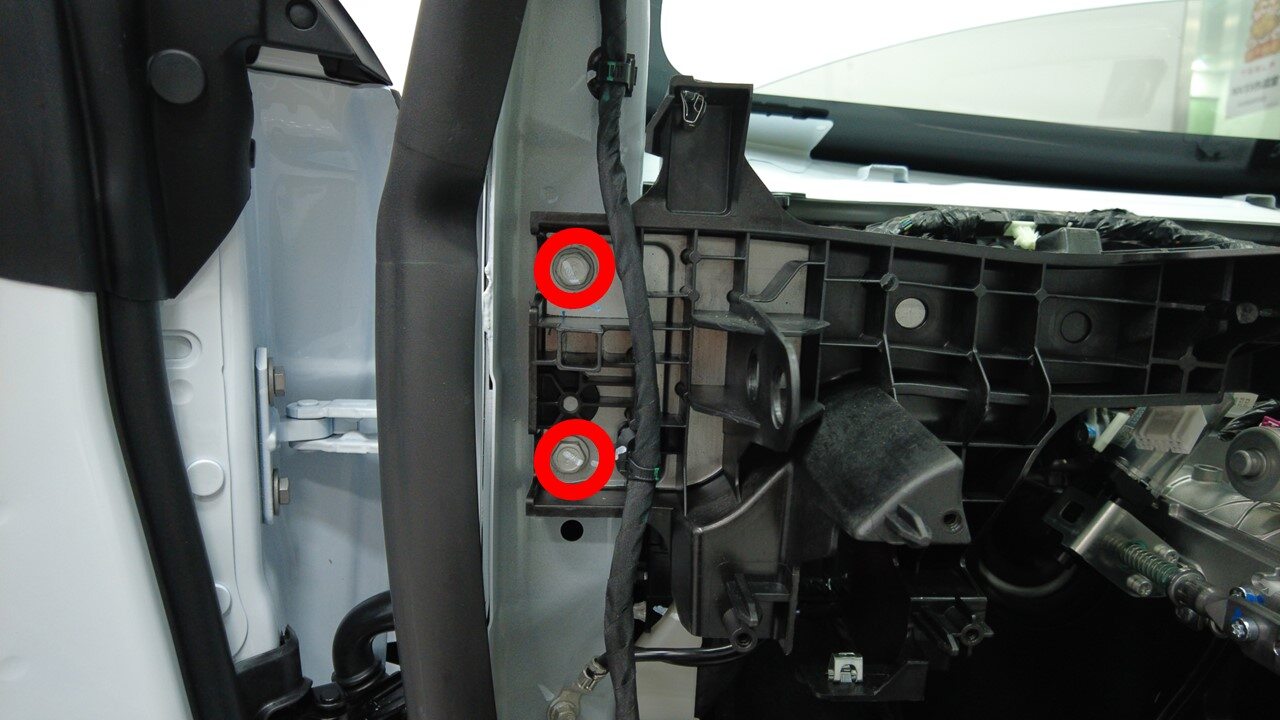

Bolts (x2) that attach the cross car beam to the body
25 Nm (18.4 lbs-ft)
  • 13 mm socket
Reuse
Screws (x2) that secure the lower mode actuator
1.3 Nm (1.0 lbs-ft)
  • 6 mm socket
Reuse

Remove

  1. Remove the center console assembly. See Center Console (Remove and Replace).

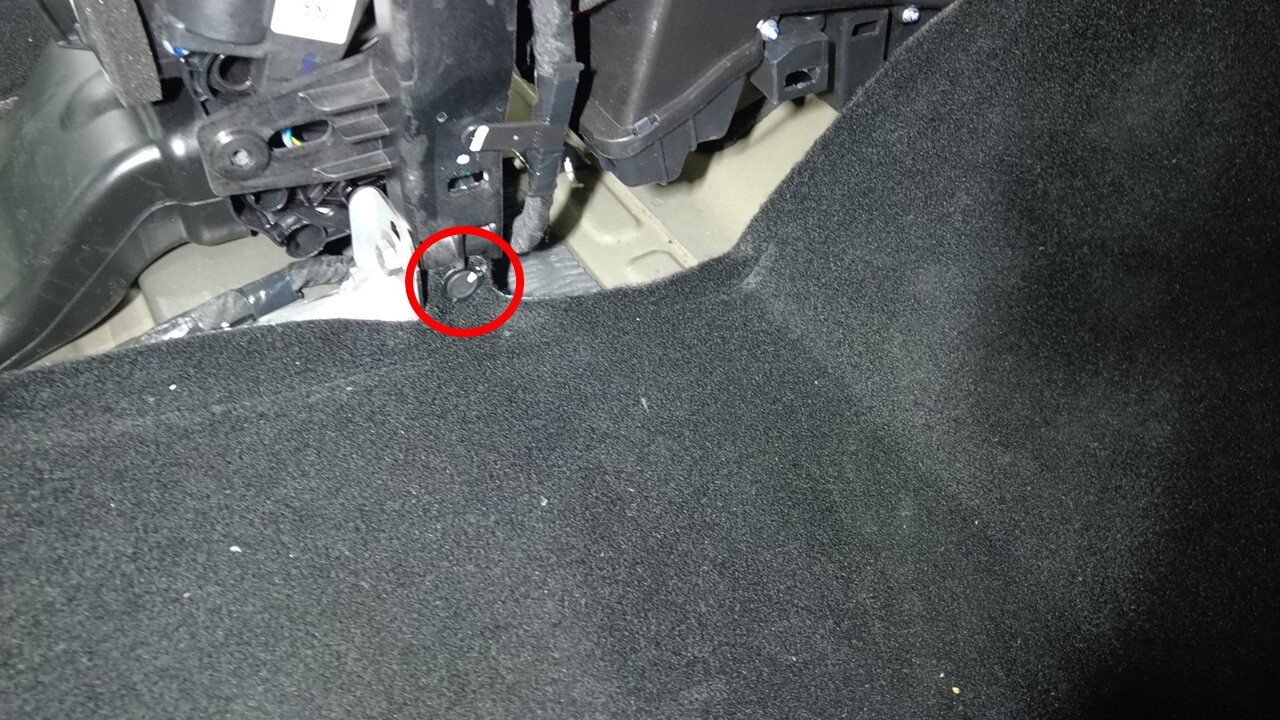

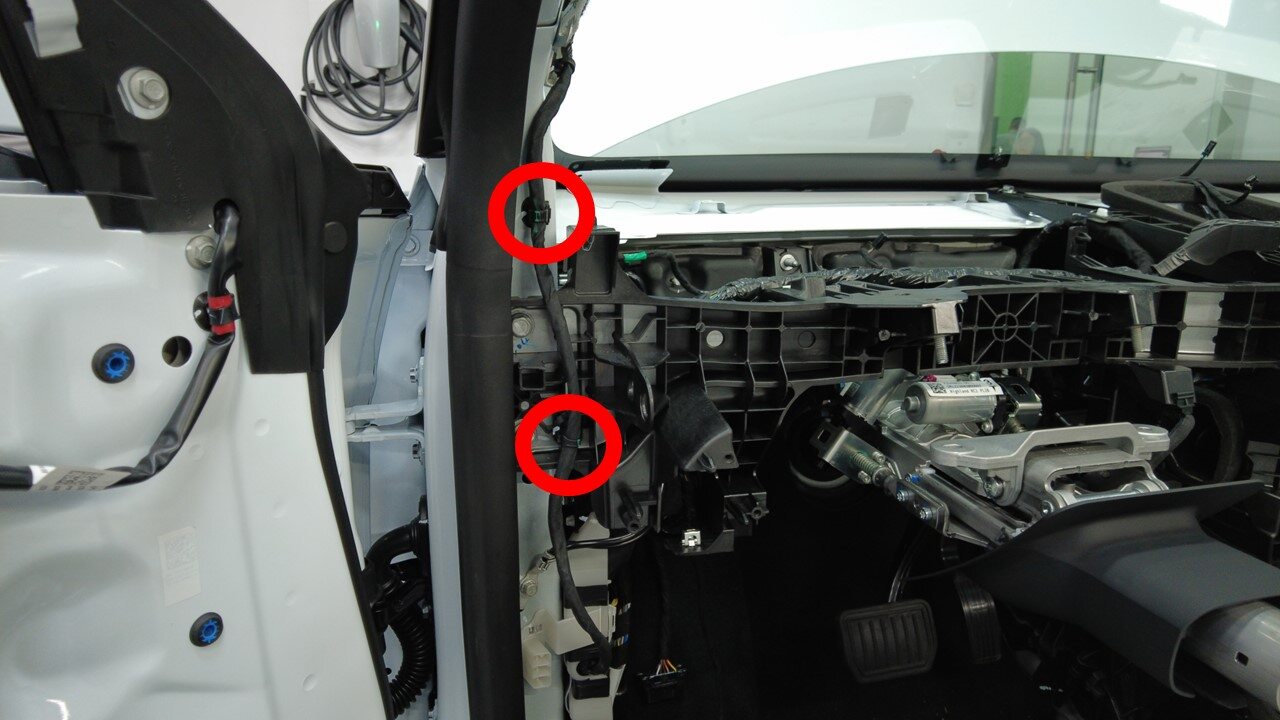

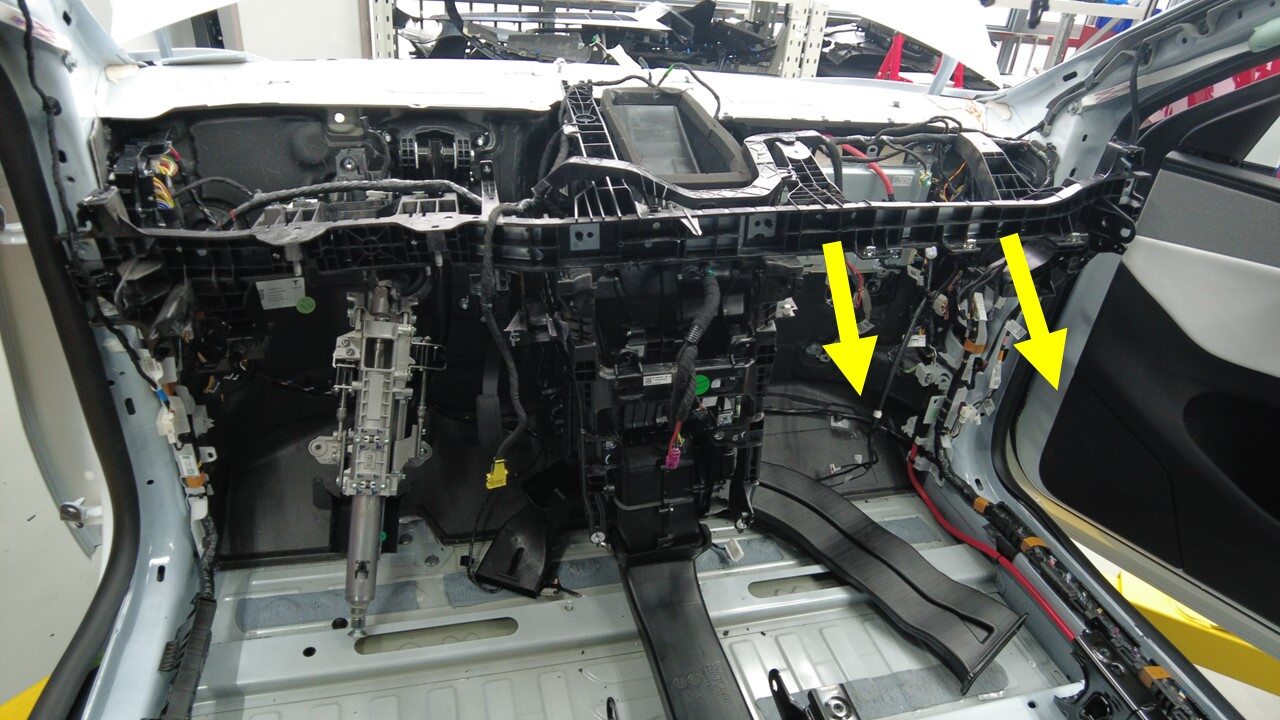

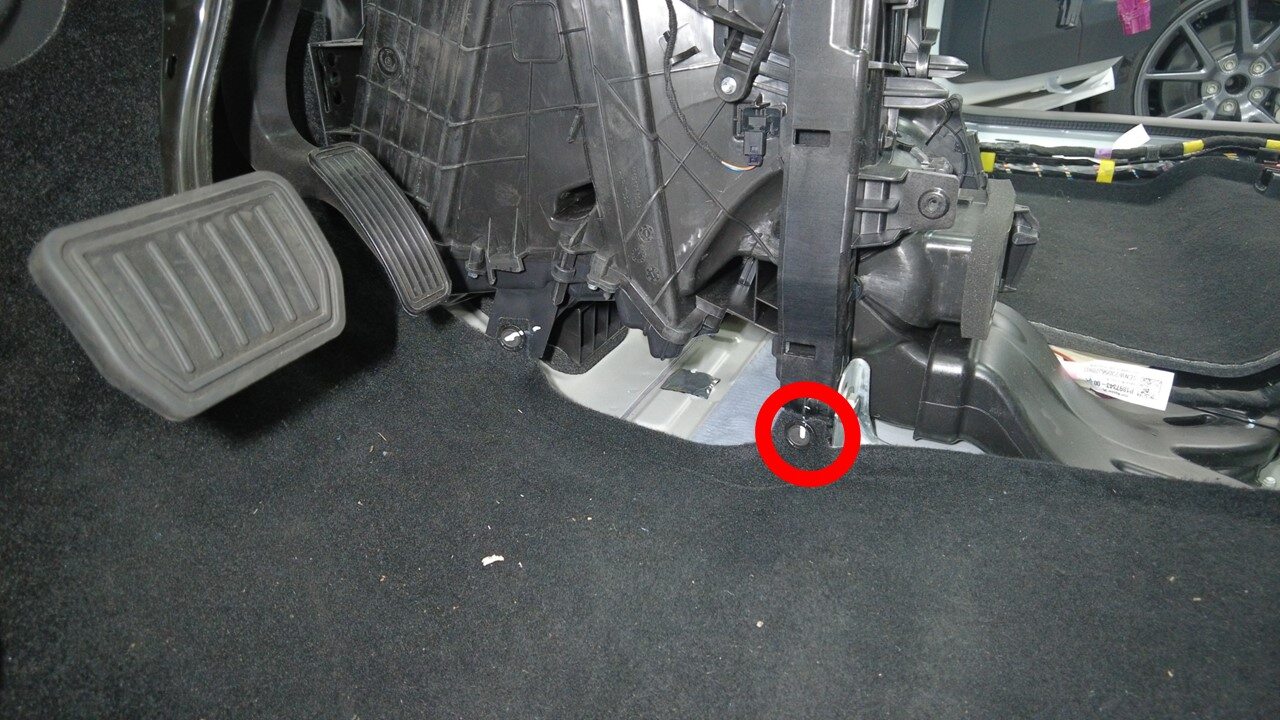

  2. Remove the clips that attach the RH front main carpet to the RH cross car beam bracket.
    Note
    Number of clips on new vehicles may vary

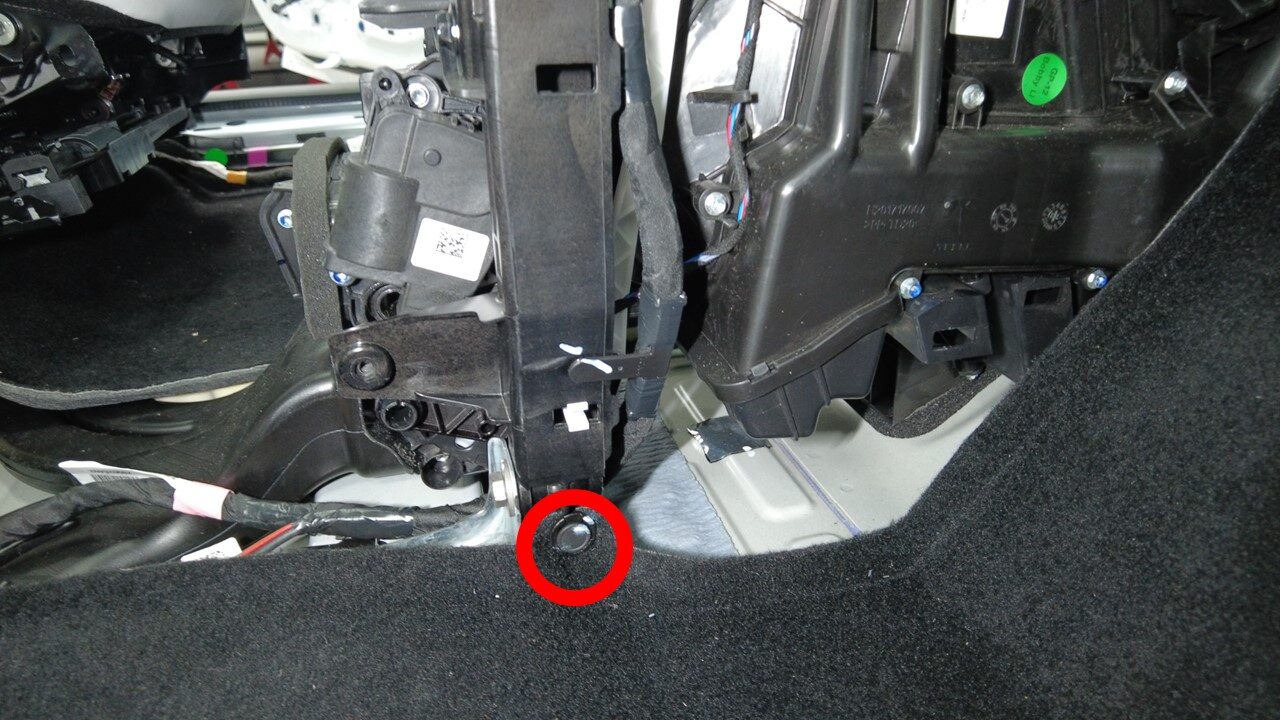

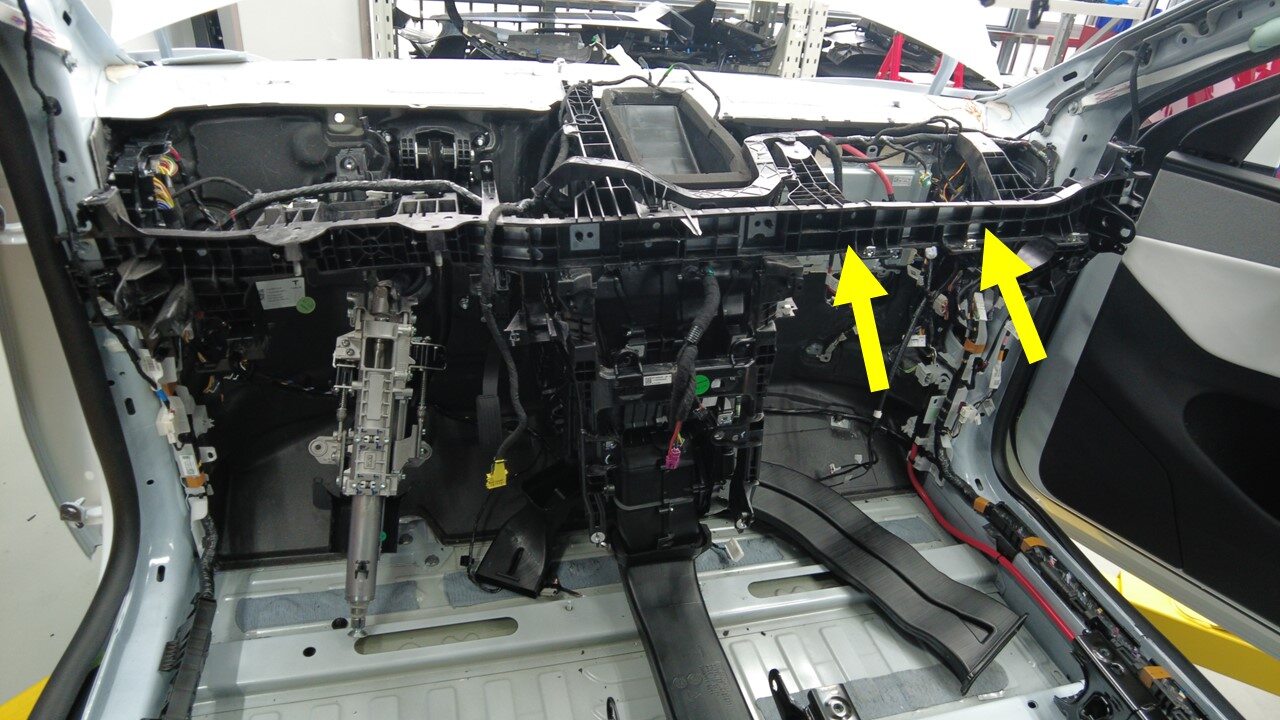

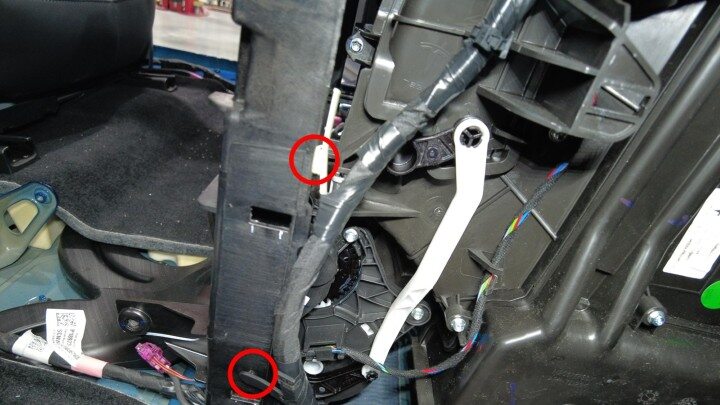

  3. Remove the lower RH bolt that attaches the cross car beam to the HVAC assembly.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

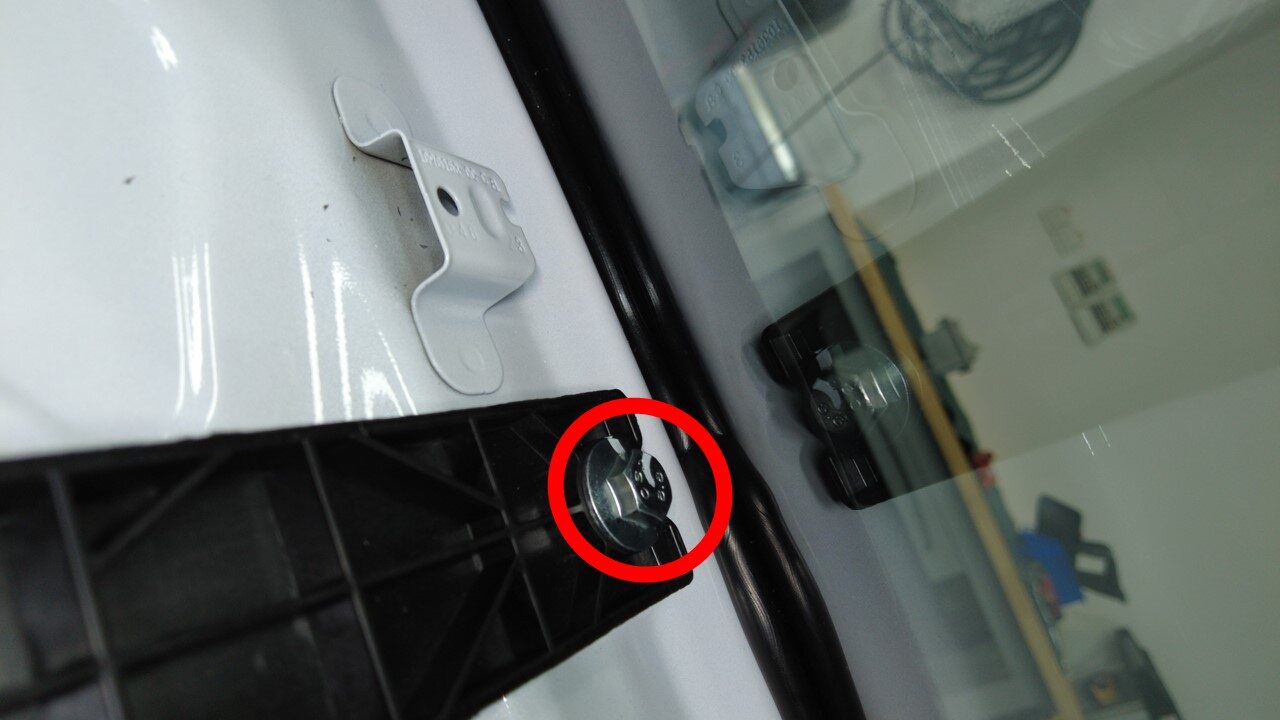

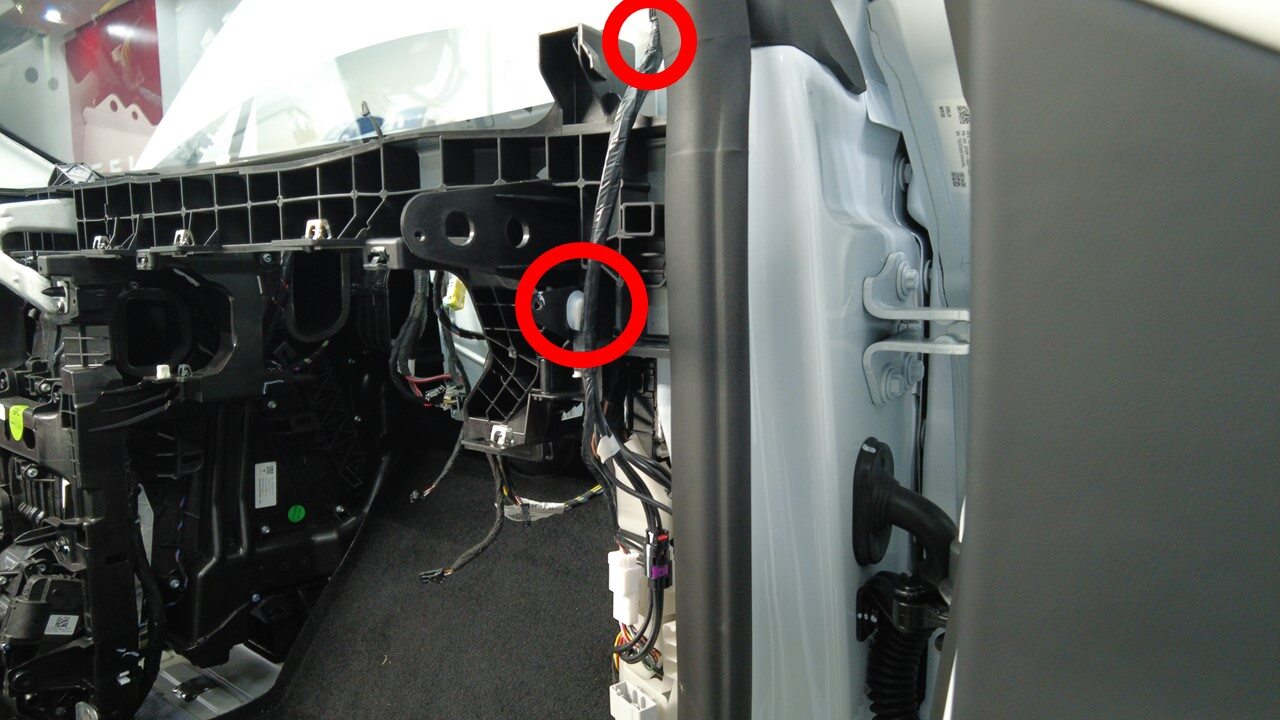

  4. Remove the bolt that attaches the RH cross car beam bracket to the cross car beam.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  5. Insert an inflatable airbag between the RH cross car beam bracket and the lower HVAC assembly, and then fully inflate the airbag.

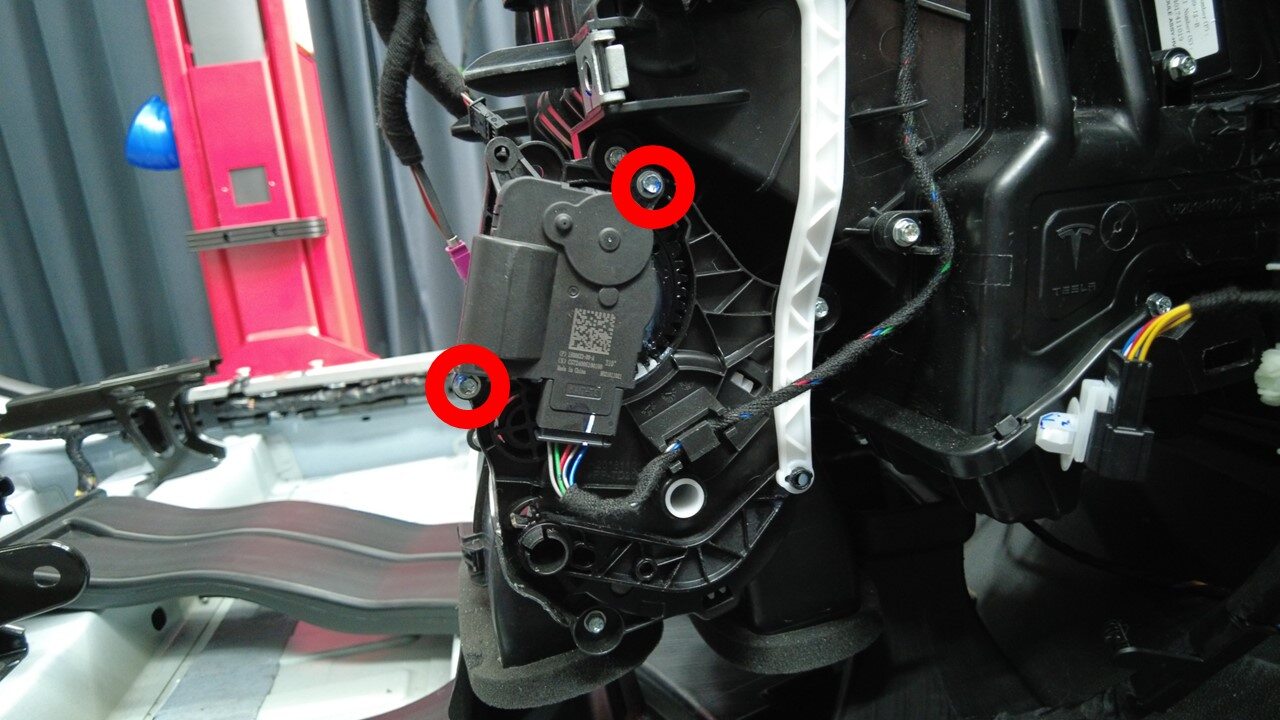

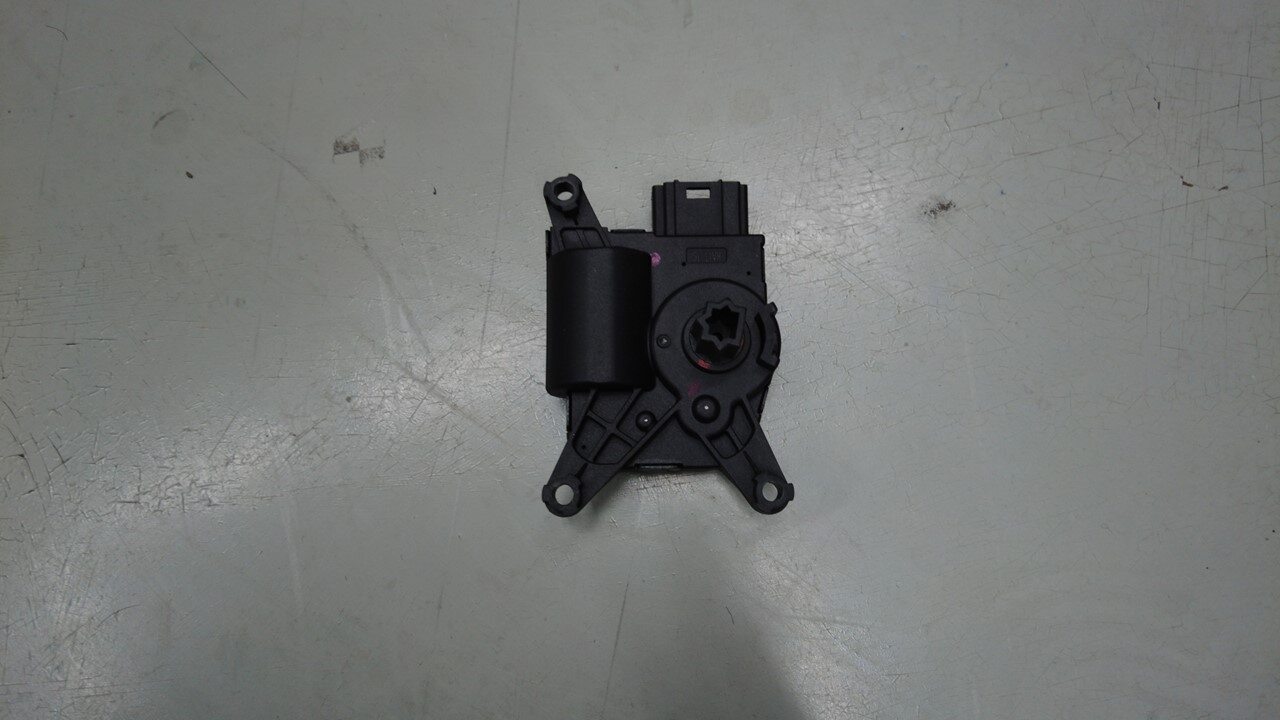

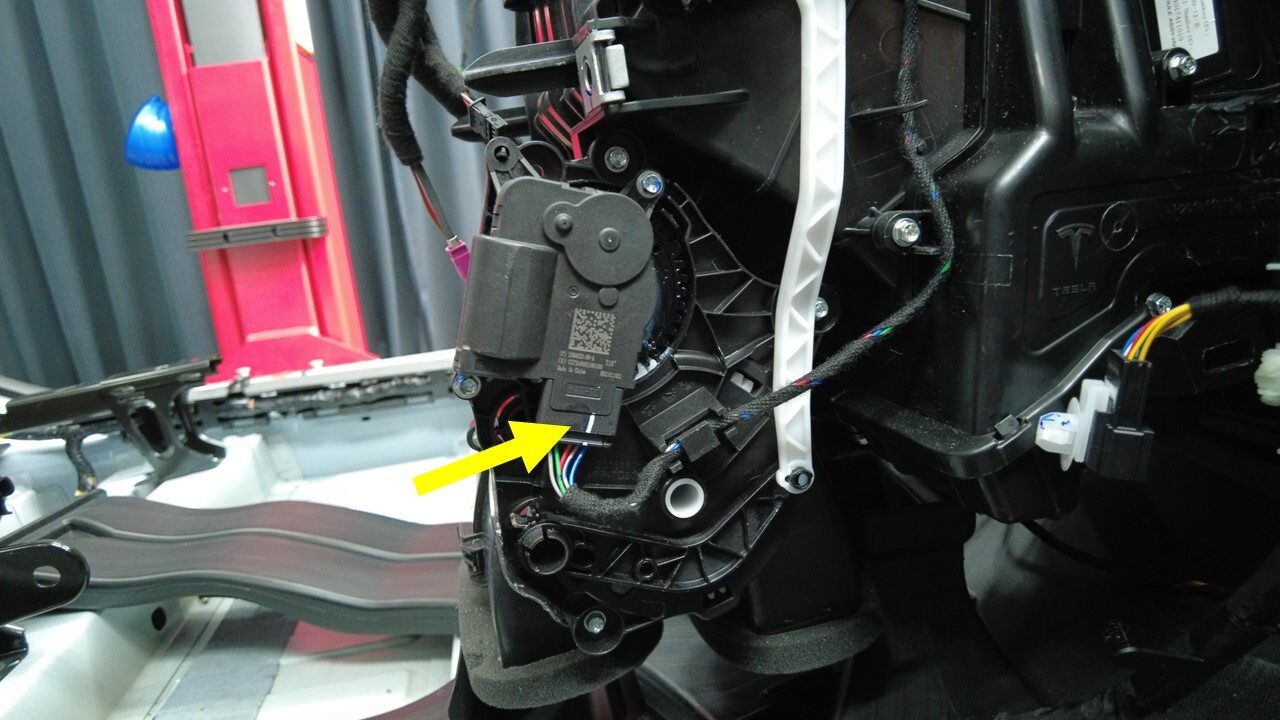

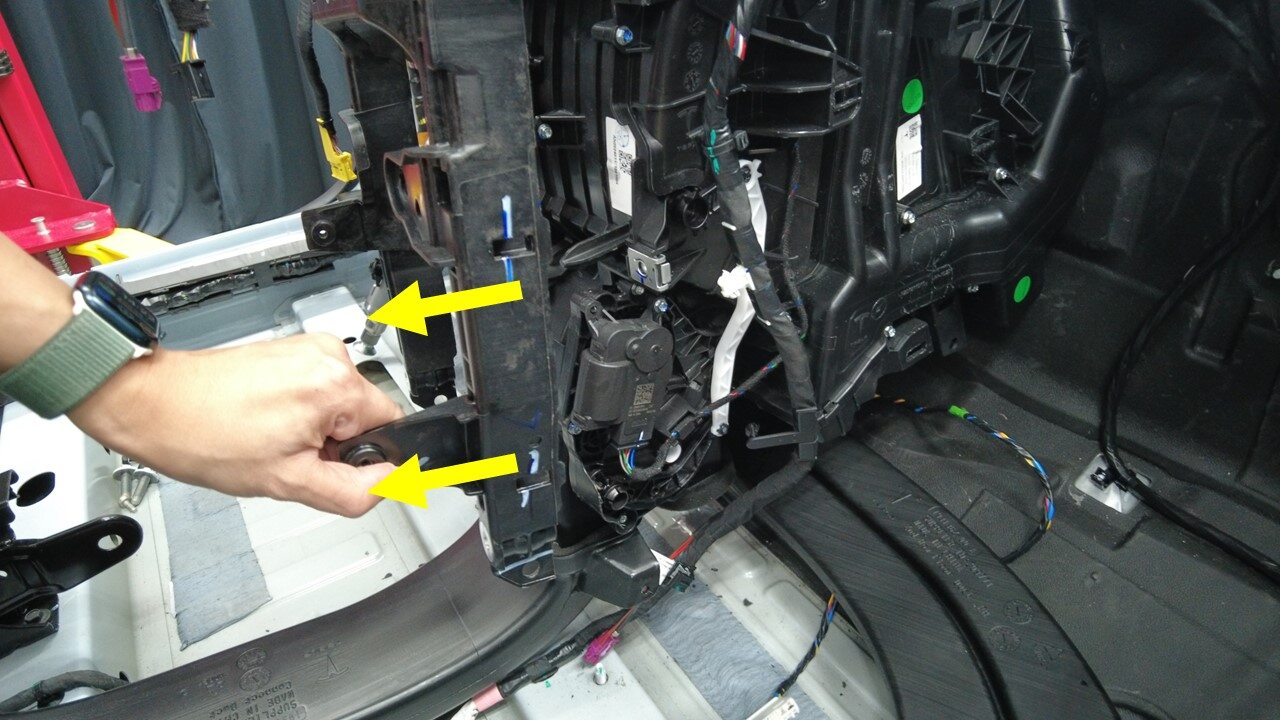

  6. Remove the screws (x2) that secure the lower mode actuator, disconnect the connector, and then remove the actuator from the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • 6 mm socket

Install

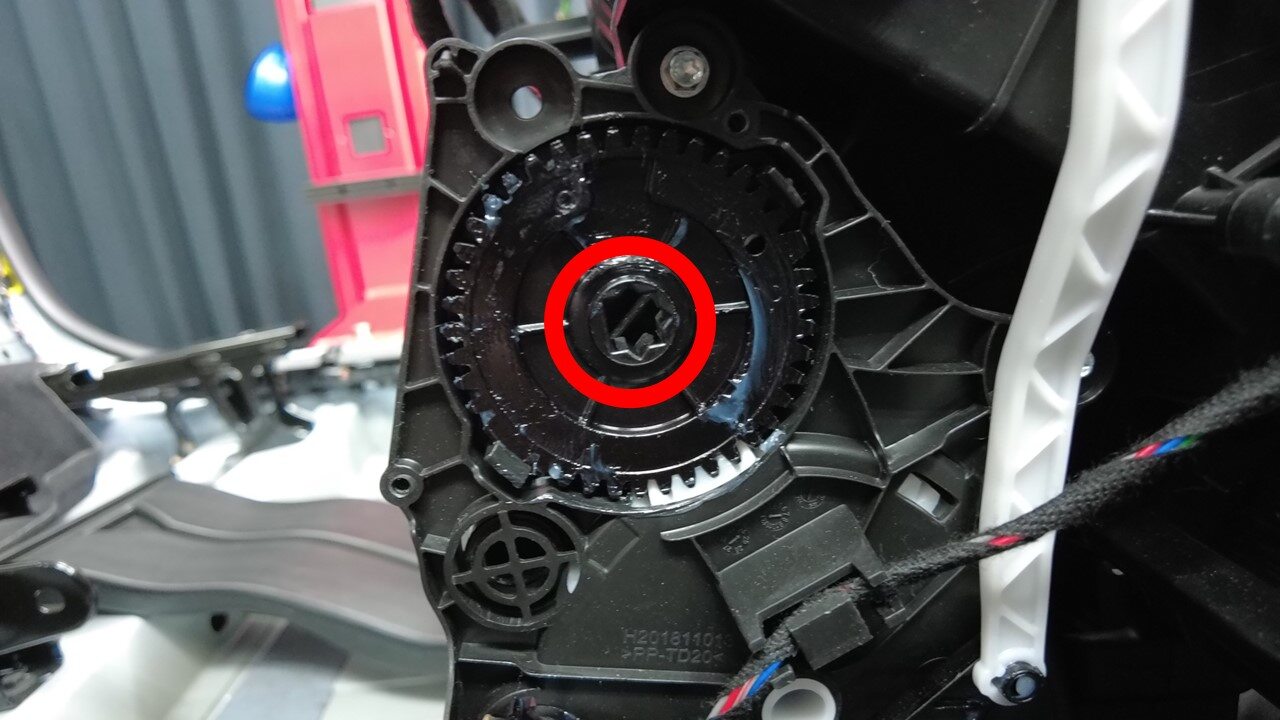

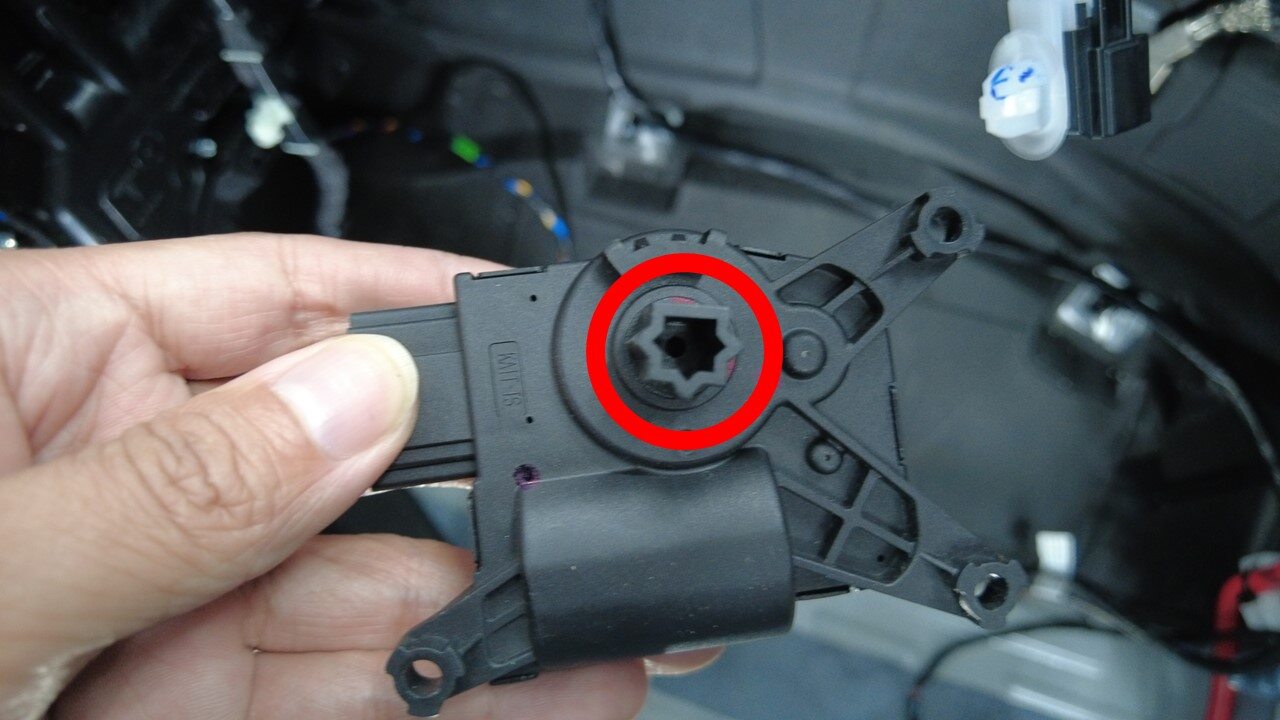

  1. Insert the lower mode actuator into the keyway, connect the actuator connector, and then install the screws (x2) that secure the actuator.
    1.3 Nm (1.0 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 6 mm socket
  2. Deflate the inflatable airbag, and then remove the airbag from the RH cross car beam bracket and the lower HVAC assembly.
  3. Install and hand-tighten the bolt that attaches the RH cross car beam bracket to the cross car beam.
    Note
    The bolt will be torqued at a later step.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  4. Install and hand-tighten the lower RH bolt that attaches the cross car beam to the HVAC assembly.
    Note
    The bolt will be torqued at a later step.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  5. Torque the bolt that attaches the RH cross car beam bracket to the cross car beam.
    25 Nm (18.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  6. Torque the lower RH bolt that attaches the cross car beam to the HVAC assembly.
    5.5 Nm (4.1 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  7. Install the clip that attaches the RH front main carpet to the vehicle.
    Note
    Number of clips on new vehicles may vary
  8. Install the center console assembly. See Center Console (Remove and Replace).
