Air Extractor (Remove and Replace)

Correction code 1810020022 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

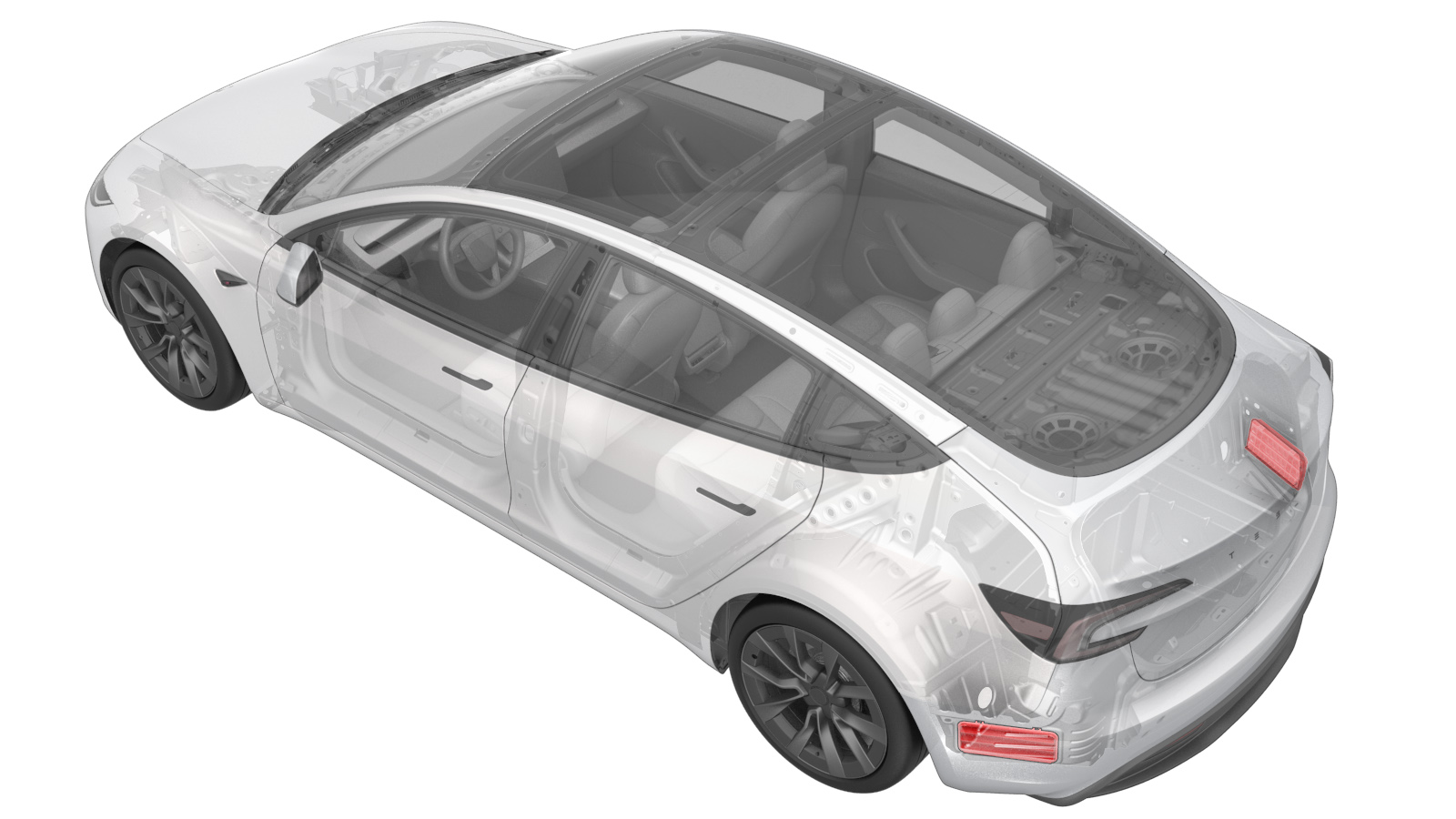

Remove

  1. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  2. Remove the rear trunk load floor. See Load Floor - Trunk (Remove and Replace).
  3. Remove the trunk sill trim. See Trim - Trunk Sill (Remove and Replace).
  4. Remove the LH load floor bracket. See Bracket - Trunk Load Floor - LH (Remove and Replace).
  5. Remove the trunk garnish. See Garnish - Trunk (Remove and Replace).
  6. Remove the LH trunk side trim. See Trim - Side - Trunk - LH (Remove and Replace).
  7. Remove the rear fascia. See Fascia Assembly - Rear (Remove and Install).

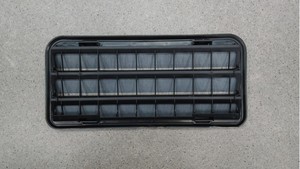

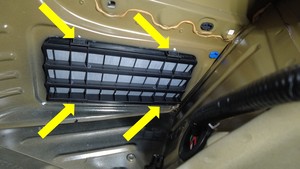

  8. Release the clips that attach the LH air extractor to the vehicle.
  9. Push the LH air extractor into the body panel, and then rotate outward to remove it from the vehicle.

Install

  1. Insert the LH air extractor into the body panel, rotate the extractor into position, and then pull the extractor outwards to the fasten the clips.
  2. Install the rear fascia. See Fascia Assembly - Rear (Remove and Install).
  3. Install the LH trunk side trim. See Trim - Side - Trunk - LH (Remove and Replace).
  4. Install the trunk garnish. See Garnish - Trunk (Remove and Replace).
  5. Install the LH load floor bracket. See Bracket - Trunk Load Floor - LH (Remove and Replace).
  6. Install the trunk sill trim. See Trim - Trunk Sill (Remove and Replace).
  7. Install the rear trunk load floor. See Load Floor - Trunk (Remove and Replace).
  8. Install the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
