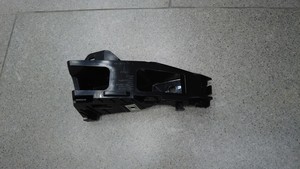

Bracket - Tail Lamp - LH (Remove and Replace)

Correction code 1001040042 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Bracket - Tail Lamp - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

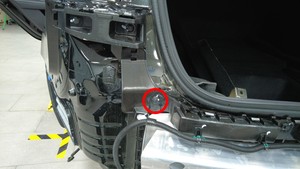

Bolt that attaches the rear center bracket to the vehicle	4 Nm (2.9 lbs-ft)	10 mm socket	Reuse

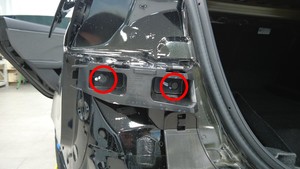

Bolts (x2) that attach the LH taillight bracket to the vehicle	4 Nm (2.9 lbs-ft)	10 mm socket	Reuse
