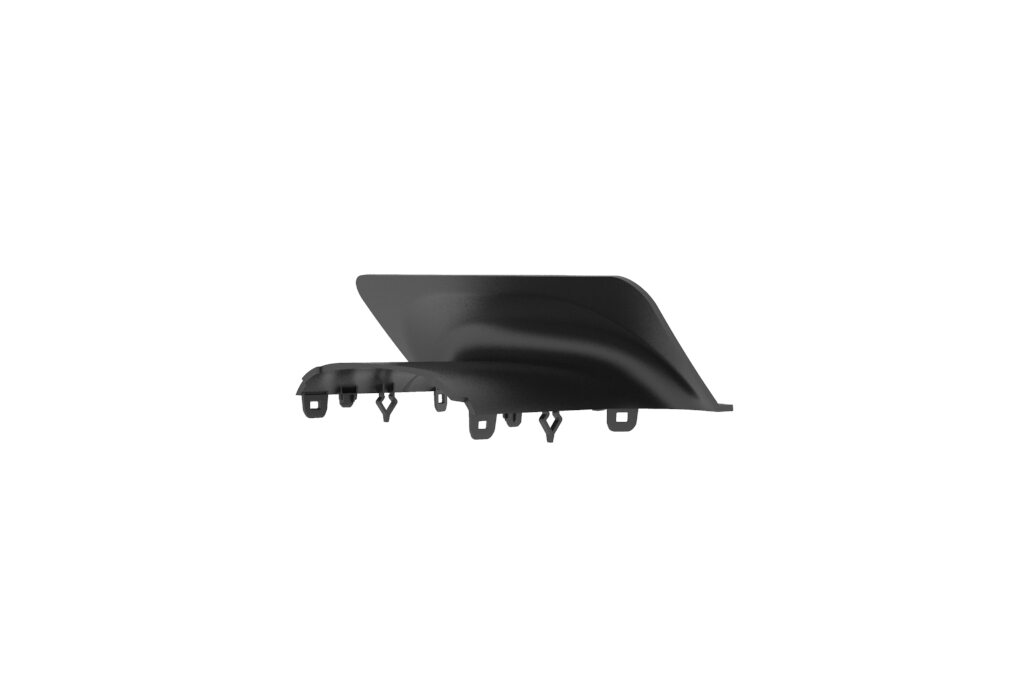

Gap Hider - Upper - Steering Column (Model 3 Standard) (Remove and Replace)

Correction code 32050200502 32050200501 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-05: Released new procedure.

Remove

  1. Remove the lower gap hider. See Gap Hider - Lower - Steering Column (Model 3 Standard) (Remove and Replace).

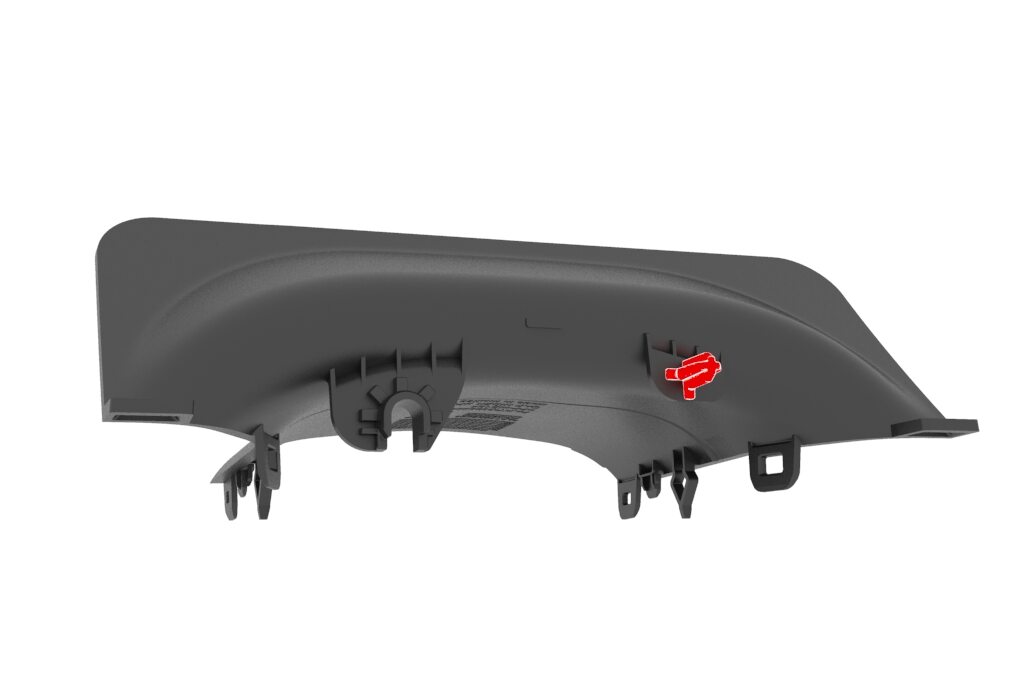

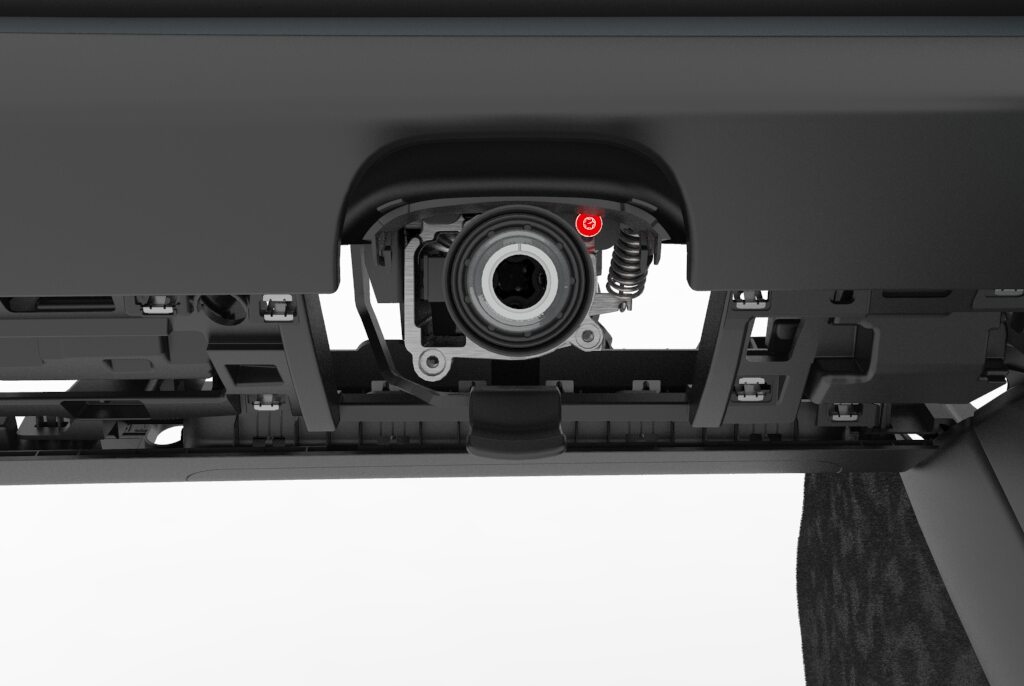

  2. Remove the bolt that secures the upper gap hider to the steering column.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

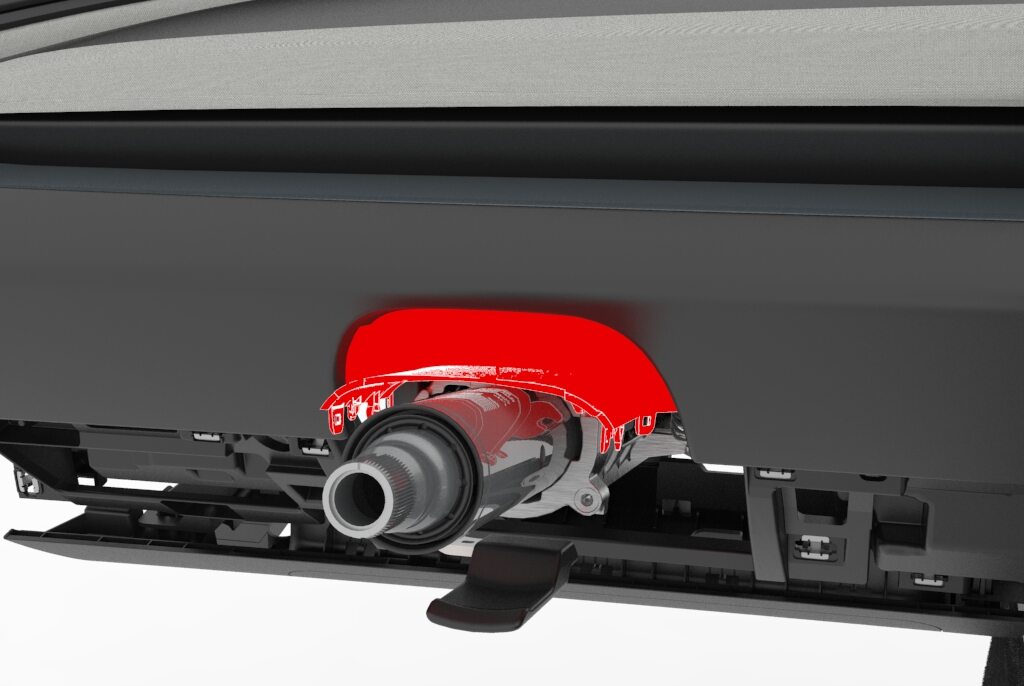

  3. Remove the upper gap hider from the steering column.
    Informational PurposesAn informational icon, calling your attention
    Note

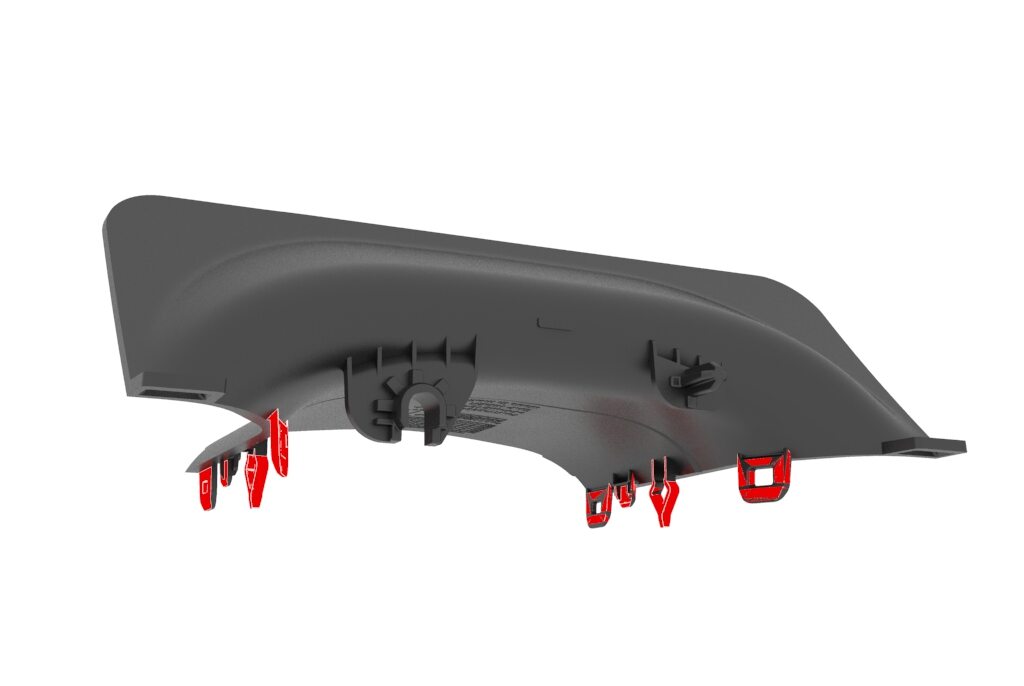

    Release the clips (x8) then partially fold and rotate the gap hider to remove it.

Install

  1. Install the steering column upper gap hider to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the clips (x8) then partially fold and rotate the gap hider to install it.
  2. Install the bolt that secures the upper gap hider to the steering column.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    1.2 Nm (.9 lbs-ft)
  3. Install the lower gap hider. See Gap Hider - Lower - Steering Column (Model 3 Standard) (Remove and Replace).
