Axle Seal - Output - Rear Drive Unit (4DU) (Remove and Replace)
Correction code
4001010042
FRT
0.96
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Equipment:
- 1454928-00-A - TOOL, SEAL PULLER, ADJUSTABLE
- 1131206-00-A - INSTALL TOOL, OUTPUT SEAL
Remove
- Remove the LH rear halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).
-

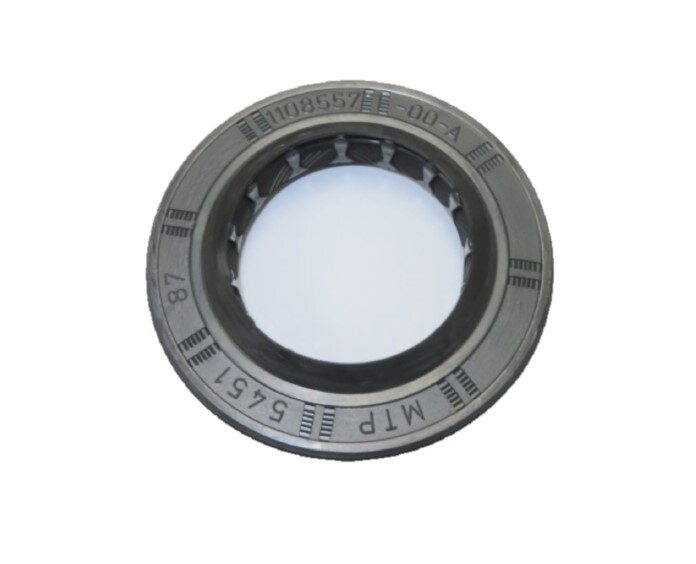

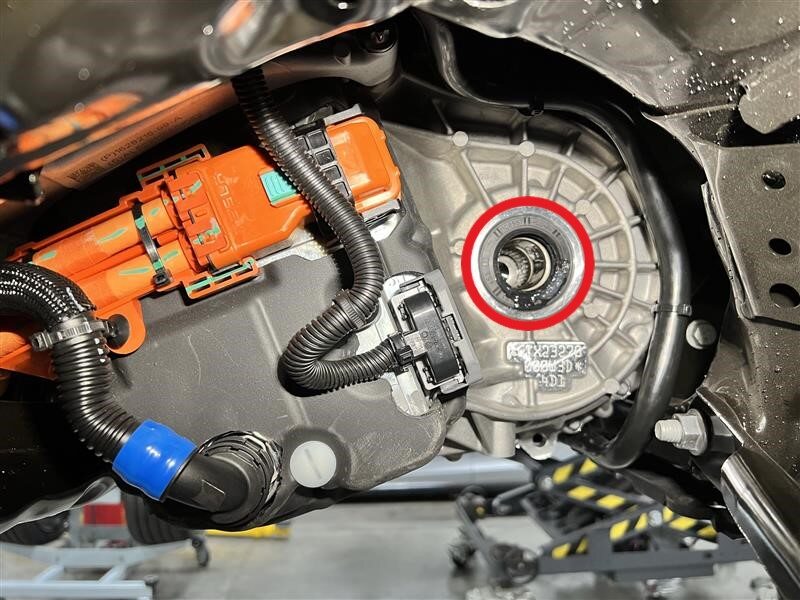

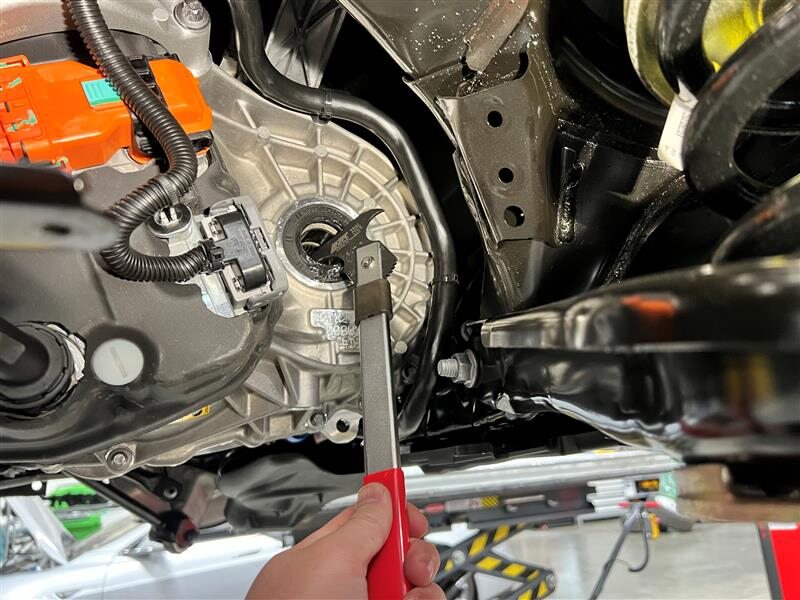

Use an adjustable seal puller to
remove the LH rear output axle seal.
Install
-
Apply Molykote
M-77 Lubricant Paste to the outboard side of the LH rear halfshaft
assembly.
NoteClean the halfshaft before applying if necessary.NoteApply no more than 1 gram to axle only.
-

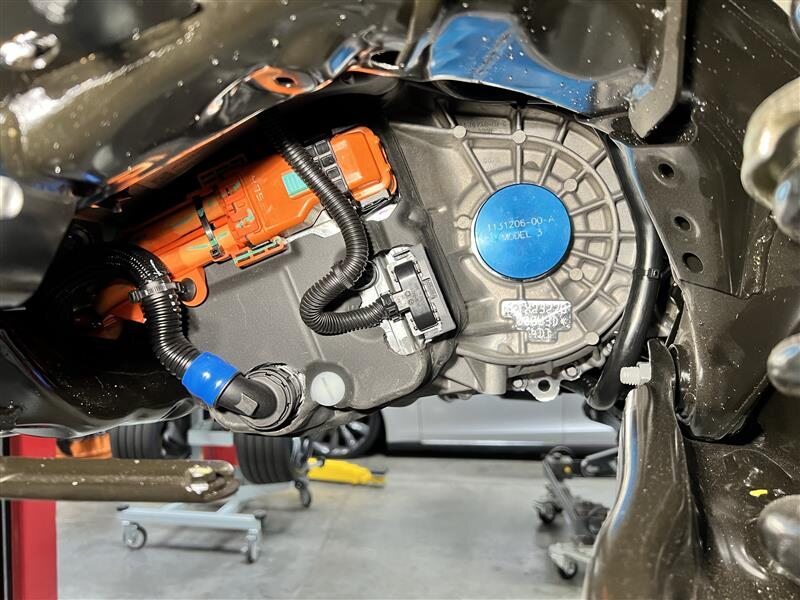

Use the output seal installation tool
to install the LH rear output axle seal.
NoteMake sure the seal is fully seated.
- Install the LH rear halfshaft. See Halfshaft - Rear Drive Unit - LH (Remove and Replace).
