Suspension - Rear (Inspection)
Correction code 31030700314 FRT NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.
- 2026-11-12: Added inspection steps for rear stabilizer bar bushings and rear dampers and springs.
- 2026-04-23: Released new procedure.
Inspection Summary
| Component | Inspection Description | Comment |
|---|---|---|
| Rear suspension links | Inspect for excessive play | See video Suspension Link Play (step 2) |
| Rear stabilizer ball joints and bushings | Visually inspect rear stabilizer ball joints and bushings | See steps 4 to 6 |
| Rear dampers and springs | Inspect dampers and springs for signs of oil leakage, crakcs or material that has broken off. | See step 7 |
| Rear bushings | Inspect for excessive movement | See steps 8 through 21 |
Inspection Details
- Remove the rear aero shield. SeePanel - Aero Shield - Rear (Remove and Replace).
-

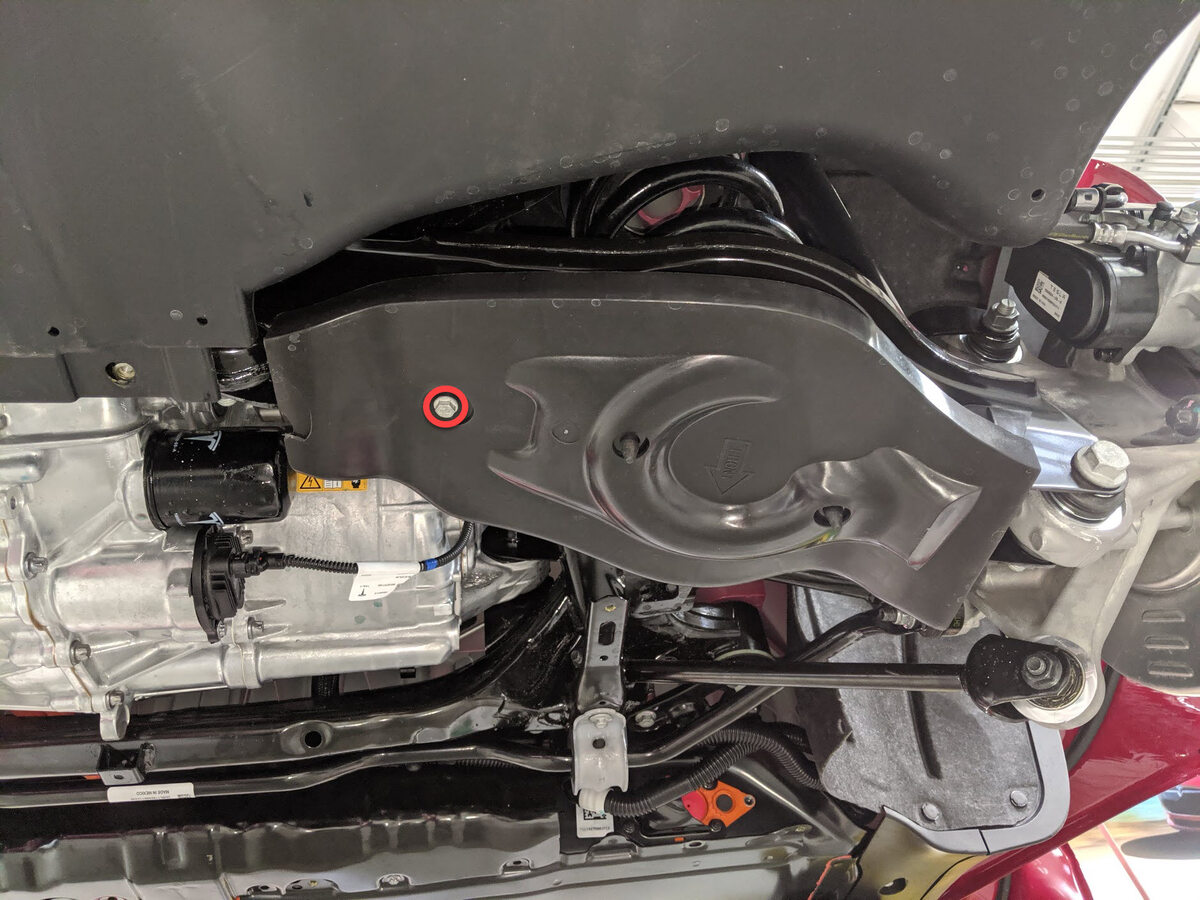

Remove the bolt and tabs (x2) that
attach the LH rear suspension cover, and then remove the cover.
-

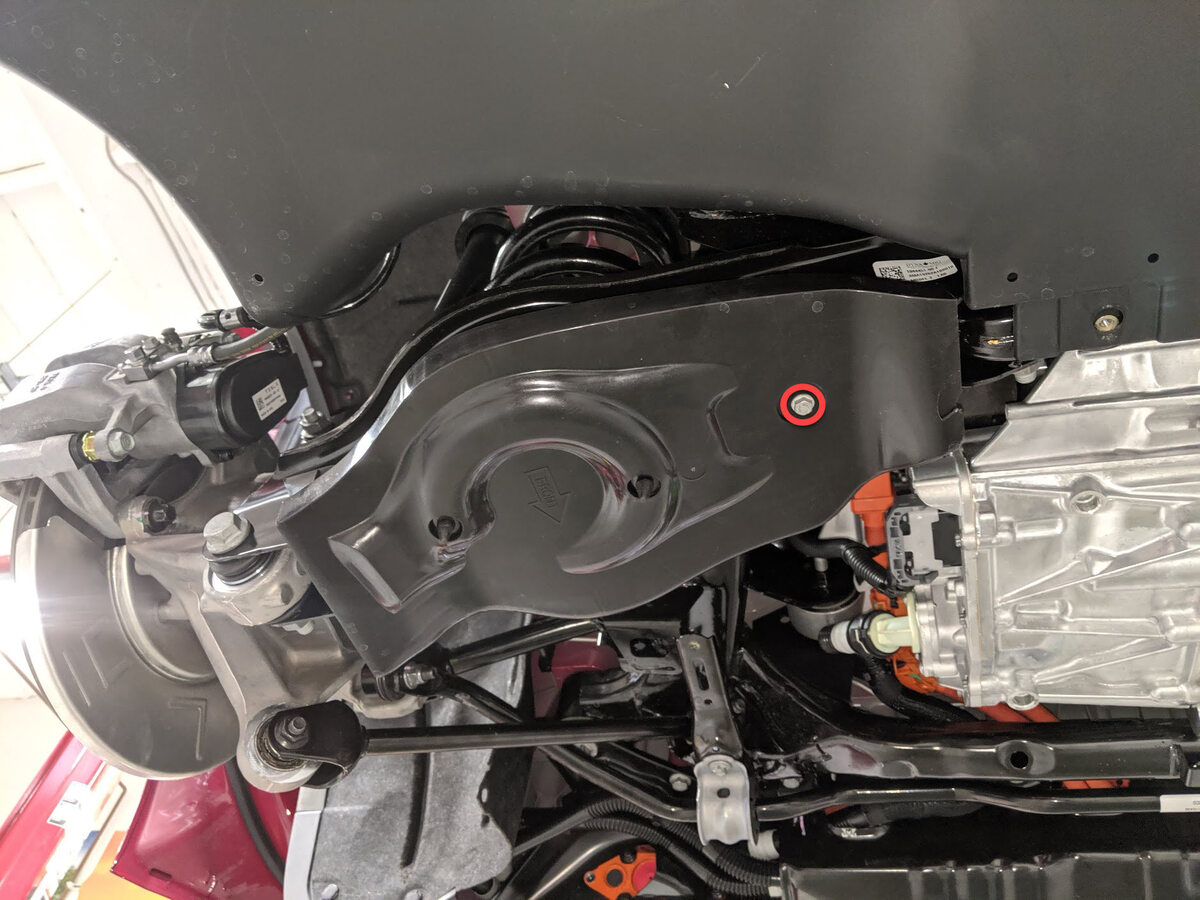

Remove the bolt and tabs (x2) that
attach the RH rear suspension cover, and then remove the cover.
-

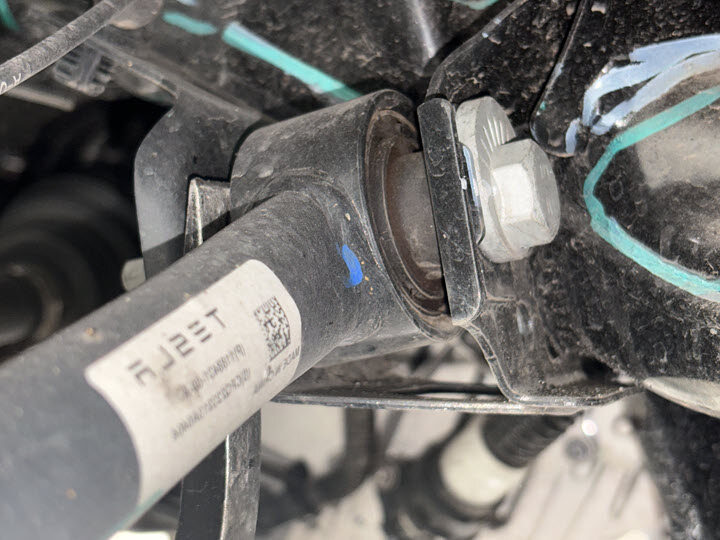

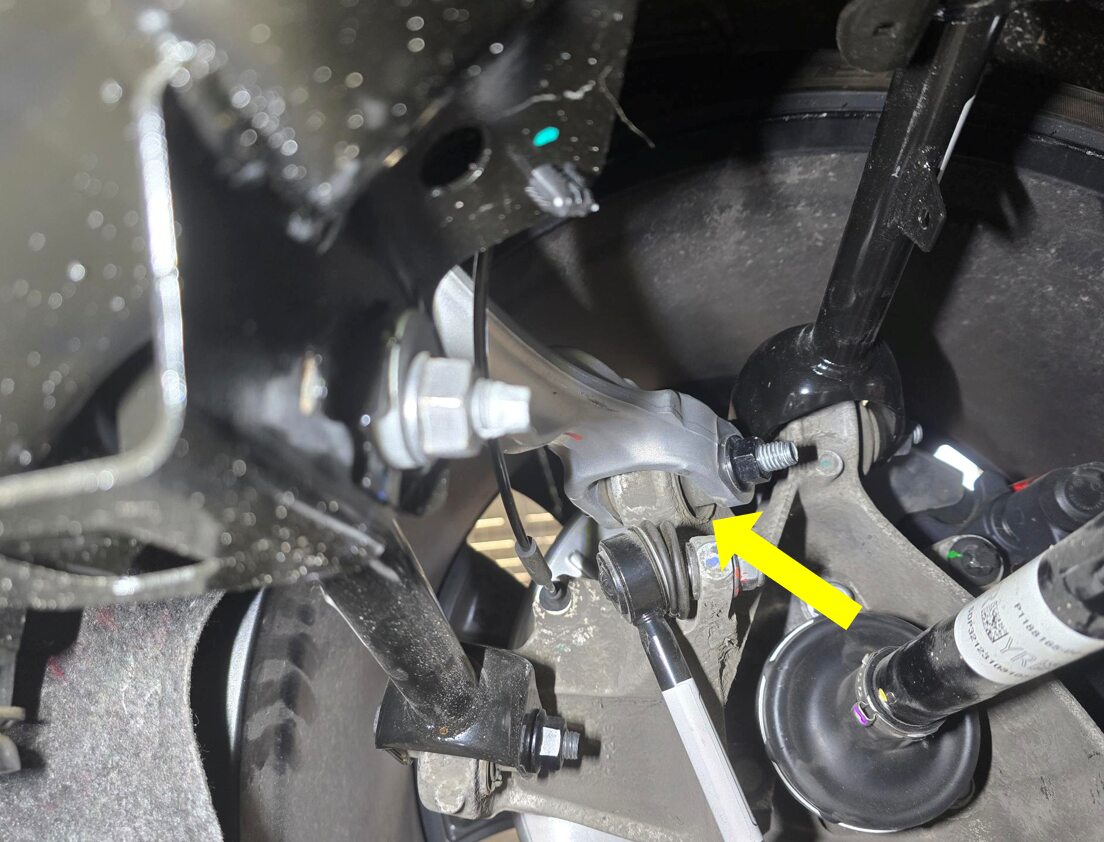

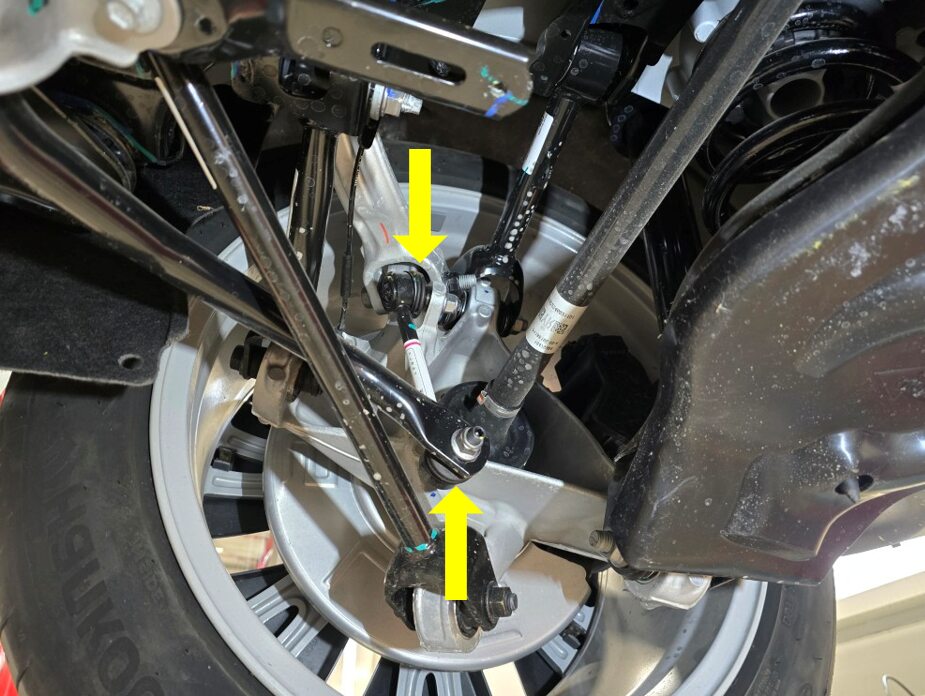

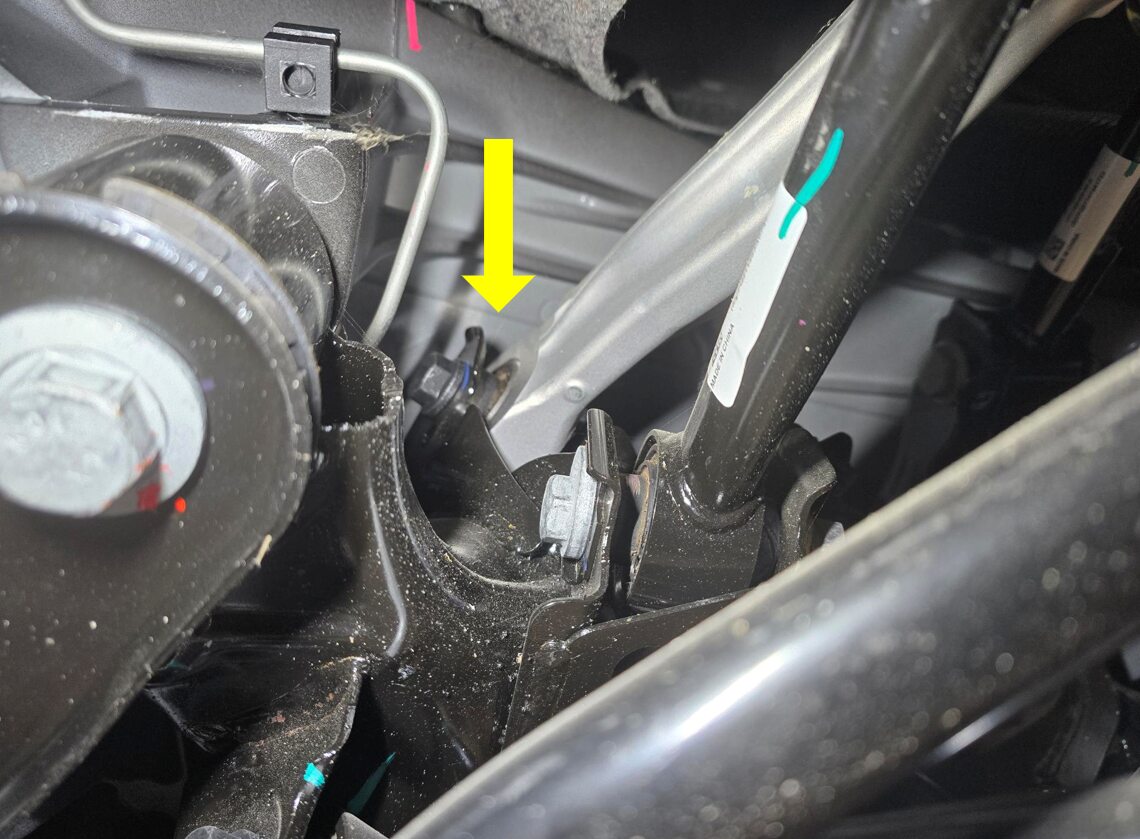

Inspect the LH rear stabilizer bar
ball joints.
NoteVisually Inspect the ball joint for cracks, grease leakage, unseated boot, and/or boot puncture.
-

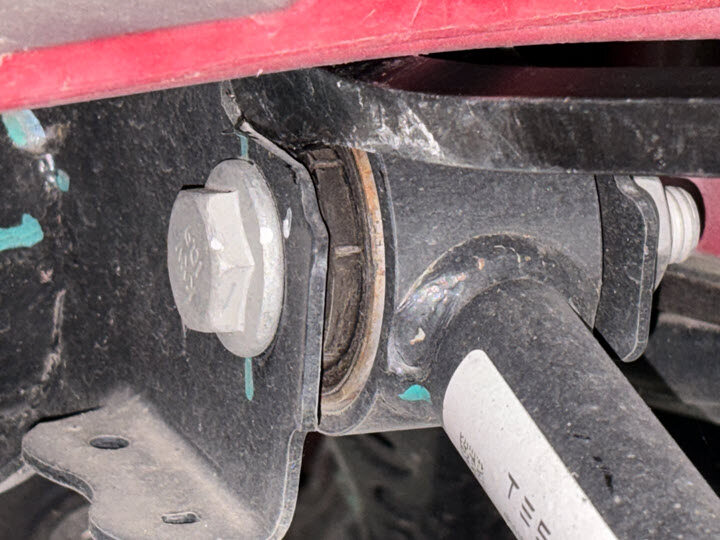

Inspect the RH rear stabilizer ball
joints.

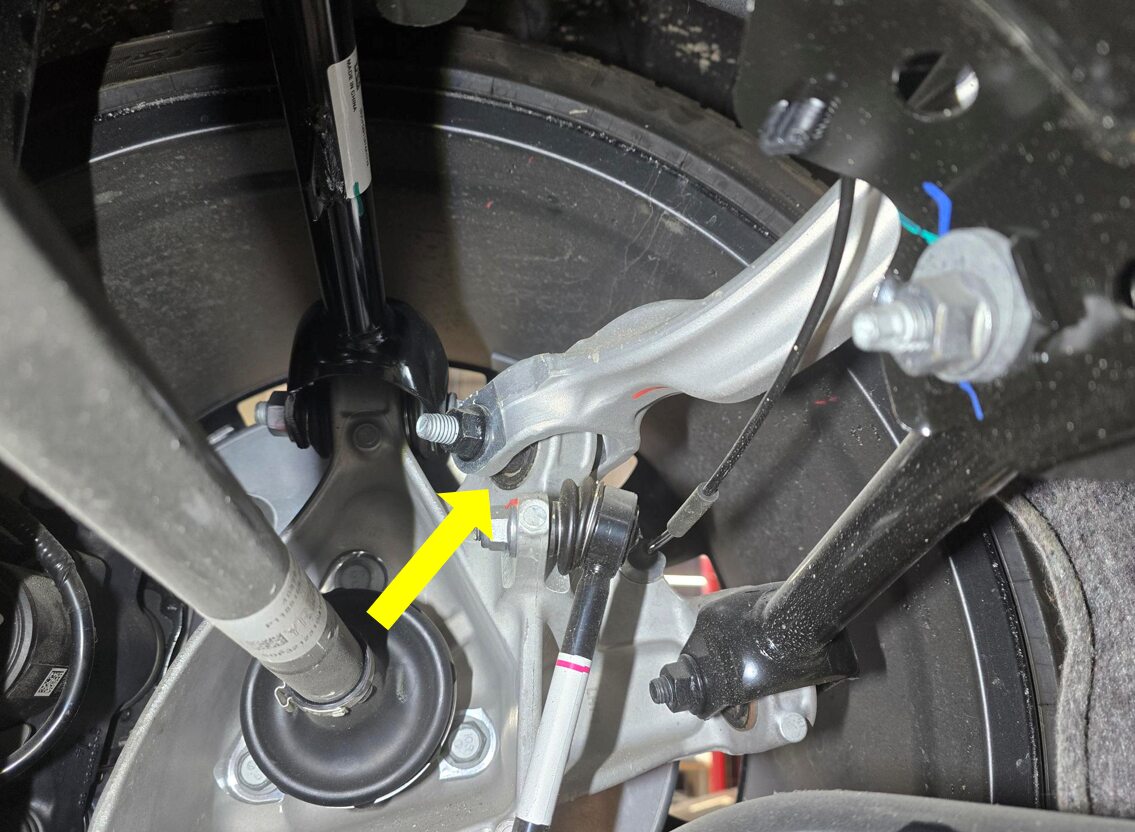

NoteVisually Inspect ball joints for cracks, grease leakage, unseated boot, and/or boot puncture
-

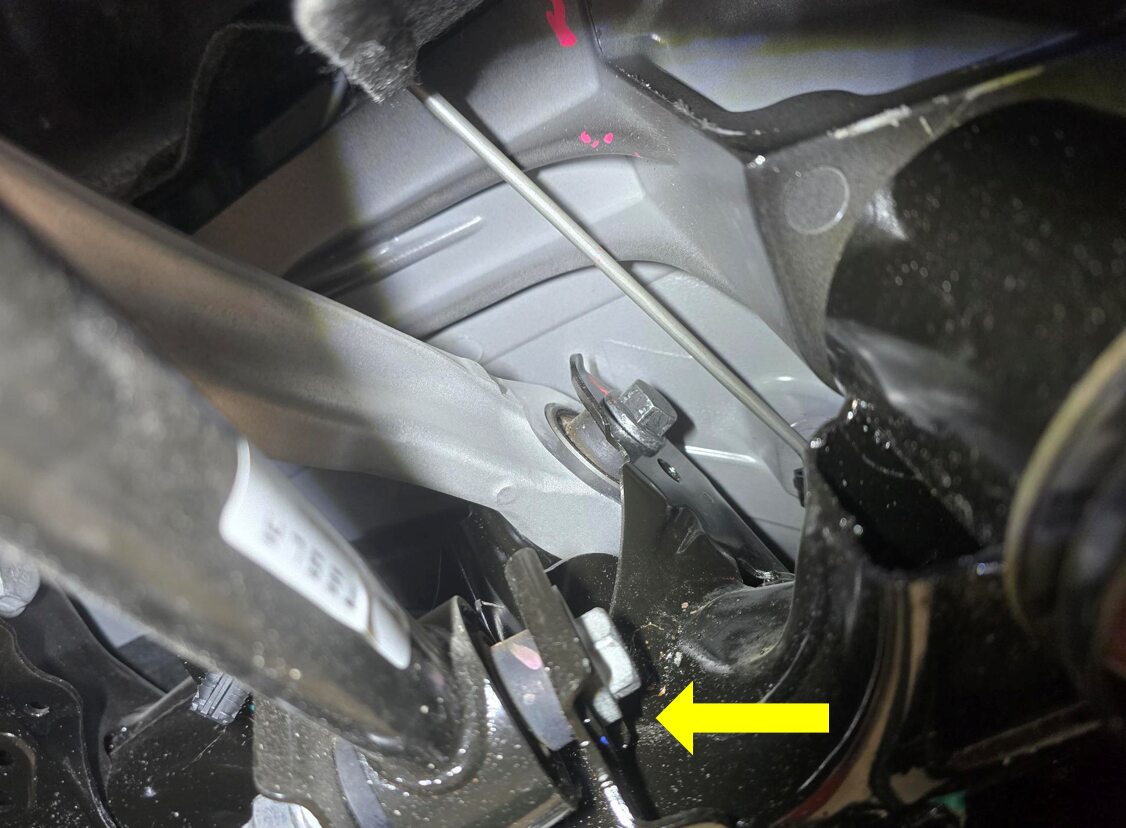

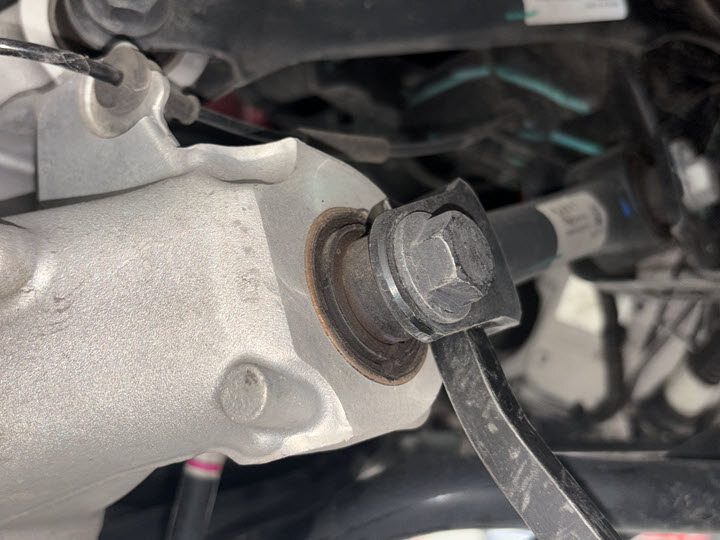

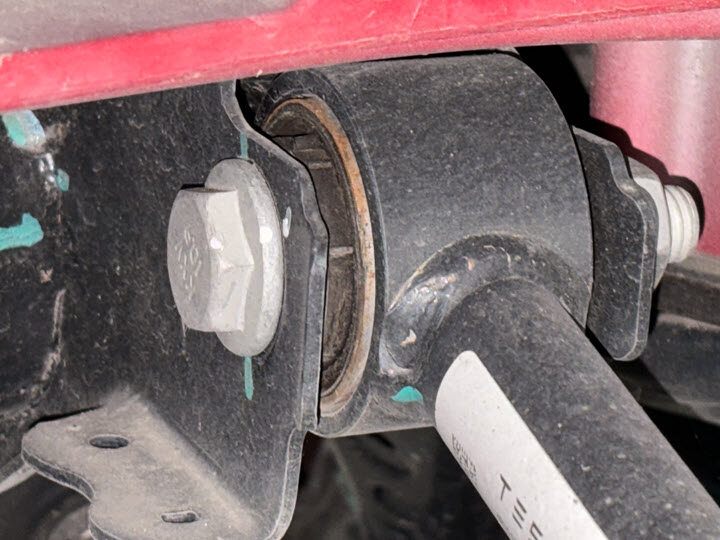

Inspect the LH and RH stabilizer bar bushings for unusual cracks. Use a pry bar to
confirm that there is no excessive movement.
-

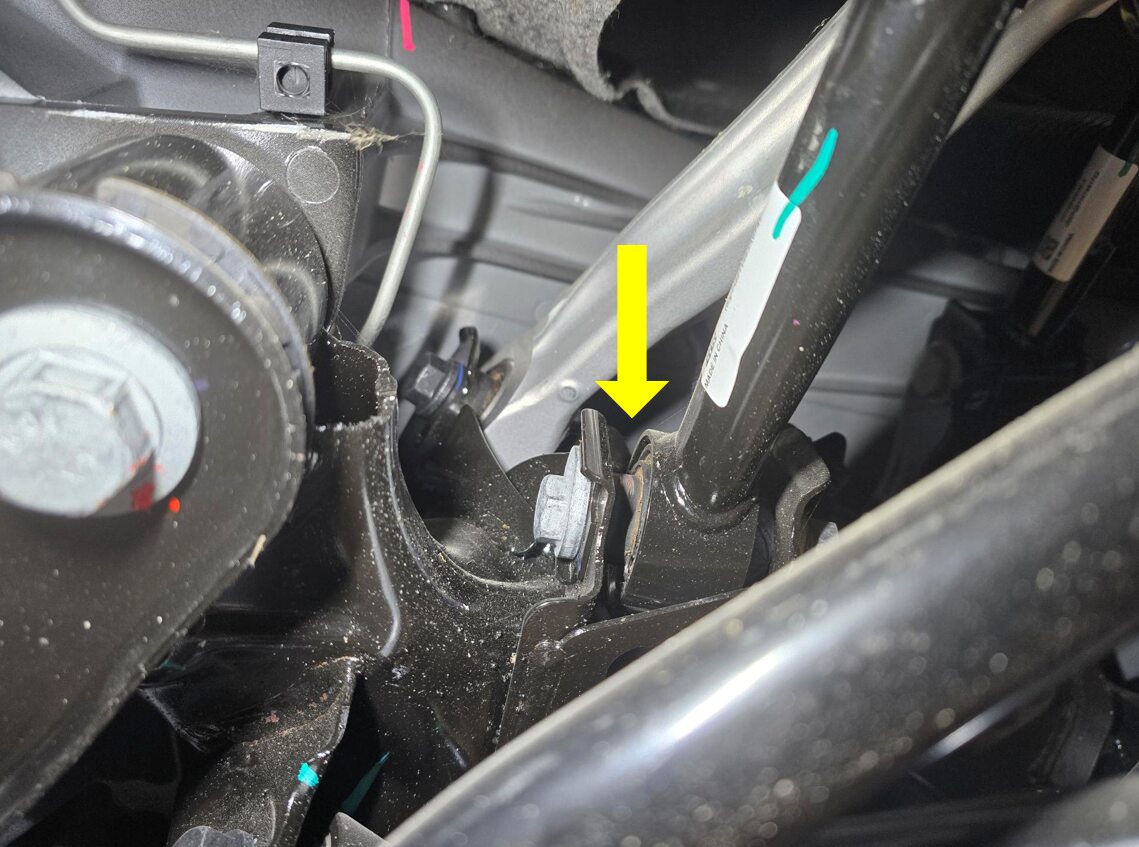

Visually inspect the LH and RH dampers for signs of oil leakage. Inspect the springs
for cracks or material that is broken off.
-

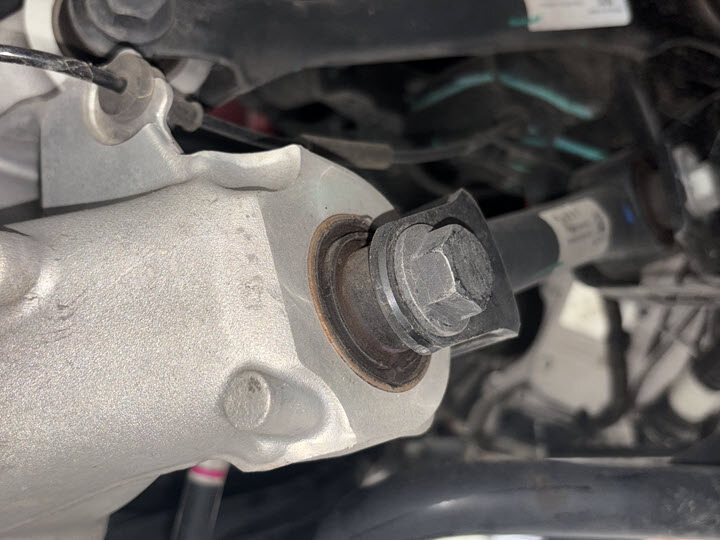

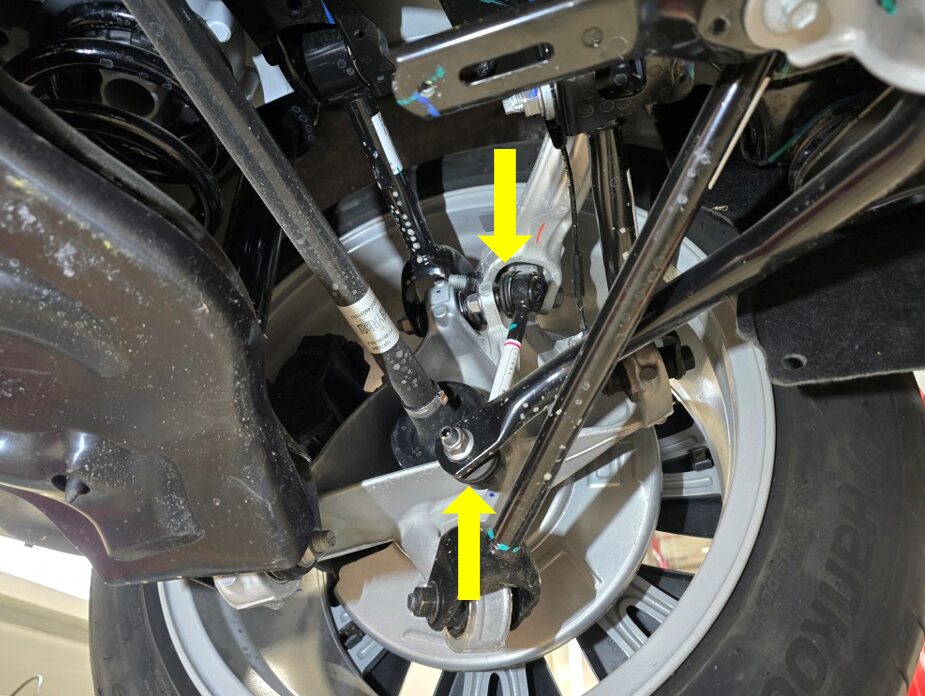

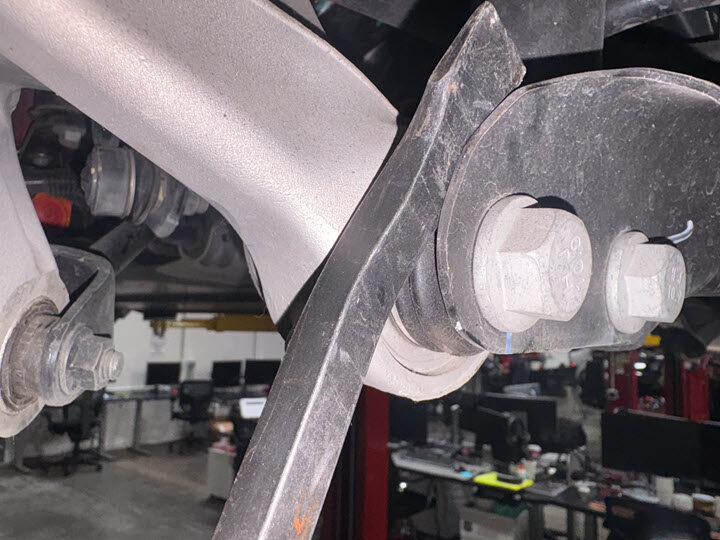

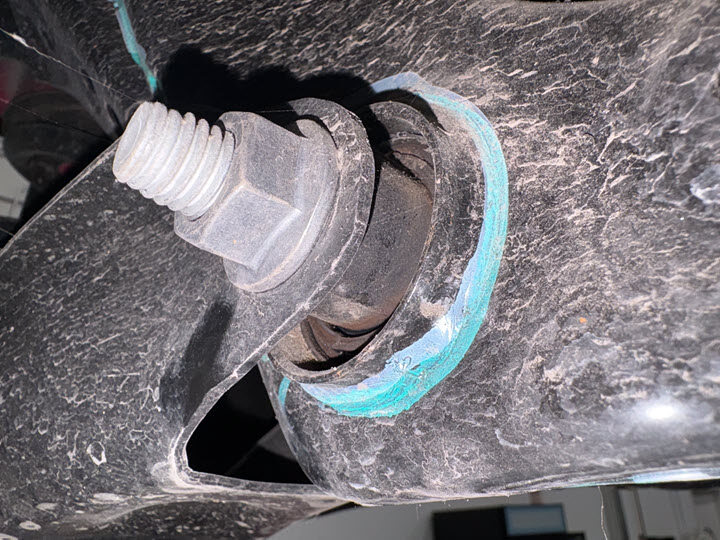

Inspect the LH rear toe link to
subframe bushing.

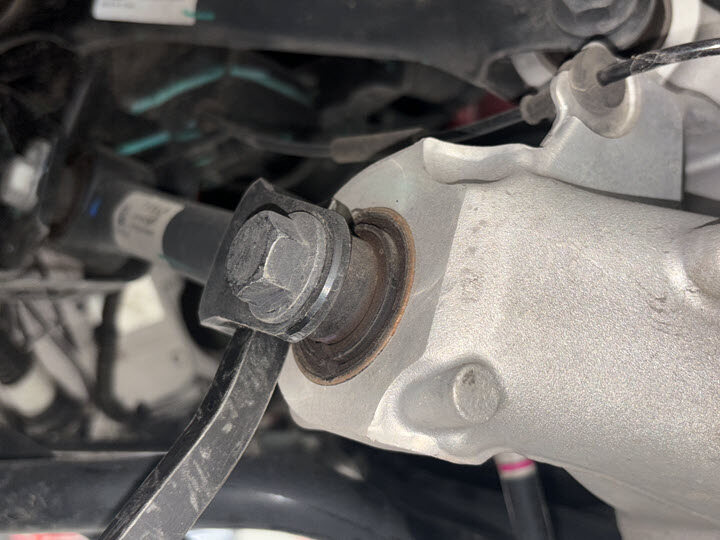

NoteExamine the inner bushing of the LH toe link for unusual cracks. Use a pry bar to confirm that there is no excessive movement.
-

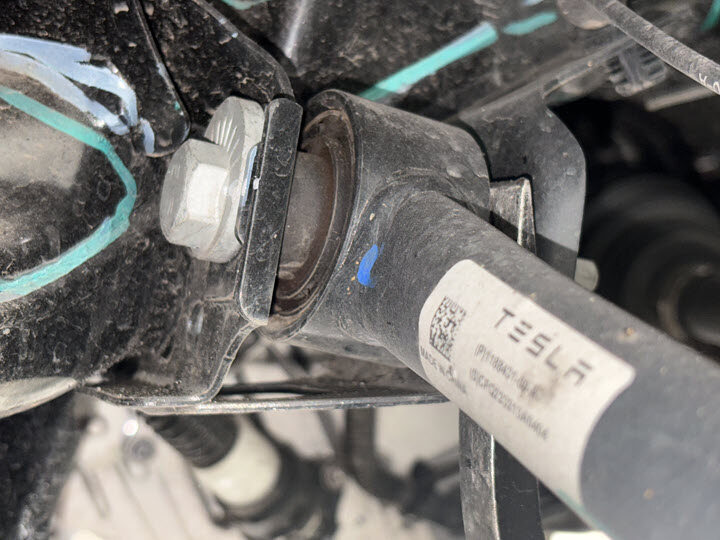

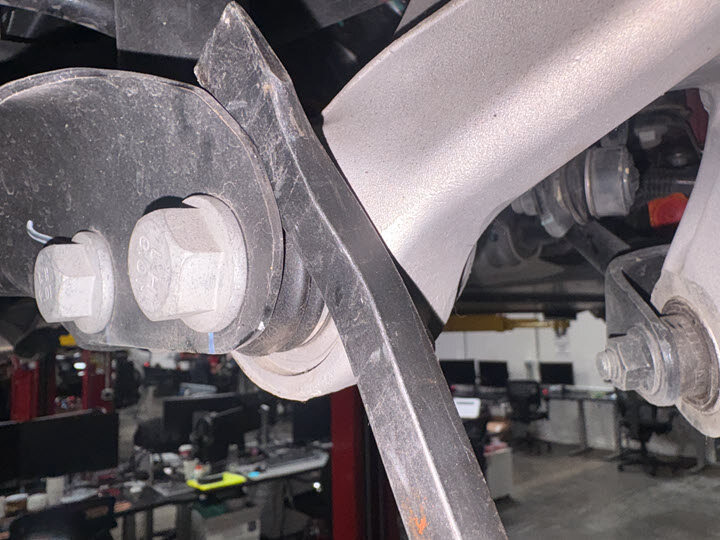

Inspect the LH rear toe link to
knuckle bushing.

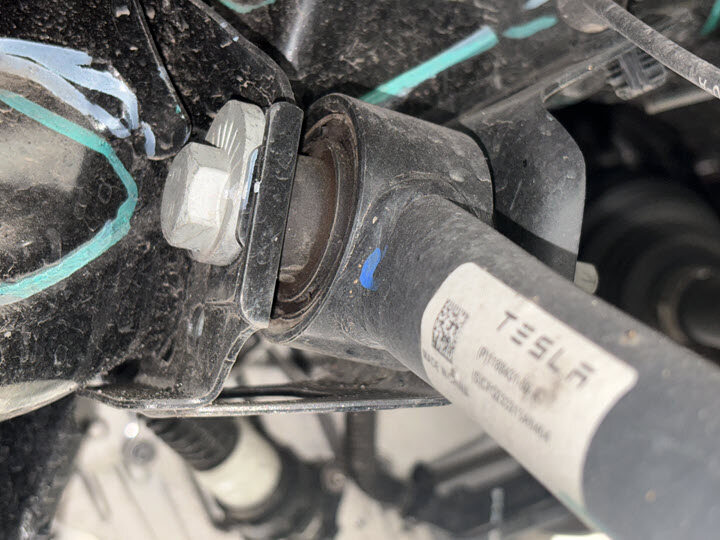

NoteExamine the outer bushing of the LH toe link for unusual cracks. Use a pry bar to confirm that there is no excessive movement.
-

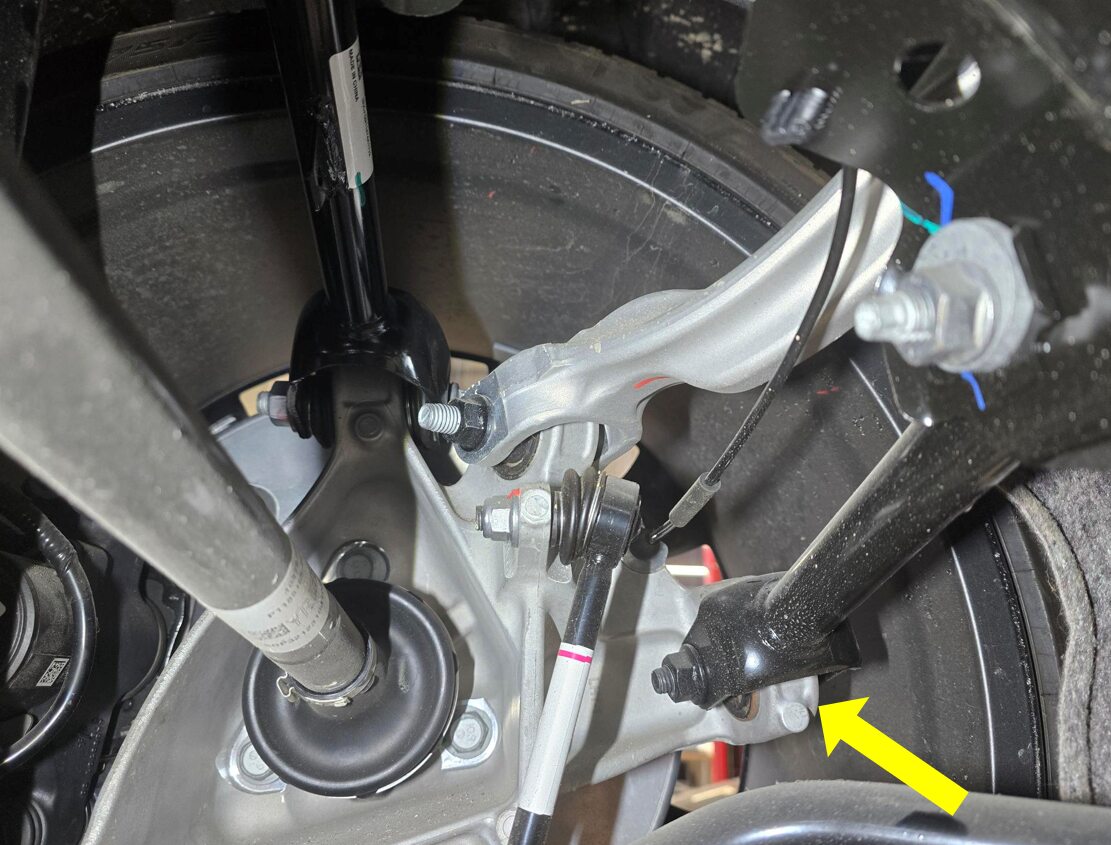

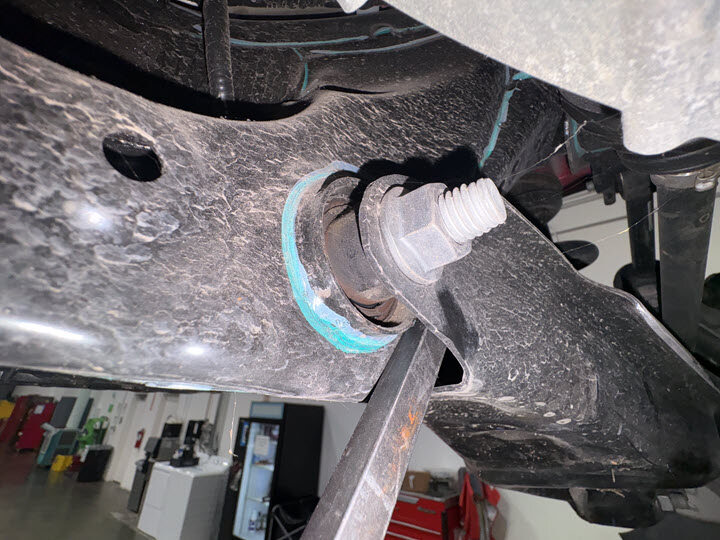

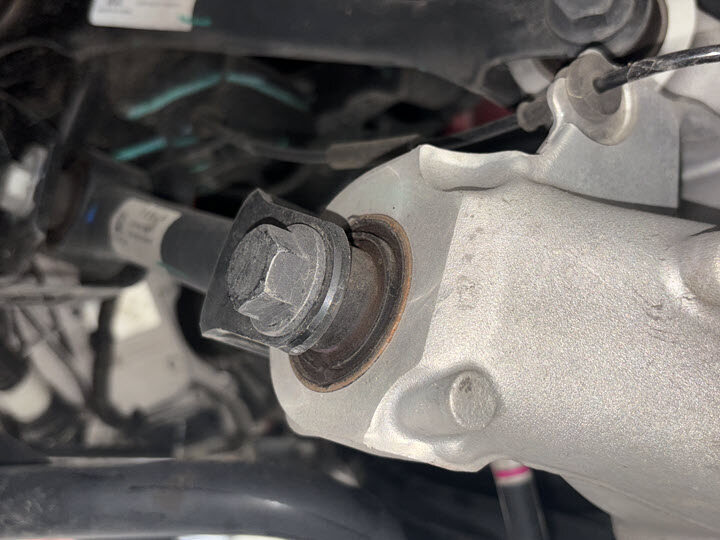

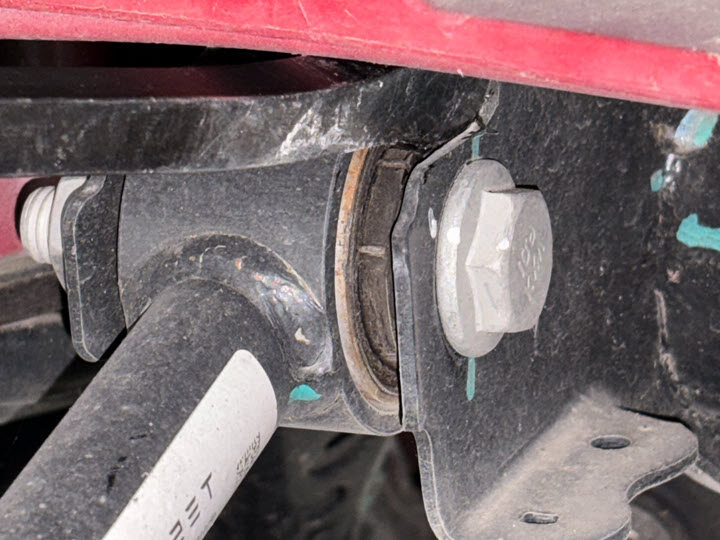

Inspect the LH rear lower aft link to
subframe bushing.

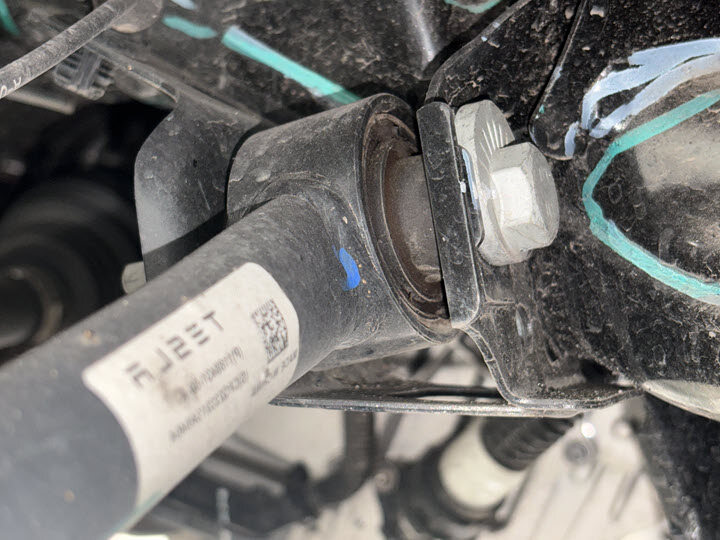

NoteExamine the inner bushing of the LH rear lower aft link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Inspect both sides of the bushing.
-

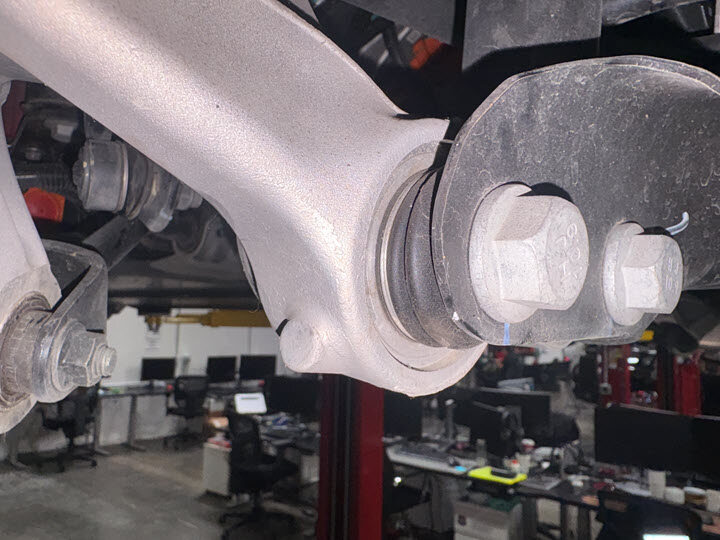

Inspect the LH rear lower aft link to
knuckle bushing.
NoteExamine the outer bushing of the LH rear lower aft link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-

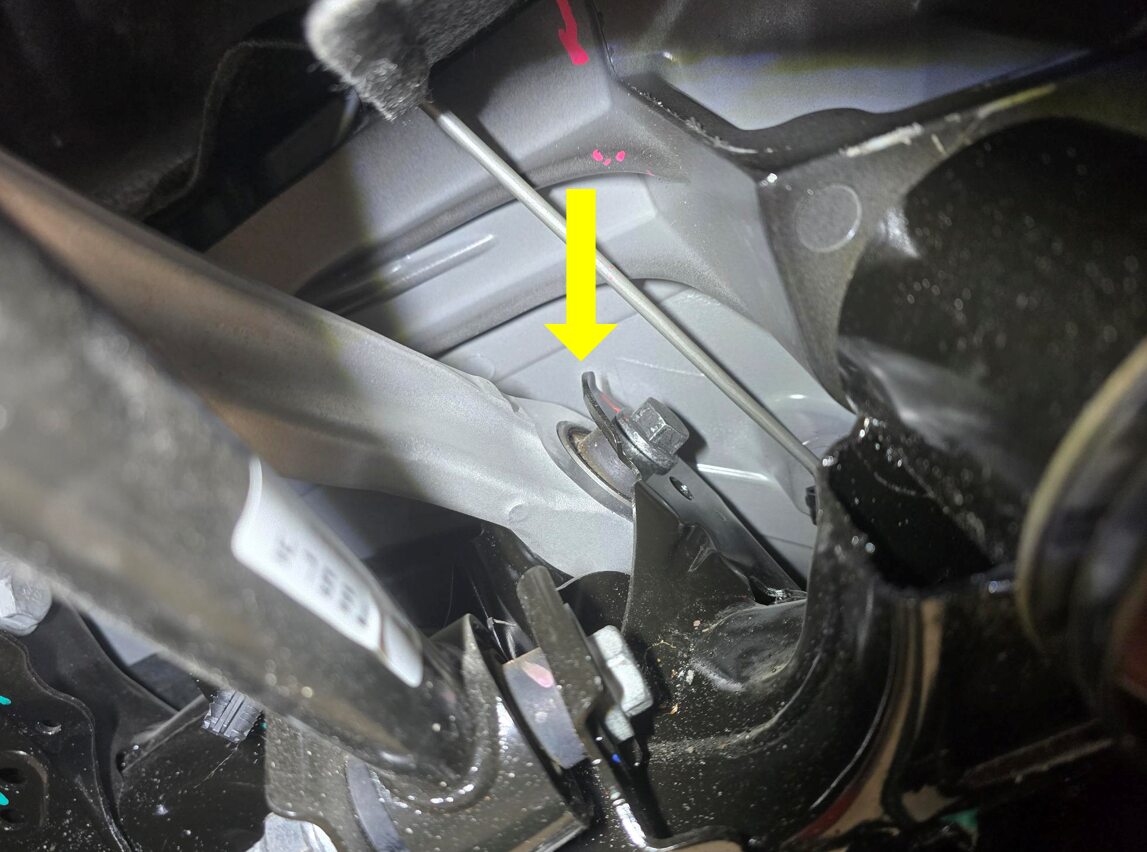

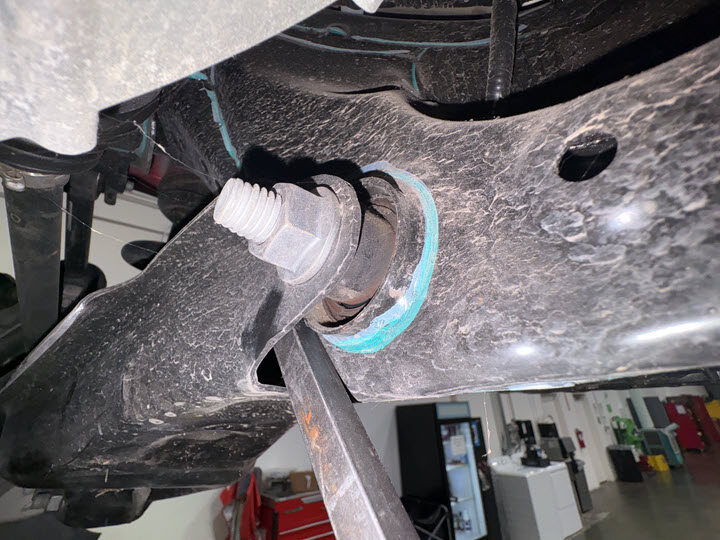

Inspect the LH rear upper aft link to
subframe bushing.
NoteExamine the inner bushing of the LH rear upper aft link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-

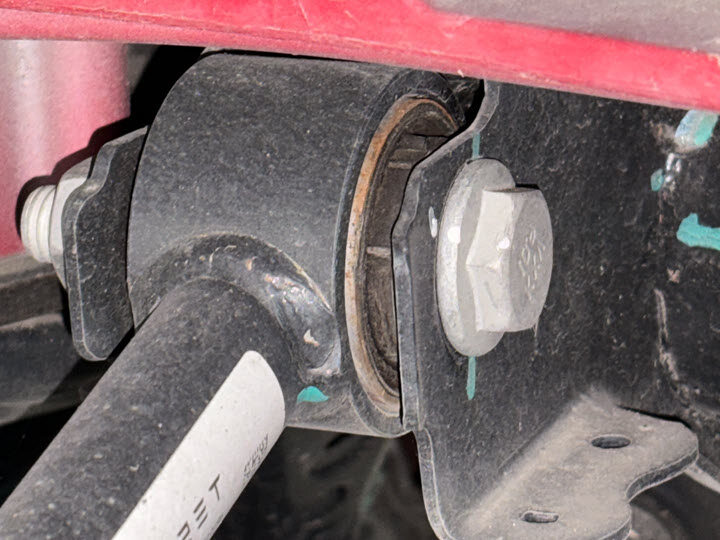

Inspect the LH rear upper fore
link.
NoteExamine the inner and outer bushing of the LH rear upper fore link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-

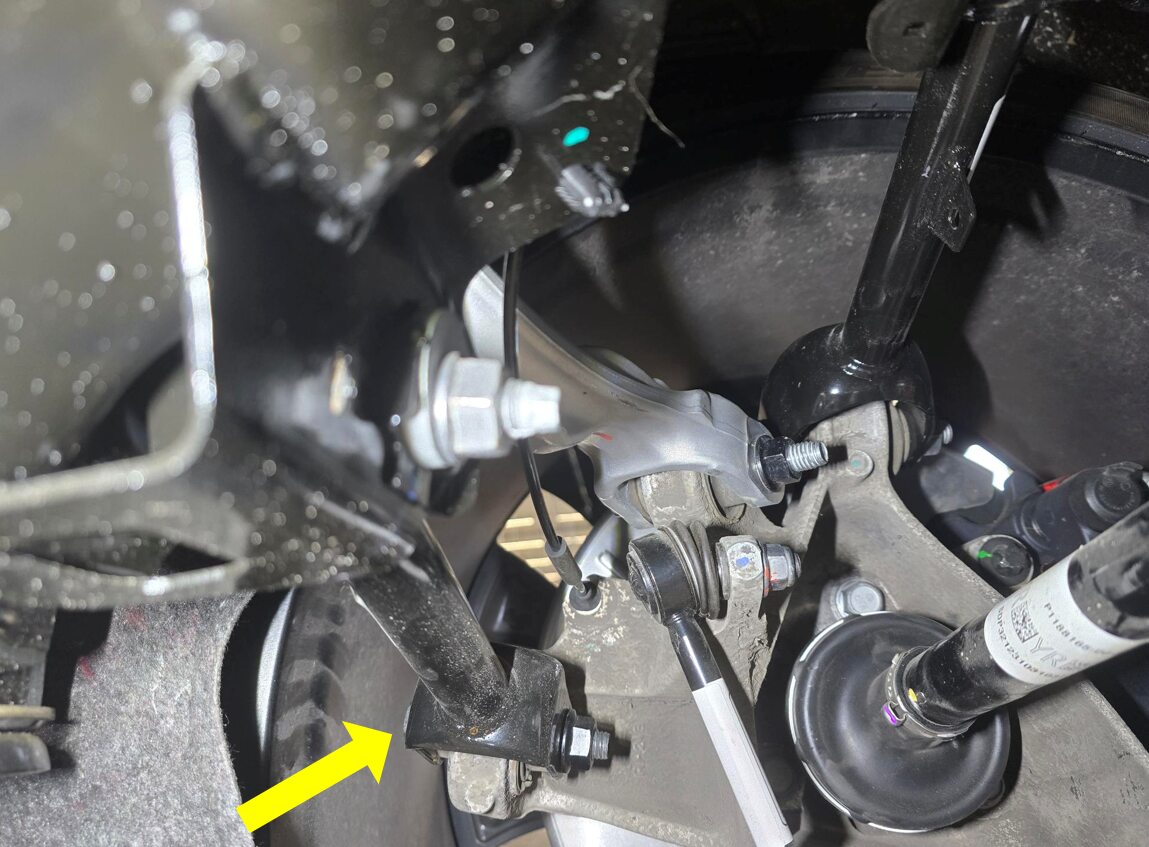

Inspect the LH rear lower fore
link.
NoteExamine the inner and outer bushing of the LH rear lower fore link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Inspect the RH toe link to subframe
bushing.
NoteExamine the inner bushing of the RH toe link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Inspect the RH rear toe link to
knuckle bushing.
NoteExamine the outer bushing of the RH toe link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Inspect the RH rear lower aft link to
subframe bushing.
NoteExamine the inner bushing of the RH rear lower aft link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-

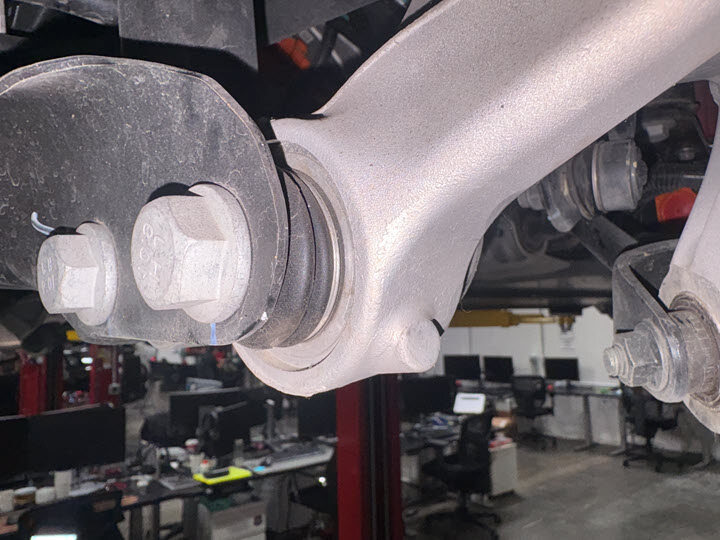

Inspect the RH rear lower aft link to
knuckle bushing.
NoteExamine the outer bushing of the RH rear lower aft link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Inspect the RH rear upper aft link to
subframe bushing.
NoteExamine the inner bushing of the RH rear upper aft link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Inspect the RH upper fore link.
NoteExamine the inner and outer bushing of the RH rear upper fore link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Inspect the RH rear lower fore
link.
NoteExamine the inner and outer bushing of the RH rear lower fore link for unusual cracks. Use a pry bar to confirm that there is no excessive movement. Examine both sides of the bushing.
-
Install the tabs (x2) and bolt that
attach the RH rear suspension cover.
6 Nm (4.4 lbs-ft) -
Install the tabs (x2) and bolt that
attach the LH rear suspension cover.
6 Nm (4.4 lbs-ft) - Install the rear aero shield. See Panel - Aero Shield - Rear (Remove and Replace).
- Partially lower the vehicle.
-
Inspect the suspension link play on
the RH and LH rear wheels.
NoteIf excessive play is detected on the wheel, proceed to full upper knuckle play inspection (CC: 31030130, 31031812, 31031822).
Suspension Link Play
