Seal - Secondary - Rear Door - LH (Remove and Replace)

Correction code 1170030042 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH rear door.

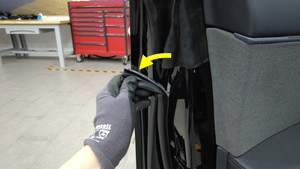

  2. Release the LH rear glass run seal clips (x4) to fully access the LH rear door secondary seal.

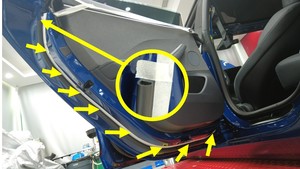

  3. Use narrow-width tape to carefully mark the location of the secondary seal around the door.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that the edge of the tape accurately follows the edge of the seal.
  4. Slowly peel the length of the secondary seal from the perimeter of the rear door.
    Informational PurposesAn informational icon, calling your attention
    Note

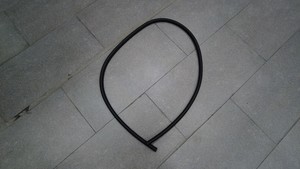

    Discard the seal as it can not be reused.
  5. Clean any remaining adhesive or residue from the rear door.
    Informational PurposesAn informational icon, calling your attention
    Note
    If needed, carefully use the following tools to clean adhesive or residue:

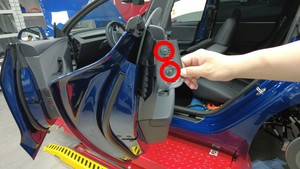

    • 1071510-00-AWHEEL, STRIPE OFF
    • 1076972-00-A4 Piece Non-Marring Scraper Set
    • 2151853-00-A3M PN38180 Glue Cleaner_230G
    • 2150371-00-AIPA Wipers

Install

  1. Use IPA wipes to clean the LH rear door secondary seal installation path.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.

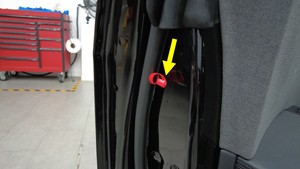

  2. Peel a short section of seal backing and insert the end of the seal into the rear of the glass run seal.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the open edge of the seal is facing the inside of the door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the drain holes of the seal is at the bottom of the door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the rear end of the secondary door seal is installed no deeper than 25mm into the glass run seal.
  3. Peel the seal backing and carefully position the edge of the seal to the edge of the marking tape while working around the rear door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not stretch the seal as it is applied to the door.
  4. Use a seam roller to attach the seal to the LH rear door.
  5. Install the LH rear glass run seal clips (x4) to fully access the LH rear door secondary seal.
  6. Remove the marking tape from the LH rear door.
  7. Close the LH rear door.
