Link - Stabilizer Bar - Rear - LH (Remove and Replace)

Correction code 3103020012 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-09-04: Removed the rear aero shield removal/installation steps.

Torque Specifications

Table 1. Torque Specifications: Link - Stabilizer Bar - Rear - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the LH rear drop link to the LH rear stabilizer bar
55 Nm (40.6 lbs-ft)
  • 5 mm hex
  • 15 mm combination flex head wrench
  • 15 mm socket
  • Flex head ratchet/flex head torque wrench
 Replace
Nut that attaches the LH rear drop link to the LH rear knuckle
55 Nm (40.6 lbs-ft)
  • 5 mm hex
  • 15 mm combination flex head wrench
  • 15 mm socket
  • Flex head ratchet/flex head torque wrench
 Replace

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Remove and discard the nut that attaches the LH rear drop link to the LH rear stabilizer bar.
    Tip
    Use of the following tool(s) is recommended:
    • 5 mm hex
    • 15 mm combination flex head wrench
    • 15 mm socket
    • Flex head ratchet/flex head torque wrench
  3. Remove and discard the nut that attaches the LH stabilizer bar drop link to the LH rear suspension knuckle.
    Tip
    Use of the following tool(s) is recommended:
    • 5 mm hex
    • 15 mm combination flex head wrench
    • 15 mm socket
    • Flex head ratchet/flex head torque wrench

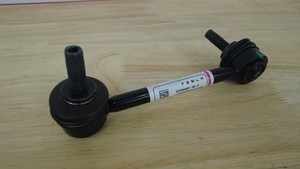

  4. Remove the LH rear drop link from the vehicle.

Install

  1. Position the LH rear drop link to the vehicle.
  2. Install and tighten a new nut (1111542-00-A) that attaches the LH stabilizer bar drop link to the LH rear suspension knuckle.
    55 Nm (40.6 lbs-ft)
    Note
    Counter-hold the ball joint with a 5 mm hex wrench.
    Note
    Mark the nut with a paint pen after installation.
    Tip
    Use of the following tool(s) is recommended:
    • 5 mm hex
    • 15 mm combination flex head wrench
    • 15 mm socket
    • Flex head ratchet/flex head torque wrench
  3. Install and tighten a new nut that attaches the LH rear drop link to the LH rear stabilizer bar.
    55 Nm (40.6 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 5 mm hex
    • 15 mm combination flex head wrench
    • 15 mm socket
    • Flex head ratchet/flex head torque wrench
  4. Lower the vehicle fully and remove the vehicle from the lift.
