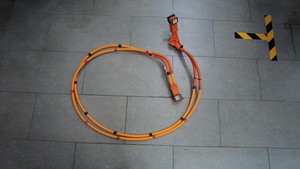

HV Harness - HV Battery to Front Drive Unit (Remove and Replace)
Correction code
4450010012
FRT
1.02
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Equipment:
- 1140311-00-A Lever Lock, HV Connector, Model 3
Remove
-
Refer to the procedure to
remove the HV battery center rail ski for dual-motor vehicles. See Ski Cover - HV Battery - Center (Remove and Replace).
Install
- Refer to the procedure to install the HV battery center rail ski for dual-motor vehicles. See Ski Cover - HV Battery - Center (Remove and Replace).
