Wheel Trim - Performance (Remove and Install)

Correction code 3401000101 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

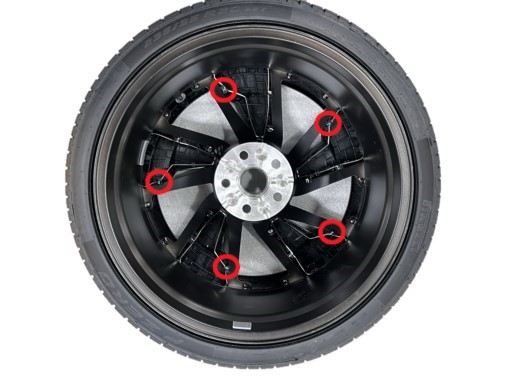

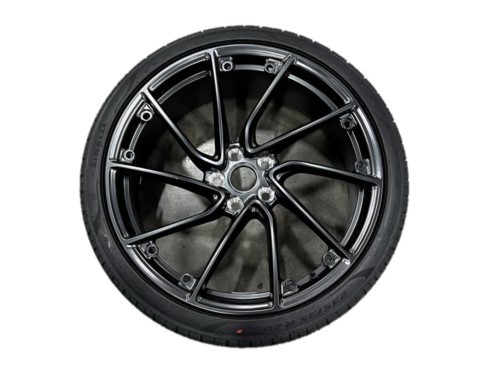

  1. Lay wheel assembly face down onto padded surface to gain access to the backside.

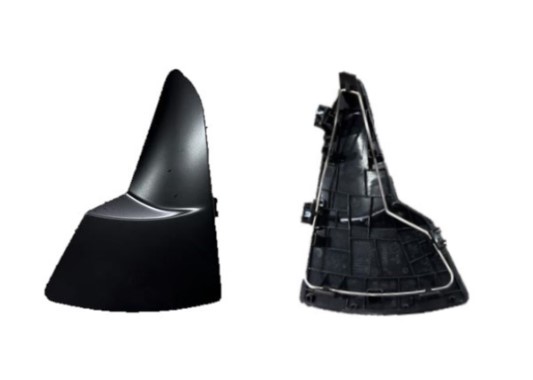

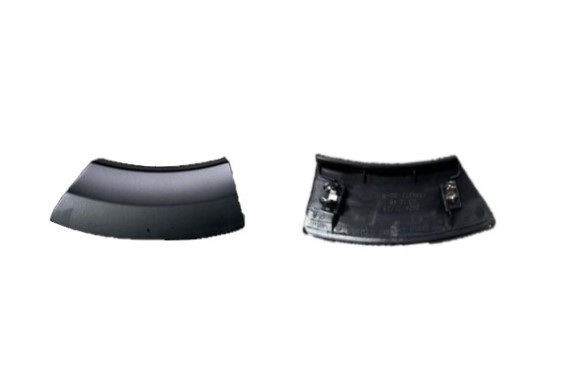

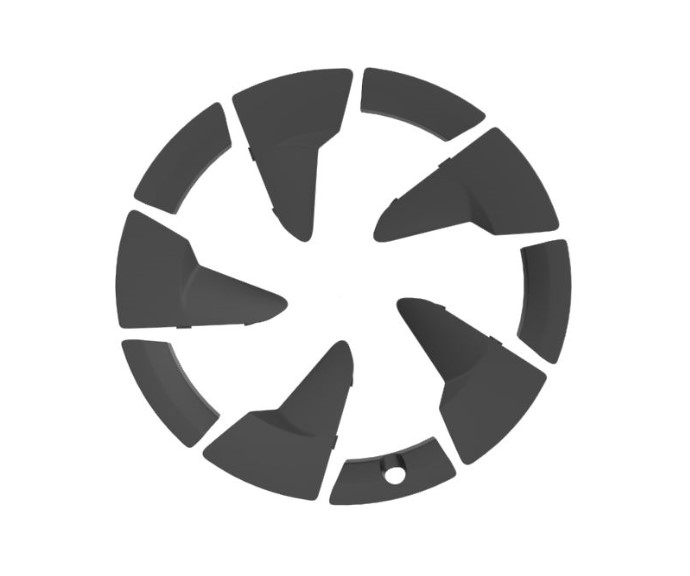

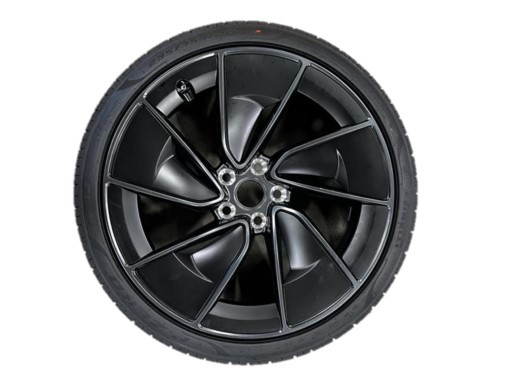

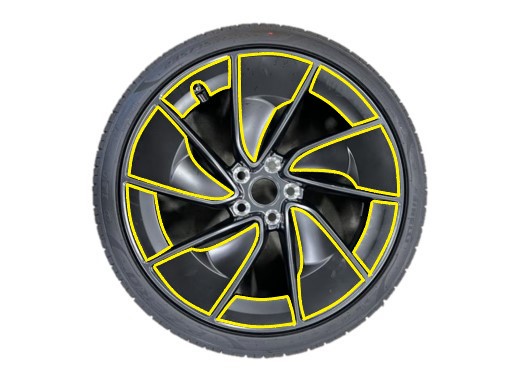

  2. Remove wishbone aero wheel inserts.
    Informational PurposesAn informational icon, calling your attention
    Note

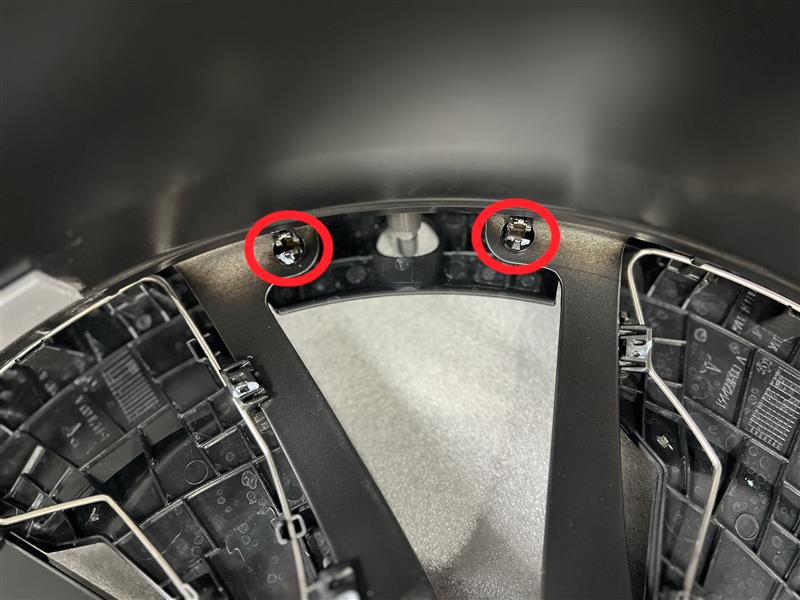

    Use a hammer and punch to carefully release each outboard clip securing wishbone aero insert onto wheel, push insert downwards to remove wishbone aero insert from wheel assembly.

Install

  1. Install wishbone aero wheel inserts.
    Informational PurposesAn informational icon, calling your attention
    Note

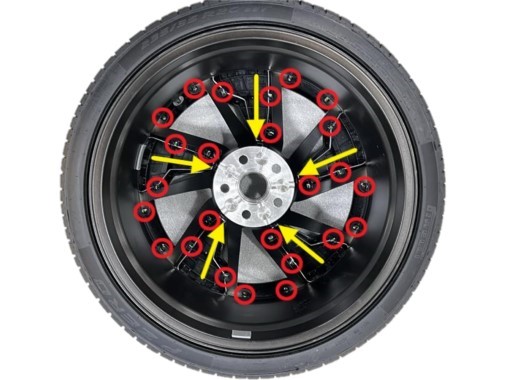

    Follow install press sequence for each wishbone aero insert, align wishbone aero insert into inboard of wheel and push insert in clockwise motion to snap into place, ensure all the clips are fully engaged and secured onto wheel assembly.
