Suspension - Backrest - Front Seat - LH (Remove and Replace)

Correction code 1301020012 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.

Remove

  1. Remove the driver seat headrest power lumbar assembly. See Lumbar Support - Backrest - Driver Seat (Remove and Replace).

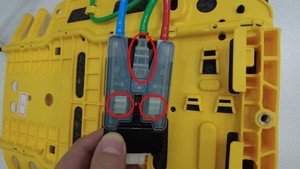

  2. Lift and slide the ECU along the arrow direction to release the underside guide tabs (x3) to remove the lumbar ECU from the power lumbar assembly.

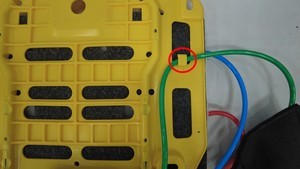

  3. Remove the trachea from the power lumbar assembly.

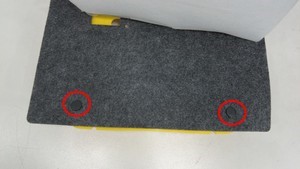

  4. Use a clip prytool to release the clips (x2) securing the suspension to the power lumbar assembly.

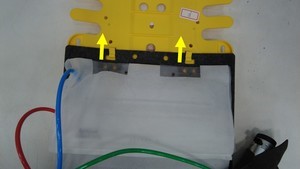

  5. Unhook the seat back suspension through the positioning clips (x2) to remove the seat back suspension from the power lumbar assembly.

Install

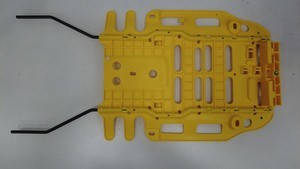

  1. Hook the seat back suspension through the positioning clips (x2) to install the seat back suspension to the power lumbar assembly.
  2. Install the clips (x2) securing the suspension to the power lumbar assembly.

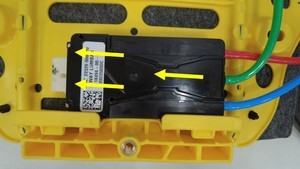

  3. Slide the ECU to engage the underside guide tabs (x3) to install the lumbar ECU to the power lumbar assembly.
  4. Install the driver seat headrest power lumbar assembly. See Lumbar Support - Backrest - Driver Seat (Remove and Replace).
