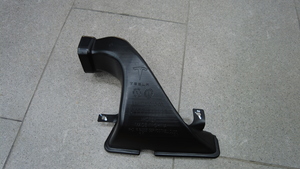

Duct - Footwell - LH (RHD) (Remove and Replace)
Correction code
1405031062
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the passenger footwell cover. See Cover - Footwell - Front Passenger (RHD) (Remove and Replace).
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
- Remove the glove box. See Glove Box (RHD) (Remove and Replace).
-

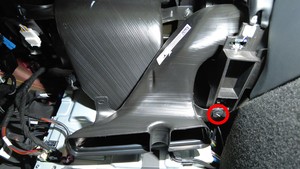

Use a clip pry tool to remove the clip
that attaches the LH footwell duct to the instrument panel bracket.
-

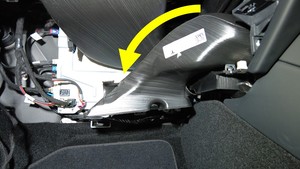

Remove the LH footwell duct from the
HVAC module.
Install

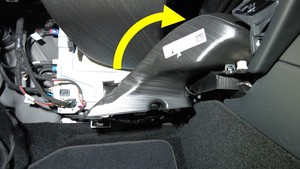

- Install the LH footwell duct to the HVAC module.
-
Install the clip that attaches the LH
footwell duct to the instrument panel bracket.
- Install the glove box. See Glove Box (RHD) (Remove and Replace).
- Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
- Install the passenger footwell cover. See Cover - Footwell - Front Passenger (RHD) (Remove and Replace).
