Headlight - LH (ECE) (Remove and Replace)

Correction code 1740010012 FRT 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-19: Added headlight aiming using LET tool option to procedure.

Remove

  1. Remove the front fascia assembly. See Fascia - Front (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.

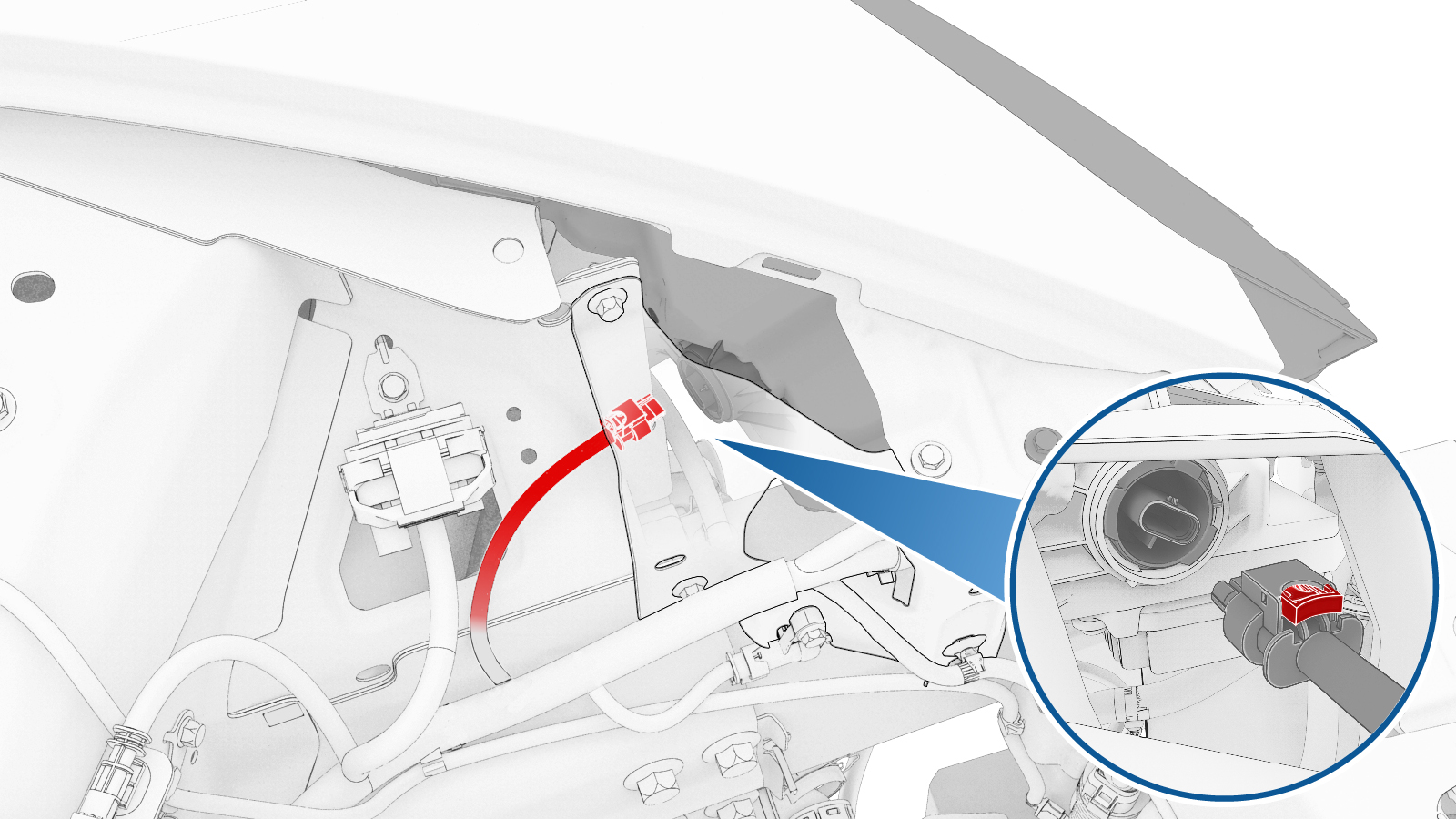

  2. Disconnect the electrical connector from the LH headlight.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

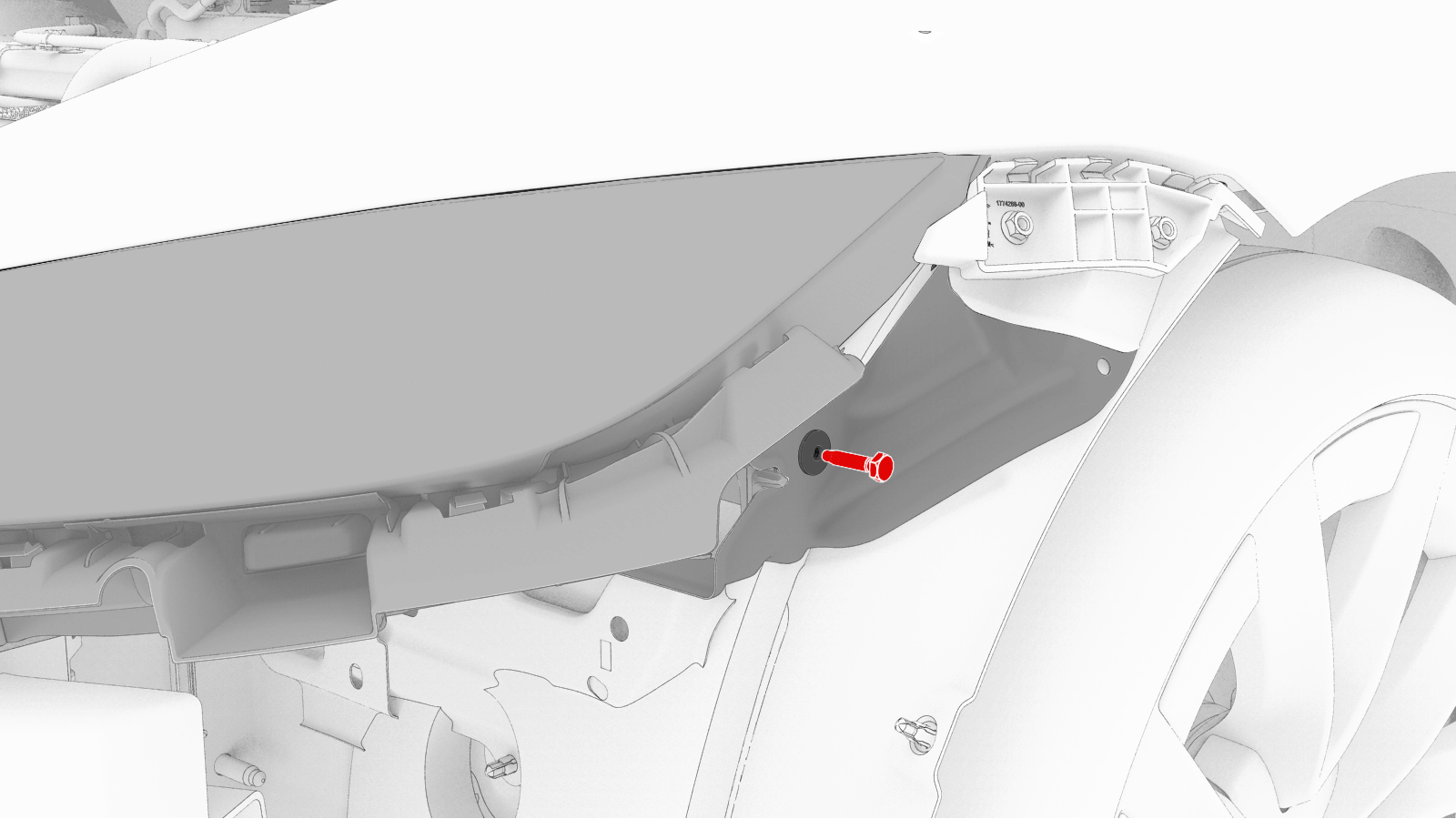

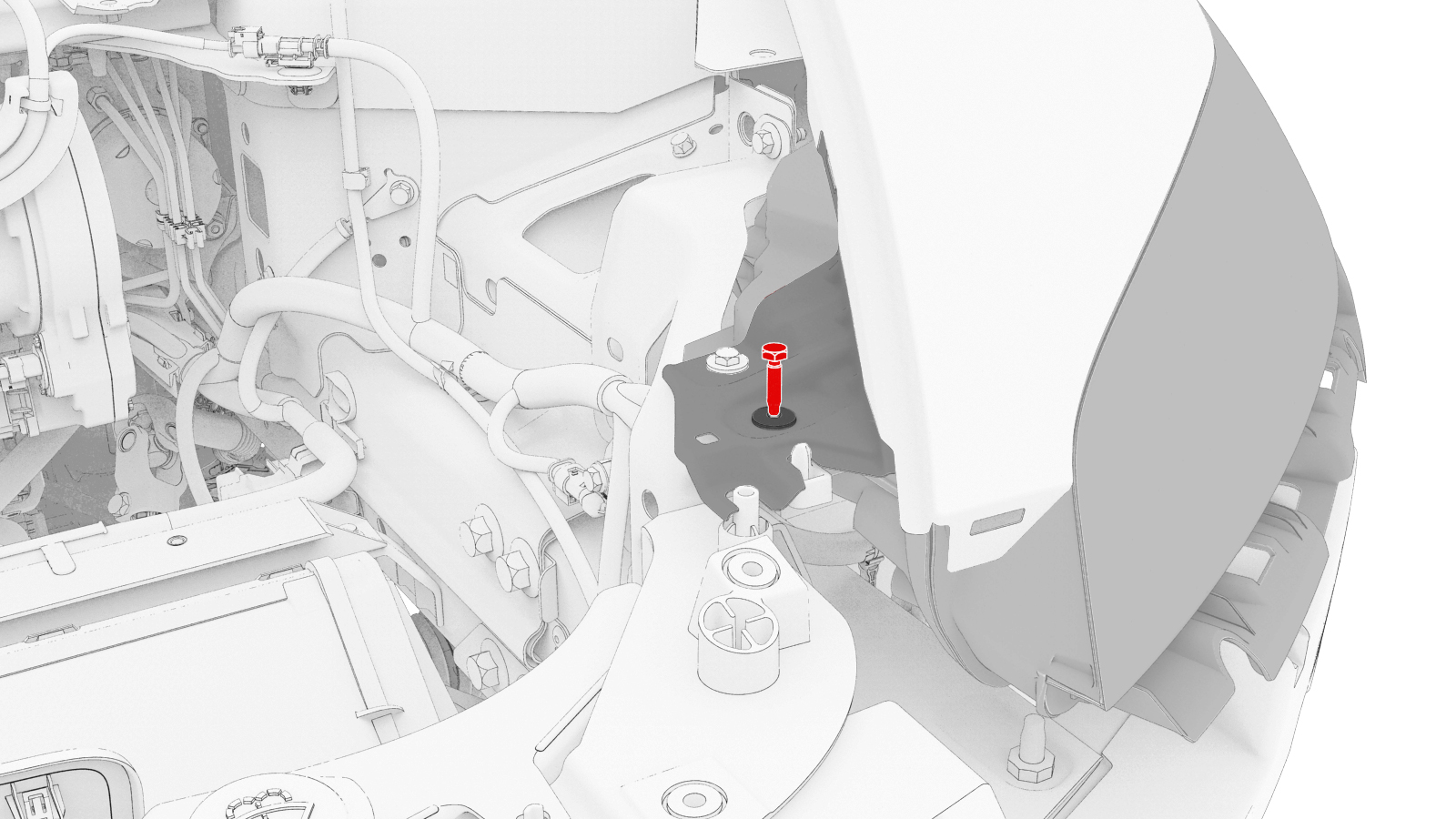

  3. Remove the bolts (x2) that attach the LH headlight to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • 10 mm magnetic deep
    • 6 in nutsetter

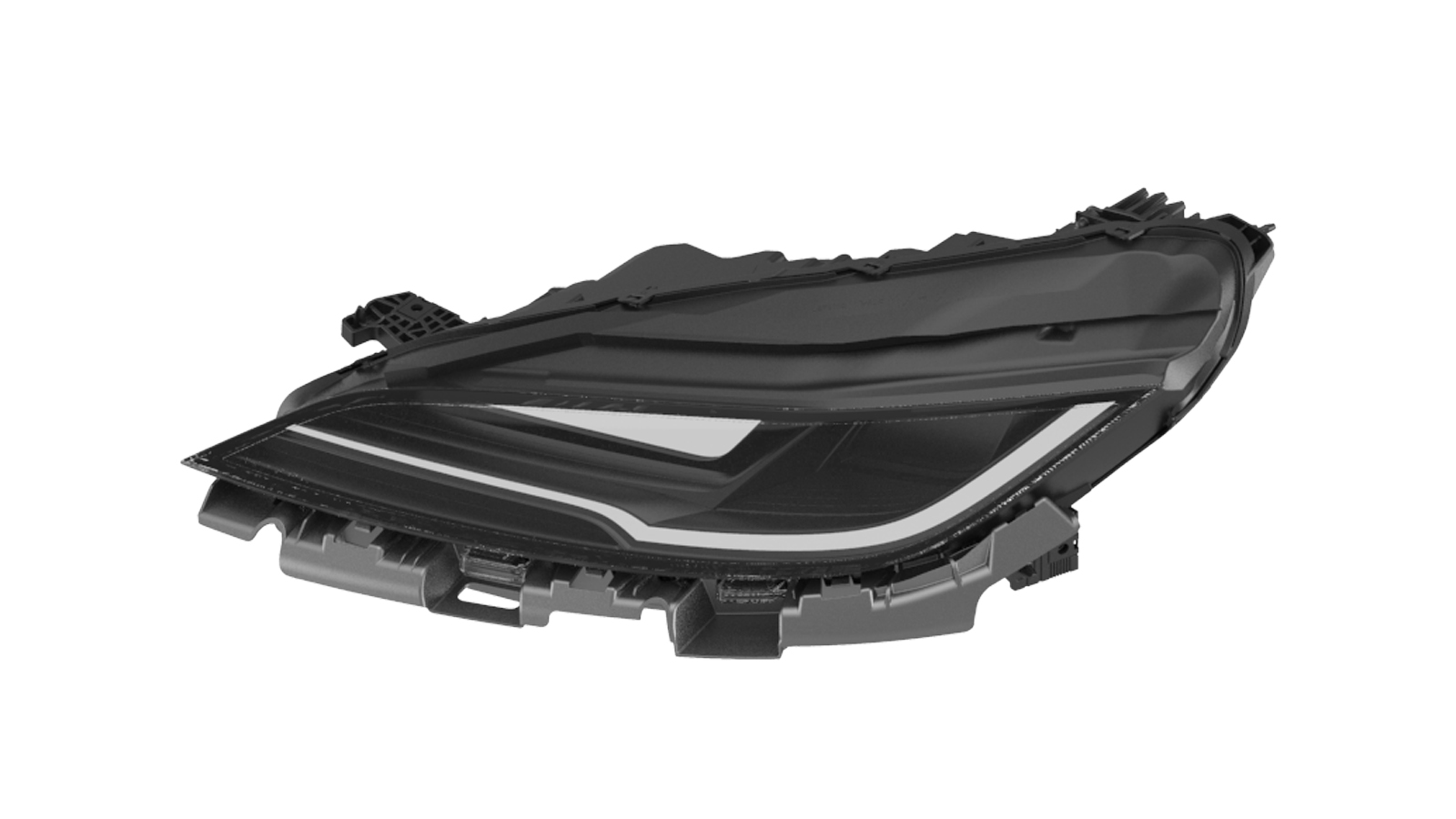

  4. Remove the LH headlight from the vehicle.

Install

  1. Position the LH headlight onto the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not damage the headlight during installation.
  2. Install the bolts (x2) that attach the LH headlight to the body.
    5.9 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • 10 mm magnetic deep
    • 6 in nutsetter
    • Ratchet/torque wrench
    • 6 in locking extension
    • 10 mm deep socket
  3. Connect the electrical connector to the LH headlight.
  4. Reinstall the firmware. See Software Reinstall - Touchscreen.
  5. Install the front fascia assembly. See Fascia - Front (Remove and Replace).
  6. Remove the lift arms from below the vehicle.
  7. Adjust the headlights. Choose from:
  8. Disable Service Mode. See Service Mode.
  9. Raise the LH front window and close the LH front door.
