Trunk Garnish (Model 3 Standard) (Remove and Replace)
Correction code
15110300202
15110300201
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2025-10-08: Released new procedure.
Remove
-

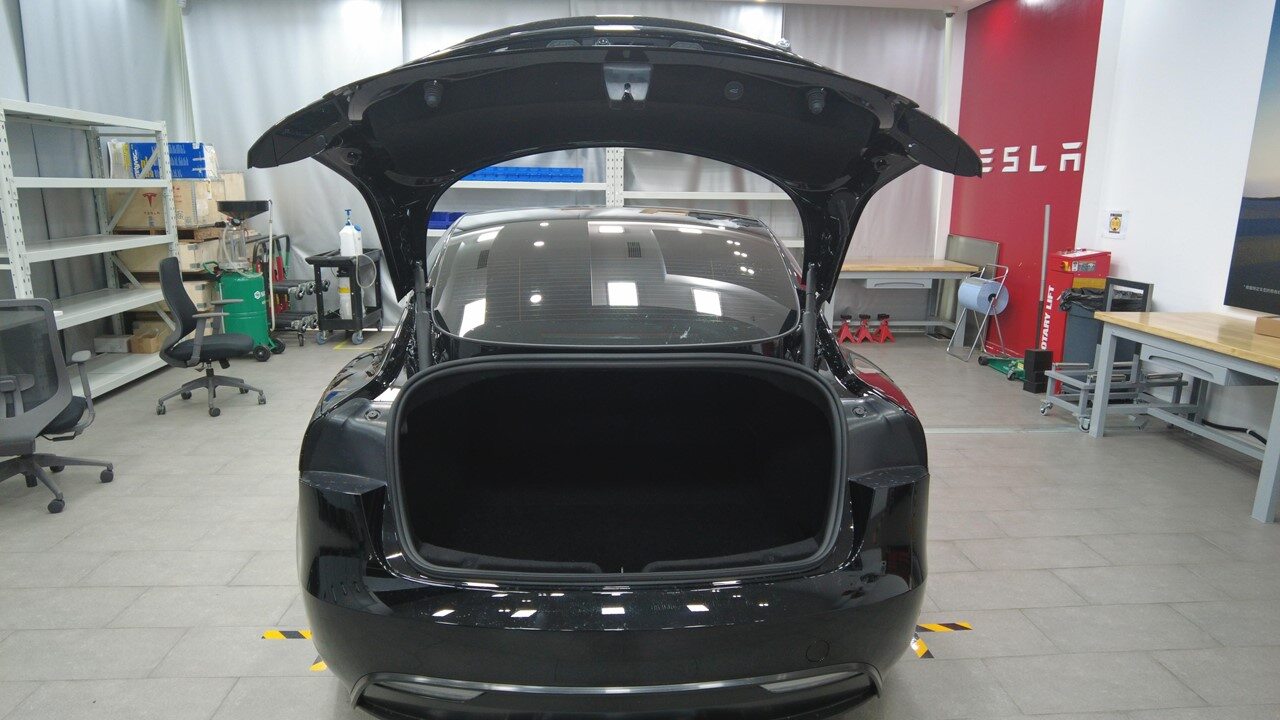

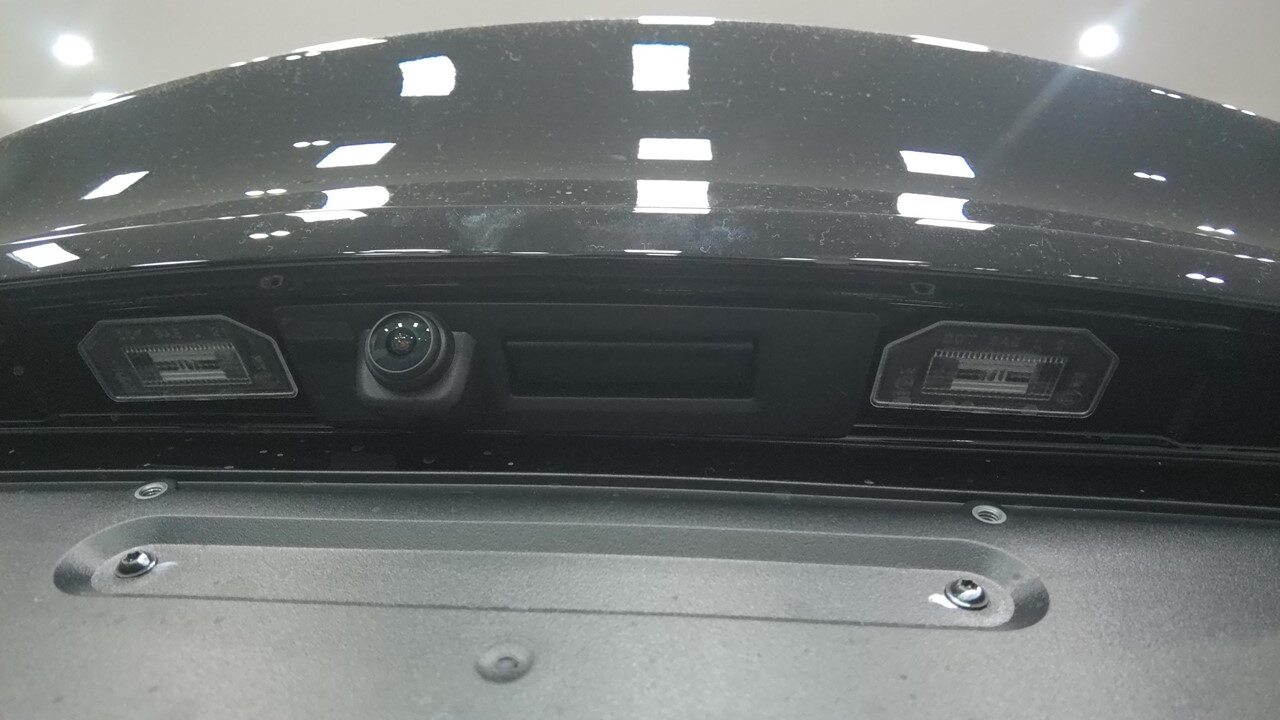

Open the trunk from the exterior
switch.
-

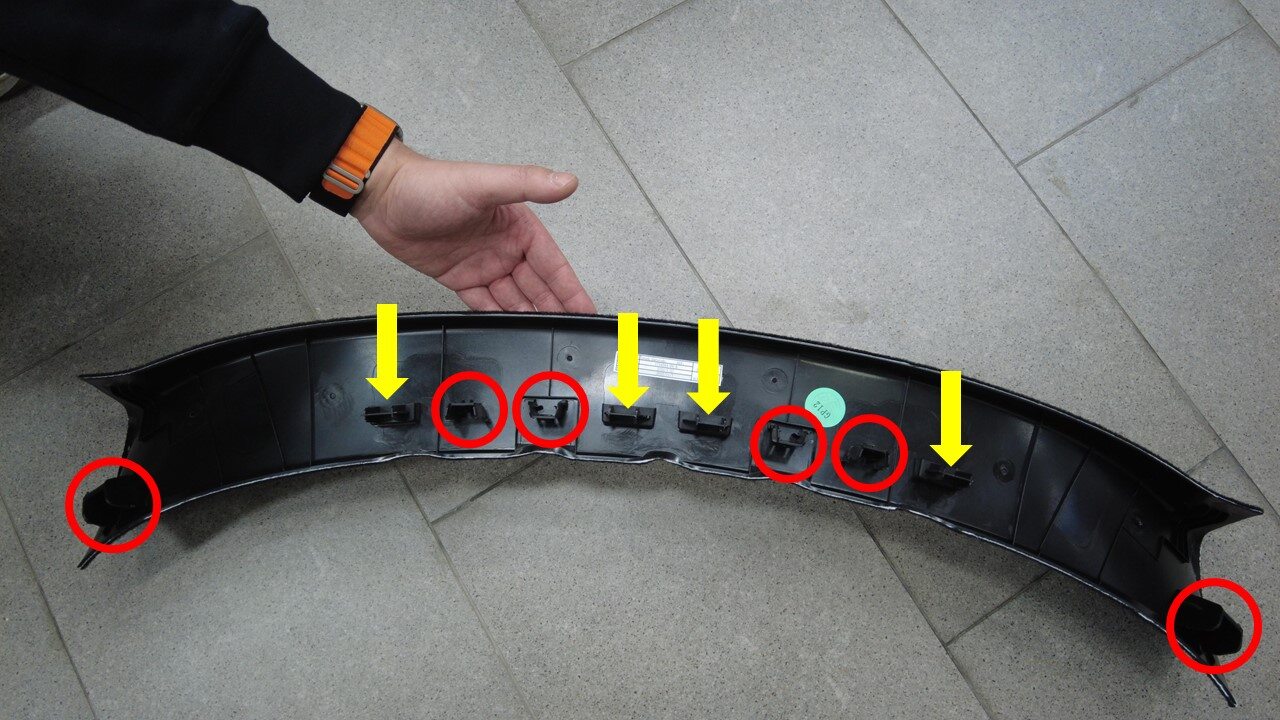

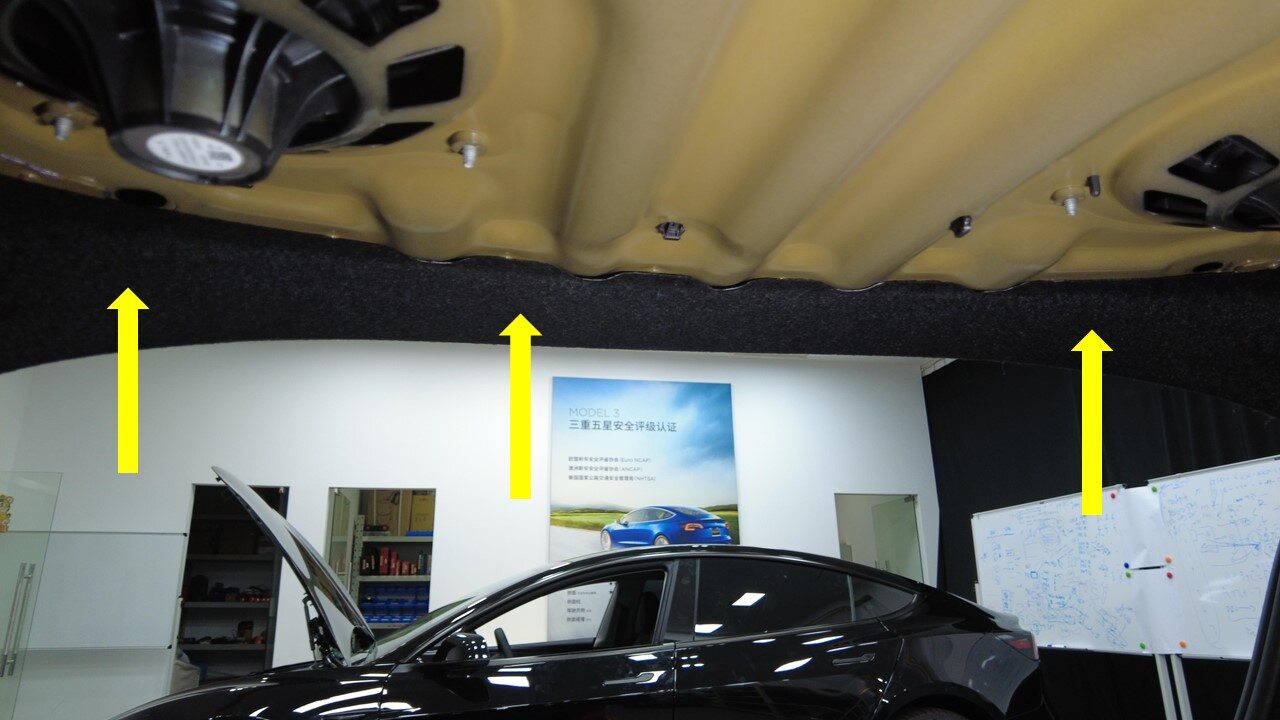

Release the clips (x6) on the trunk

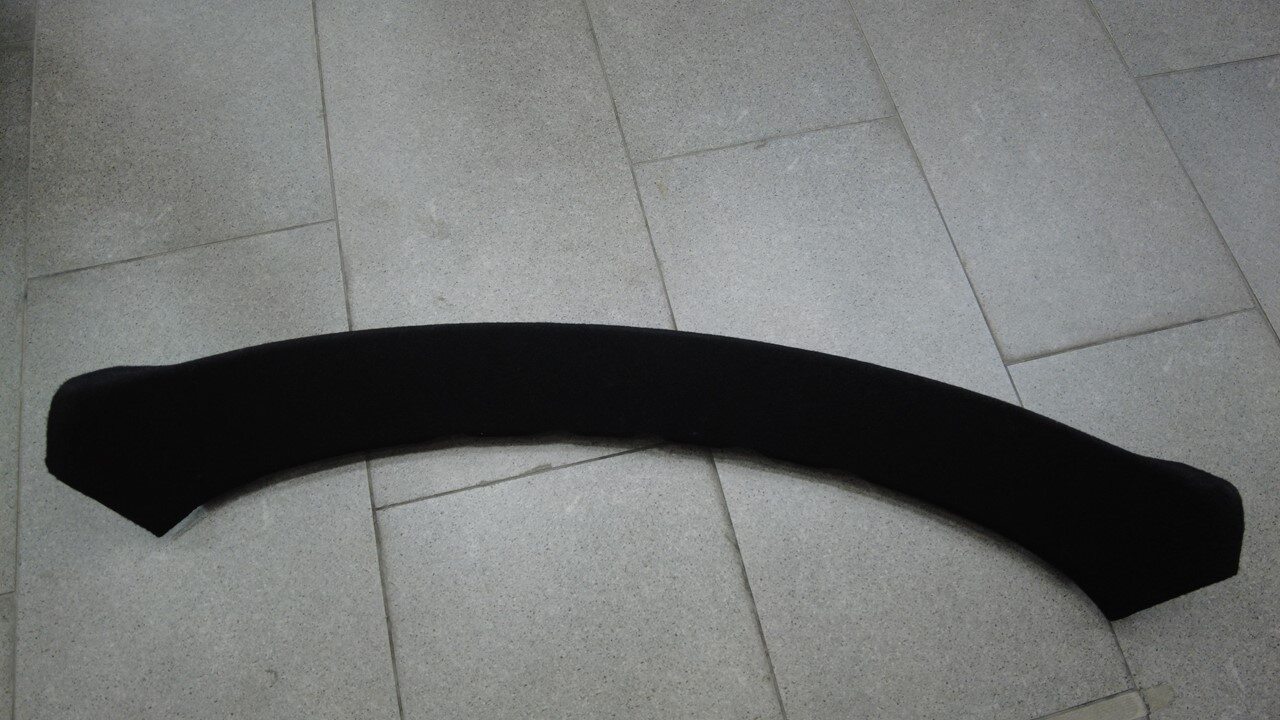

garnish assembly, then remove the assembly.
Install
-
Install trunk garnish assembly and
engage all clips (x6).

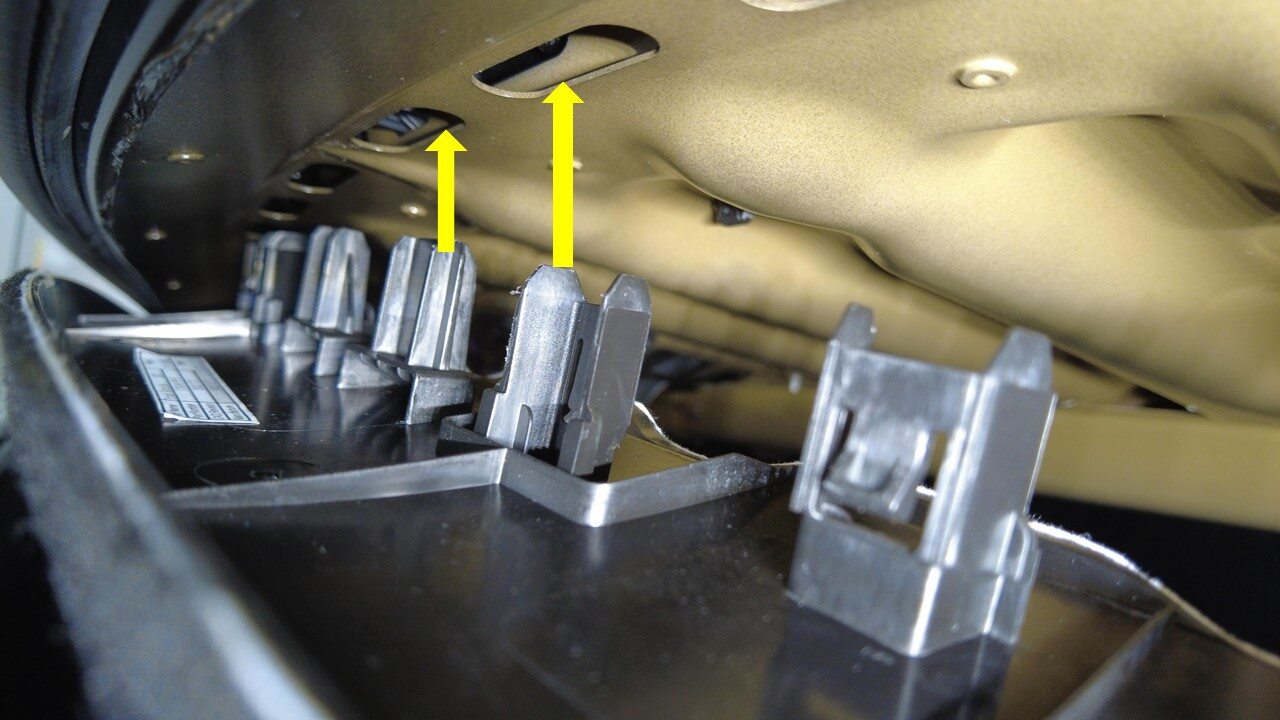

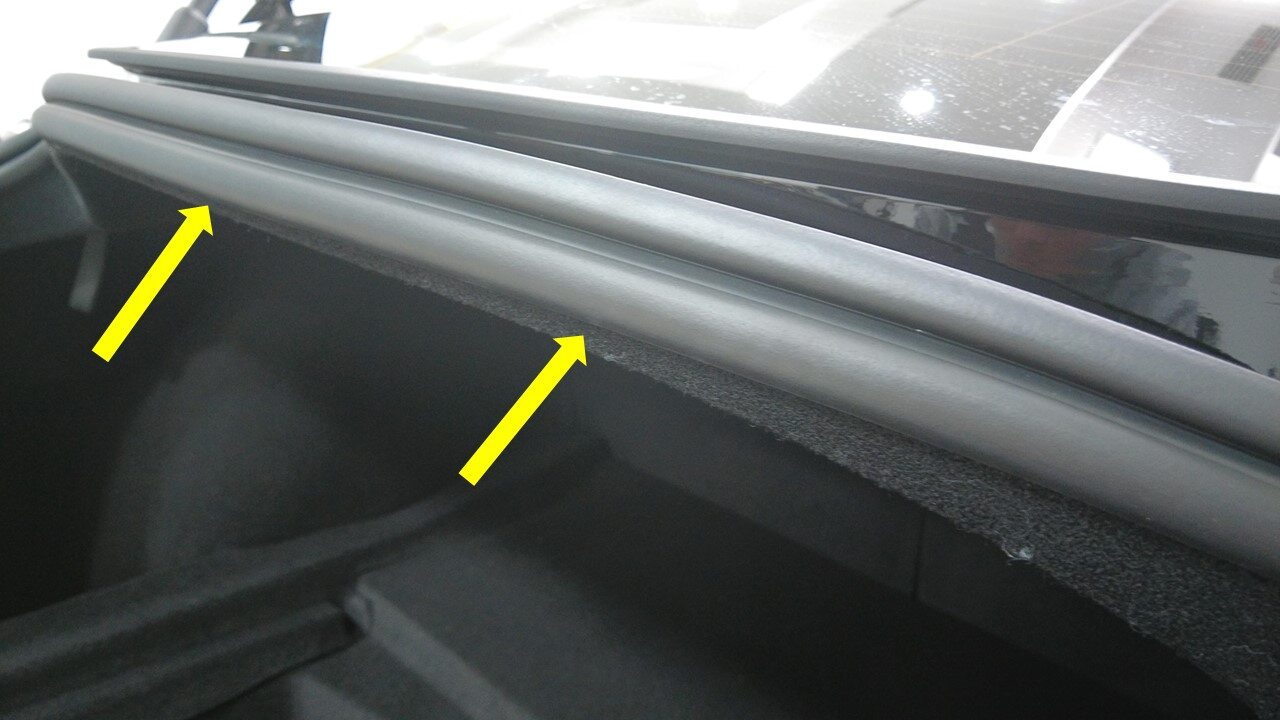

NoteAlign the locating tabs (x4) to the slot. Verify that the trunk seal is fully seated along the garnish.
- Close the trunk.
