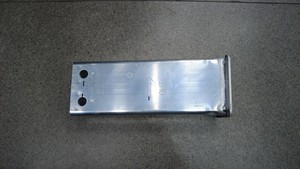

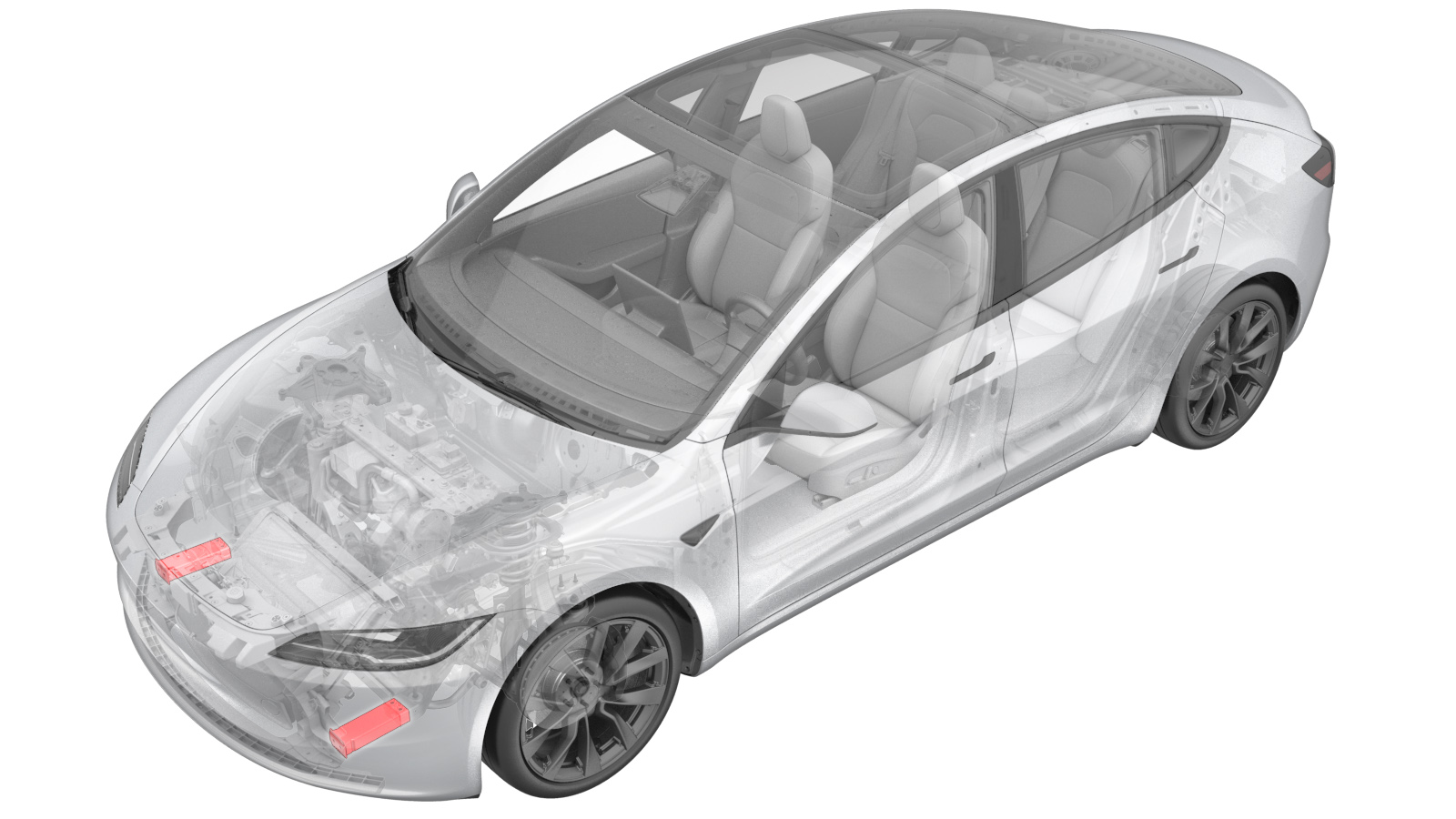

Crush Can - Lower - Front (Remove and Replace)

Correction code 1001030042 FRT 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Crush Can - Lower - Front (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the crush can to the vehicle
53 Nm (39.1 lbs-ft)
  • 15 mm socket
 Replace Bolt is patched.

Remove

  1. Remove the front fascia assembly. See Fascia - Front (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.
  2. Remove the ankle catcher. See Ankle Catcher (Remove and Replace).

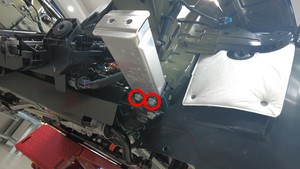

  3. Remove the bolts (x2) that attach the crush can to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket

Install

  1. Install the bolts (x2) that attach the crush can to the vehicle.
    53 Nm (39.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
  2. Install the ankle catcher. See Ankle Catcher (Remove and Replace).
  3. Install the front fascia assembly. See Fascia - Front (Remove and Replace).
