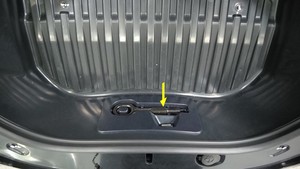

Switch - Child Safety - Underhood Storage Area (Remove and Replace)

Correction code 1224010052 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the hood.
  3. Remove the tow hook from the access panel.
  4. Release the clips (x3), the guide tabs (x3) and the connector that attach the access panel to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Grasp the access panel at the top and pull it back to release the clips.

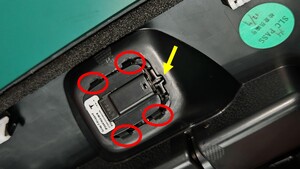

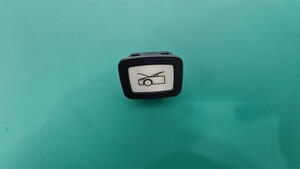

  5. Release tabs (x4) to remove the child safety switch from the access panel.

Install

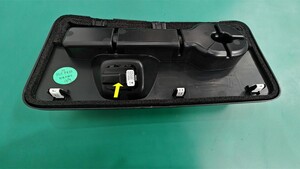

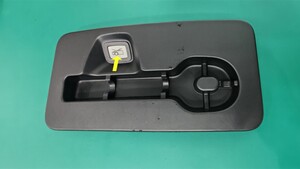

  1. Align the location pin on the switch with the location slot on the panel, then secure the tabs (x4) to install the child safety switch to the access panel.
  2. Connect the connector, and then install the clips (x3) and the guide tabs (x3) that attach the access panel to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Align the guide tabs, and then push forward to secure the clips.
  3. Install the tow hook to the access panel.
  4. Close the hood.
  5. Raise the LH front window and close the LH front door.
