Reflector - Door - Front - LH (Remove and Replace)

Correction code 1513021812 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

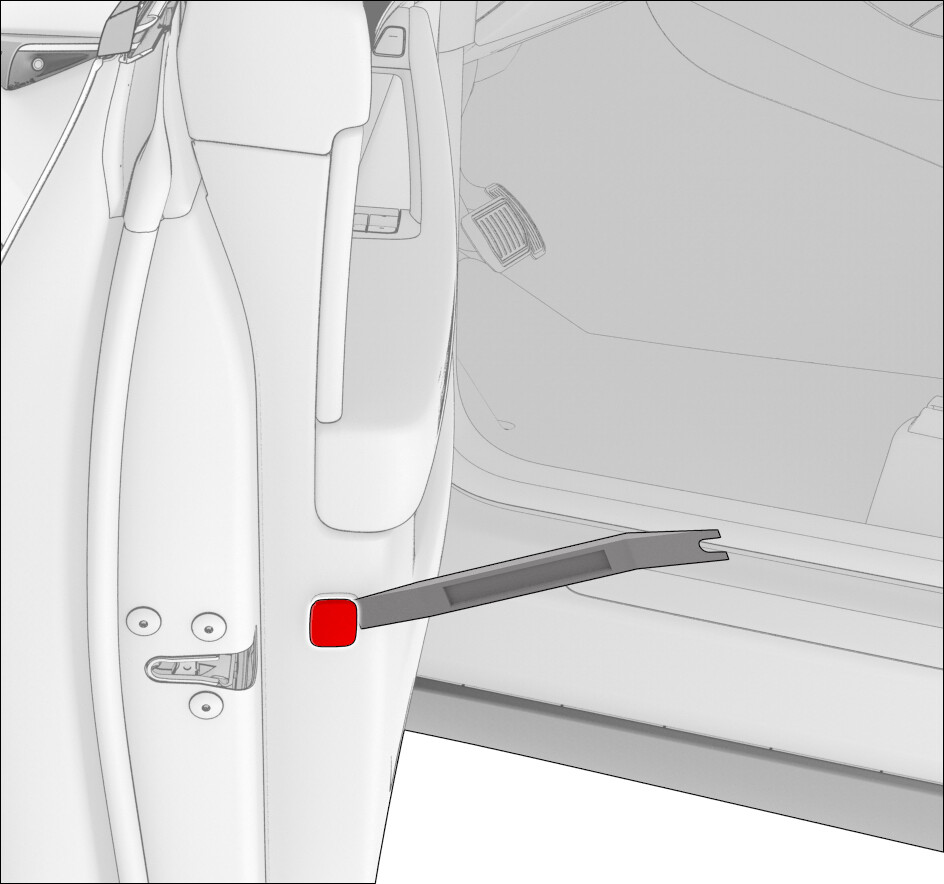

  2. Use a plastic trim tool to release the front door reflector from the rear edge of the front door panel.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care not to damage the door panel.

Install

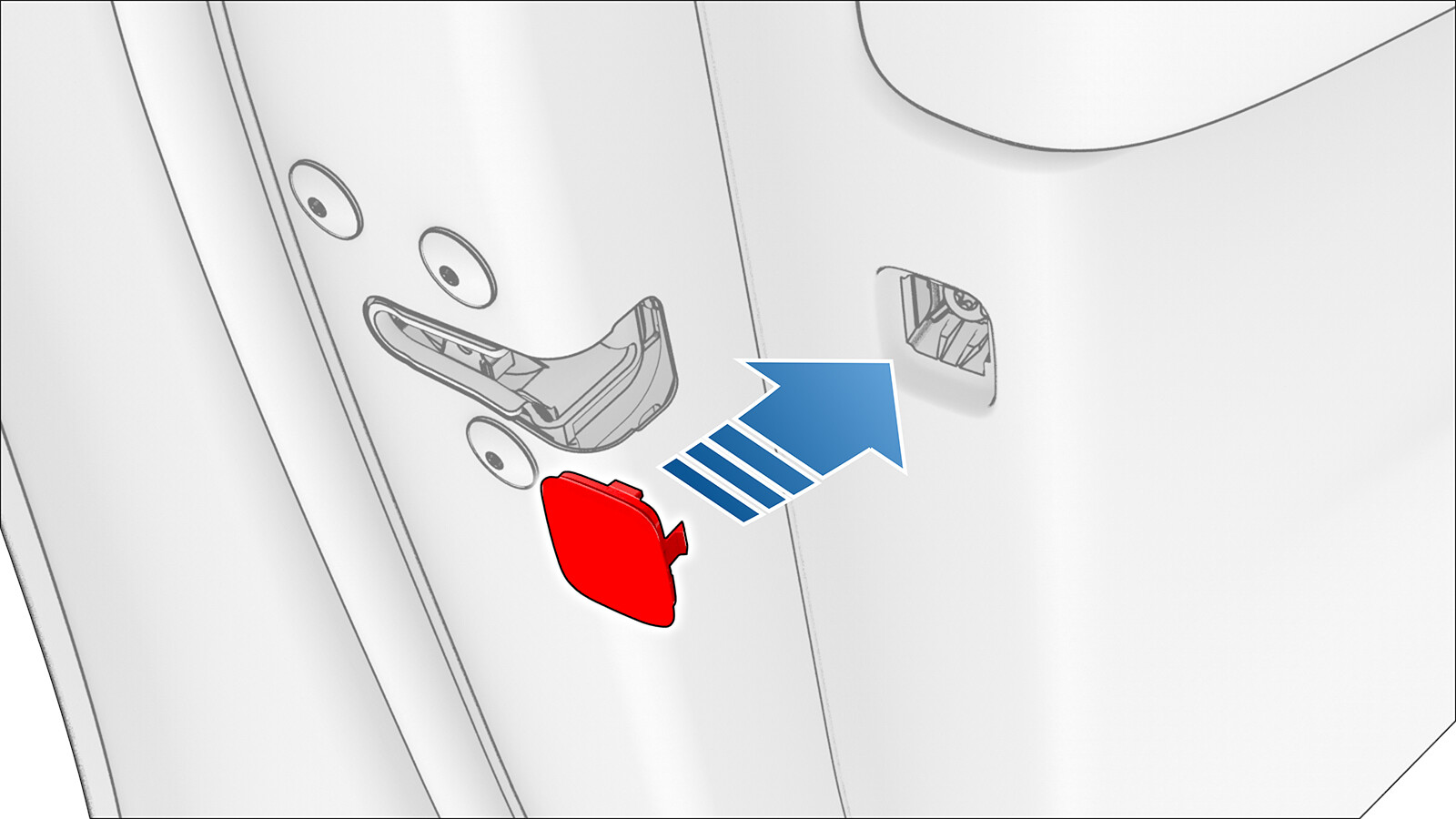

  1. Install the front door reflector by pushing it into the door panel. Make sure the front door reflector is fully attached.
  2. Raise the LH front window and close the LH front door.
