USB Panel Assembly - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190402702 15190402701 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-09-05: Released new procedure.

Remove

  1. Open all four doors.
  2. Lower all four windows.
  3. Move both front seats forward.
  4. Disconnect LV power. See LV Power (Disconnect and Connect).

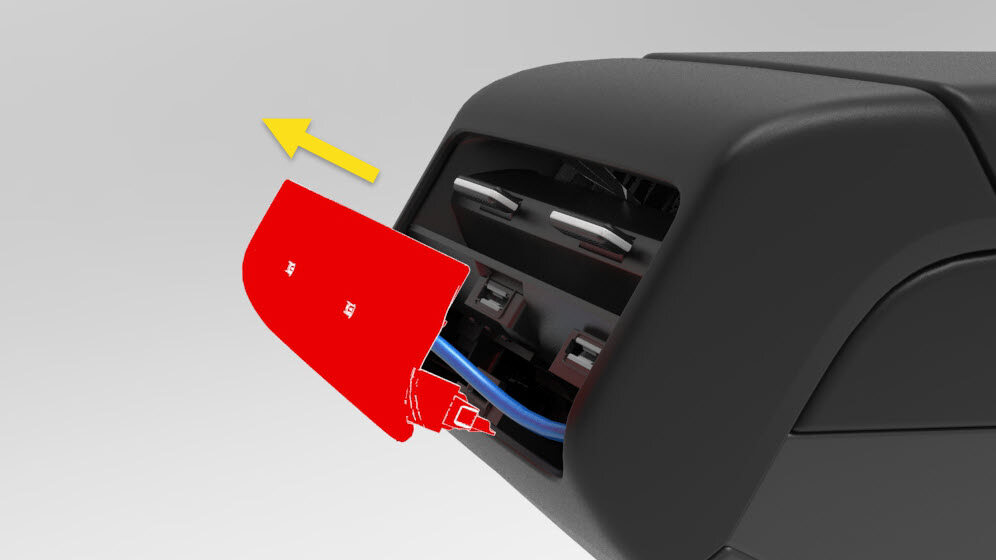

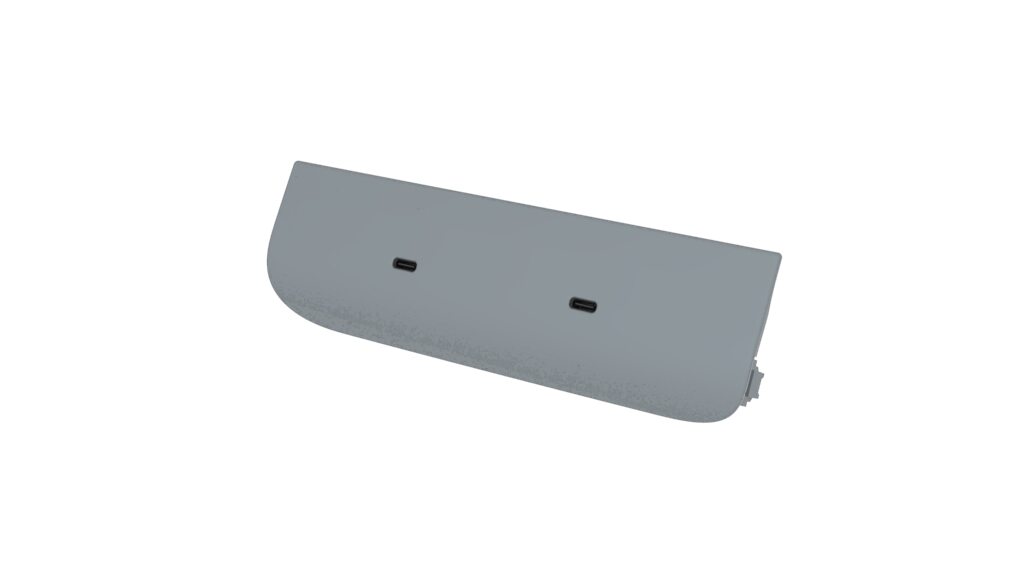

  5. Remove the USB panel assembly from the rear center console module, then disconnect the USB connector.
    Informational PurposesAn informational icon, calling your attention
    TIp

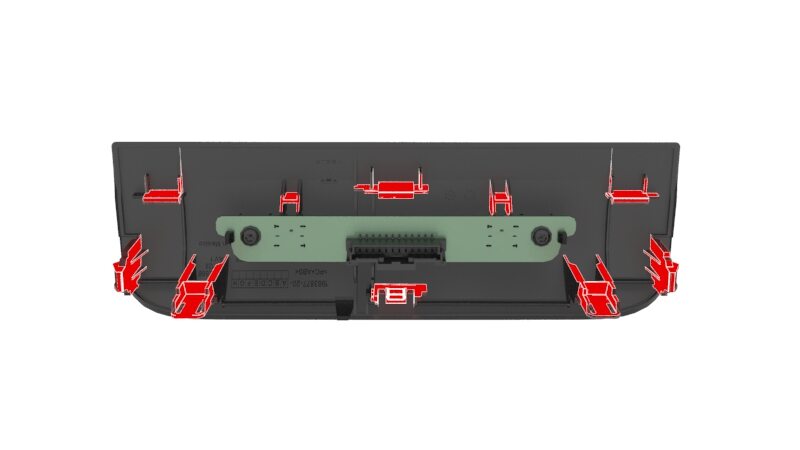

    Pull the top of the USB cover outwards to release it from the center console.

Install

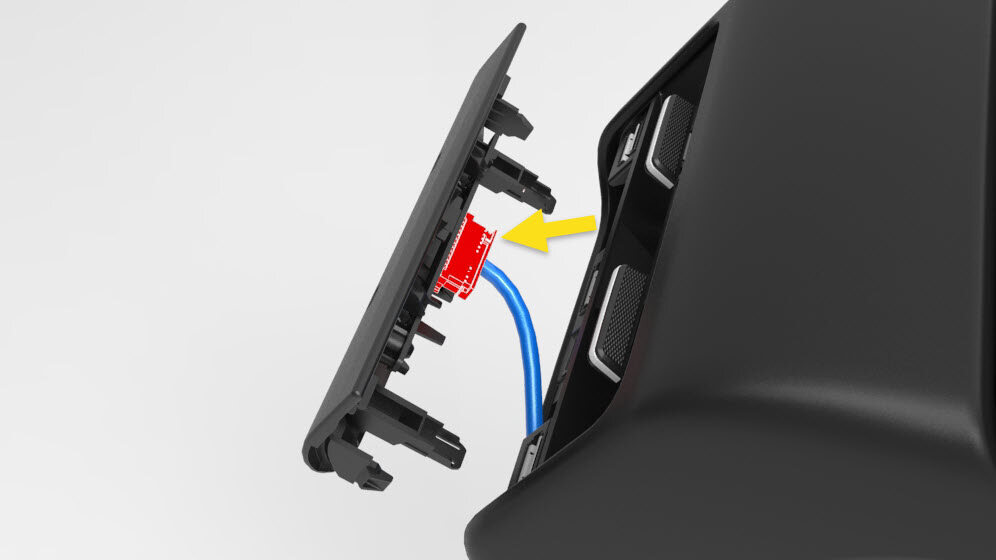

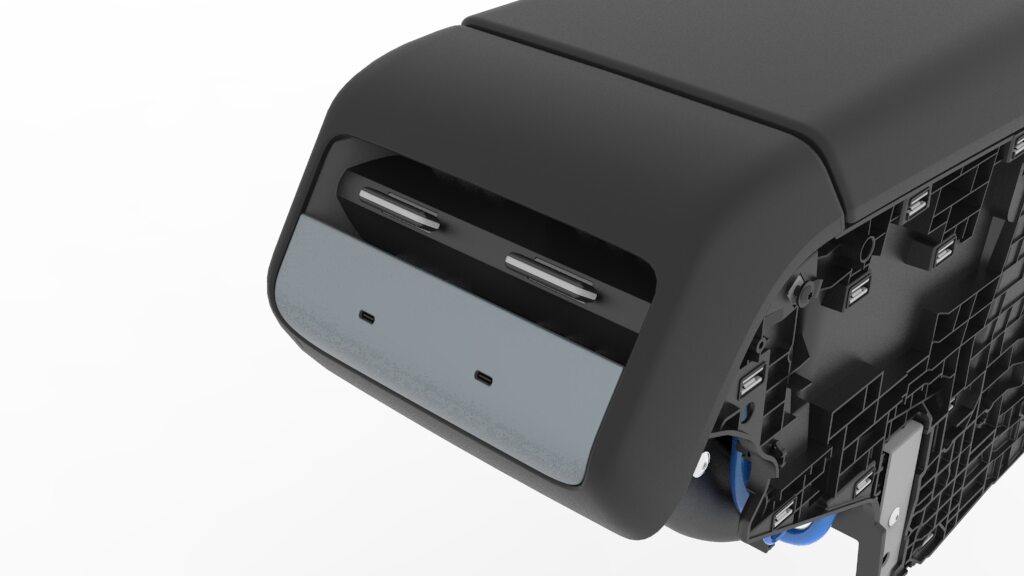

  1. Connect the USB connector, then install the USB panel assembly into the rear center console module.
  2. Reconnect LV power. See LV Power (Disconnect and Connect).
  3. Move both front seats to their original positions.
  4. Raise all four windows.
  5. Close all four doors.
