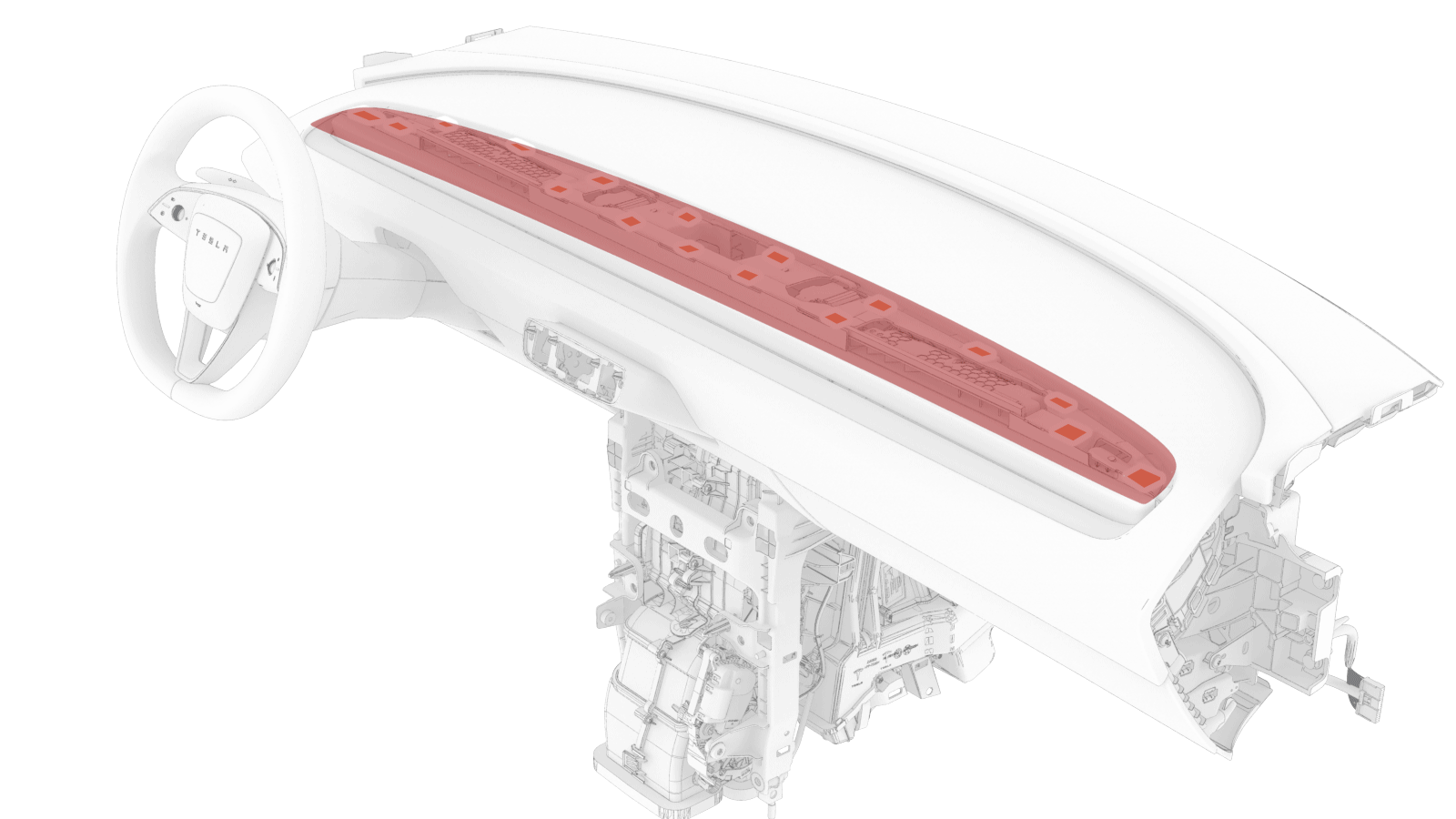

Float Wing - Instrument Panel (Remove and Replace)

Correction code 1405020522 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

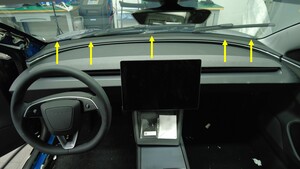

  1. Open both front doors and lower both front windows.

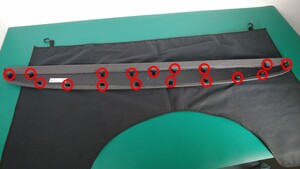

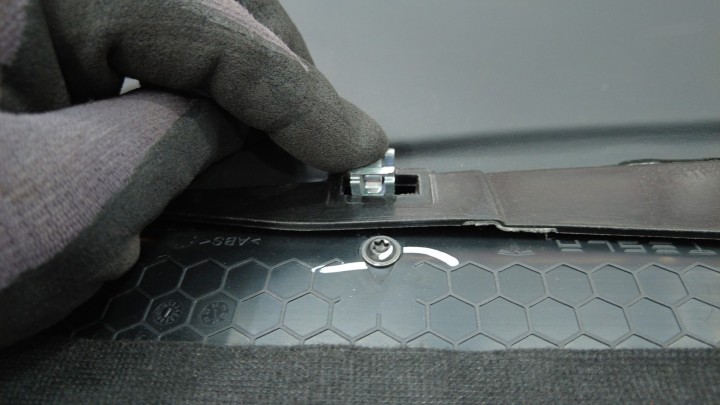

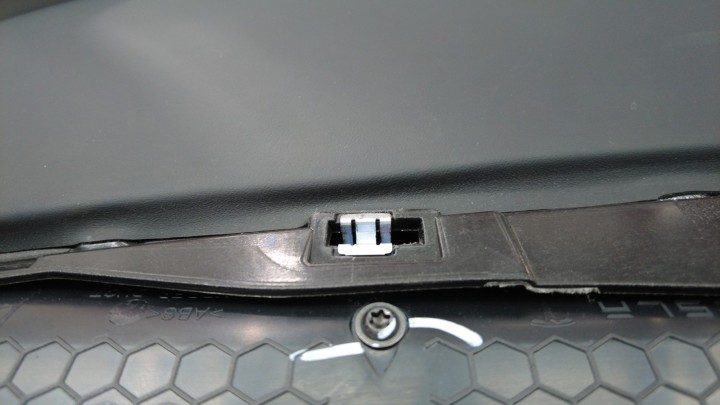

  2. Remove the clips (x17) that secure the float wing assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION

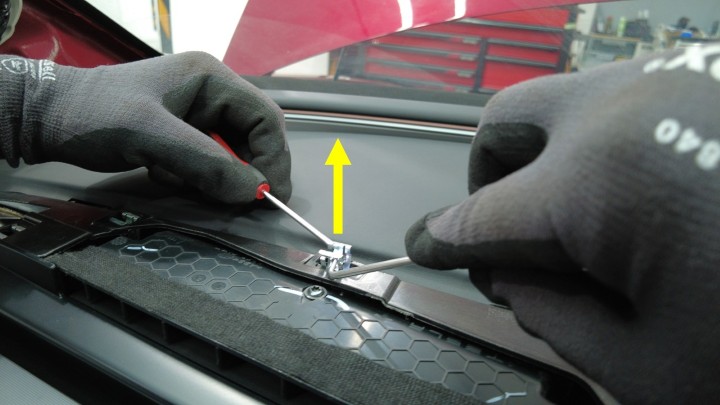

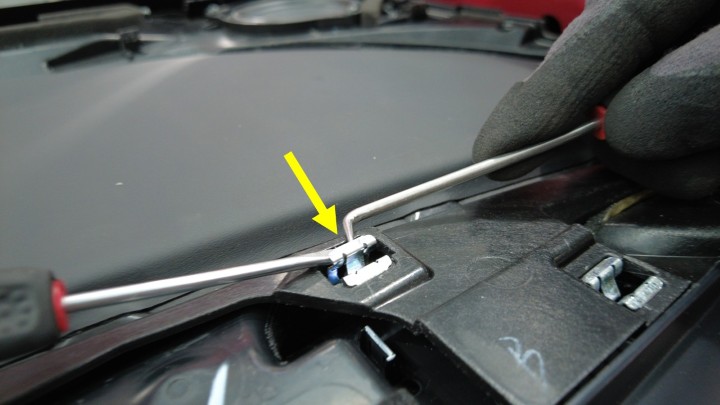

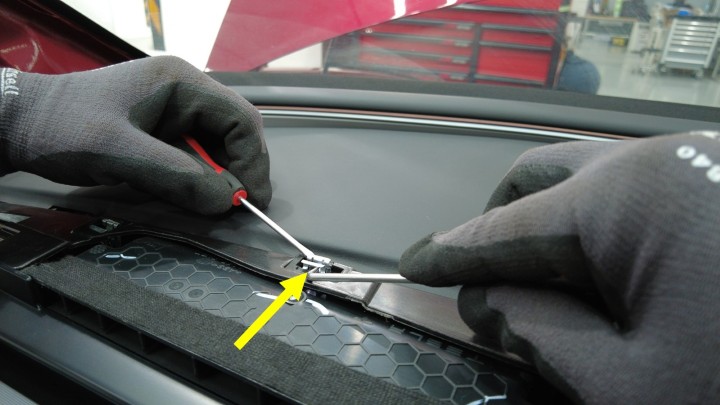

    When disassembling, pay attention to the buckle area and place the tool at the bottom of the buckle to prevent damage to other components.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace damaged fixing clips as needed.

Install

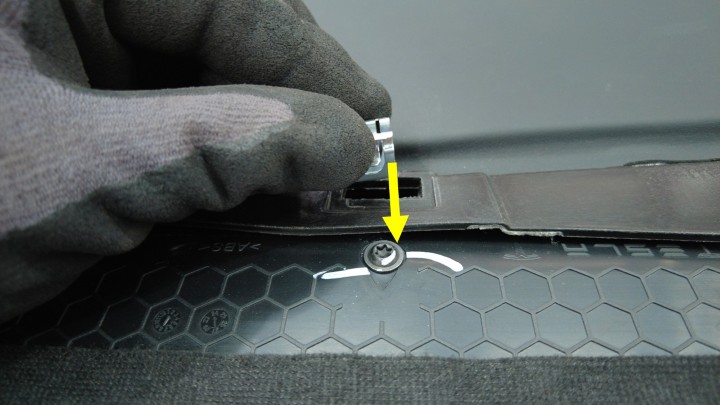

  1. Align the datum and install the clips (x17) to secure the float wing assembly.
  2. Raise both front windows and close both front doors.
