Harness - Instrument Panel Trim - RH (LHD) (Remove and Replace)
Correction code
1710010022
FRT
1.20
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the IP Carrier. See IP Carrier (Remove and Replace).
-

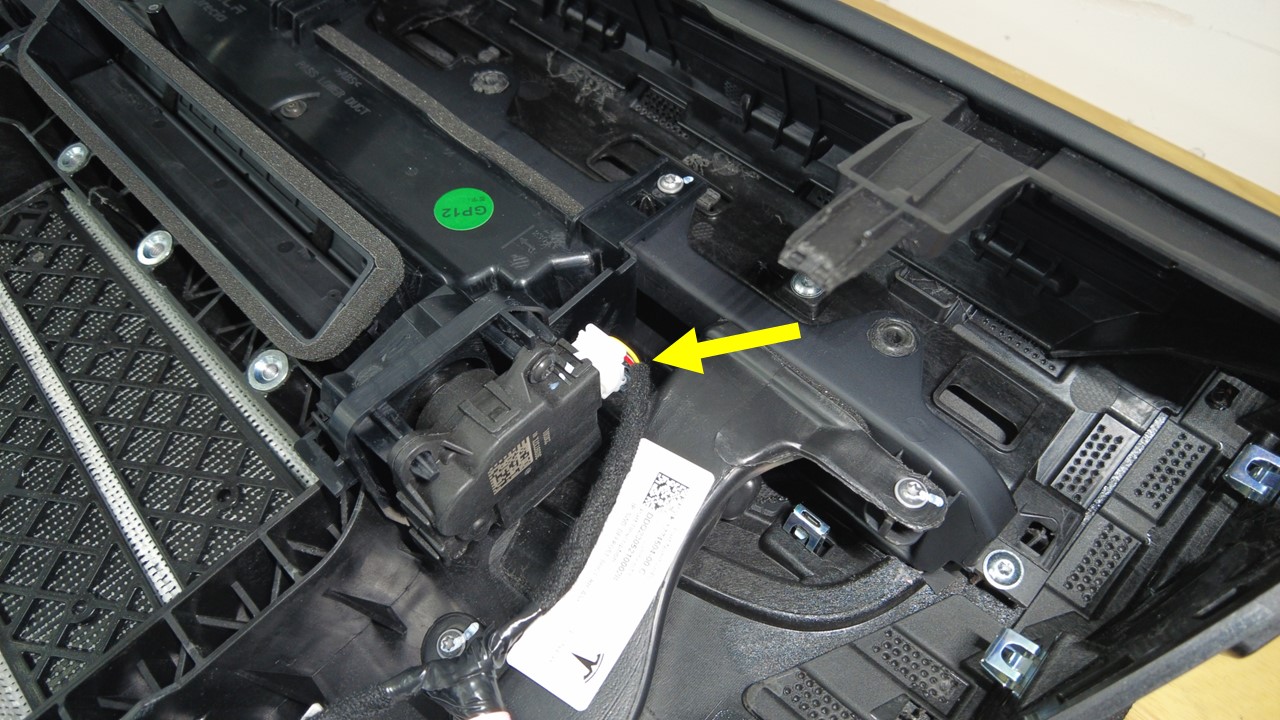

Disconnect RH air duct
height adjustment actuator connector.
-
Disconnect RH air duct
horizontal adjustment actuator connector.
-

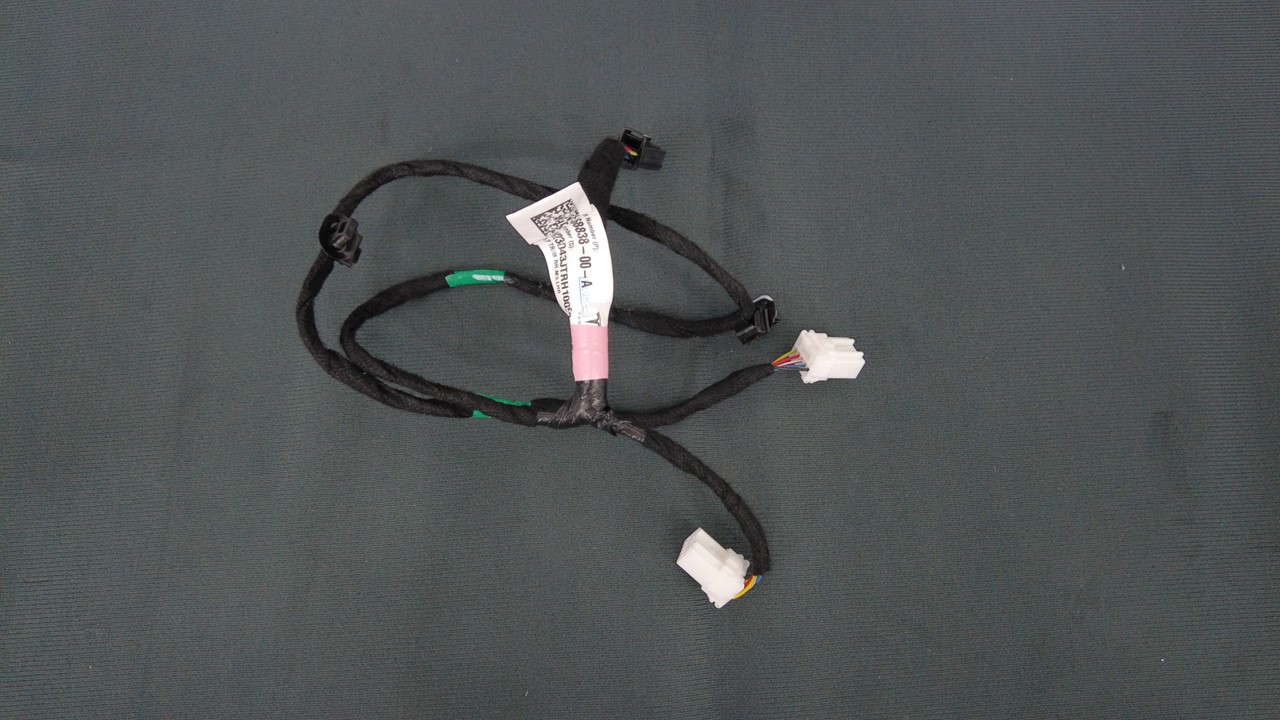

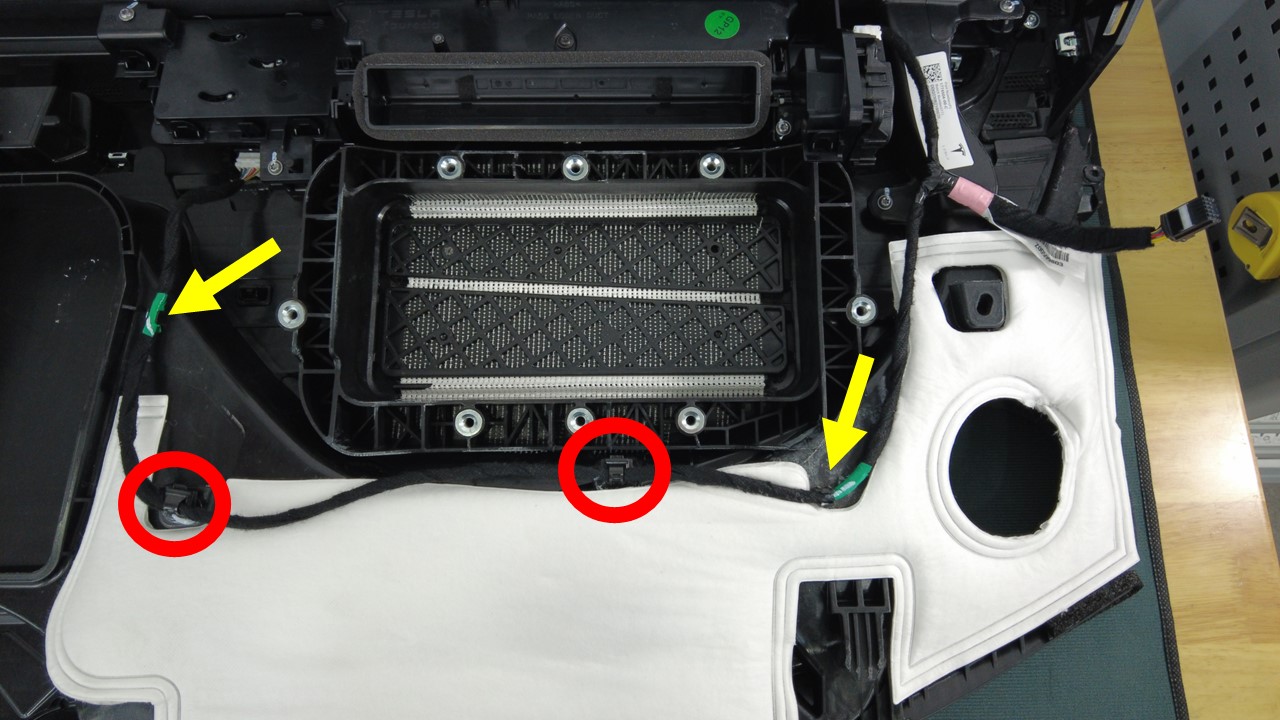

Remove the RH instrument panel harness from the instrument panel.
Install
-
Connect the RH instrument panel harness to the instrument panel.
-
Connect RH air duct horizontal adjustment actuator connector.
-
Connect RH air duct height adjustment actuator connector.
- Install the IP Carrier. See IP Carrier (Remove and Replace).
