Airbag - Curtain - LH (LHD) (Remove and Replace)

Correction code 2001020022 FRT 1.26 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-20: Added note on using PROC_RCM_DISARM if using this procedure to diagnose the SRS.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
If using this procedure to diagnosis the vehicle's Supplemental Restraint Systems (SRS), disarm the RCM, which will prevent all airbags and pretensioners from deploying. Re-arm the RCM after all of the vehicle's SRS components are re-installed.
  • Disarm RCM:PROC_RCM_DISARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Disarm RCM
    • Safety & Restraints ➜ Seats ➜ Disarm RCM
    via Toolbox:(link)
  • Re-arm RCM:PROC_RCM_ARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Re-Arm RCM
    • Safety & Restraints ➜ Seats ➜ Re-Arm RCM
    via Toolbox:(link)
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Make sure LV power has been disconnected for at least 2 minutes before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see Airbag and Supplementary Restraint System (SRS) Precautions.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Supplementary Restraint System (SRS) components can be hazardous if not handled properly. For more information on SRS precautions, see Airbag and Supplementary Restraint System (SRS) Precautions.

Torque Specifications

Table 1. Torque Specifications: Airbag - Curtain - LH (LHD) (Remove and Replace)Airbag - Curtain - RH (RHD) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x10) that attach the LH/RH curtain airbag to the body
9 Nm (6.6 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 2 in extension
  • 10 mm socket
  • Ratchet/torque wrench
 Reuse
Informational PurposesAn informational icon, calling your attention
Note
Do NOT use impact tool to install these self-tapping bolts.

Remove

  1. Remove the headliner. See Headliner (Remove and Replace).
  2. Disconnect LV power. See LV Power (Disconnect and Connect).
  3. Disconnect the electrical harness from the LH curtain airbag connector.

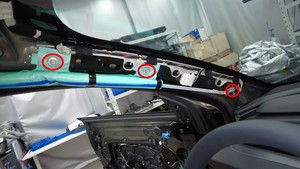

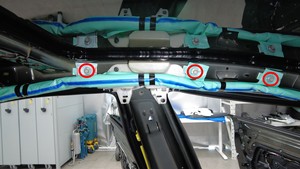

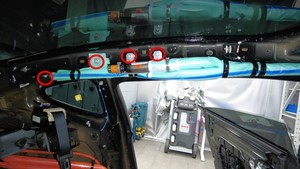

  4. Remove the bolts (x10) that attach the LH curtain airbag to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do NOT use impact tool to install these self-tapping bolts.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 2 in extension
    • 10 mm socket
    • Ratchet/torque wrench

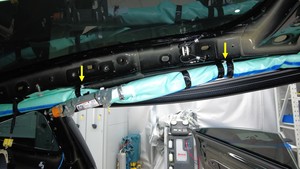

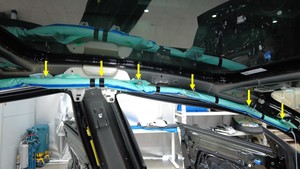

  5. Carefully release the clips (x8) that attach the LH curtain airbag to the side rail, and remove the airbag from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    If any clips are damaged, the airbag must be replaced.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The airbag should always be handled by the igniter; the igniter should never be left dangling.

Install

  1. Install the LH curtain airbag to the side rail, and then carefully fasten the clips (x8) that attach the airbag to the side rail.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    If any clips are damaged, the airbag must be replaced.
  2. Install and hand-tighten the bolts (x10) that attach the LH curtain airbag to the body.
  3. Tighten the bolts (x10) that attach the LH curtain airbag to the body.
    9 Nm (6.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Do NOT use impact tool to install these self-tapping bolts.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 2 in extension
    • 10 mm socket
    • Ratchet/torque wrench
  4. Connect the electrical harness to the LH curtain airbag connector.
  5. Connect 12V power. See LV Power (Disconnect and Connect).
  6. Install the headliner. See Headliner (Remove and Replace).
