Airbag - Knee - LH (Remove and Replace)

Correction code 2001010042 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-20: Added note on using PROC_RCM_DISARM if using this procedure to diagnose the SRS.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
If using this procedure to diagnosis the vehicle's Supplemental Restraint Systems (SRS), disarm the RCM, which will prevent all airbags and pretensioners from deploying. Re-arm the RCM after all of the vehicle's SRS components are re-installed.
  • Disarm RCM:PROC_RCM_DISARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Disarm RCM
    • Safety & Restraints ➜ Seats ➜ Disarm RCM
    via Toolbox:(link)
  • Re-arm RCM:PROC_RCM_ARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Re-Arm RCM
    • Safety & Restraints ➜ Seats ➜ Re-Arm RCM
    via Toolbox:(link)
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see Airbag and Supplementary Restraint System (SRS) Precautions.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Supplementary Restraint System (SRS) components can be hazardous if not handled properly. For more information on SRS precautions, see Airbag and Supplementary Restraint System (SRS) Precautions.
Informational PurposesAn informational icon, calling your attention
Note
The driver knee airbag is only equipped on North American vehicles.

Torque Specifications

Table 1. Torque Specifications: Airbag - Knee - LH (Remove and Replace) / Airbag - Knee - RH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x4) that attach the driver knee airbag to the instrument panel
8.5 Nm (6.3 lbs-ft)
  • External Torx E10
  • Cordless 3/8in Dr Impact
  • 3 in extension
  • Ratchet/torque wrench
 Replace 1116594-00-B

Remove

  1. Open the all doors and fully lower all windows.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  3. Disconnect LV power. See LV Power (Disconnect and Connect).
  4. Remove the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace).

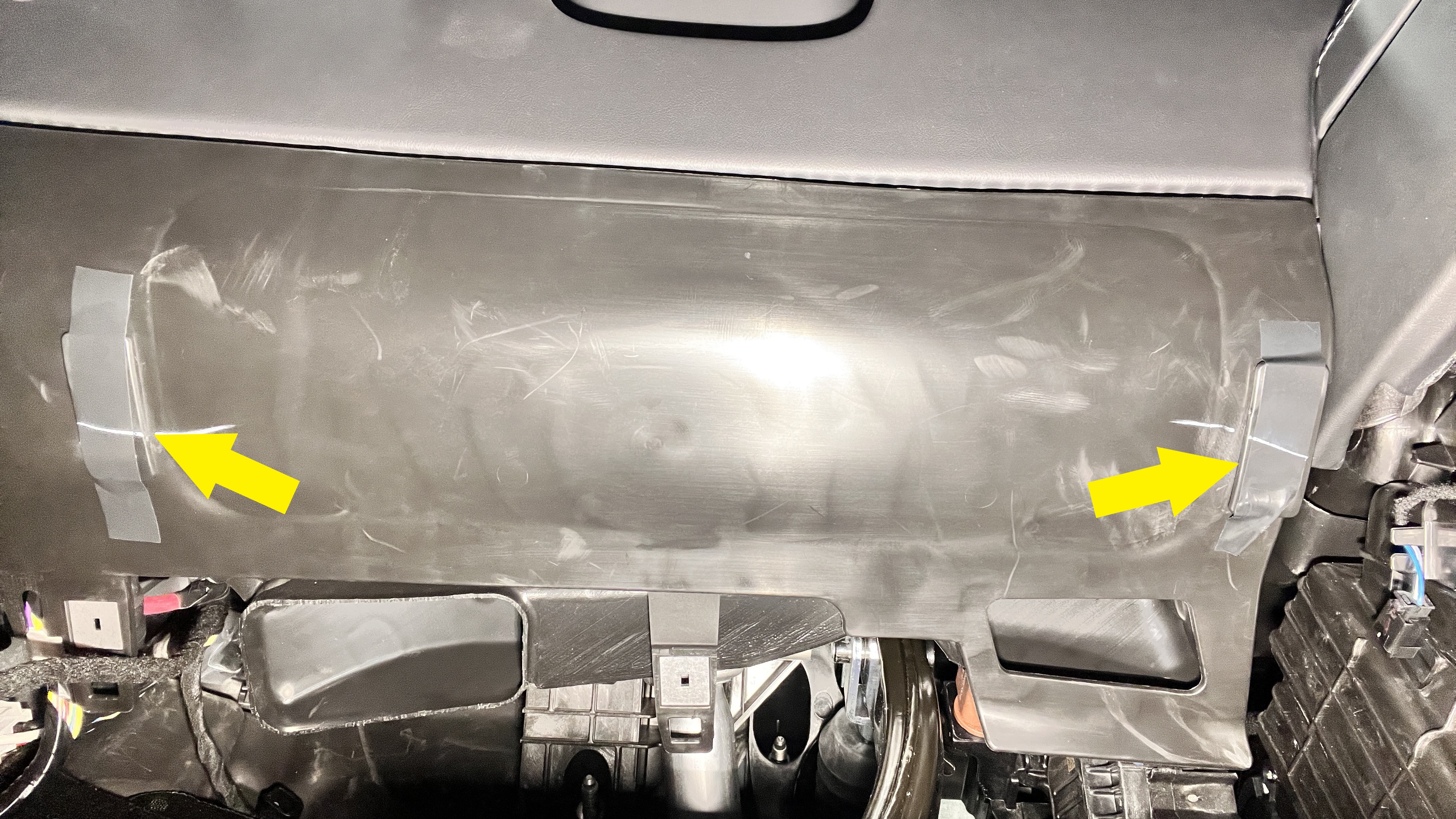

  5. Remove the driver knee airbag bolt covers.

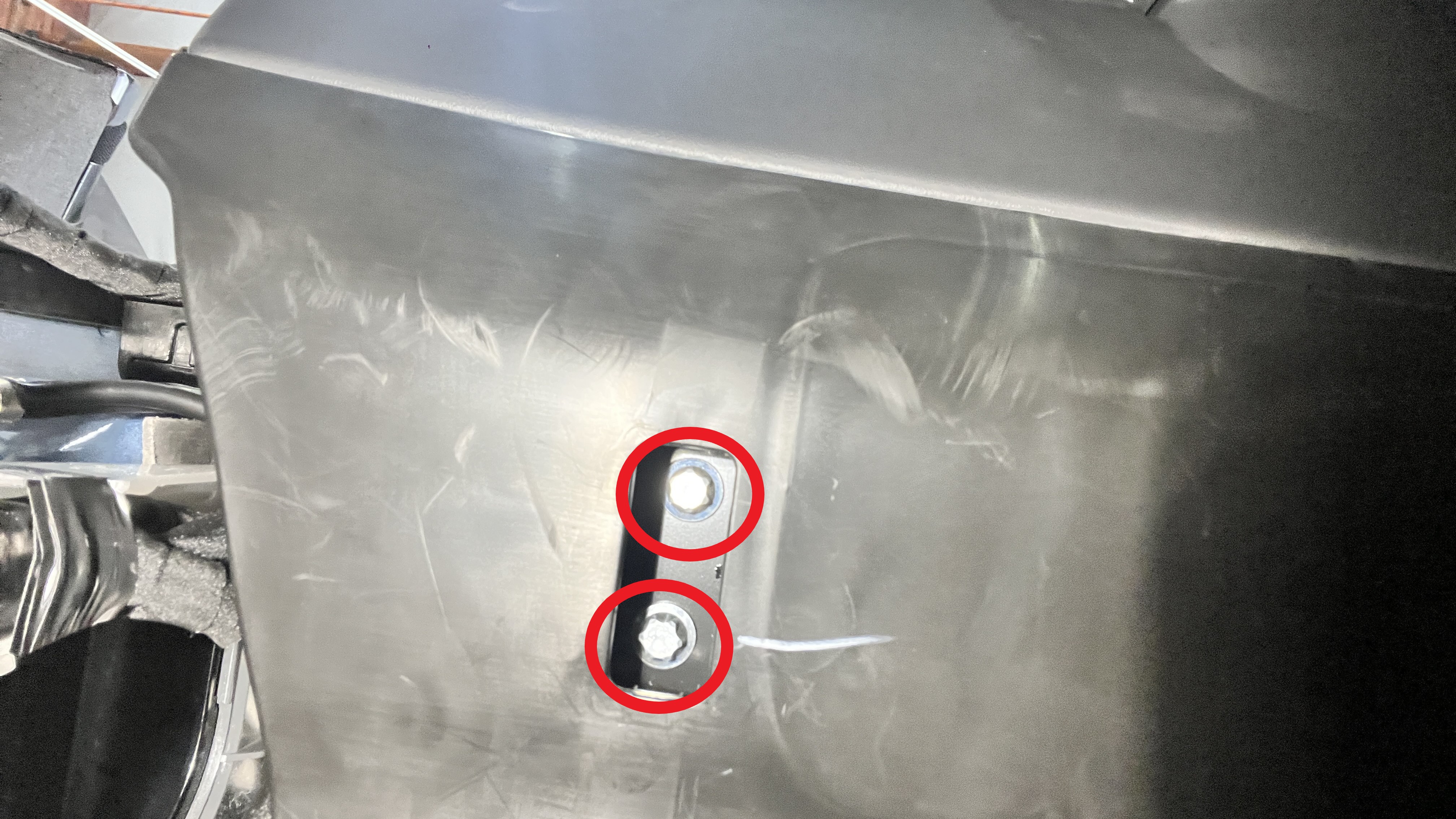

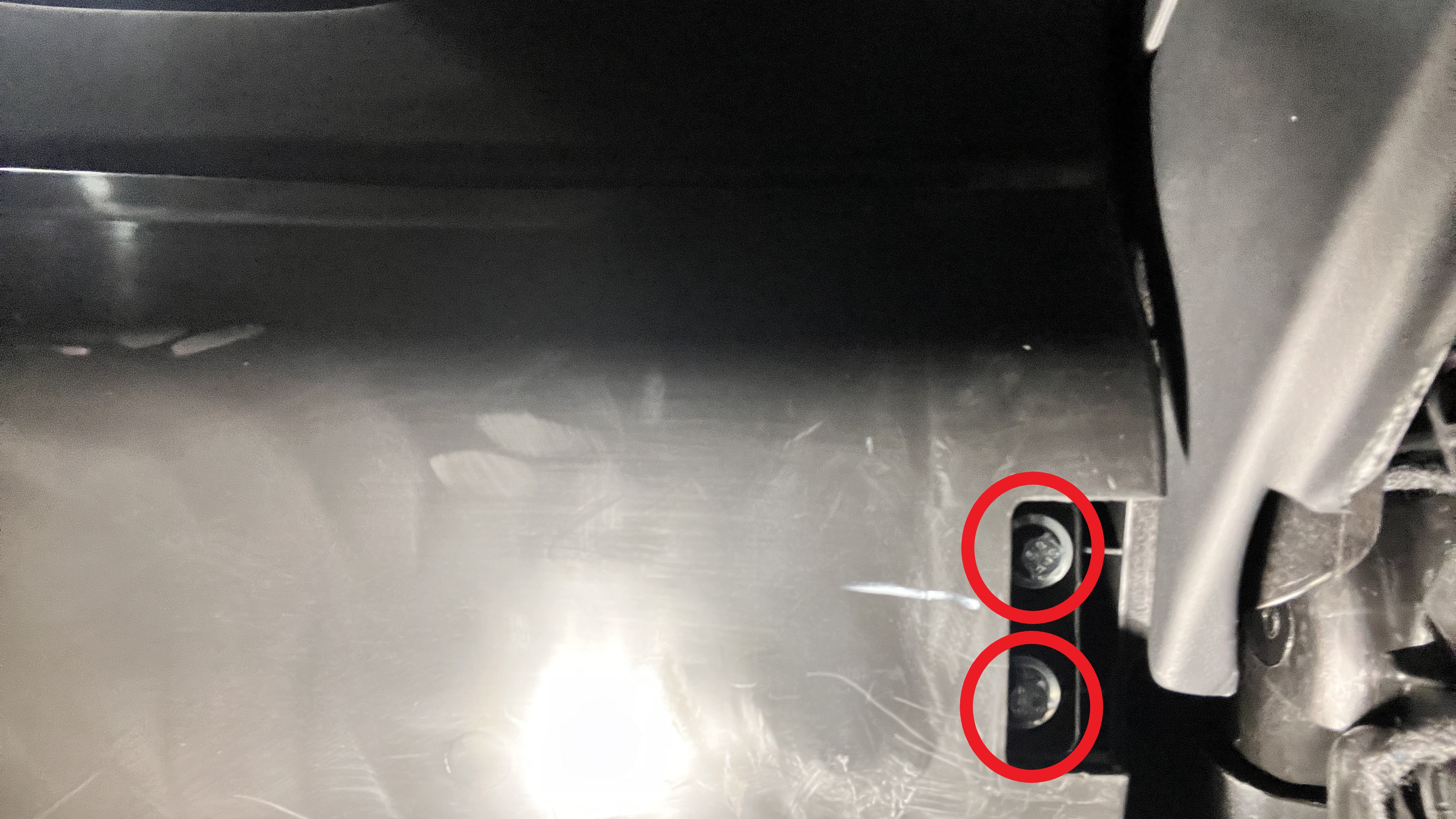

  6. Remove and discard the bolts (x4) that attach the driver knee airbag to the instrument panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx E10
    • Cordless 3/8in Dr Impact
    • 3 in extension
    • Ratchet/torque wrench

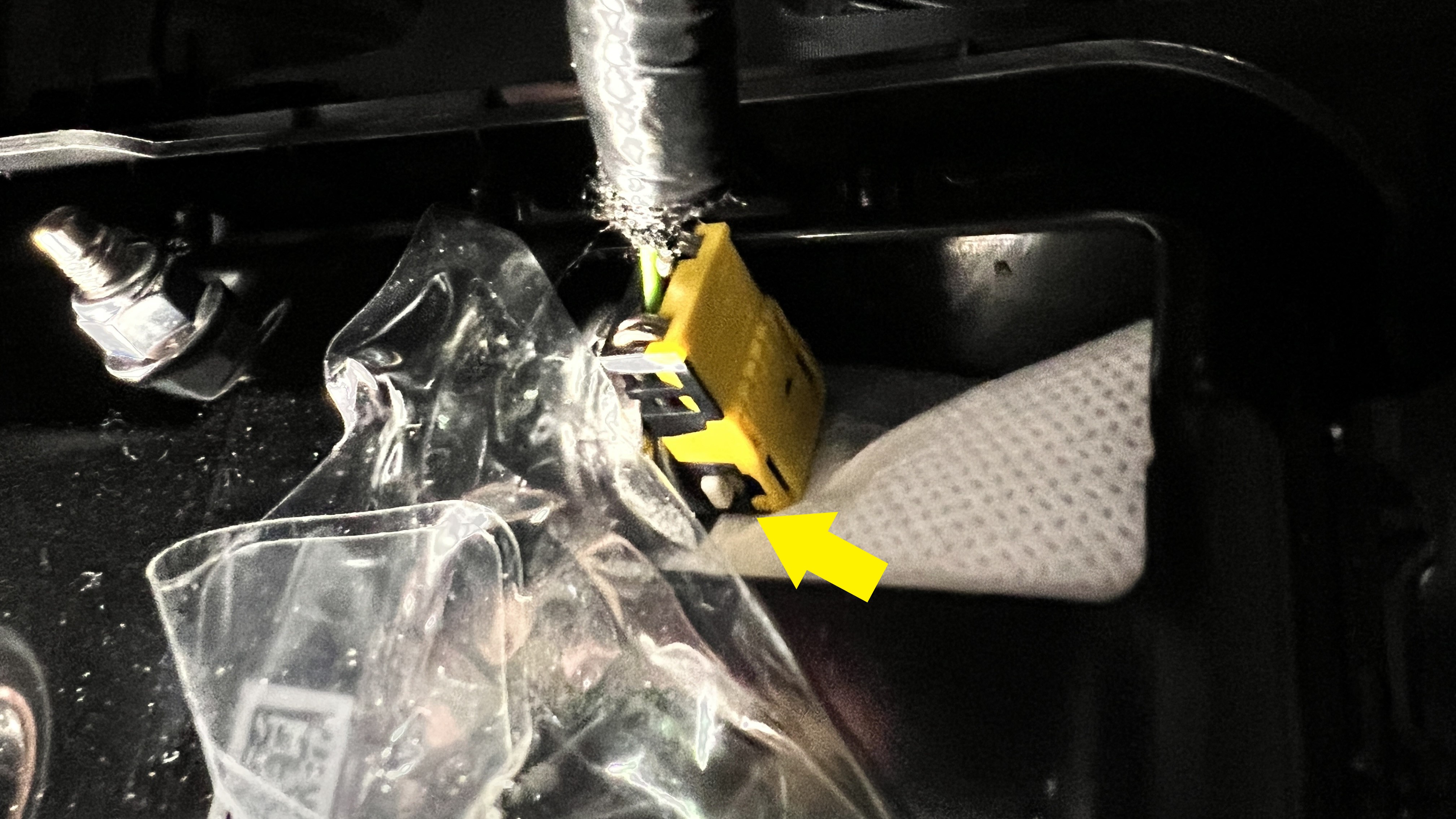

  7. Disconnect the wiring harness connector from the driver knee airbag, and then remove the airbag from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Peel the back the plastic film.

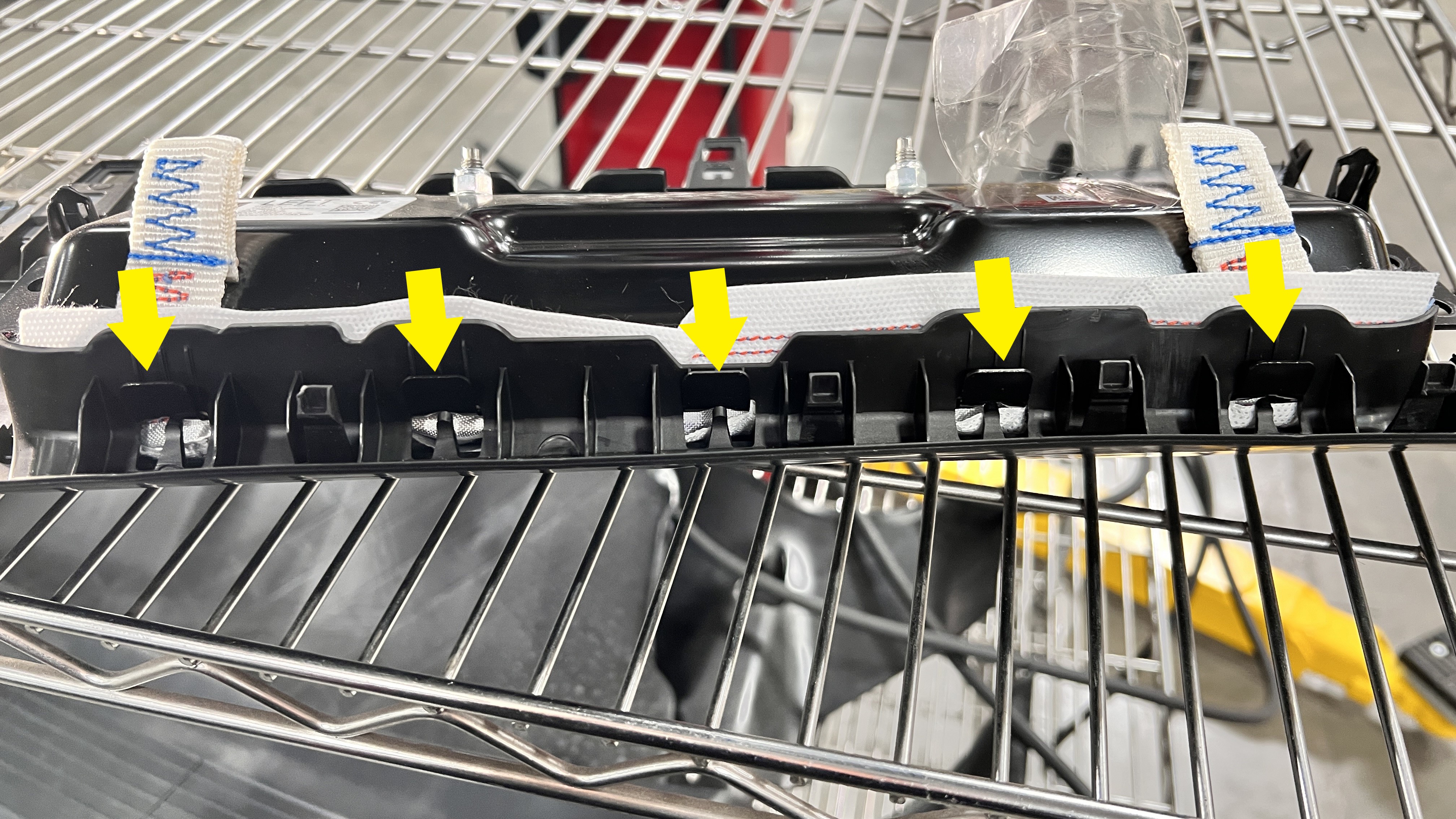

  8. Use a 90-degree pick to apply pressure along the rear edge of the airbag assembly, and while doing so, flex the knee airbag cover surround to release each of the airbag tabs from the cover surround.

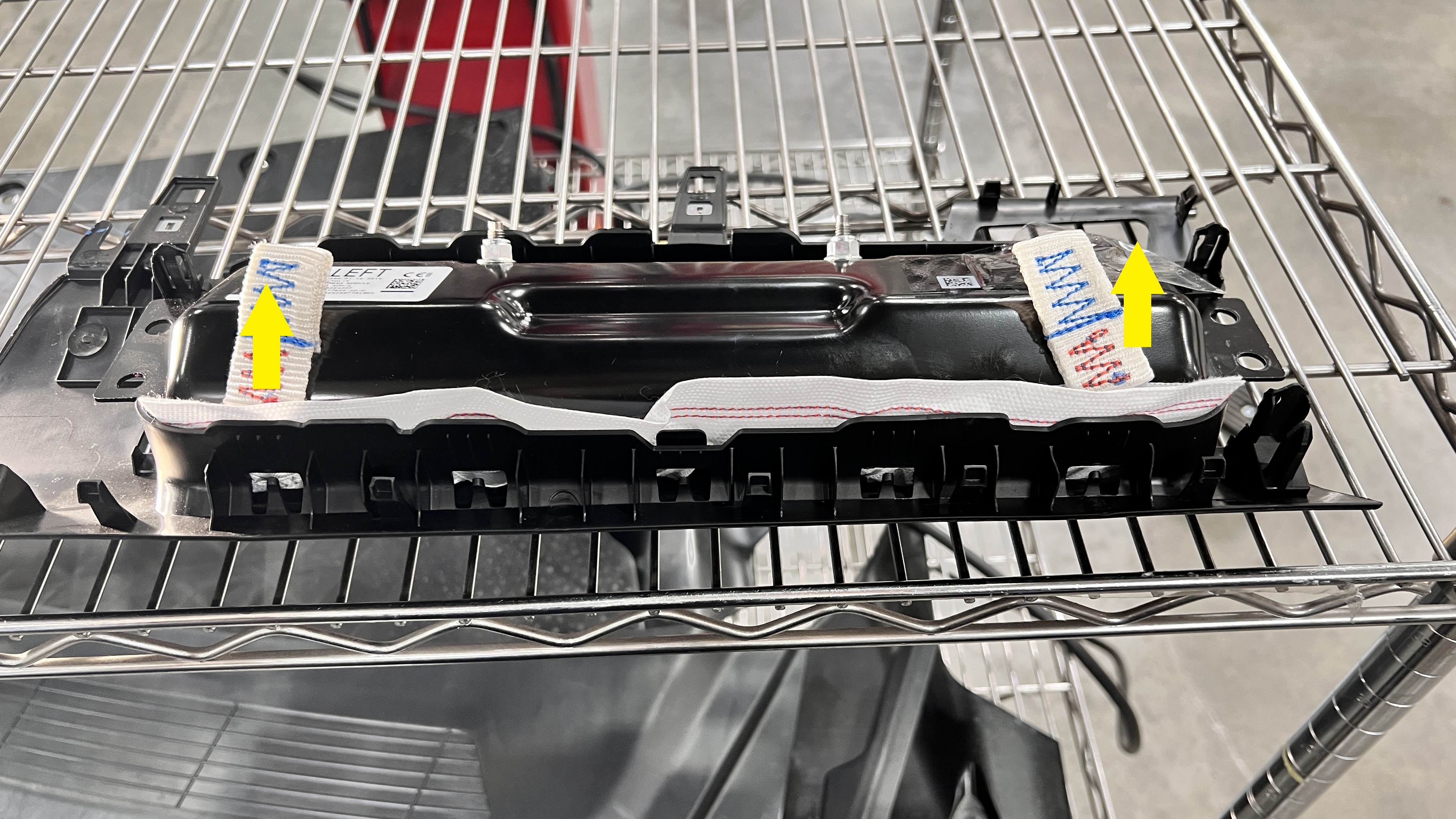

  9. Pivot the airbag up, unhook the tabs at the front of the airbag from the cover surround, and then remove the airbag from the cover.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Properly dispose of the airbag.

Install

  1. Install the driver knee airbag to the driver knee airbag cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Engage the rear tabs first and then press to engage the front tabs to hook the metal tabs.
  2. Connect the wiring harness connector to the driver knee airbag, and then install the driver knee airbag to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Place the plastic film back over the squib assembly.
  3. Install new bolts (x4) that attach the driver knee airbag to the instrument panel.
    8.5 Nm (6.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx E10
    • Cordless 3/8in Dr Impact
    • 3 in extension
    • Ratchet/torque wrench
  4. Install the driver knee airbag bolt covers.
  5. Install the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace).
  6. Connect LV power. See LV Power (Disconnect and Connect).
  7. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  8. Raise all windows and close all doors.
