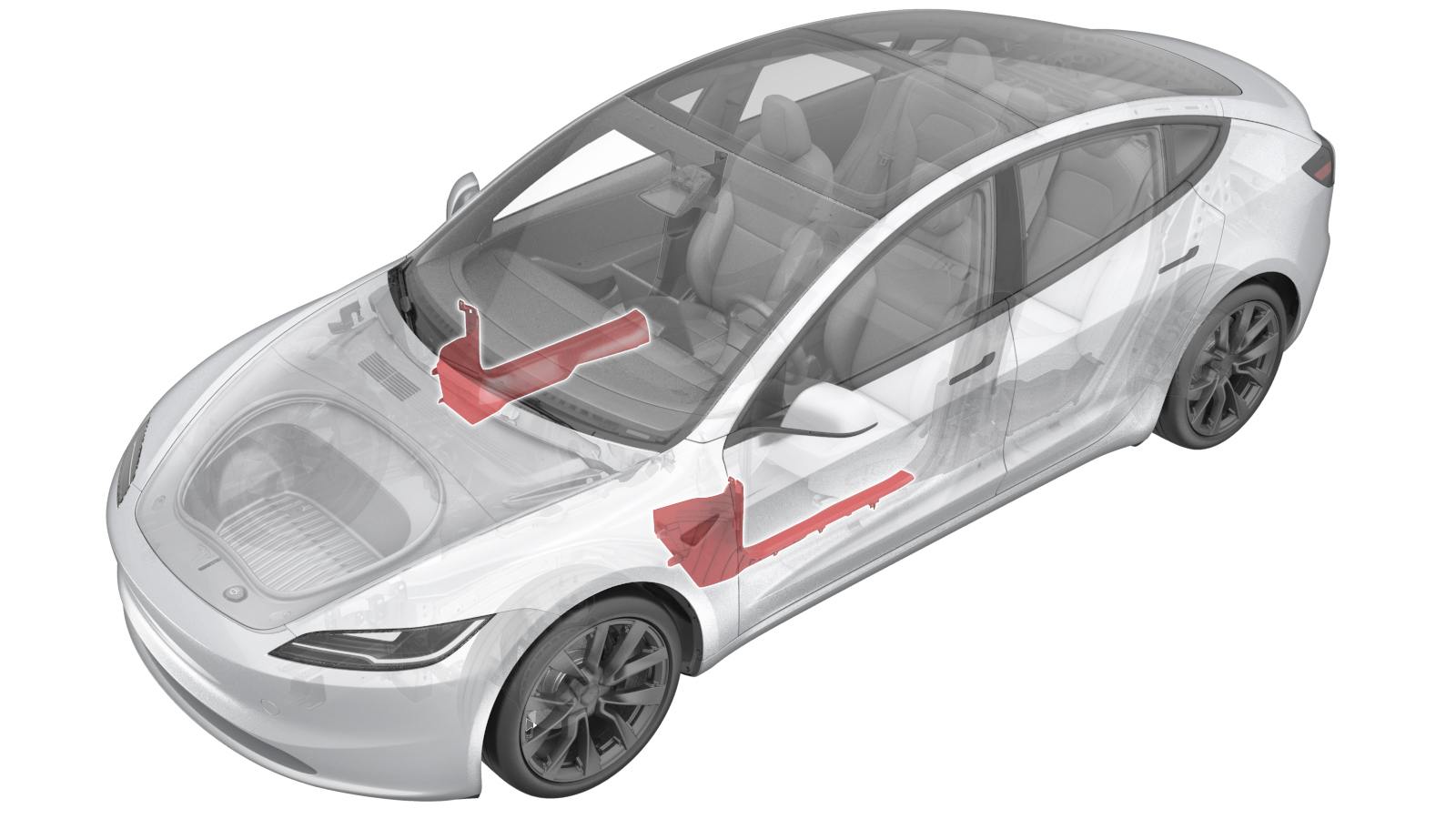

Trim - A-Pillar - Lower - LH (Remove and Replace)
Correction code
1518010032
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Open the LH front door.
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
-

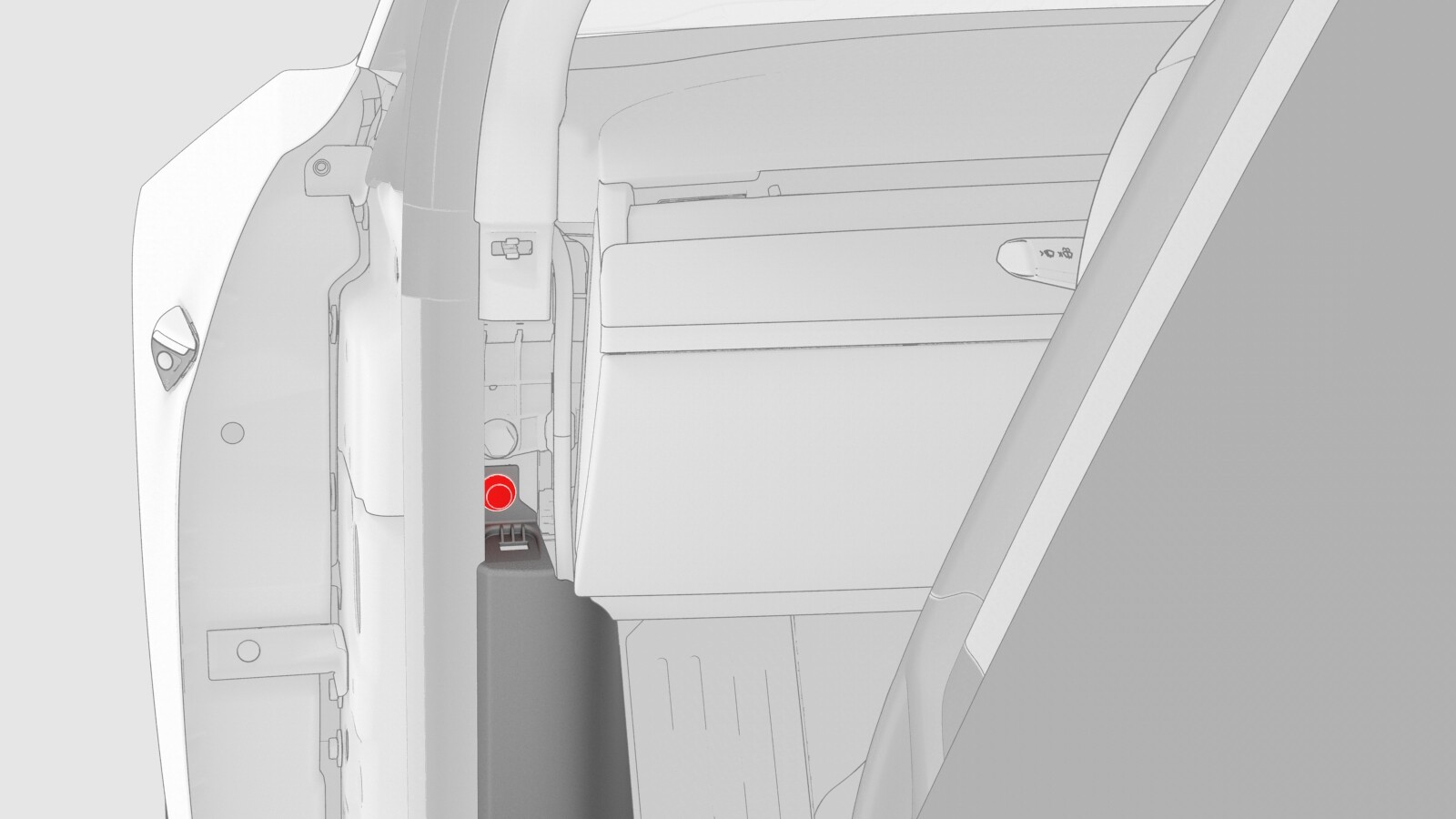

Release the topmost clip on
the LH lower A-pillar trim.
-

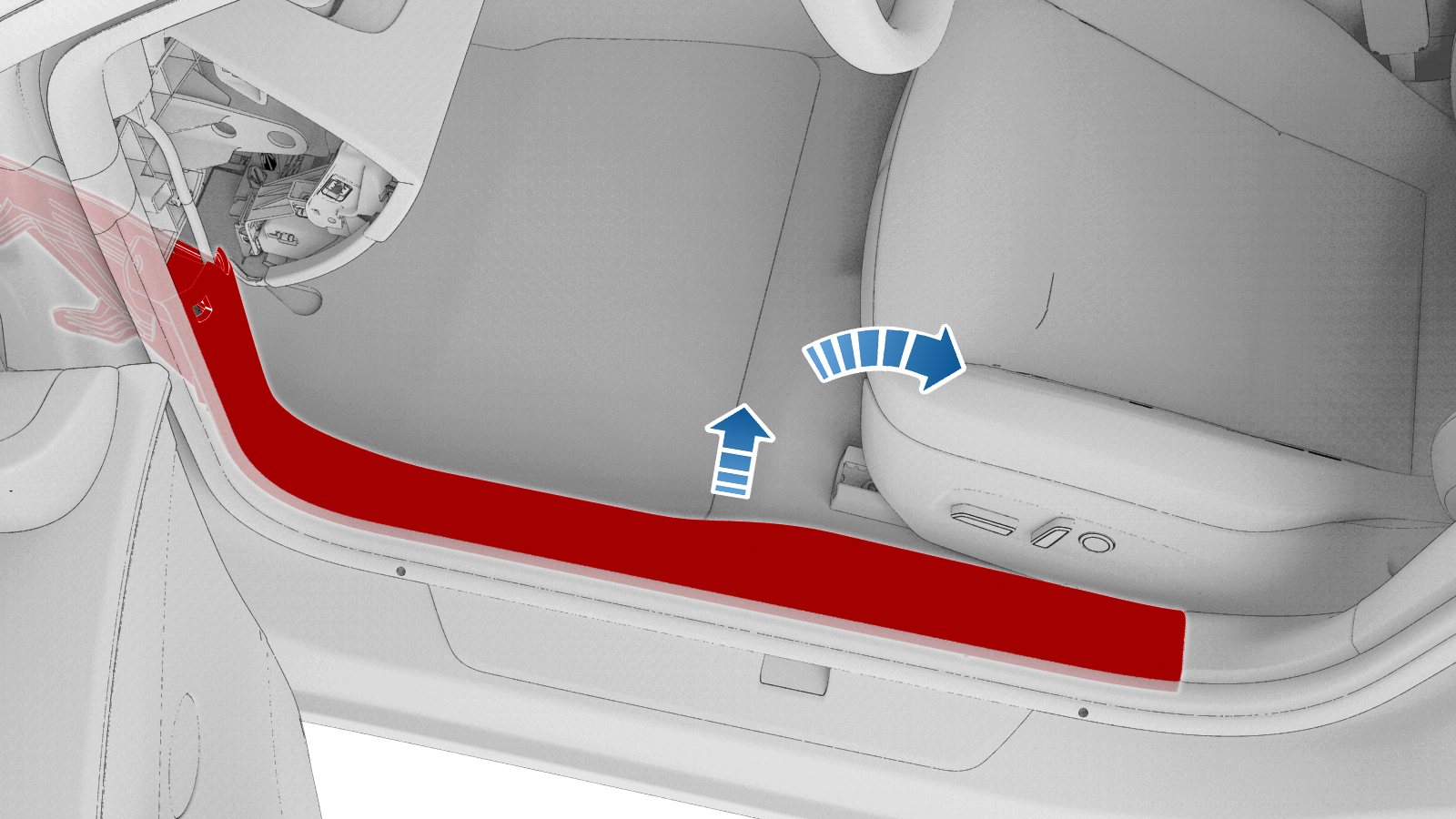

Pull the rearmost part of the LH lower A-pillar trim upward to release the
clips and tabs, and then pull the entire trim rearward to remove the trim
from the vehicle.
Install
-

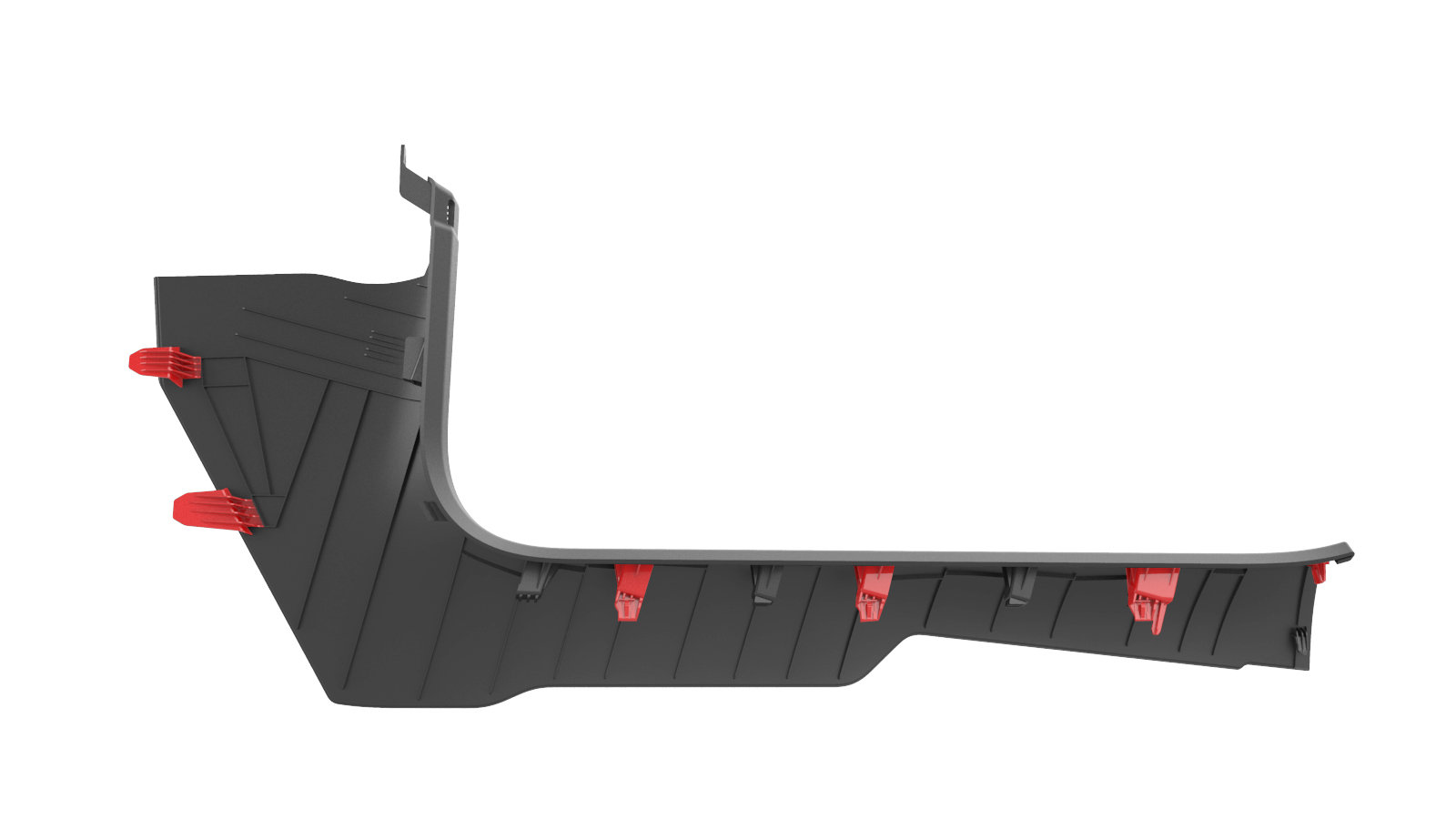

Install the clips (X4) that attach the LH lower A-pillar assembly to
vehicle.
-
Install the topmost clip on the LH lower A-pillar trim.
- Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
- Close the LH front door.
