Switch Assembly - Front Seat - LH (Remove and Replace)

Correction code 1301010042 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:
  • Hexagon - 1060071-00-A
  • Mini Ratchet Bit Set - 1450424-00-A

Remove

  1. Remove the LH front outer side shield from the vehicle. See Side Shield - Outboard - LH (Remove and Replace).

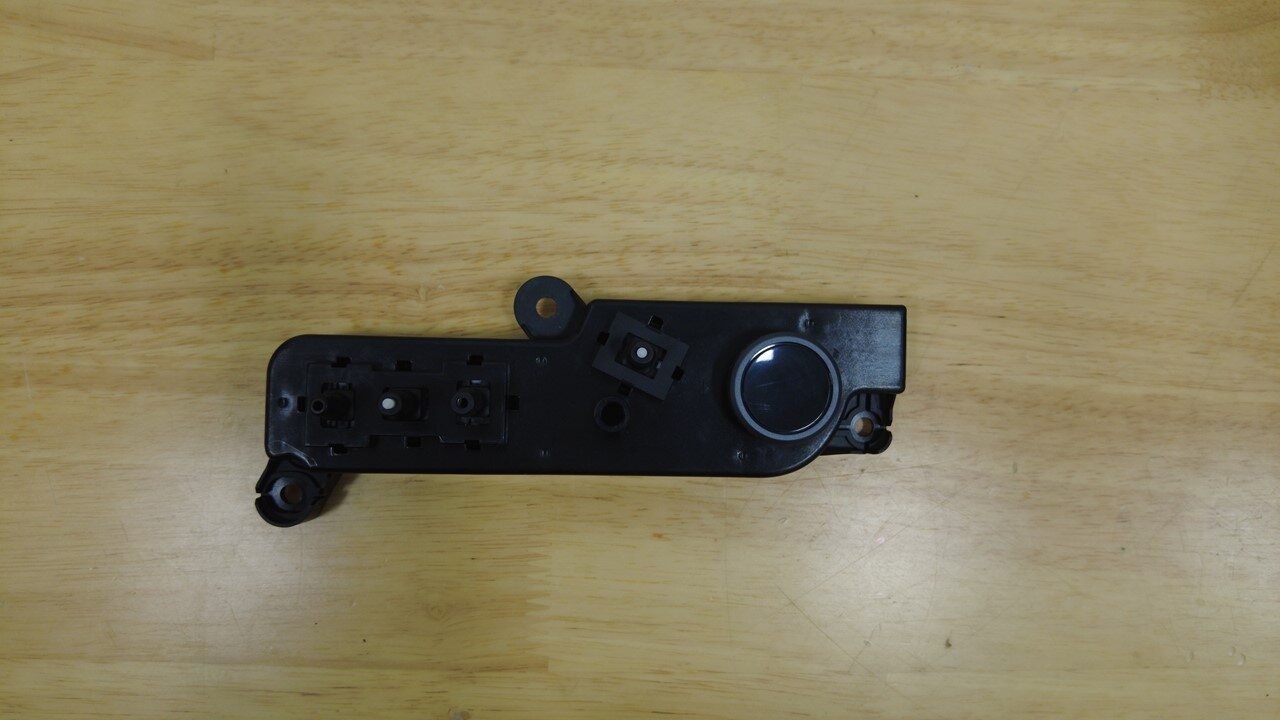

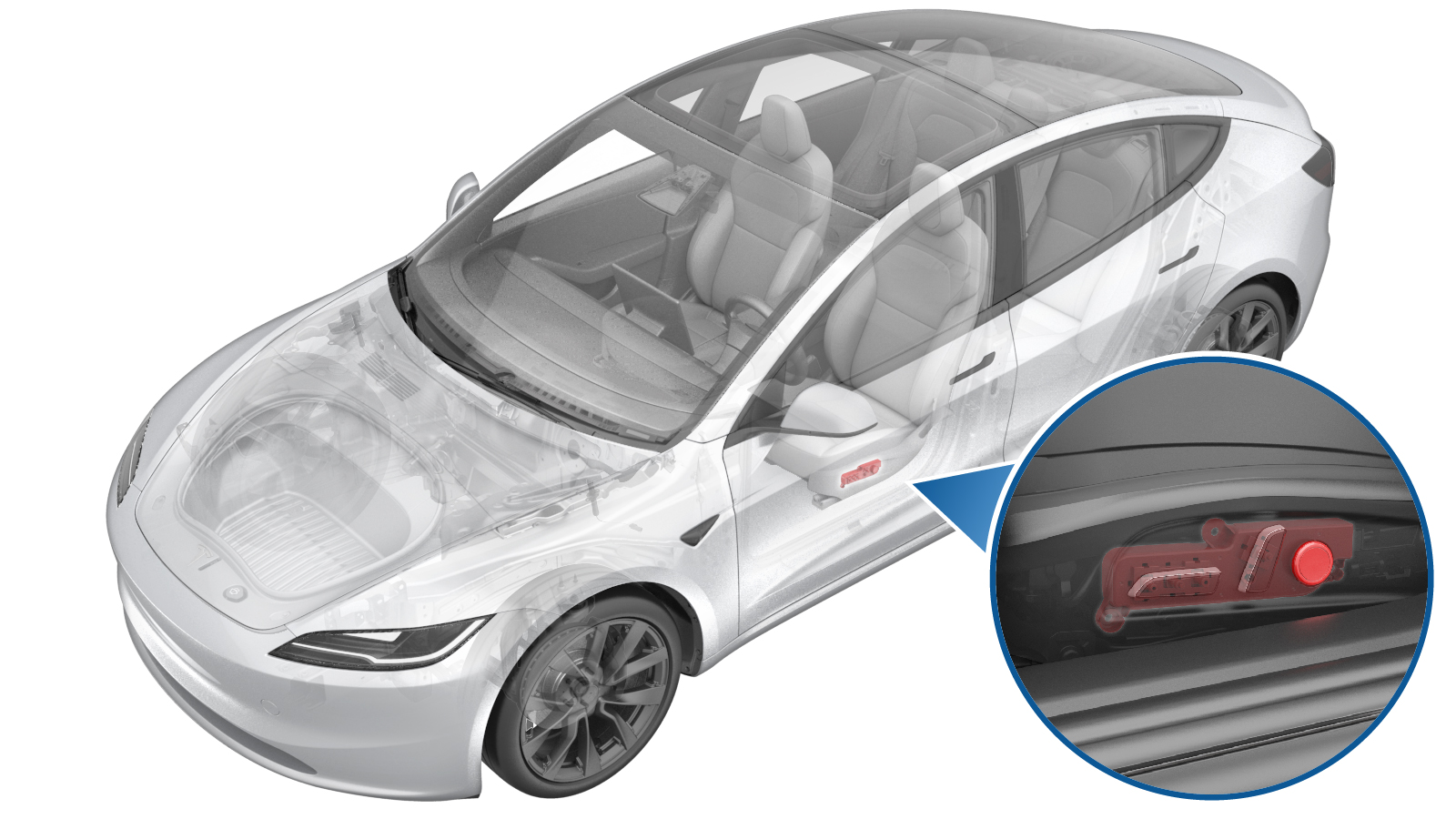

  2. Remove the screws (X3) that securing the 8 way and lumbar switch assembly to the LH front outer side cover, then remove the switch.

Install

  1. Install the screws (X3) that securing the 8 way and lumbar switch assembly to the LH front outer side cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Cordless 1/4in Dr Ratchet
  2. Install the LH front outer side shield to the vehicle. See Side Shield - Outboard - LH (Remove and Replace).
