Armrest Outer Assembly - Center Console (Model 3 Standard) (Remove and Replace)
Correction code
15190103802
15190103801
FRT
0.60
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2025-09-05: Released new procedure.
Remove
- Remove the armrest inner assembly. See Armrest Inner Assembly - Center Console (Model 3 Standard) (Remove and Replace).
-

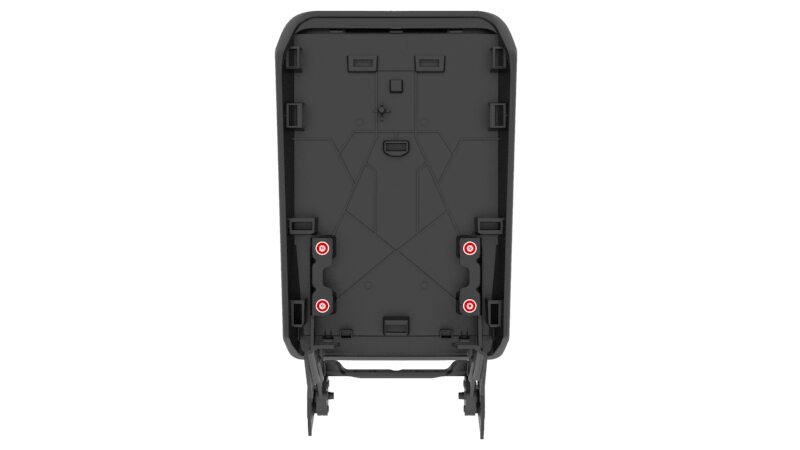

Remove the screws (x4) that secure the

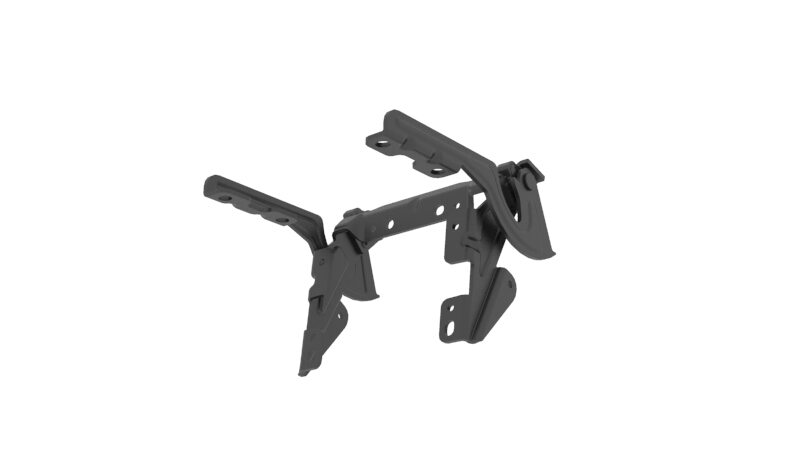

armrest outer assembly to the armrest hinge assembly, then remove the armrest outer
assembly.
TIpUse of the following tools is recommended:
- Torx T20 bit
Install
-

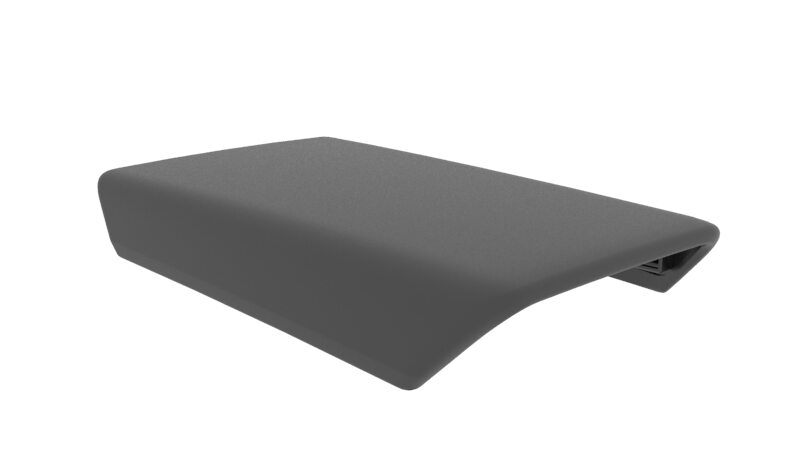

Install the armrest outer assembly
onto armrest hinge assembly and fasten the screws (x4).
1 Nm (.7 lbs-ft)TIpUse of the following tools is recommended:- Torx T20 bit
- Install the armrest inner assembly. See Armrest Inner Assembly - Center Console (Model 3 Standard) (Remove and Replace).
