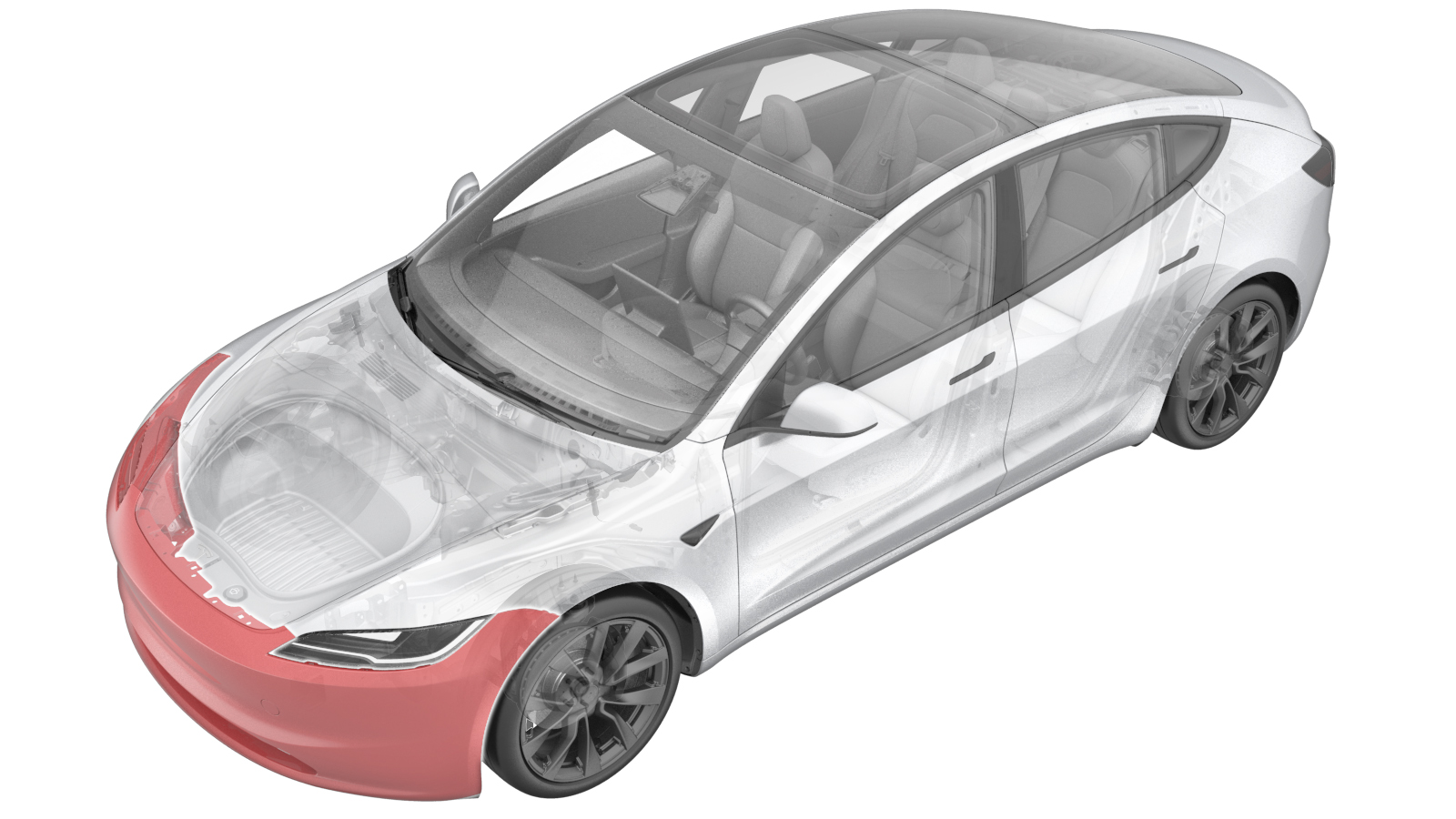

Fascia - Front (Remove and Install)

Correction code 1001020041 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

2026-03-16: Added steps for bolts securing front fascia to front ankle catcher on newer vehicles.

Torque Specifications

Table 1. Torque Specifications: Fascia - Front (Remove and Install)
Description	Torque Value	Recommended Tools	Reuse/Replace
Bolts (x5) that attach the upper portion of the front fascia to the vehicle	3.5 Nm (2.6 lbs-ft)	10 mm deep socket	Reuse
Bolt that attaches the front fascia to the LH/RH front fender	2.5 Nm (1.8 lbs-ft)	8 mm deep socket	Reuse
Bolts (x4) that attach the valance to the front aero shield panel	5 Nm (3.7 lbs-ft)	10 mm deep socket	Reuse
(If equipped) Bolts (x2) that attach the front fascia to the ankle catcher	3 Nm (2.2 lbs-ft)	10 mm socket	Reuse

Remove

Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).

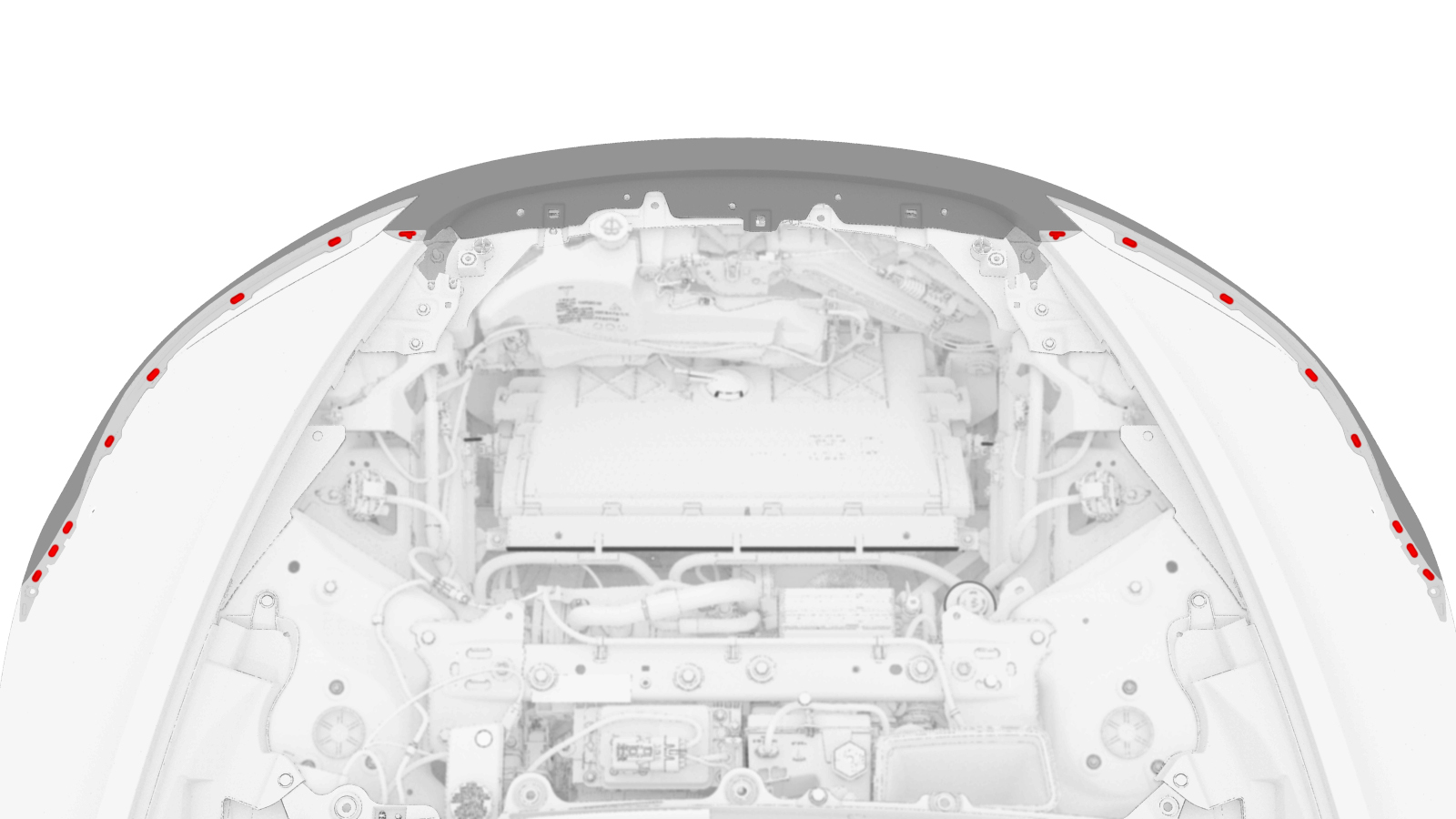

Remove the bolts (x5) that attach the upper portion of the front fascia to the vehicle.
TIp
Use of the following tool(s) is recommended:

10 mm deep socket

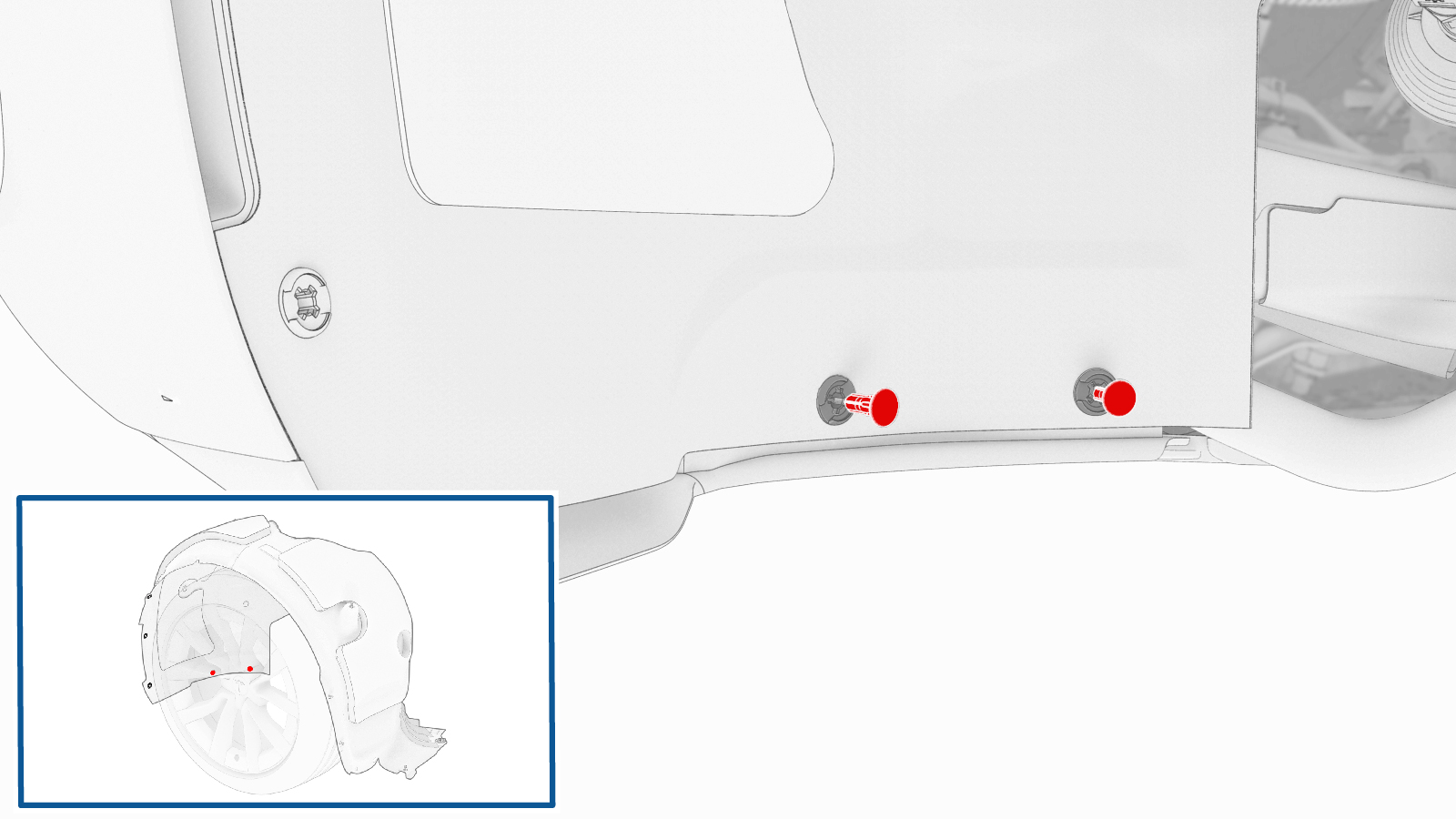

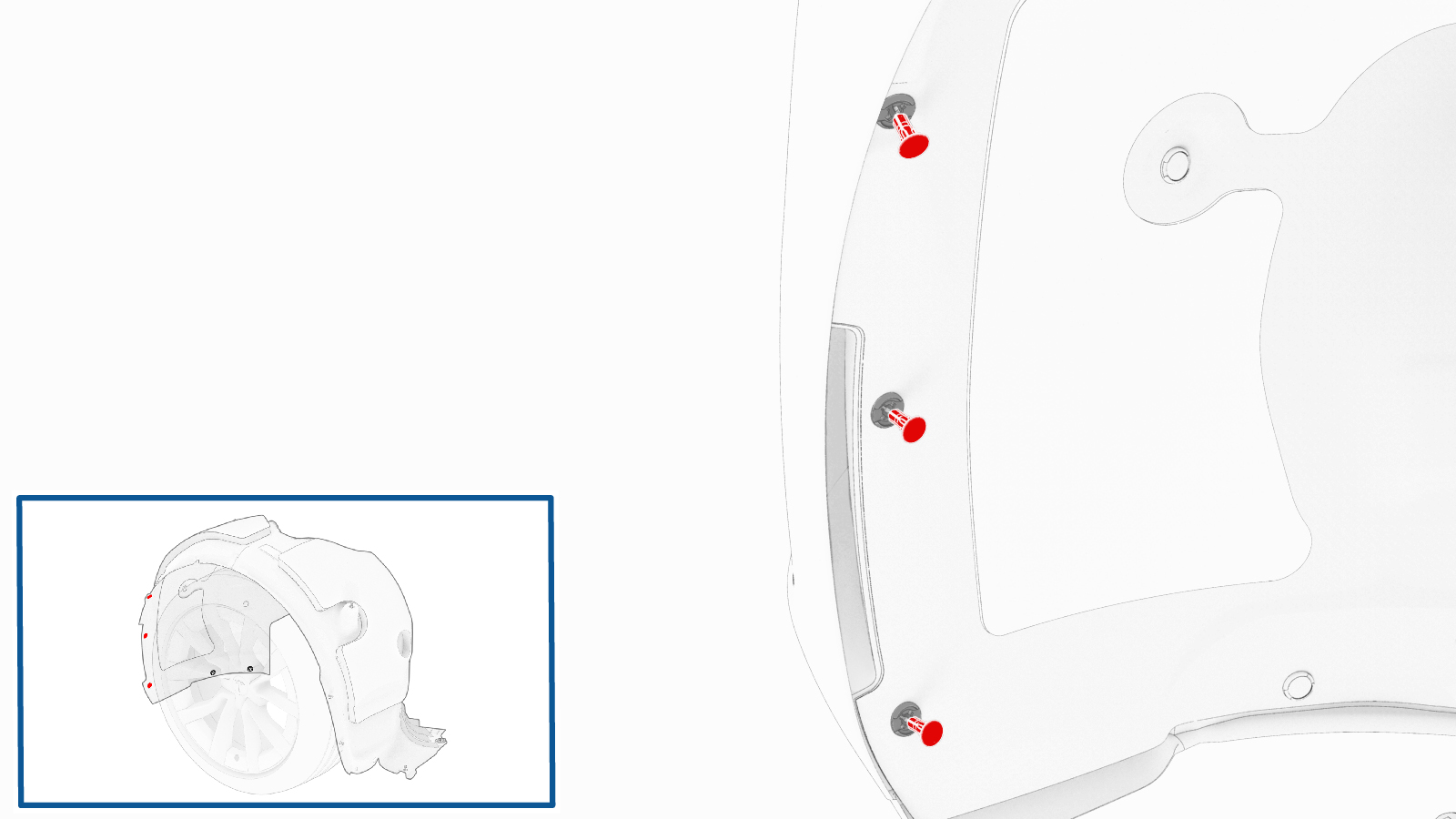

Remove the clips (x5) that attach the LH front wheel arch liner to the front fascia, and then move the liner aside for access.

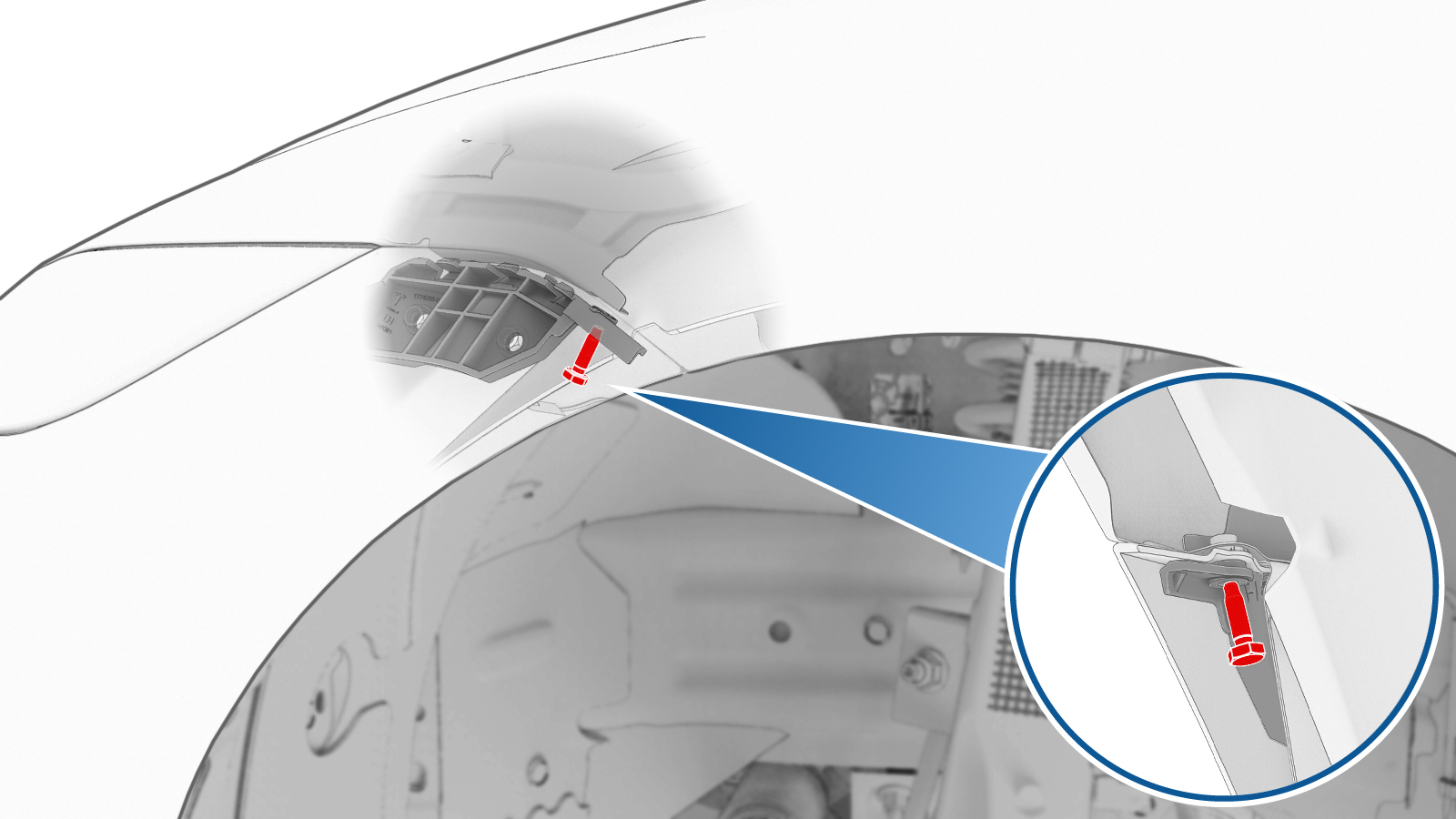

Remove the bolt that attaches the front fascia to the LH front fender.
TIp
Use of the following tool(s) is recommended:

8 mm deep socket
Repeat step 3 and step 4 on the RH side of the vehicle.

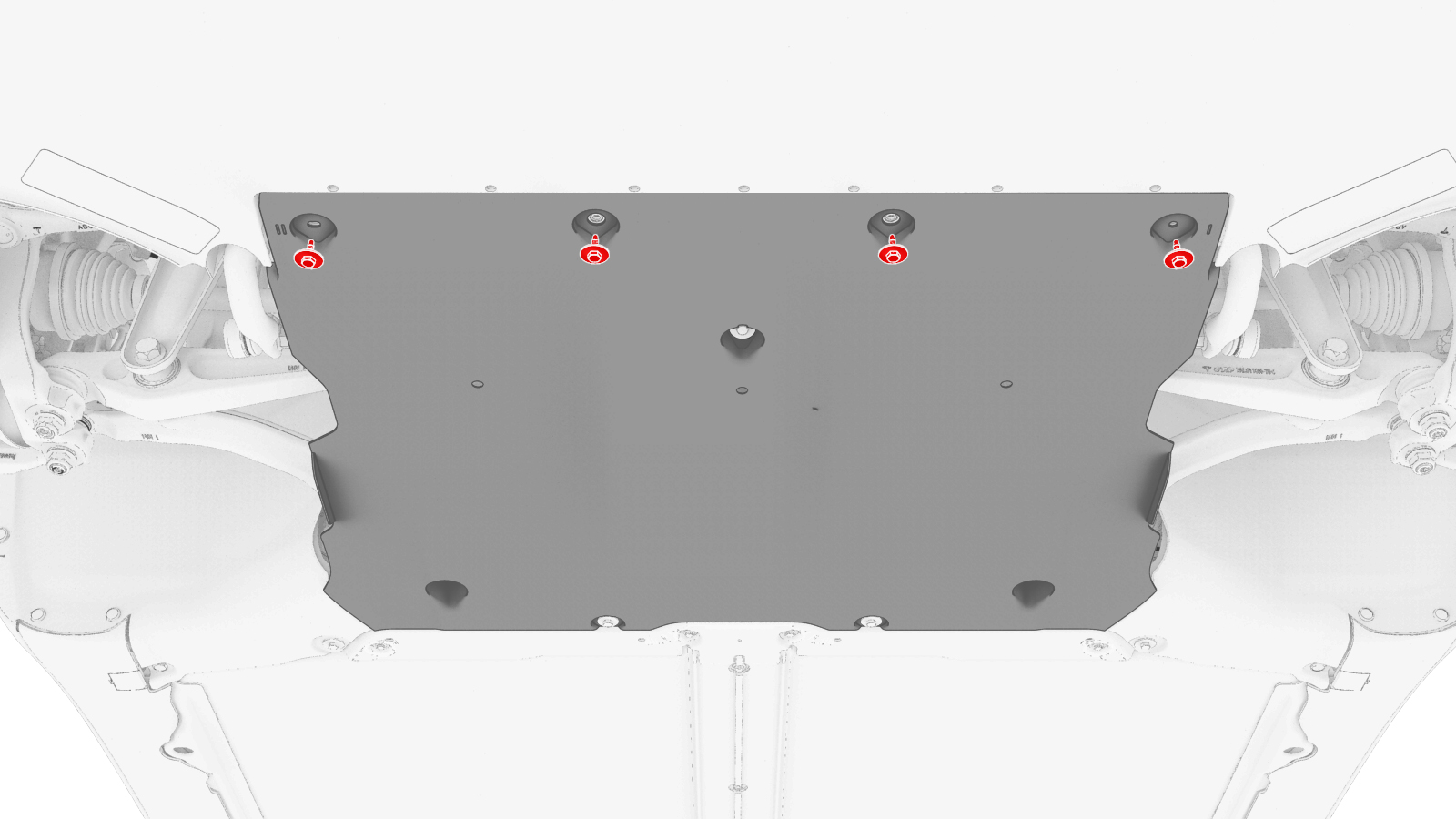

Remove the bolts (x4) that attach the valance to the front aero shield panel.
TIp
Use of the following tool(s) is recommended:

10 mm deep socket

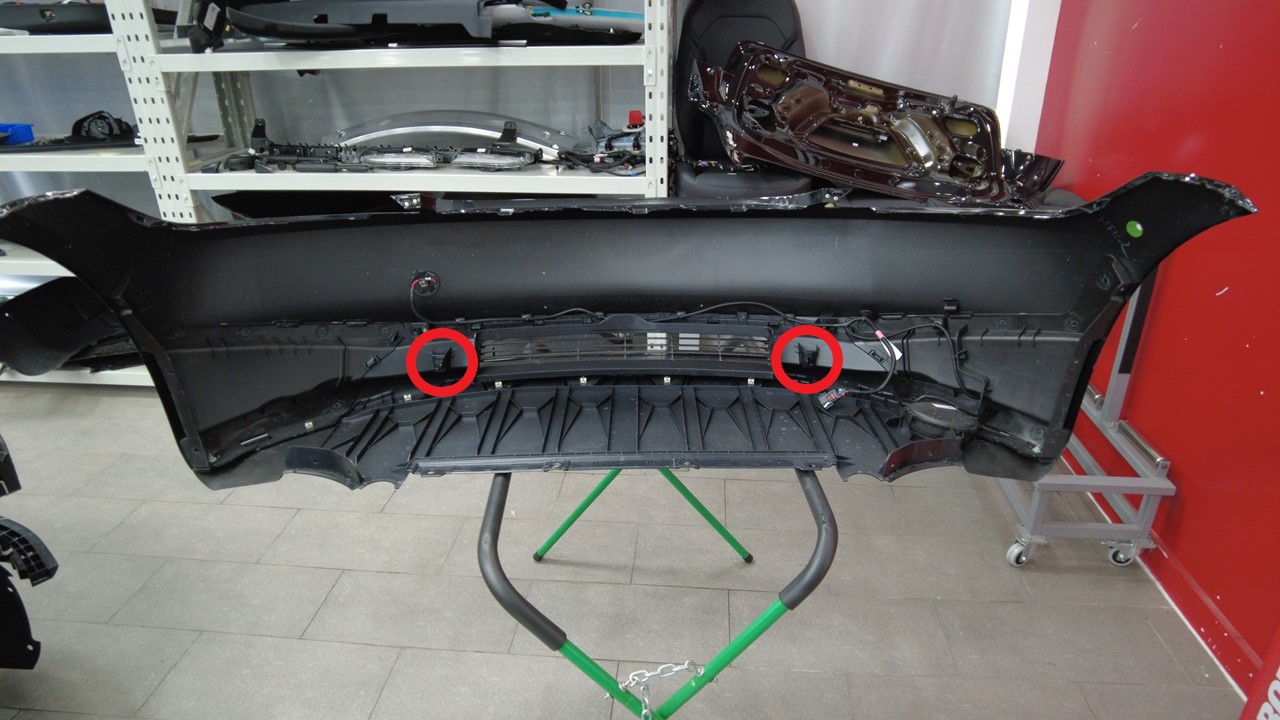

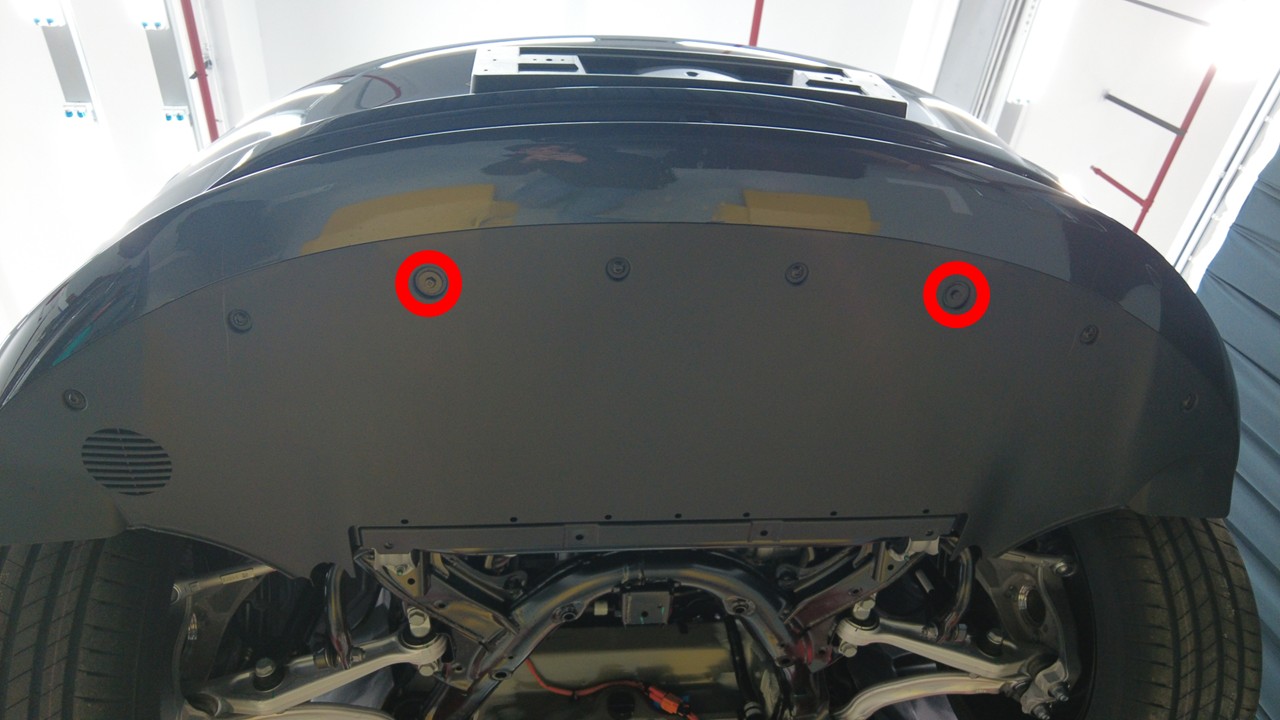

For vehicles produced after August 27, 2025: Remove the bolts (x2) that attach the front fascia to the ankle catcher.
TIp
Use of the following tool(s) is recommended:

10 mm socket

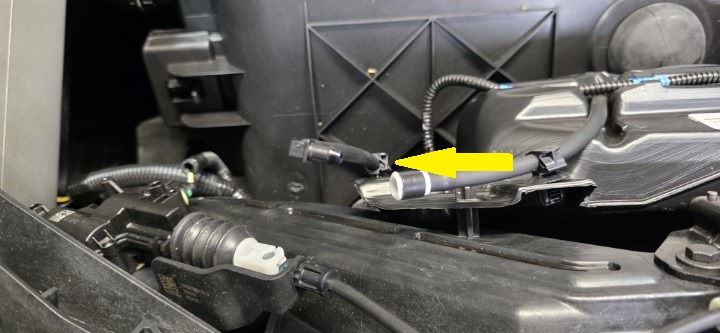

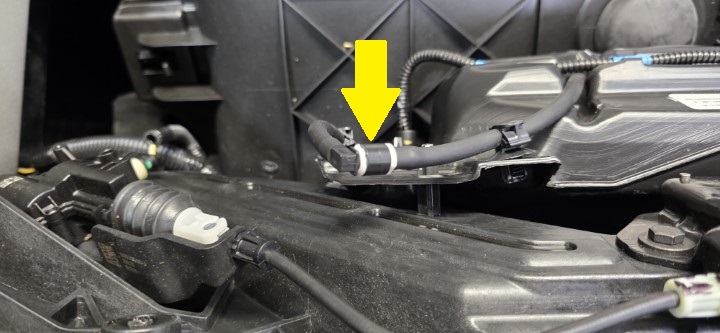

Release the clip that attaches the washer hose to the body, and then disconnect the nano nozzle to disengage the washer hose.

Note
The hose may not be present on early production vehicles. If not, skip this step.

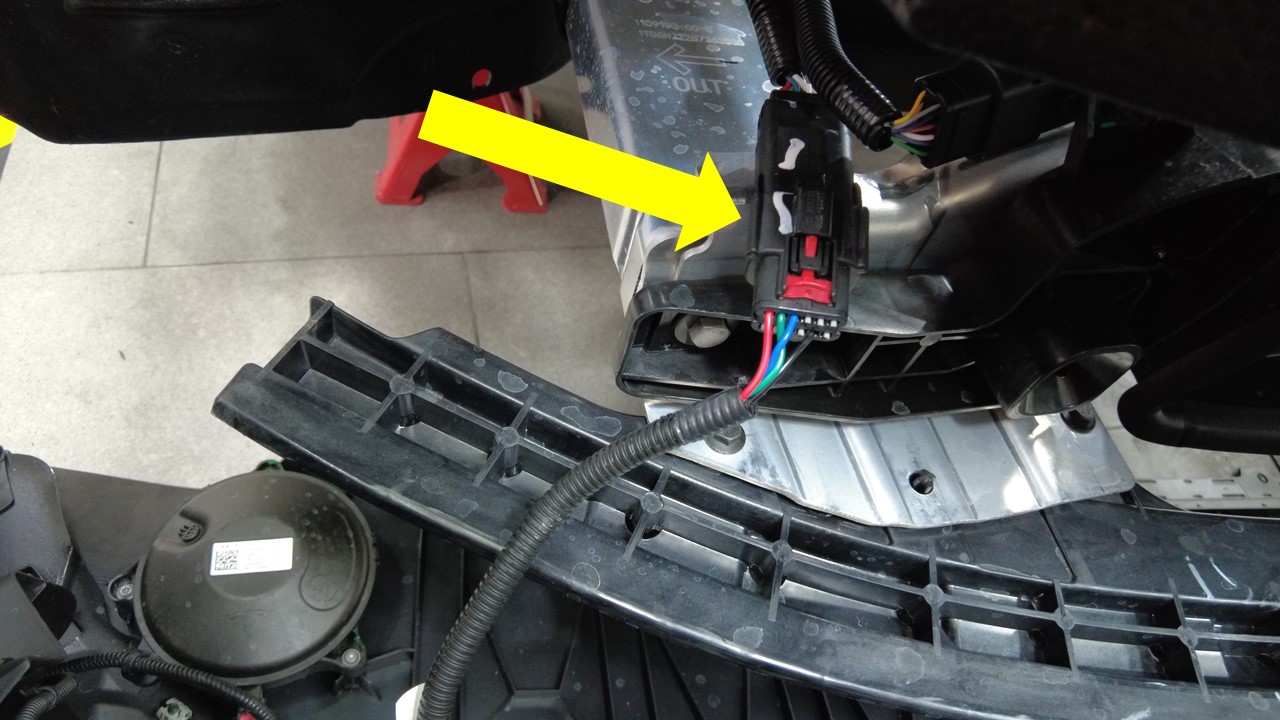

Disconnect the front fascia connector(s).

Note
On early production vehicles, there is only 1 connector.

Figure 1. 1 Connector

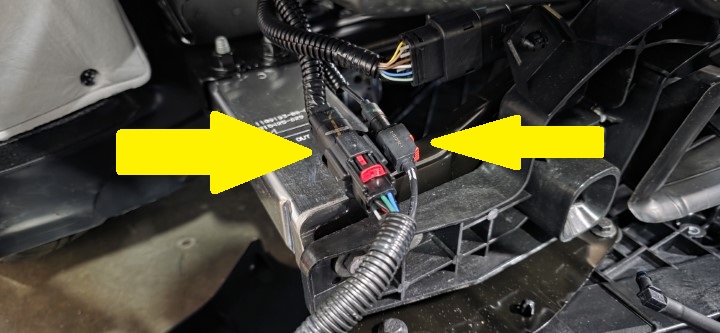

Figure 2. 2 Connectors
With assistance, release the clips (x16) that attach the front fascia assembly to the vehicle, and then remove the assembly from the vehicle.

CAUTION
Take care not to damage the headlights and the front fenders during removal.

Note
Release both the front corners first, and then pull upward and away from the vehicle to release all clips.

Note
Place the front fascia assembly on a padded surface.

Install

Connect the front fascia connector(s).

Note
On early production vehicles, there is only 1 connector.

Figure 3. 1 Connector

Figure 4. 2 Connectors
Fasten the clips (x16) that attach the front fascia assembly to the vehicle.

CAUTION
Take care not to damage the headlights and the front fenders during installation.

Note
Fasten the front fender clips first, and then the outside concern clips.
Install the clip that attaches the washer hose to the body, and engage the nano nozzle to connect the washer hose.

Note
The hose may not be present on early production vehicles. If not, skip this step.

Note
Perform a pull-push-pull test to verify the washer hose is properly engaged.
Install the bolt that attaches the front fascia to the LH front fender.
2.5 Nm (1.8 lbs-ft)
TIp
Use of the following tool(s) is recommended:

8 mm deep socket
Fasten the clips (x5) that attach the LH front wheel arch liner to the front fascia, and then move the liner aside for access.
Repeat step 4 through step 5 on the RH side of the vehicle.
Install the bolts (x5) that attach the upper portion of the front fascia to the vehicle.
3.5 Nm (2.6 lbs-ft)
TIp
Use of the following tool(s) is recommended:

10 mm deep socket
For vehicles produced after August 27, 2025: Install the bolts (x2) that attach the front fascia to the ankle catch.
3 Nm (2.2 lbs-ft)
TIp
Use of the following tool(s) is recommended:

10 mm socket
Apply a thin bead of Loctite 222 to the threads of the bolts (x4) that attach the valance to the front aero shield panel.
5 Nm (3.7 lbs-ft)
TIp
Use of the following tool(s) is recommended:

10 mm deep socket
Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
