NVH Pad - Door - Rear - LH (Remove and Replace)
Correction code
1513020032
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Open the LH rear door, and then lower the LH rear window.
- Remove the LH rear door puddle light. See Puddle Lamp - Front Door (LH) (Remove and Replace).
- Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
-

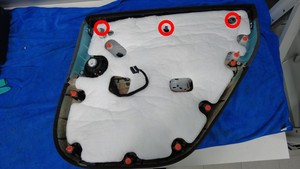

Release the LH rear door NVH
pad from the tabs (x3), and then remove it from the LH rear door trim
panel.
-
Remove leftover clip retainers from the LH rear door.
WarningThe video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
Install
-

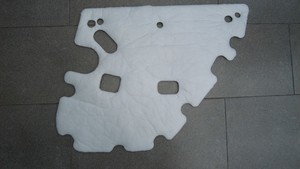

Install the LH rear door NVH
pad onto the LH rear door trim panel.
- Install the LH rear door puddle light. See Puddle Lamp - Front Door (LH) (Remove and Replace).
- Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
- Raise the LH rear window, and then close the LH rear door.
