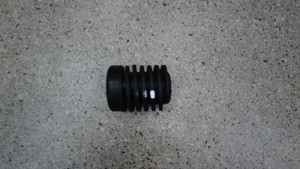

Bump Stop - Liftgate (Remove and Replace)

Correction code 1133070012 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the liftgate.

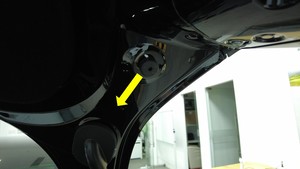

  2. Rotate the LH liftgate bump stop counter clockwise to remove it from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Count the number of turns it takes to remove the bump stop.

Install

  1. Install the bump stop to the vehicle using the same number of turns as noted in the removal.
  2. Close the liftgate.
  3. Verify the flushness from the liftgate to the rear fascia assembly, and adjust as necessary.
