2024-05-06
Breather - Rear Drive Unit (4DU) (Remove and Replace)
Correction code
4001010022
FRT
2.46
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove the rear subframe assembly. See Subframe Assembly - Rear (Remove and Replace).
-

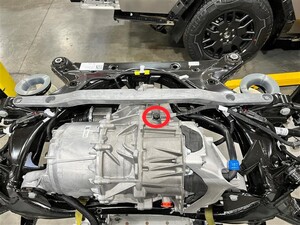

Remove the breather from the rear drive unit.
Install
-

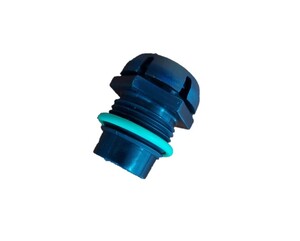

Install the breather onto the rear drive unit.
5 Nm (3.7 lbs-ft) - Install the rear subframe assembly. See Subframe Assembly - Rear (Remove and Replace).
- Check the vehicle wheel alignment, and adjust if necessary. See Four Wheel Alignment Check (No Adjustment Needed) (Test/Adjust).
