Bracket - License Plate - Rear (China) (Remove and Replace)

Correction code 12070101002 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

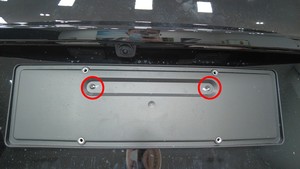

  1. Remove the screws that attach the rear license plate bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • 2 in extension
    • Cordless Ratchet/Impact Driver

Install

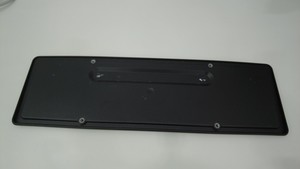

  1. Verify the thread inserts were not damaged during removal, and clean the surface area with IPA wipes.
  2. Position the rear license plate bracket onto the vehicle, and then install the screws that attach the bracket to the vehicle.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only)
    • Wiha torque setter
