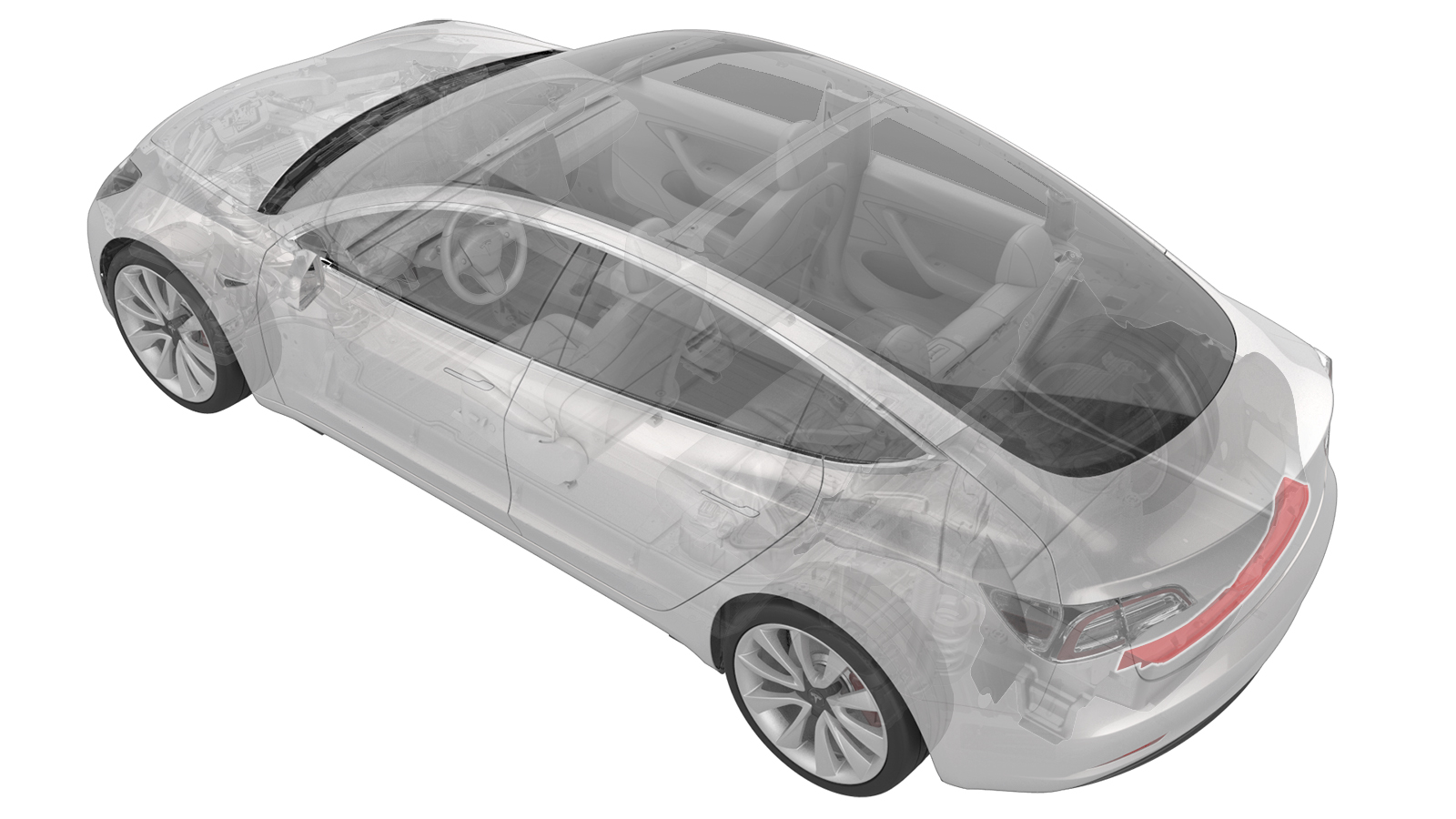

Trim - Trunk Sill (Remove and Replace)

Correction code 1518010232 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear trunk load floor assembly. See Load Floor - Trunk (Remove and Replace).

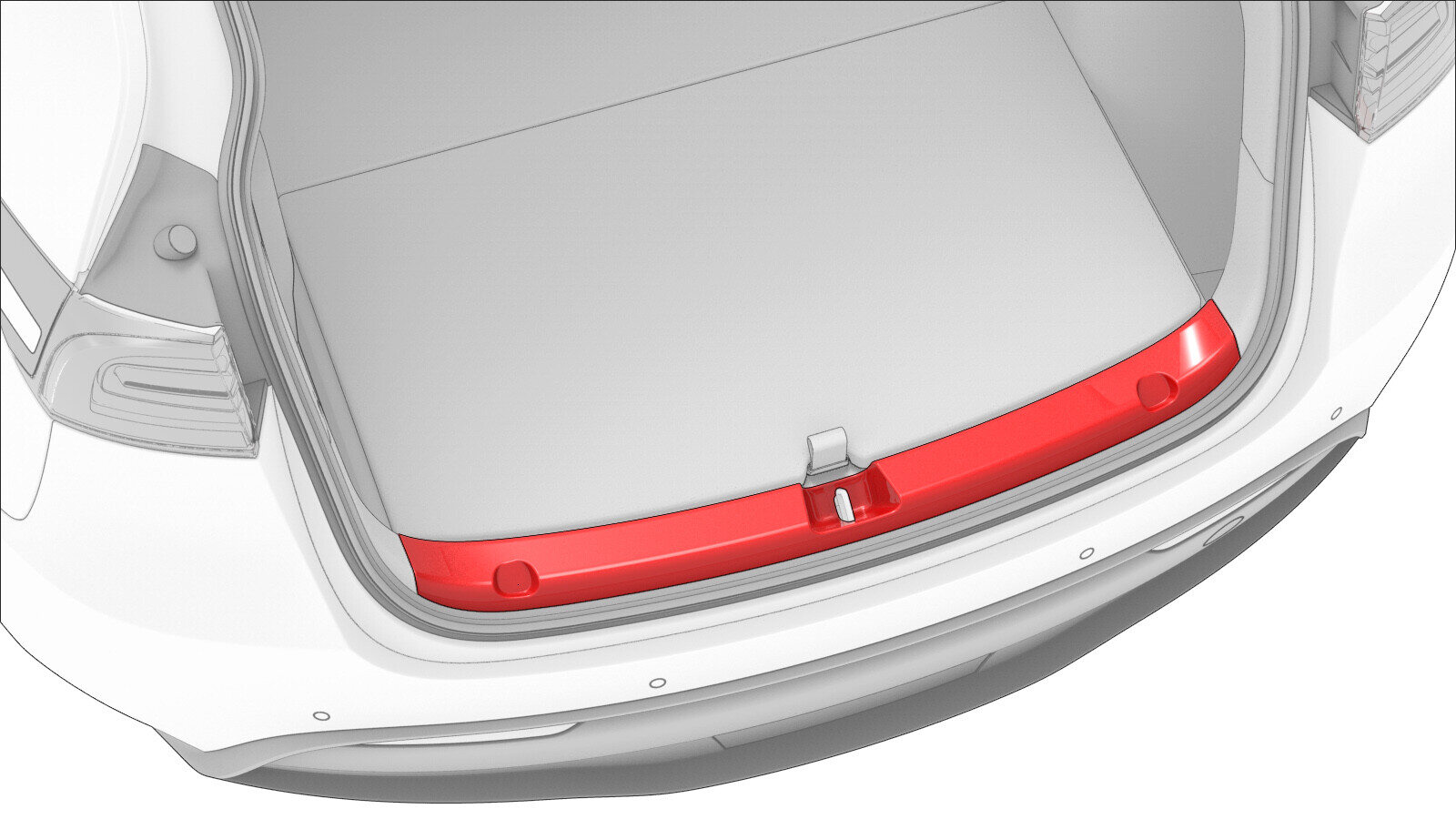

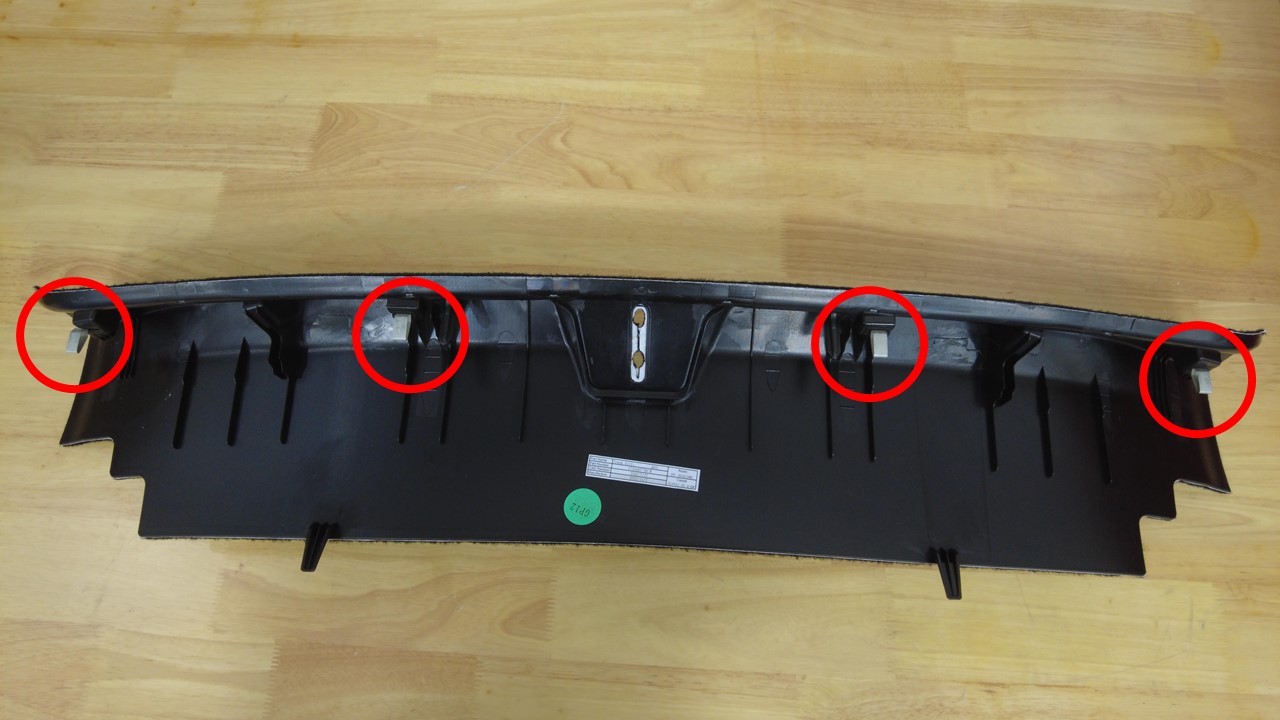

  2. Release the clips that attach the trunk sill trim to the body.
    Tip
    Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.

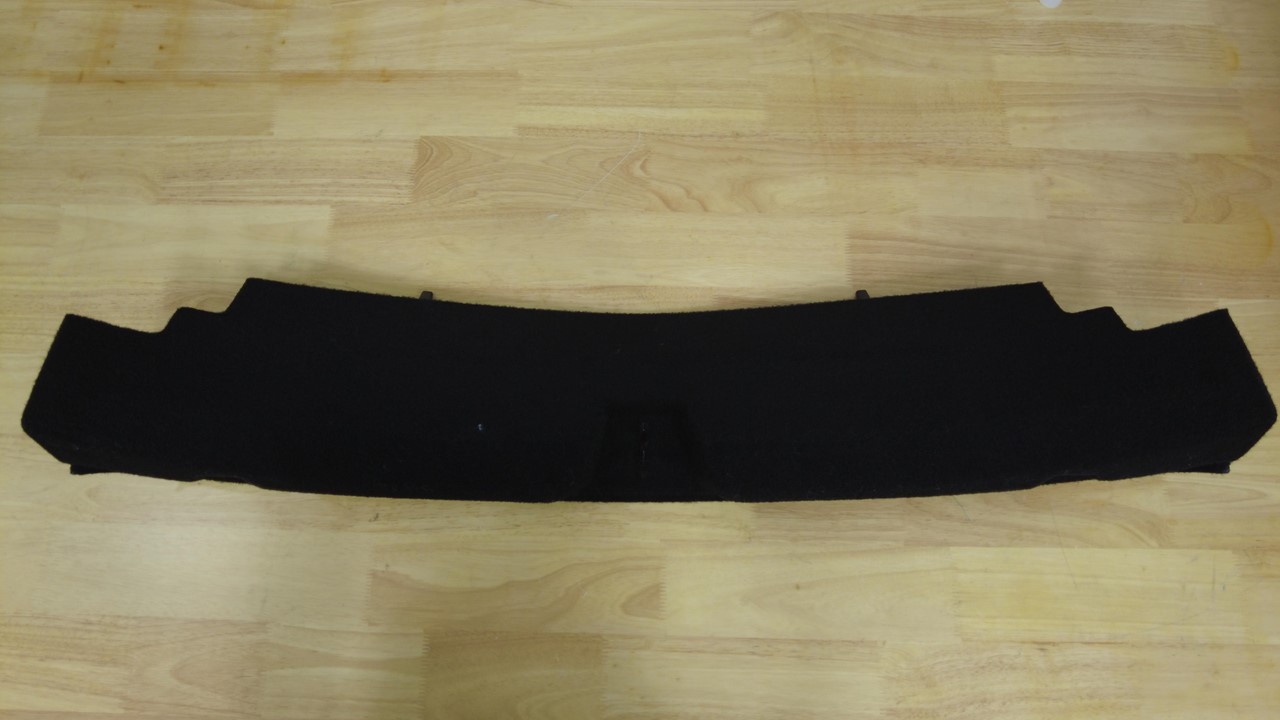

  3. Remove the trunk sill trim from the vehicle.

Install

  1. Align the trunk latch with the slot in the trunk sill trim, align the long tabs (x2) with the slots on the trunk lid, and then press down on the trim to attach all remaining clips and tabs.
    Note
    Make sure that the trunk seal overlaps the trunk sill trim.
  2. Install the rear trunk load floor. See
