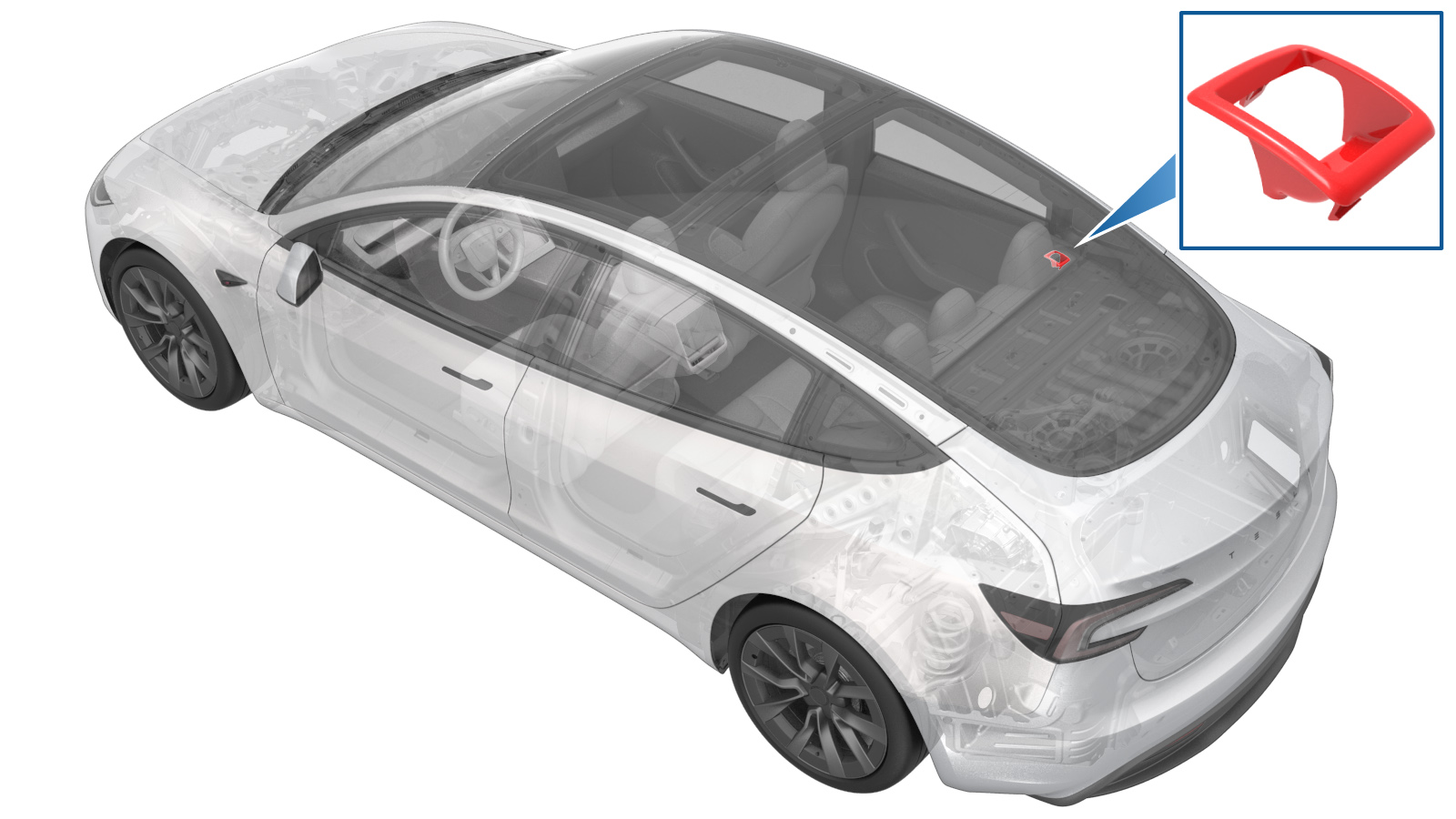

Bezel - Handle - Seat Back - 2nd Row - RH (Remove and Replace)
Correction code
1305020032
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Open the RH rear door and lower the RH rear window.
- Fold the RH 2nd row seat down.
-

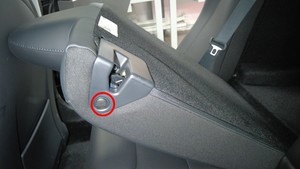

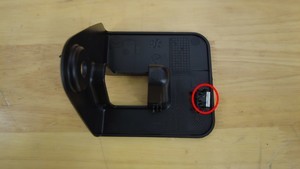

Use a clip pry tool to
release the push clip and metal clip that attach the RH 2nd row seat back
latch release bezel to the seat back, and then remove the bezel from the
seat back.
Install
- Install the RH 2nd row seat back latch release bezel into the RH 2nd row seat back, and then fasten the clips that attach the bezel to the seat back.
- Unfold the RH 2nd row seat back so that it is upright and secured.
- Raise the RH rear window and close the RH rear door.
