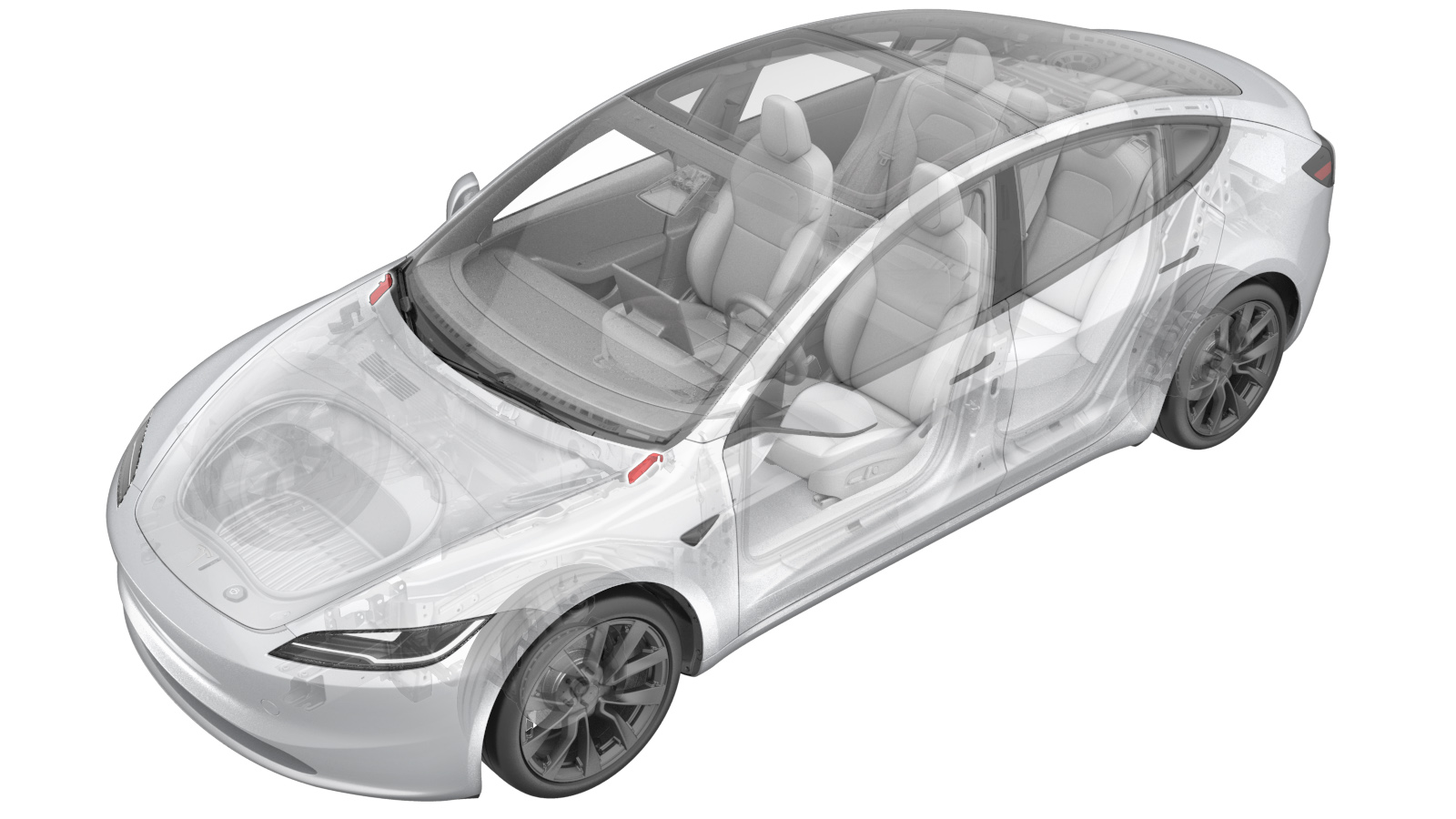

Cover - Hood Hinge - LH (Remove and Replace)

Correction code 1133030012 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the hood.

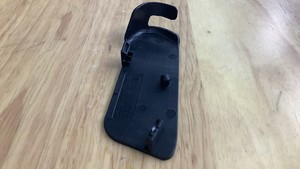

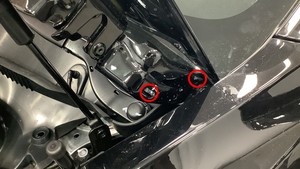

  2. Release the clips that attach the LH hood hinge cover to the hood hinge, and then remove the LH hood hinge cover.

Install

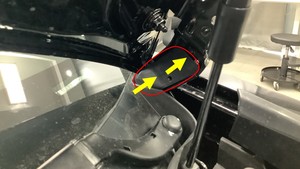

  1. Install the lower portion of the cover onto the hinge, then press it up to fully seat the cover.
  2. Close the hood.
