NVH Pad - IP Carrier (Remove and Replace)
Correction code
1405010092
FRT
1.26
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2024-04-03: Updated the reference topic.
Remove
- Remove the IP carrier. See IP Carrier (Remove and Install).
-

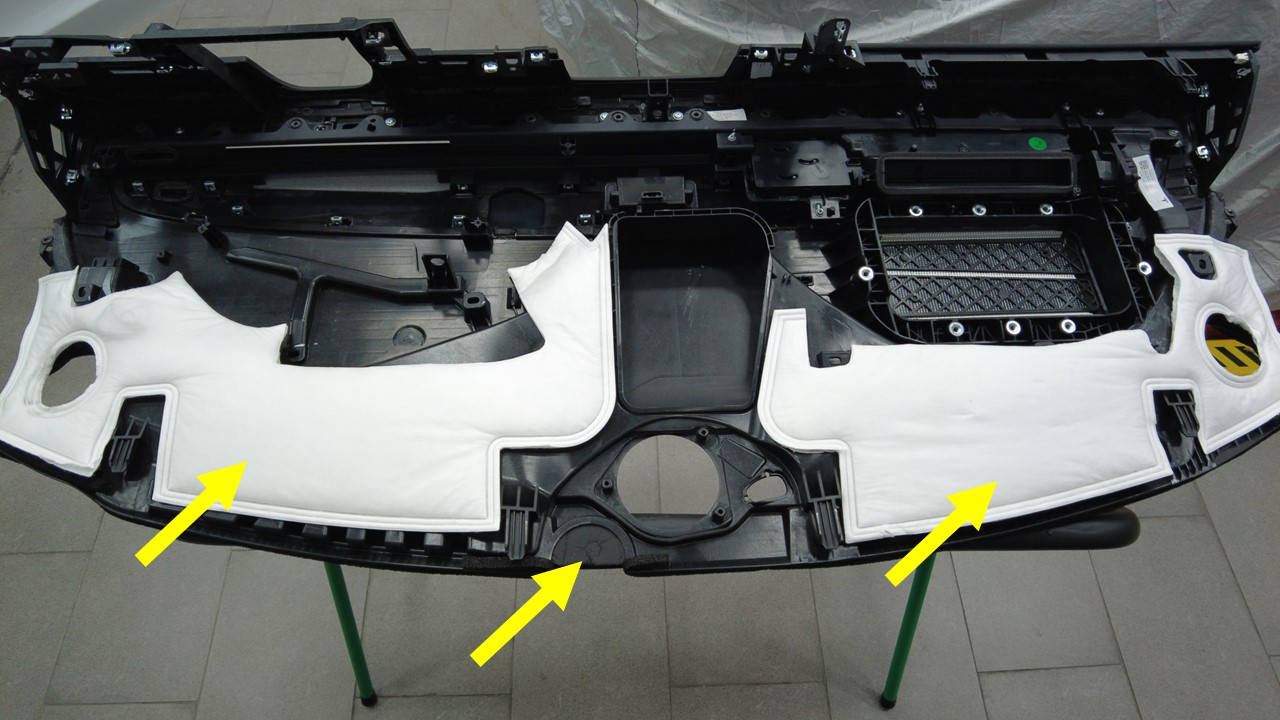

Peel the instrument panel
NVH pad from the instrument panel carrier.
WarningThe video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
Install
-
Install the instrument panel NVH pad from the instrument panel
carrier.
- Install the IP carrier. See IP Carrier (Remove and Install).
