Side Shield - Inboard - LH (Remove and Replace)

Correction code 1307010132 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

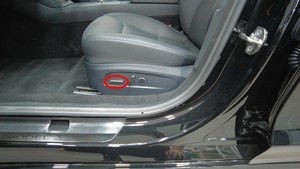

  2. Move the LH front seat backward.
  3. Open the RH rear door and lower the RH rear window.
  4. Remove the inboard side shield:

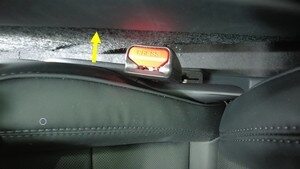

    1. Release the front clips that attach the inboard side shield to the seat inner seat rail.
      Informational PurposesAn informational icon, calling your attention
      Note

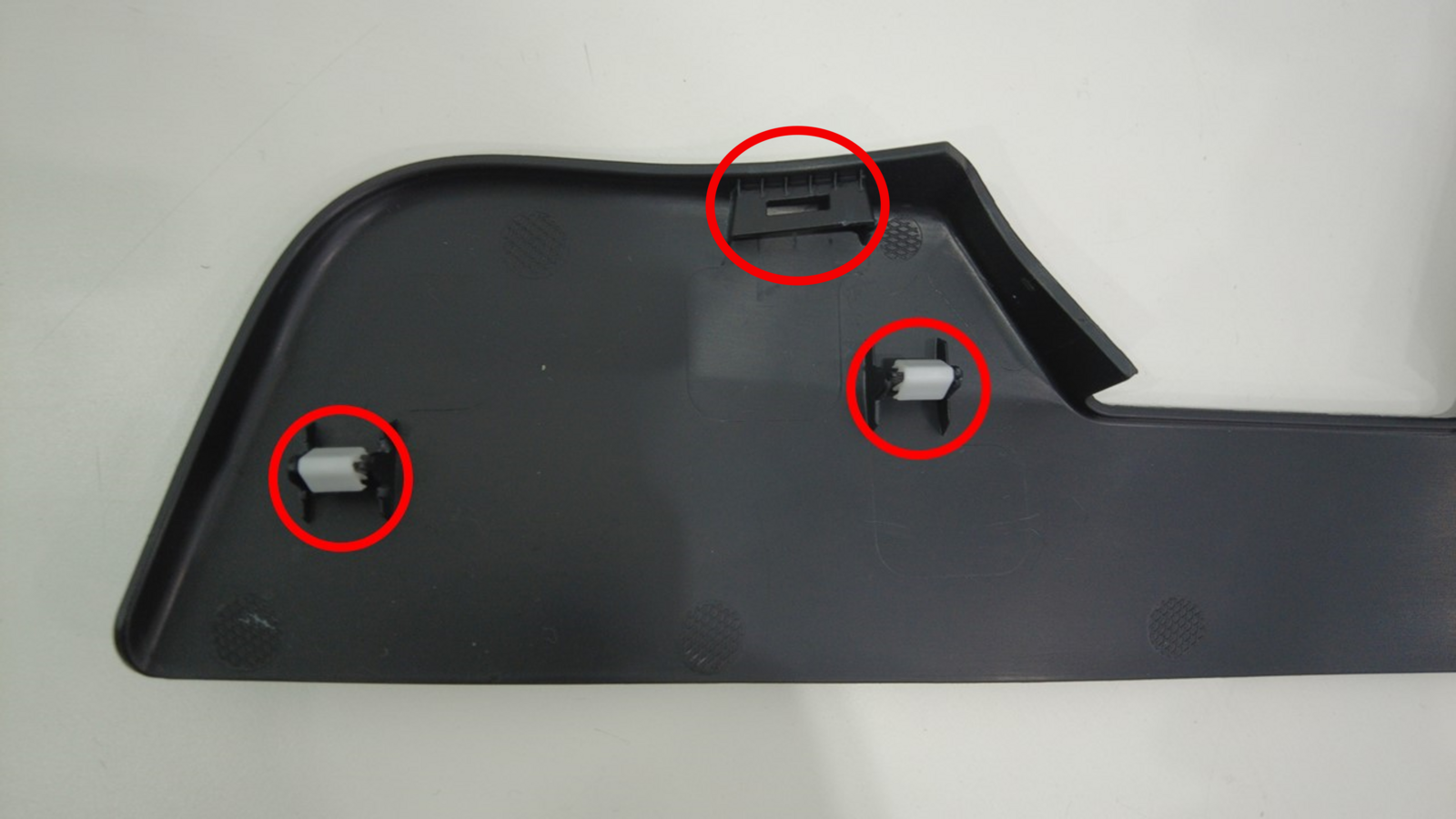

      Release the lower clips first and then the upper positioning clip. Do not fully remove the inboard side shield for the risk of damage.

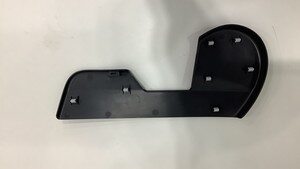

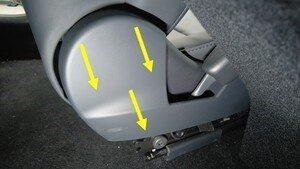

    2. Pull the rear portion of the inboard side shield outward to release it from the inner seat rail.

Install

  1. With the aid of a flashlight, maneuver the clips of the rear portion of the inboard side shield into position, then apply light pressure to the rear portion to secure it to the inner seat rail.
  2. With the aid of a flashlight, engage the front clips of the inboard side shield to the inner seat rail.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install the upper positioning clip first and then the lower clips.
  3. Raise the RH rear window and close the RH rear door.
  4. Return the LH front seat to its original position.
  5. Raise the LH front window and close the LH front door.
