Air Vent - Driver (Remove and Replace)

Correction code 1405030052 FRT 1.62 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-10: Updated the screw torque value securing the vent to the IP carrier and added HVAC routines after replacement.
Table 1. Torque Specifications: Air Vent - Driver (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screw that attaches the LH front vent to the instrument panel carrier
0.9 Nm (8 lbs-in)
  • Cordless Ratchet/Impact Driver
  • 6 in extension
  • Torx T20 socket
  • Ratchet/torque wrench
 Reuse

Remove

  1. Remove the IP carrier. See IP Carrier (Remove and Install).

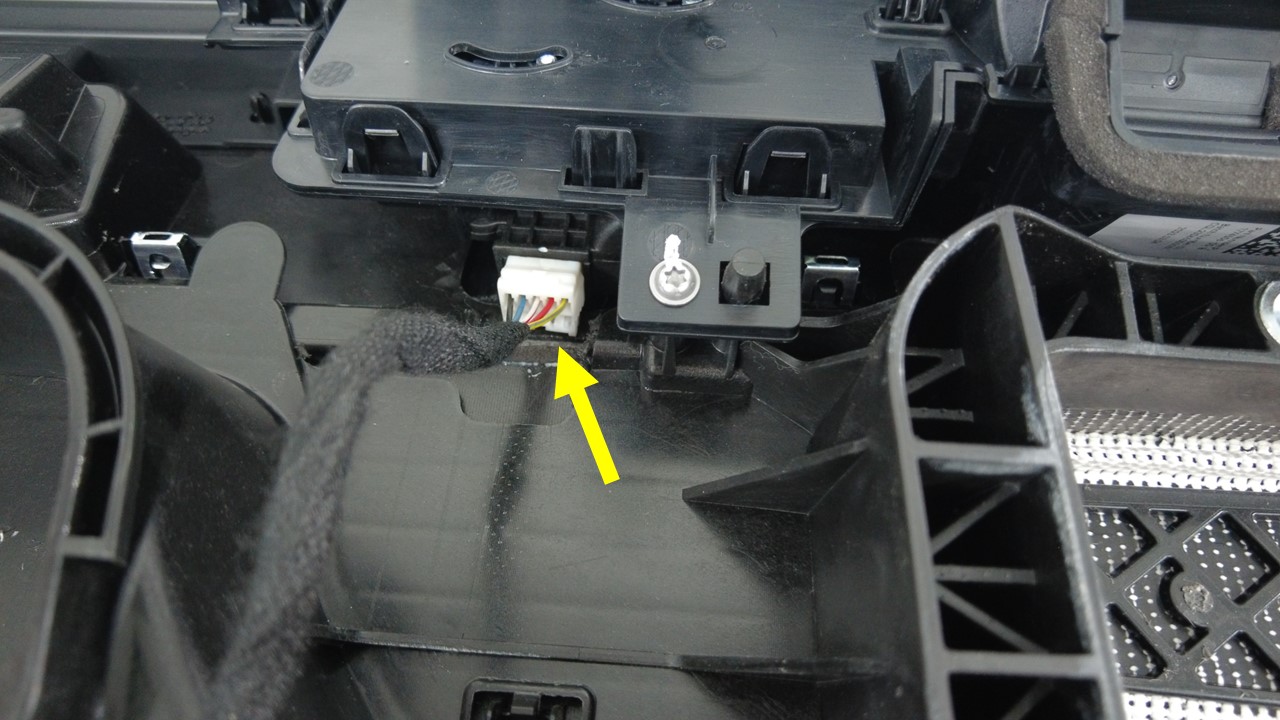

  2. Disconnect the LH front vent height adjustment actuator connector.

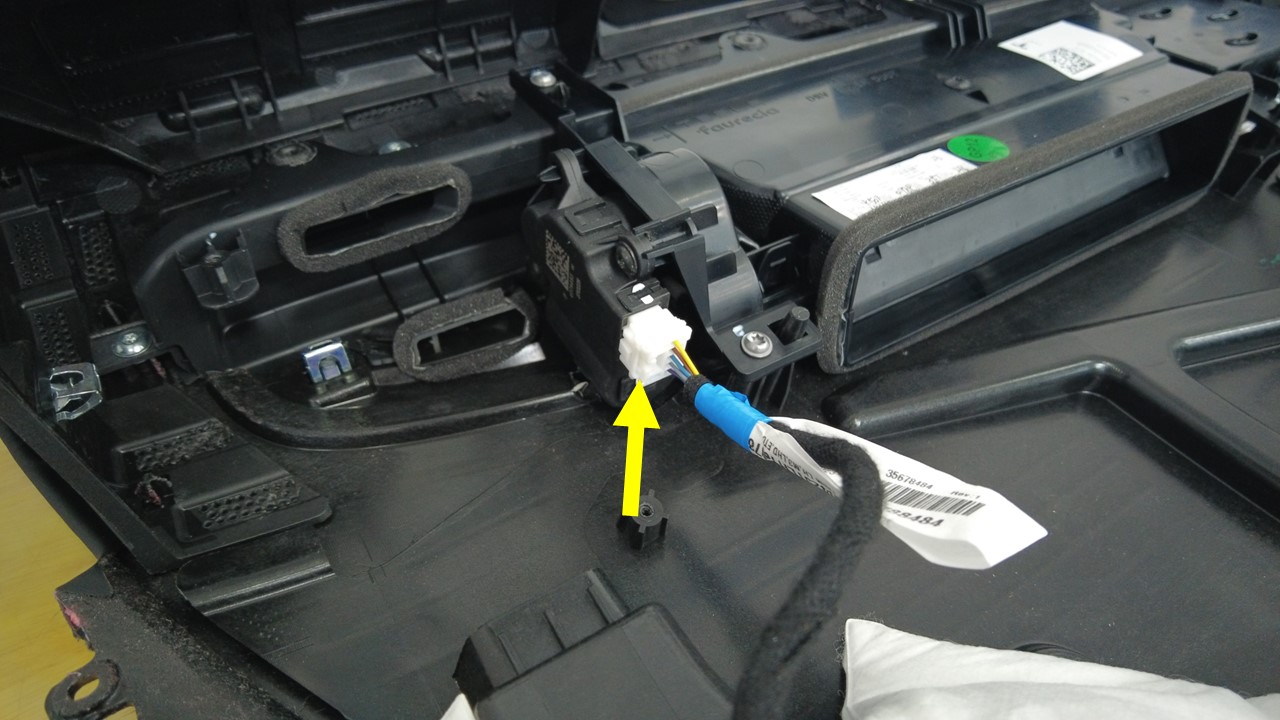

  3. Disconnect the LH front vent horizontal adjustment actuator connector.

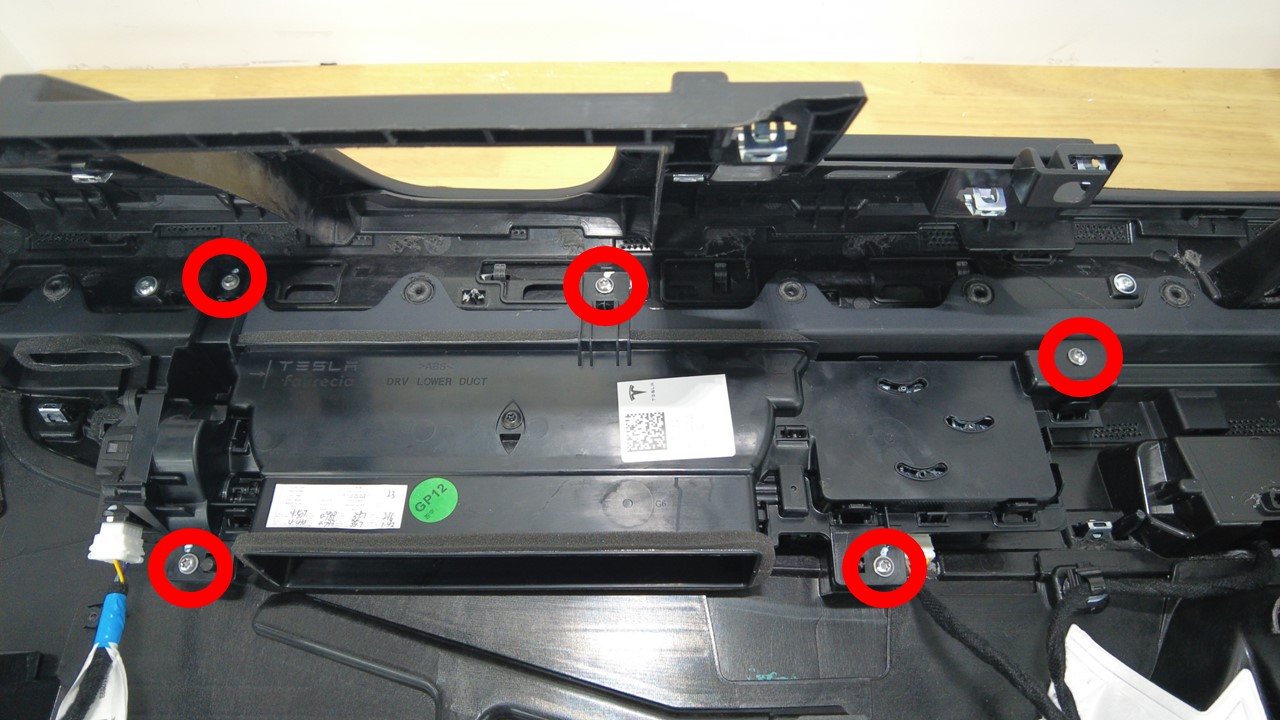

  4. Remove the screws (x5) that attaches the LH front vent to the instrument panel carrier, and then remove the LH front vent from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 6 in extension
    • Torx T20 socket
    • Ratchet/torque wrench

Install

  1. Install the LH front vent to the instrument panel, and then install the screws (x5) that attach the LH front vent to the instrument panel.
    0.9 Nm (8 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 6 in extension
    • Torx T20 socket
    • Ratchet/torque wrench
  2. Connect the LH front vent horizontal adjustment actuator connector.
  3. Connect the LH front vent height adjustment actuator connector.
  4. Install the IP carrier. See IP Carrier (Remove and Install).
  5. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): TEST-SELF_VCRIGHT_X_HVAC-CASE-ACTUATORSvia Toolbox:(link)
  6. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): TEST-SELF_VCRIGHT_L_HVAC-VANE-ACTUATORvia Toolbox:(link)
  7. Exit Service Mode. See Service Mode.
  8. Raise the LH front window and close the LH front door.
