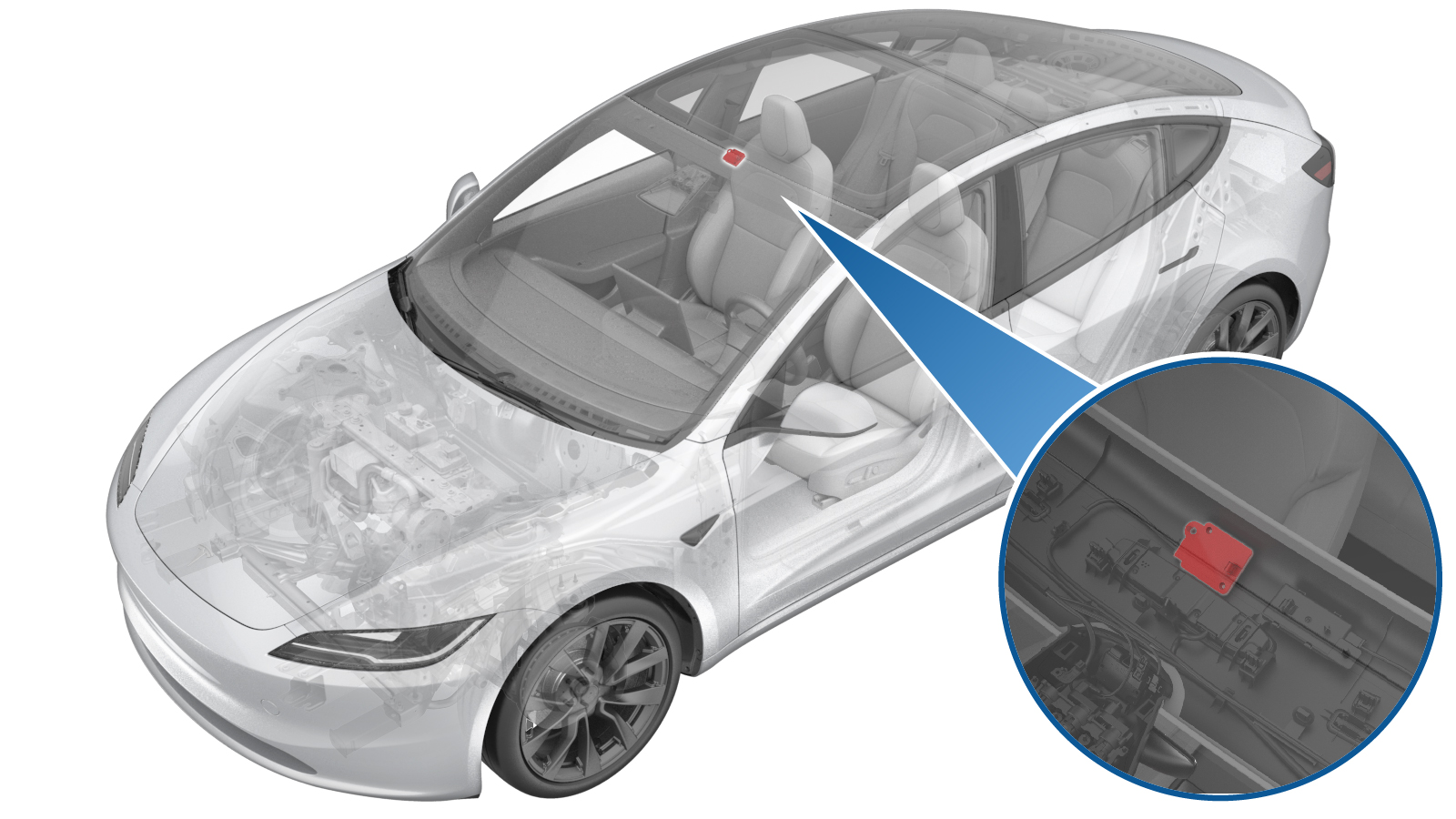

Radar - Cabin (Remove and Replace)

Correction code 1720010052 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Radar - Cabin (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the interior radar to the body
10 Nm (7.4 lbs-ft)
  • Pick Miniature Soft Grip, 90 degree tip, 6 in
  • 10 mm magnetic deep
 Reuse

Remove

  1. Remove the magnetic check base. See Visor Check - Magnetic (Remove and Replace).

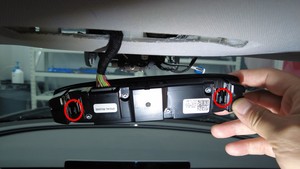

  2. Release the clips (x2) that attach the front overhead console to the headliner, and then lower the console from the headliner.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION

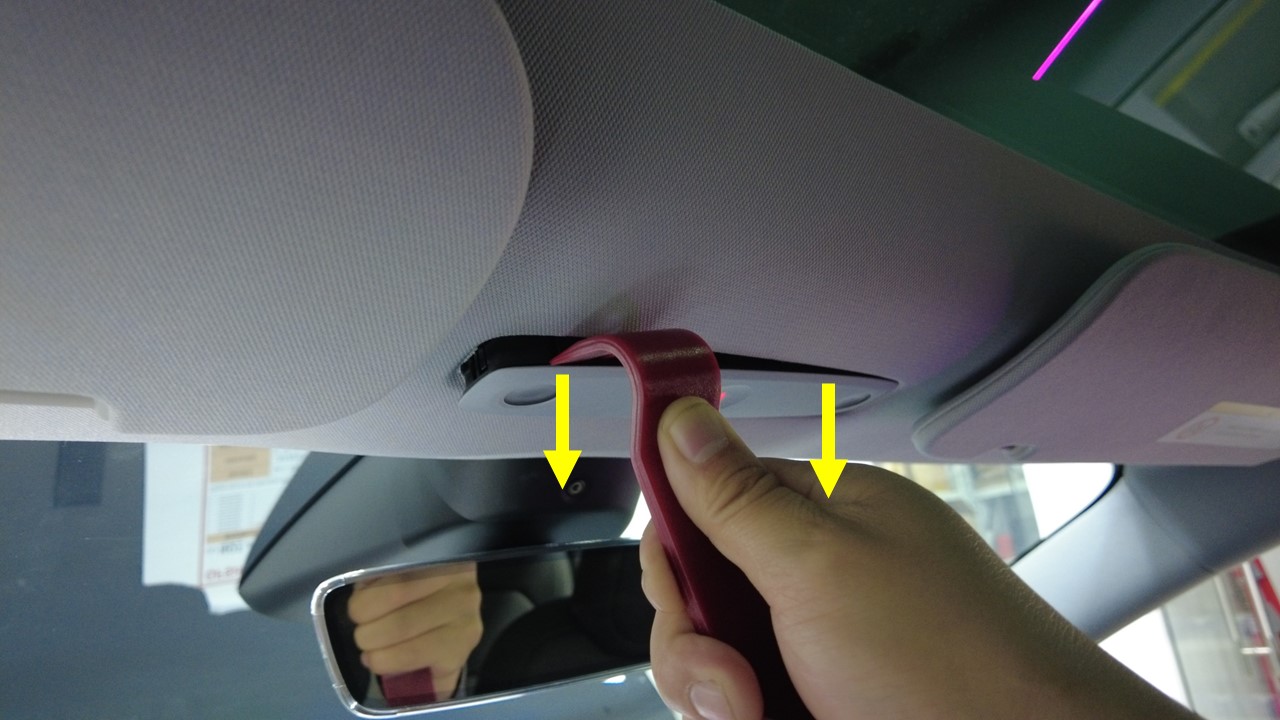

    To avoid damaging the headliner, do not pry against the headliner. Insert a 90 degree trim tool near the dome light and pull downwards to release the clip, and then move to the other side to release the remaining clip.
  3. Release the clips (x4) that attach the front of the headliner to the vehicle to lower it.

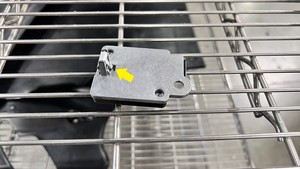

  4. Disconnect the connector from the interior radar assembly, release the bolt that attaches the interior radar to the body, then use a clip pry tool to release the clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is captive inside the radar housing and cannot be removed from the radar assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    • 10 mm magnetic deep
  5. Remove the interior radar assembly from the vehicle.

Install

  1. Fasten the clip, install the bolt that attaches the interior radar to the body, then connect the connector to the interior radar assembly.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    • 10 mm magnetic deep
  2. Install the clips (x4) that attach the front of the headliner to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    If any clip is damaged, replace it.
  3. Install the clips (x2) that attach the front of the overhead console to the headliner.
  4. Reinstall the software. See Software Reinstall - Touchscreen.
  5. Install the magnetic check base. See Visor Check - Magnetic (Remove and Replace).
